ERH-SD Series
ERH Series Emergency LED Self-Diagnostic Remote Light Fixture, Single Head
Product description
The ERH-SD Series LED Remote lamps are designed to work with any of NICOR’s 3.6VDC self diagnostic LED exit or emergency lighting units with remote capability. This sleek, contemporary design offers adjustable heads that complement any environment. The ERH remote lamps are available in single or dou…
The ERH-SD Series LED Remote lamps are designed to work with any of NICOR’s 3.6VDC self diagnostic LED exit or emergency lighting units with remote capability. This sleek, contemporary design offers adjustable heads that complement any environment. The ERH remote lamps are available in single or double head configurations.

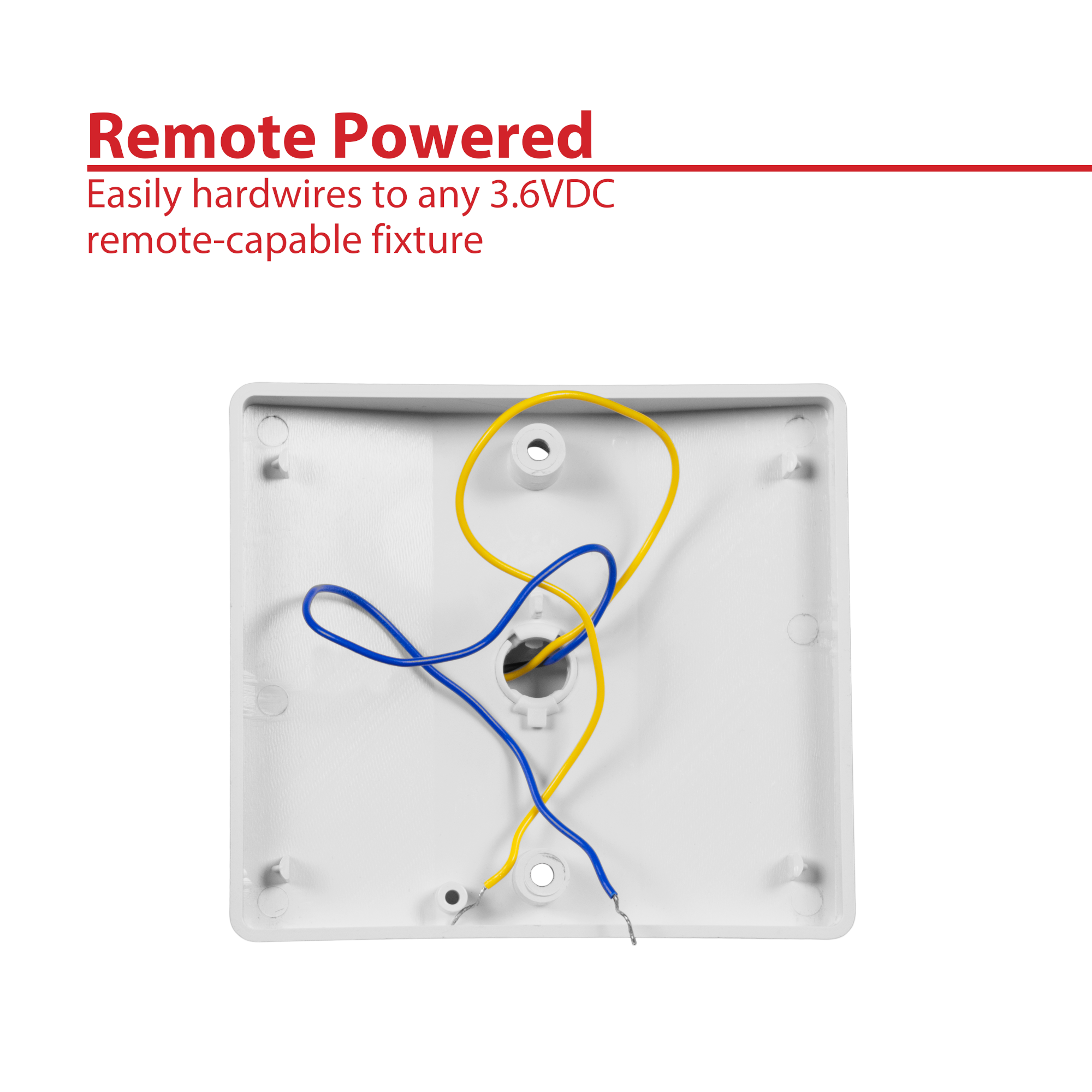

- Remote head for 3.6V self-diagnostic emergency systems
- Works with the NICOR ECL3-SD and EML3-SD remote-capable models
- Adjustable heads (±45° tilt, 330° rotation)
- Flame-retardant thermoplastic housing construction
- Efficient LED output (up to 226 lumens dual head)
Color Options:
Ordering information
Downloads
Specifications
-
Lumens113 -
Wattage1.2
Listings & certifications
Listings & Certifications
- cULus Listed
- UL 94 V-0 (Flame Resistance)
- FCC Class A
- Dry-Location
Features
Construction

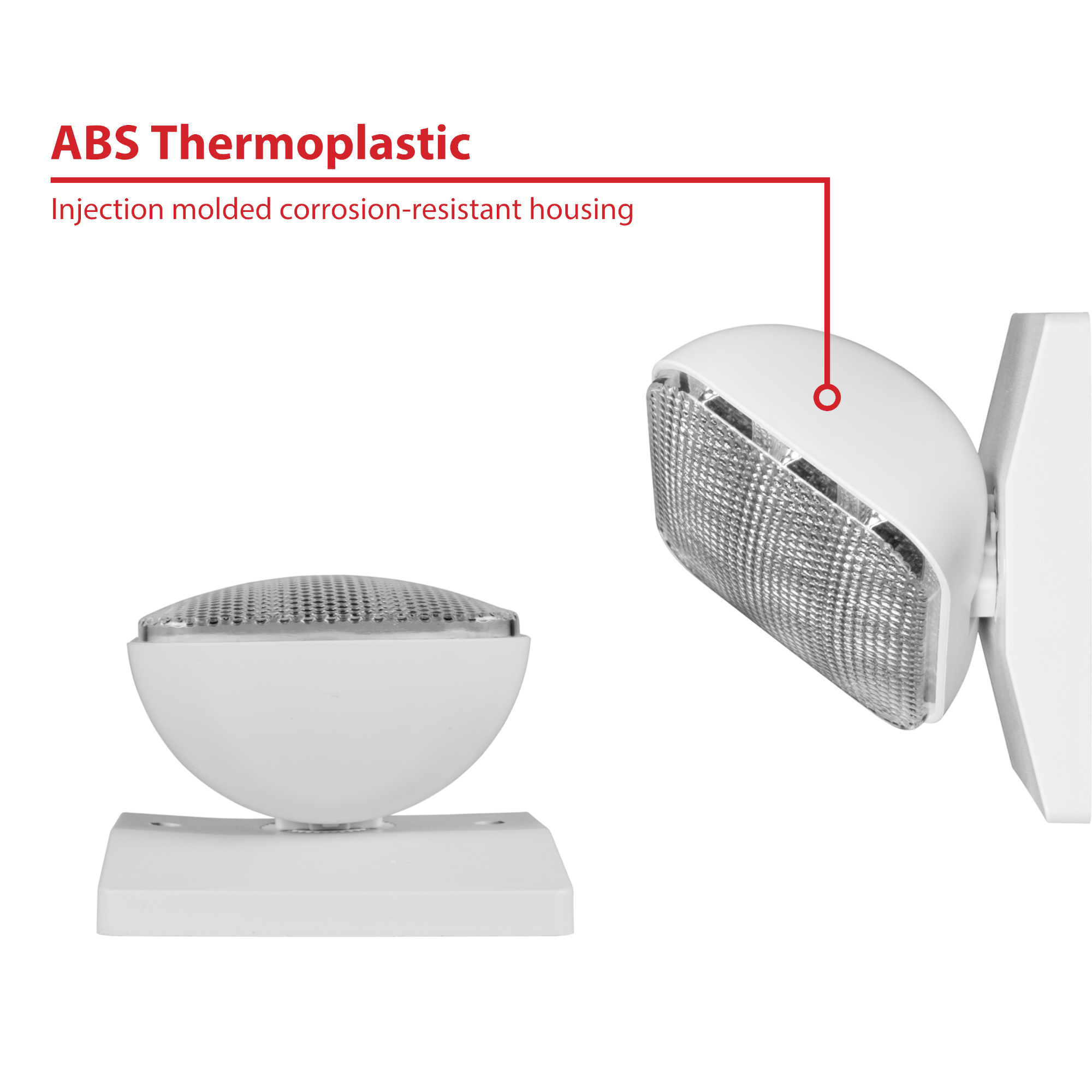

- Injection molded thermoplastic ABS housing.
- UL-94v-0 Flame rating - Flame Retardant

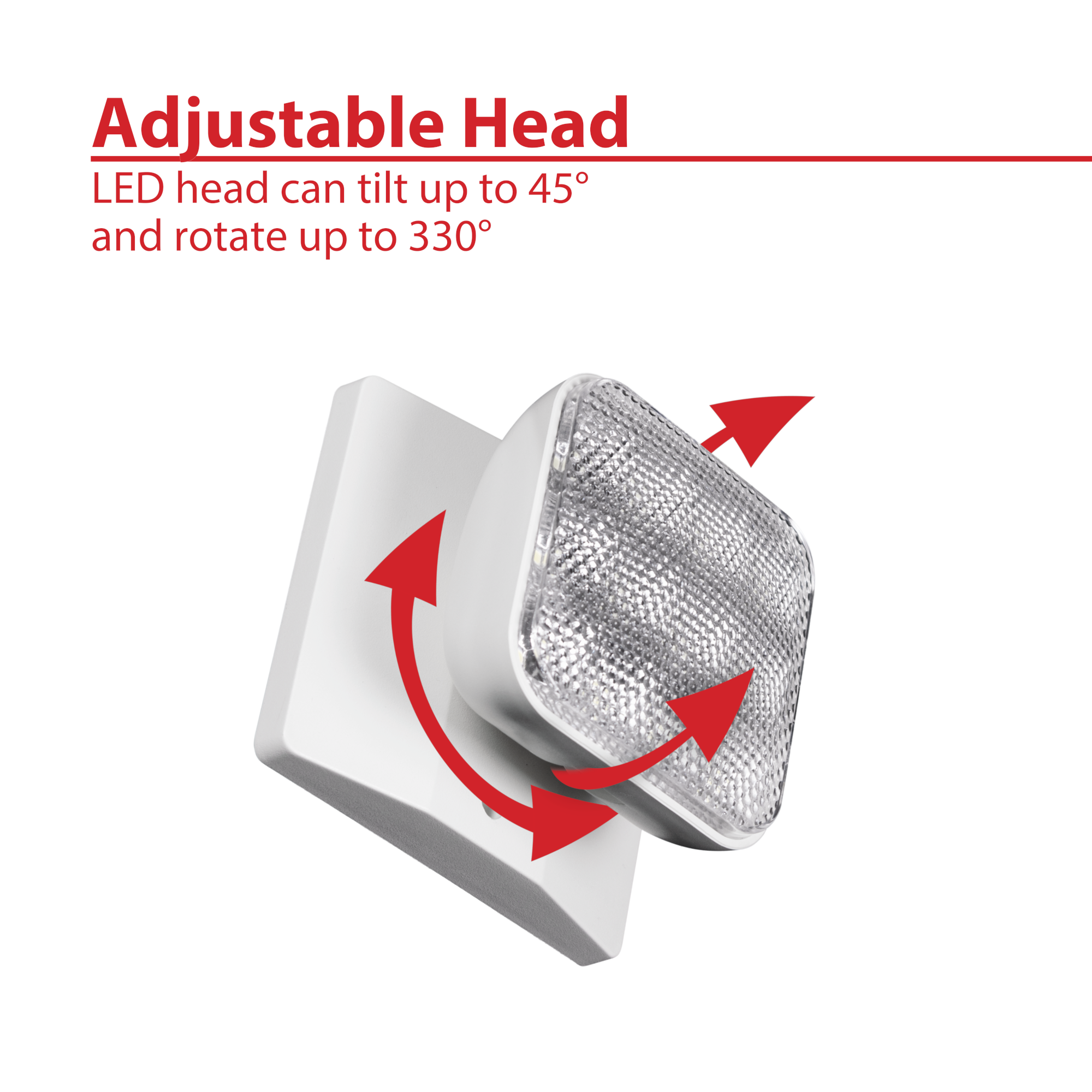

- Adjustable heads for aiming light where required
- Head tilt: ±45°
- Head rotation: 330°
- White unpainted ABS Plastic
Optical System
- Precision engineered Prismatic Lens
Electrical
- Input voltage of 3.6VDC
- 1.2W per head (2.4W max)
Installations

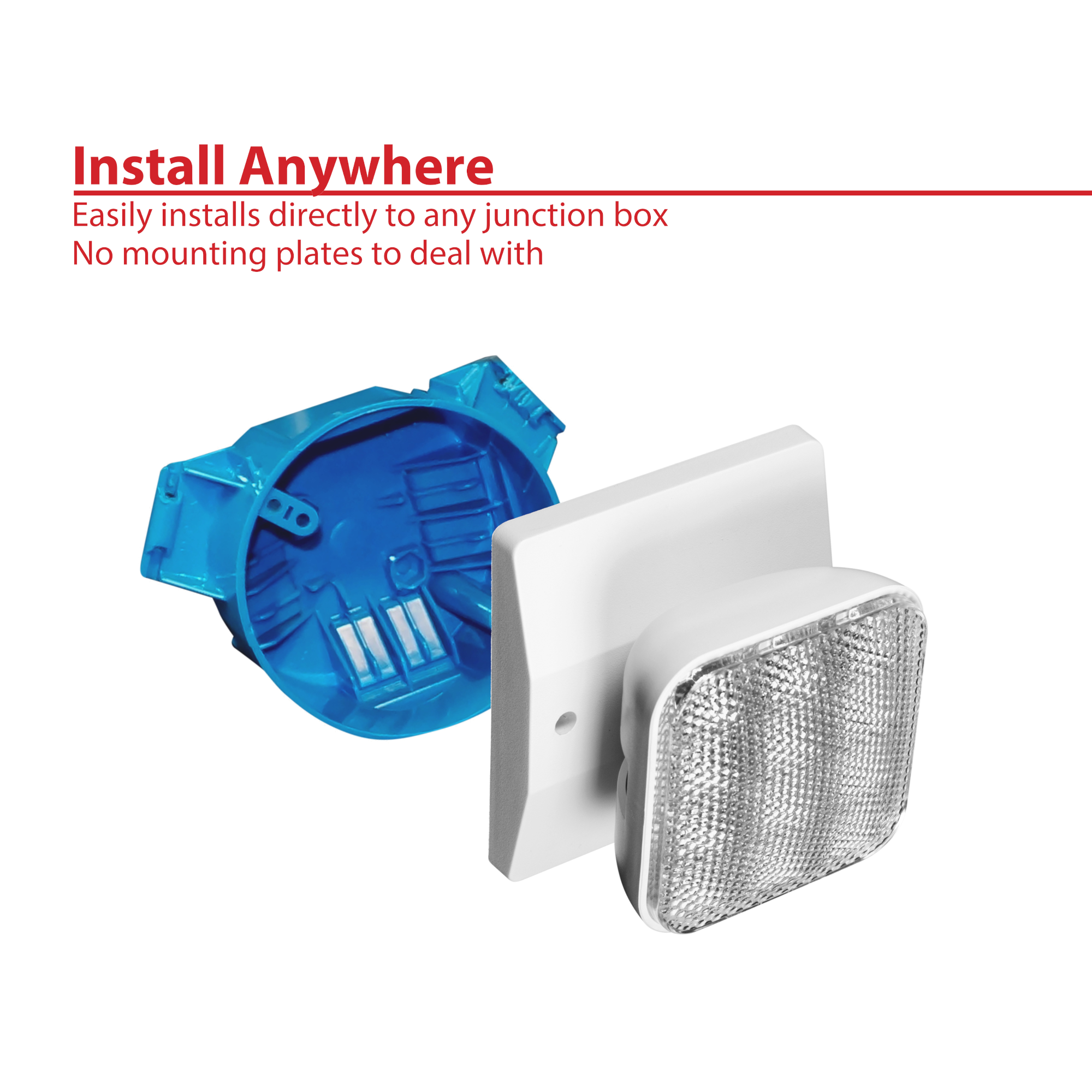

- Easy installation into a standard junction box
Warranty
- 1-year limited system warranty standard
