HIGH-PERFORMANCE HIGH BAY

NICOR introduces the newest high bay product line: the patent pending, ultra-efficient, high performance HML high bay. With only a 10×14″ footprint (on lower wattages), its compact design offers an impressive light output with simple, single-person installation. The DLC 5.1 Premium certified fixture offers a variety of wattage, sensor, and aisle distribution options. It’s durable single-piece cast aluminum design is perfect for rugged applications like warehouses, gymnasiums, and other industrial or commercial spaces.

Categories: Tag:

Specifications

  • Offers multiple power levels: 100W, 130W, 150W, 210W, 300W and 450W
  • Operating temperature rating of -4ºF to 131ºF (-20ºC to 55ºC)
  • Input voltage of 120-277V, 277-480V input option available
  • Dimming: 0-10V standard
  • Standard diffused lens
  • Optional aisle lens (45° x 110°) available
  • Optional wide lens (110° x 110°) available
  • CCTs of 4000K and 5000K with >80 CRI

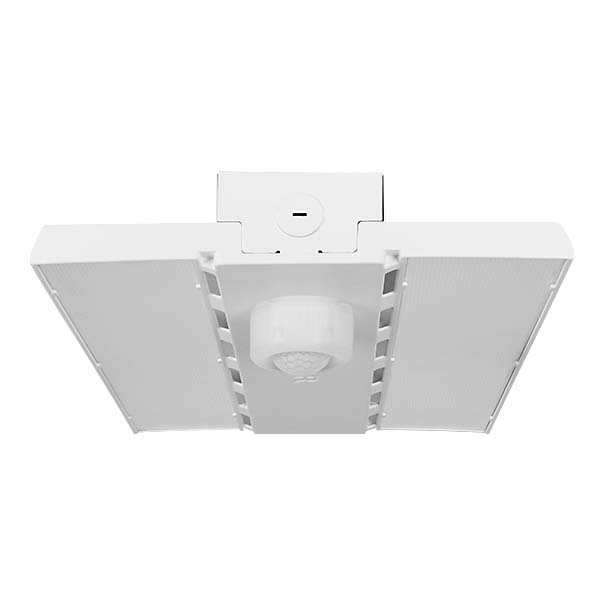

  • Pre-installed sensor socket models available
  • Field installable multifunction MW or PIR sensor available (on sensor socket models)
  • Standard full-range dimming with compatible 0-10VDC dimmers
  • 12VDC output provides power to off-board sensors or controls
  • V-hook and chain mounting system included
  • Wireguard option available for increased fixture protection
  • Pendant mount and surface mount kits available

Downloads

– Warehouse Lighting - Highbay Family Brochure
– Sell Sheet
– Spec Sheet
– Installation Instructions

HML1 - 100W (Standard Distribution)
4000K
Neutral		 5000K
Cool

14200
Lumens

14284
Lumens

101
Input Watts

101
Input Watts

141
lm/W

141
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:
4000K: HML1100U40A
5000K: HML1100U50A
HML1 - 130W (Standard Distribution)
4000K
Neutral		 5000K
Cool

18138
Lumens

18228
Lumens

129
Input Watts

129
Input Watts

141
lm/W

141
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:
4000K: HML1130U40A
5000K: HML1130U50A
HML1 - 150W (Standard Distribution)
4000K
Neutral		 5000K
Cool

20574
Lumens

20675
Lumens

147
Input Watts

147
Input Watts

140
lm/W

141
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:
4000K: HML1150U40A
5000K: HML1150U50A
HML1 - 210W (Standard Distribution)
4000K
Neutral		5000K
Cool

29258
Lumens

29412
Lumens

209
Input Watts

209
Input Watts

140
lm/W

141
lm/W

85
CRI

85
CRI

IES Download

IES Download

Part Numbers:

 4000K: HML1210U40A
 5000K: HML1210U50A
HML1 - 300W (Standard Distribution)
4000K
Neutral		5000K
Cool

42055
Lumens

42266
Lumens

305
Input Watts

305
Input Watts

137
lm/W

138
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:

 4000K: HML1300U40A
 5000K: HML1300U50A
HML1 - 450W (Standard Distribution)

4000K
Neutral		5000K
Cool

66516
Lumens

66850
Lumens

459
Input Watts

459
Input Watts

144
lm/W

145
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:

 4000K: HML1450U40A
 5000K: HML1450U50A
HML1 - 100W (Standard Distribution)
4000K
Neutral		 5000K
Cool

14200
Lumens

14284
Lumens

101
Input Watts

101
Input Watts

141
lm/W

141
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:
4000K: HML1100U40A
5000K: HML1100U50A

HML1 - 130W (Standard Distribution)
4000K
Neutral		 5000K
Cool

18138
Lumens

18228
Lumens

129
Input Watts

129
Input Watts

141
lm/W

141
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:
4000K: HML1130U40A
5000K: HML1130U50A

HML1 - 150W (Standard Distribution)
4000K
Neutral		 5000K
Cool

20574
Lumens

20675
Lumens

147
Input Watts

147
Input Watts

140
lm/W

141
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:
4000K: HML1150U40A
5000K: HML1150U50A

HML1 - 210W (Standard Distribution)
4000K
Neutral		5000K
Cool

29258
Lumens

29412
Lumens

209
Input Watts

209
Input Watts

140
lm/W

141
lm/W

85
CRI

85
CRI

IES Download

IES Download

Part Numbers:

 4000K:HML1210U40A
 5000K:HML1210U50A

HML1 - 300W (Standard Distribution)
4000K
Neutral		5000K
Cool

42055
Lumens

42266
Lumens

305
Input Watts

305
Input Watts

137
lm/W

138
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:

 4000K:HML1300U40A
 5000K:HML1300U50A

HML1 - 450W (Standard Distribution)
4000K
Neutral		5000K
Cool

66516
Lumens

66850
Lumens

459
Input Watts

459
Input Watts

144
lm/W

145
lm/W

86
CRI

86
CRI

IES Download

IES Download

Part Numbers:

 4000K:HML1450U40A
 5000K:HML1450U50A
