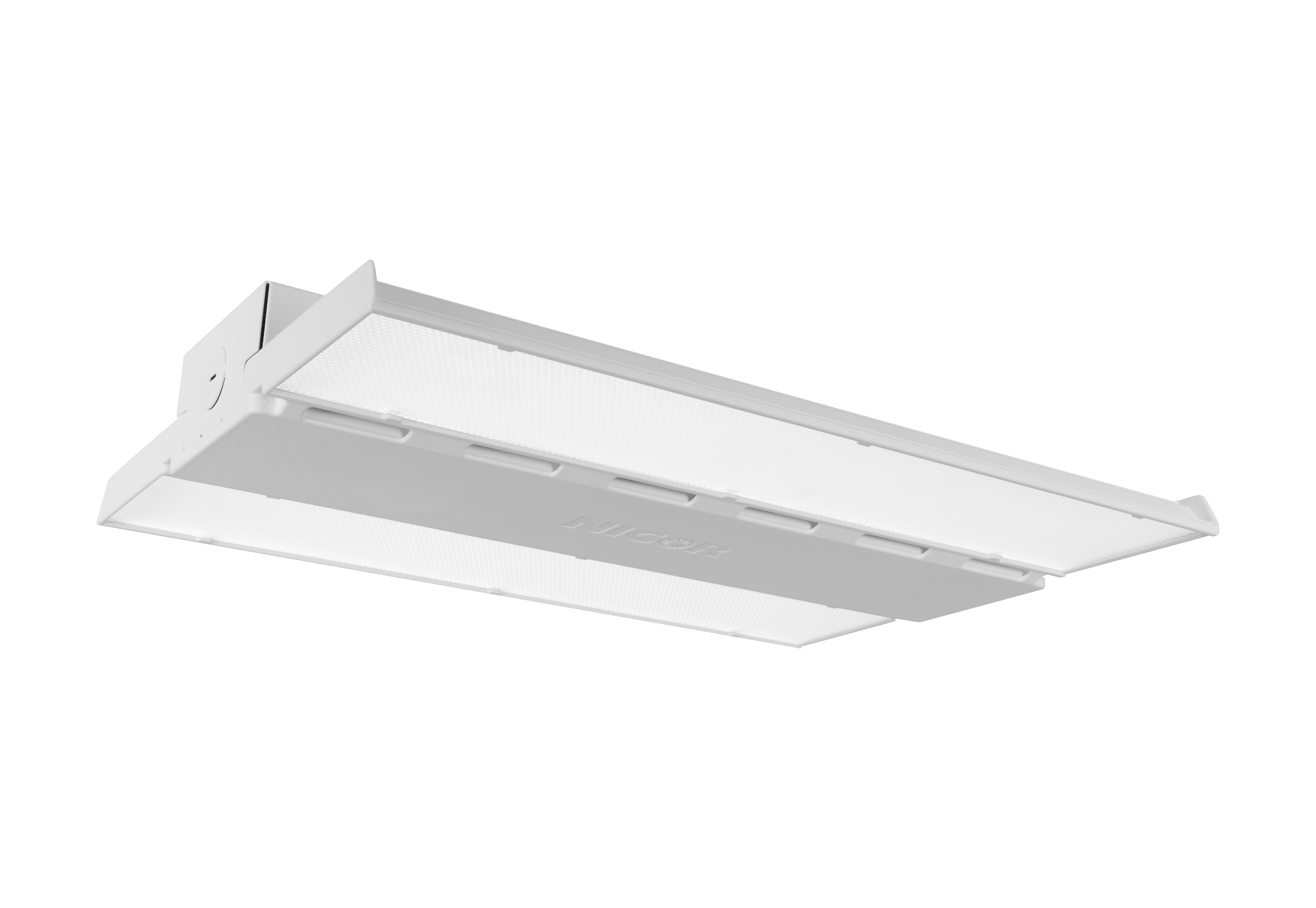

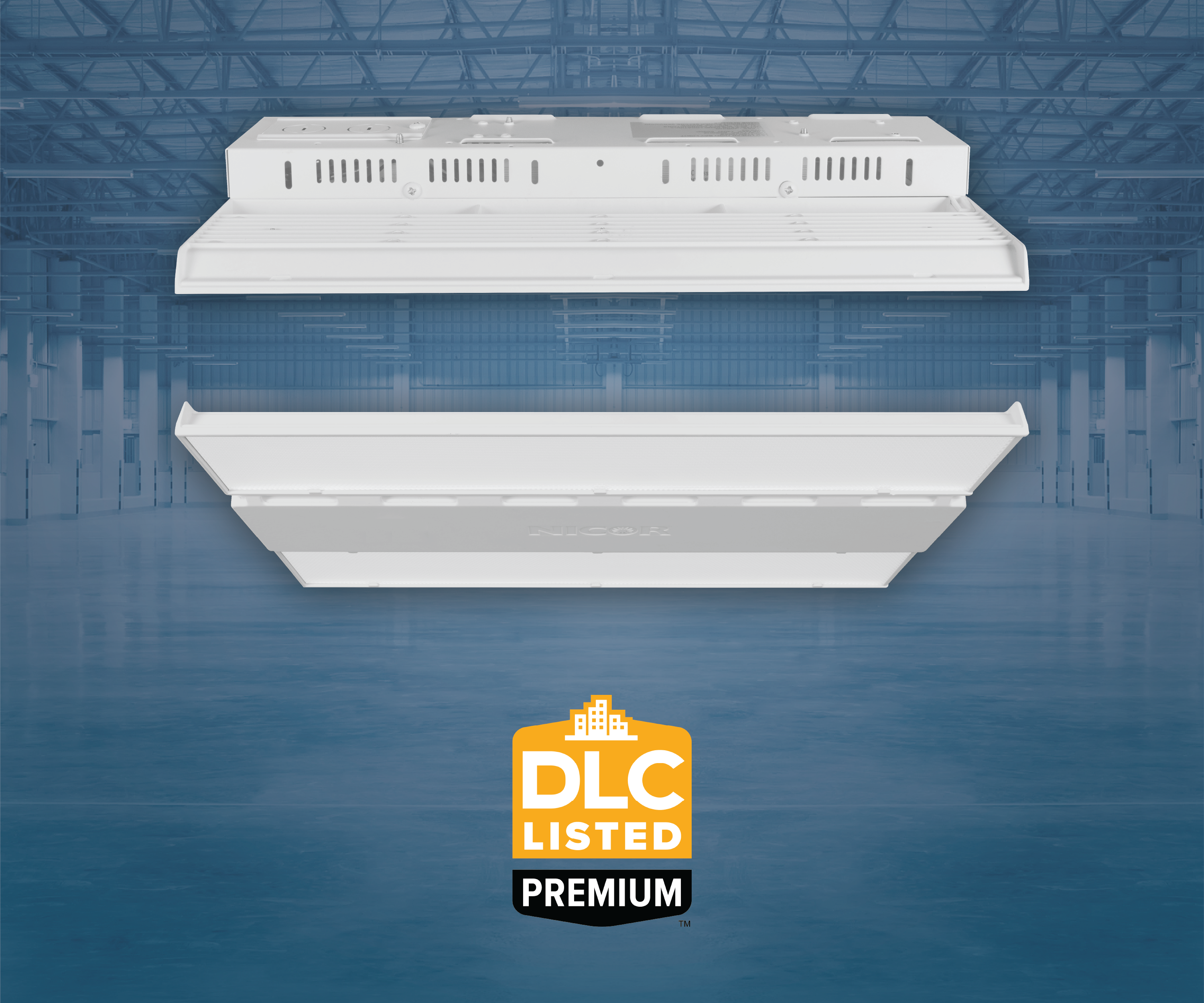

HML1 110-Watt Linear 4000K LED High Bay with 6Ft Cord

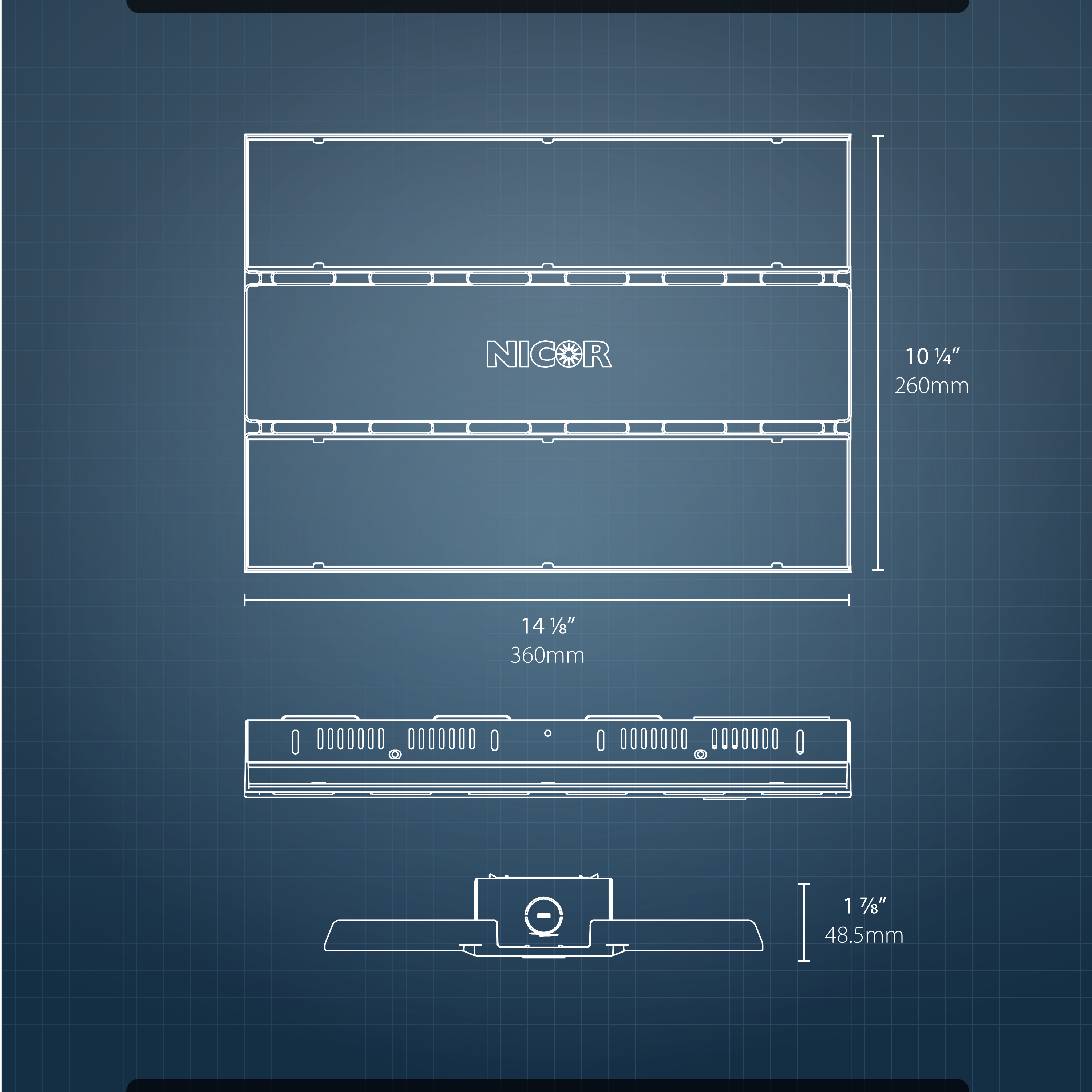

NICOR introduces the newest high bay product line: the patent pending, ultra-efficient, high-performance HML1 high bay. With only a 10x14" footprint (on lower wattages), its compact design offers an impressive light output with simple, single-person installation. The DLC 5.1 Premium certified fixtur…

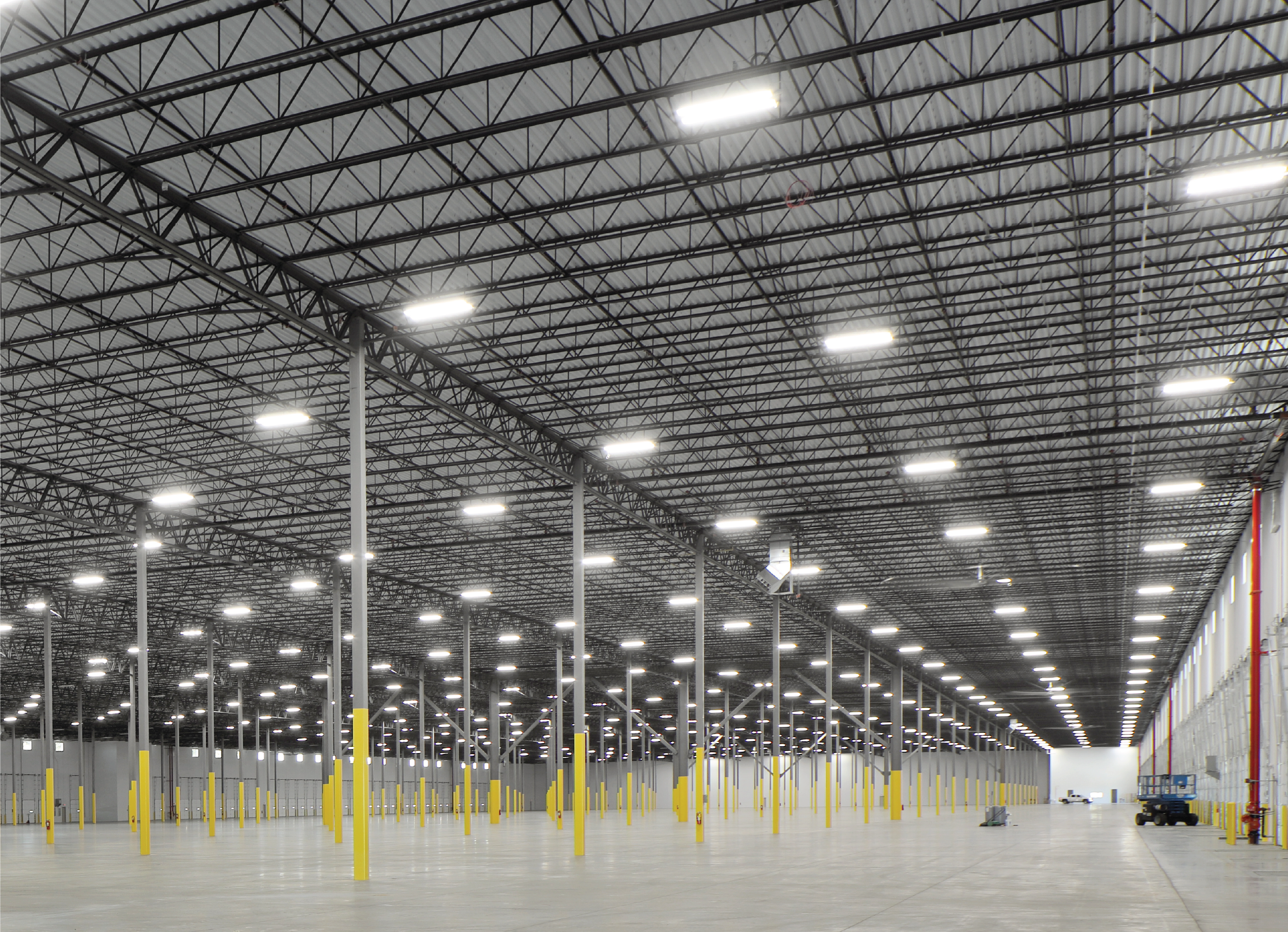

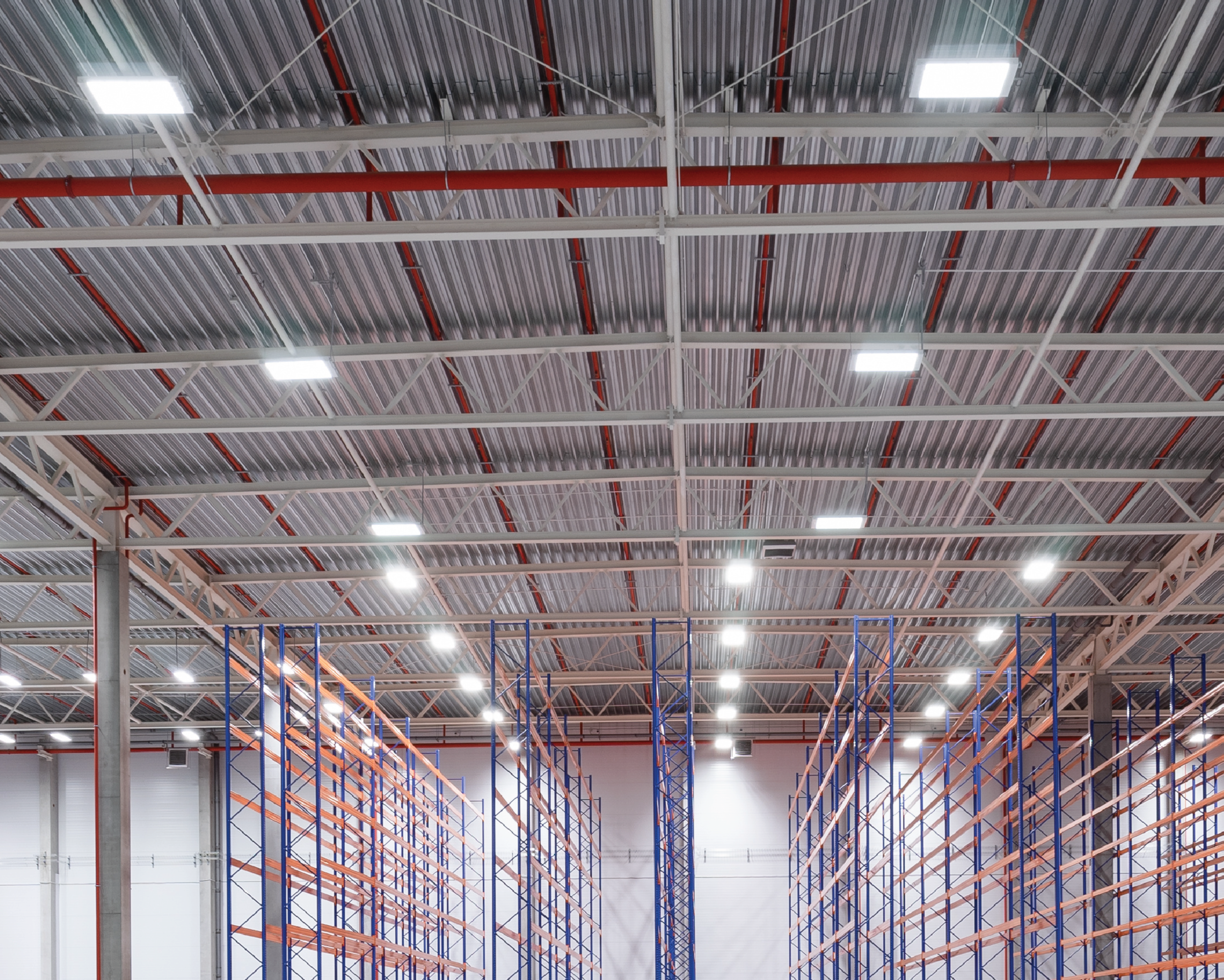

NICOR introduces the newest high bay product line: the patent pending, ultra-efficient, high-performance HML1 high bay. With only a 10x14" footprint (on lower wattages), its compact design offers an impressive light output with simple, single-person installation. The DLC 5.1 Premium certified fixture offers a variety of wattage, sensor, and aisle distribution options. It's durable single-piece cast aluminum design is perfect for rugged applications like warehouses, gymnasiums, and other industrial or commercial spaces.
- Fully cast aluminum body with integrated cooling features
- CCTs of 3500K, 4000K, 5000K and 5700K with >80 CR
- Offers multiple power levels: 100W, 130W, 150W, 210W, 300W and 450W
- Available with General, Aisle, and Wide optic distributions
- Field installable multifunction MW or PIR sensor available (on sensor socket models)
Color Options:
Ordering information

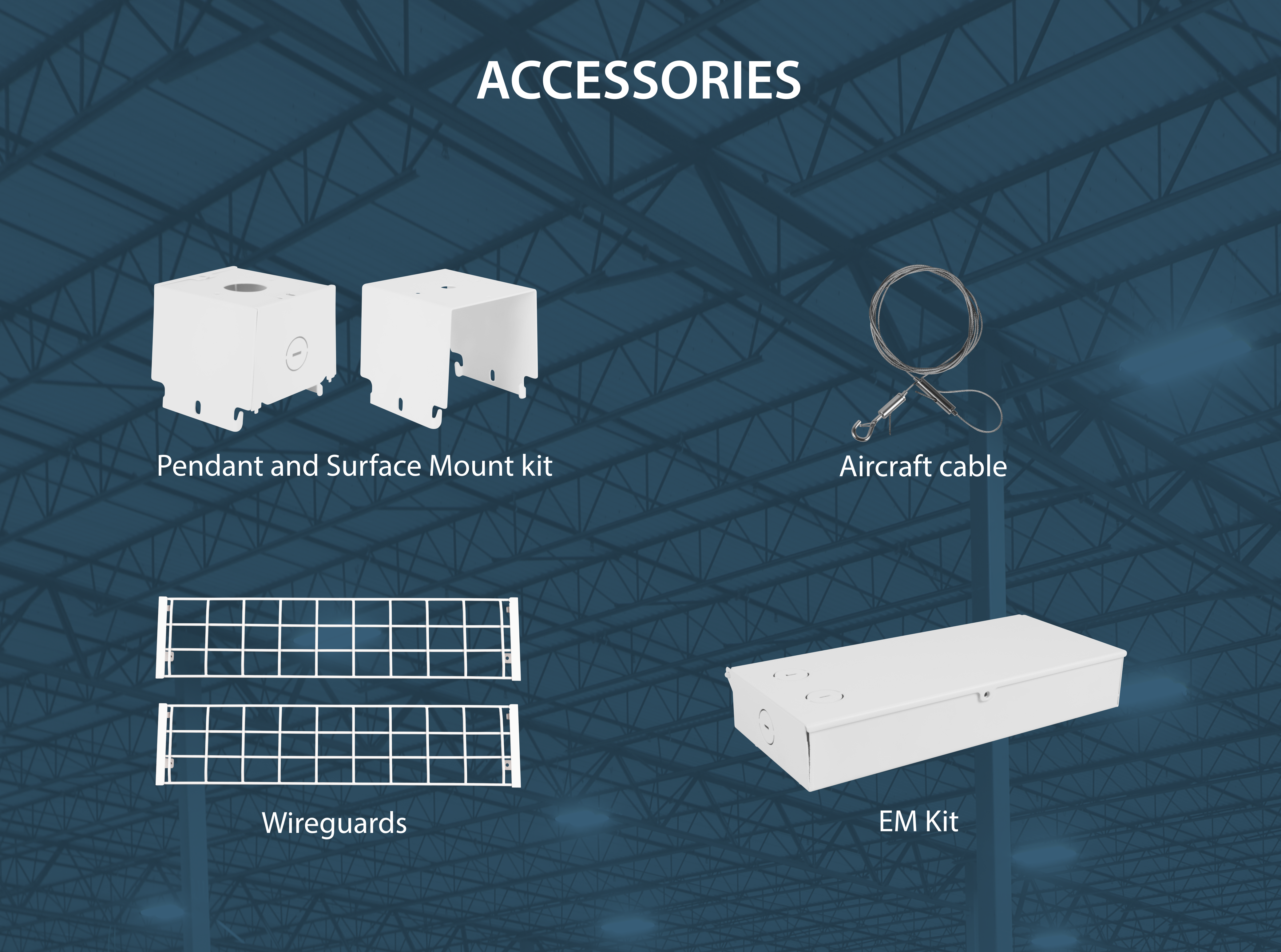

Accessories
- HML1EM08WRVWH
- HML1EM18WRVWH
Downloads
Specifications
-
Lifespan>60,000 -

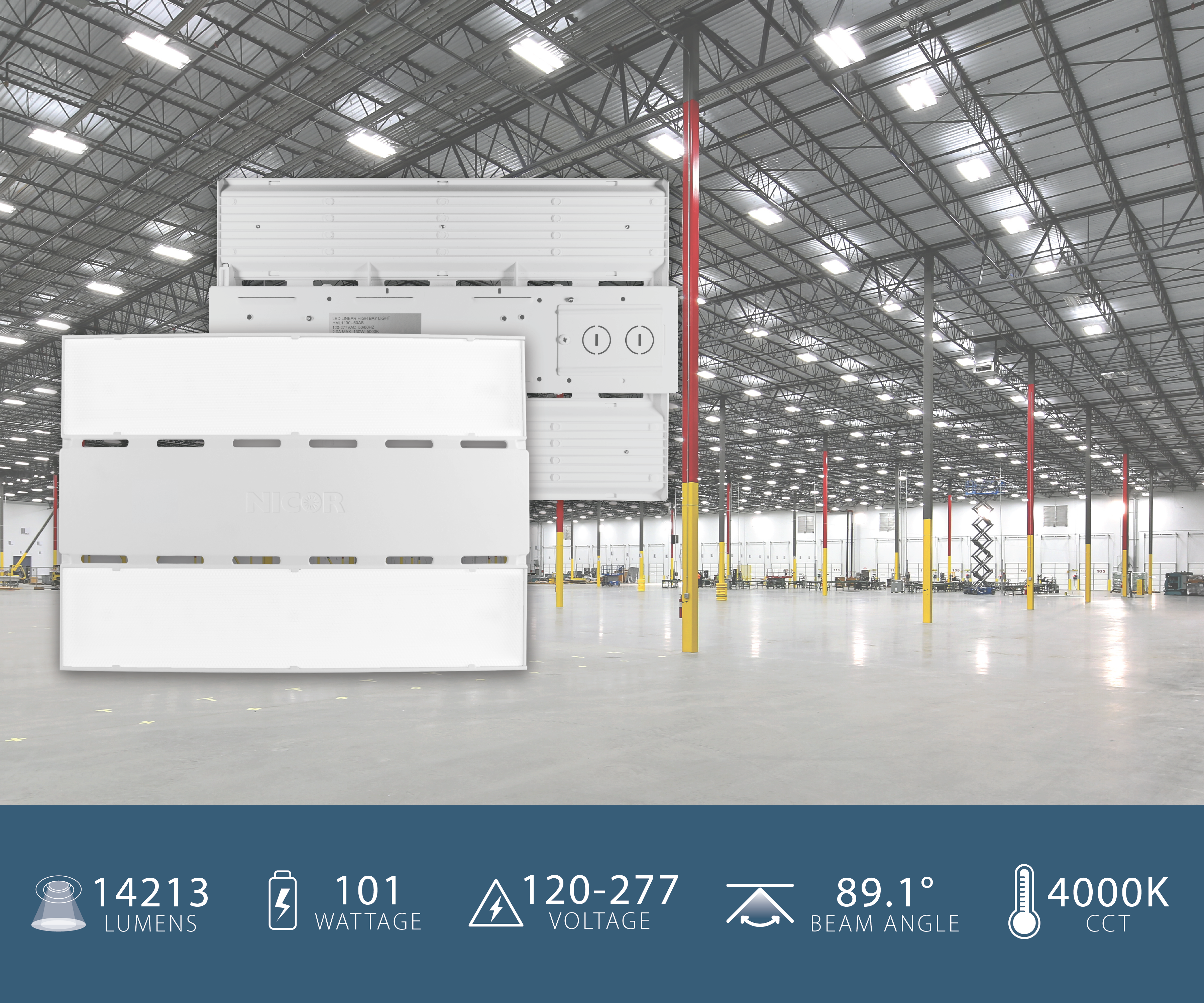

Lumens14200
-
Wattage101
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- DLC 5.1 Standard
- ASHRAE 90.1 Compliant
- RoHS Compliant
- IK08 Impact Rating
- FCC Class A
- Damp-Location (UL 1598)
- DLC 5.1 Premium applies to models with the Type A Lens only
- DLC 5.1 Standard applies to models with the Type B or C Lens only
- ASHRAE 90.1 compliance when specified with sensor option
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction

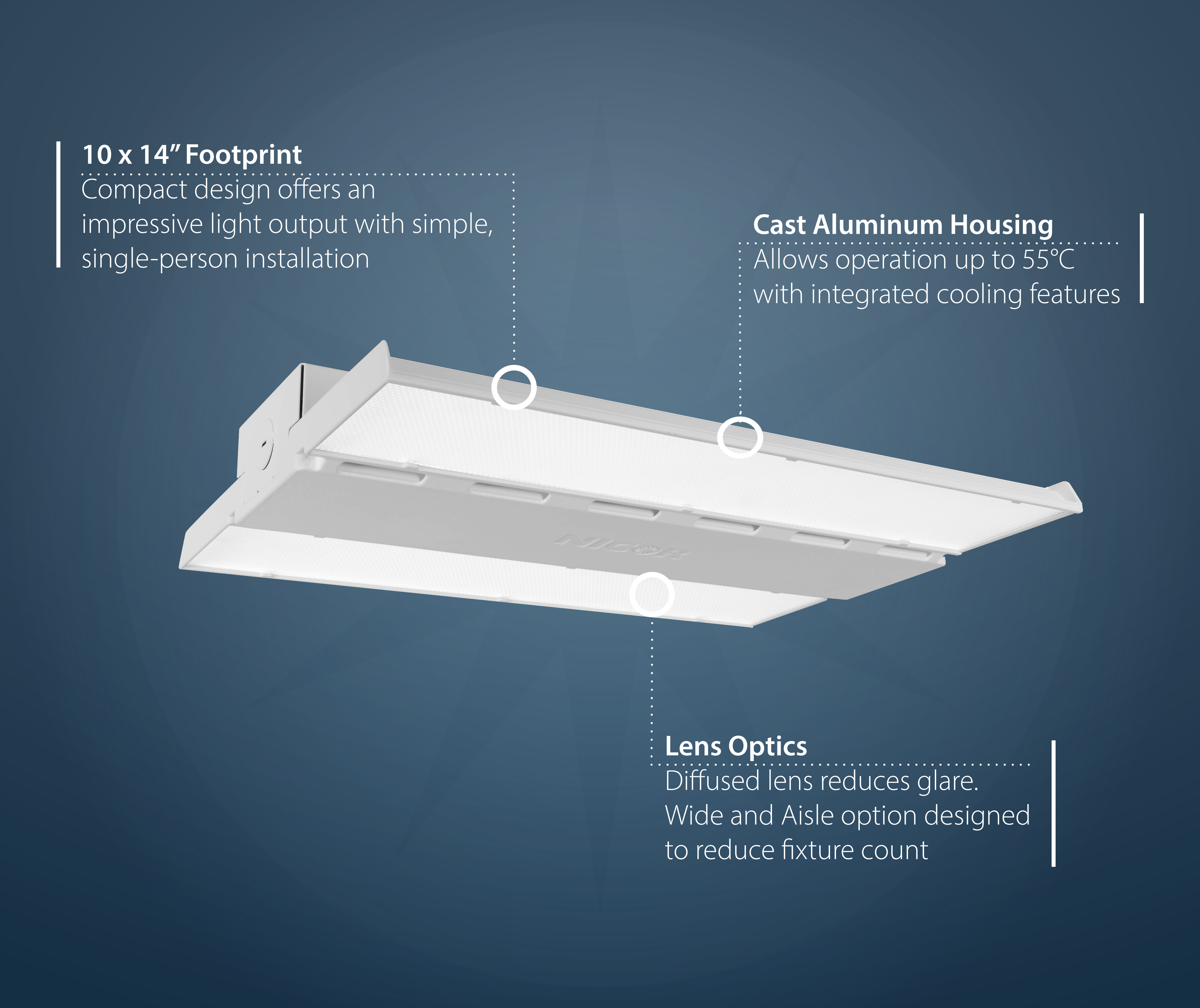

- Fully cast aluminum body with integrated cooling features

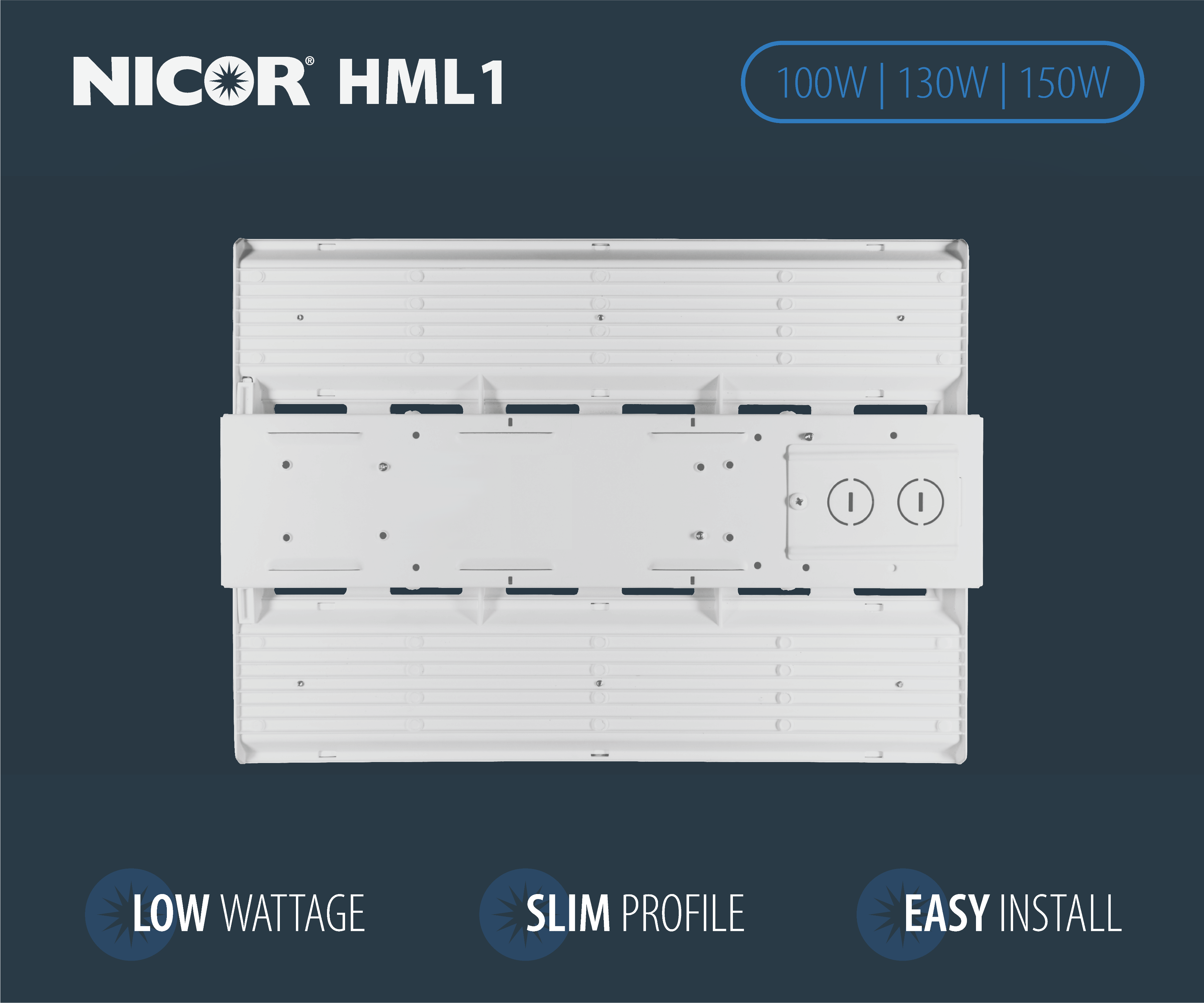

- Top mounted wireway cover for easy wire access
- Polyester powder coat finish
Optical System
- Standard diffused lens
- Optional aisle lens (45° x 100°) available
- Optional wide lens (105° x 105°) available
- CCTs of 3500K, 4000K, 5000K and 5700K with >80 CRI
Electrical
- Offers multiple power levels: 100W, 130W, 150W, 210W, 300W and 450W

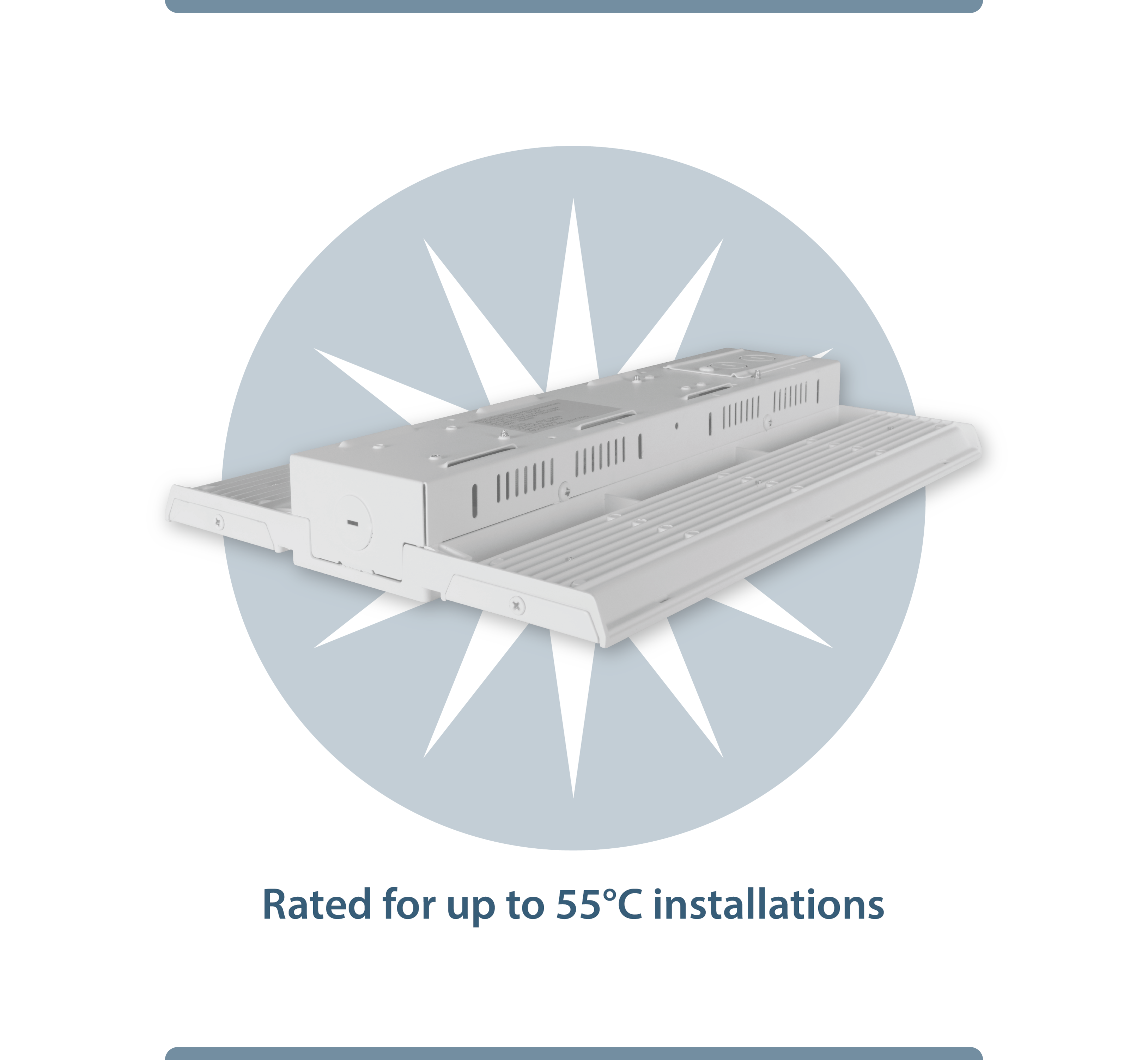

- Operating temperature rating of -4ºF to 131ºF (-20ºC to 55ºC)
- Input voltage of 120-277V, 277-480V input option available
- Dimming: 0-10V standard
Installations

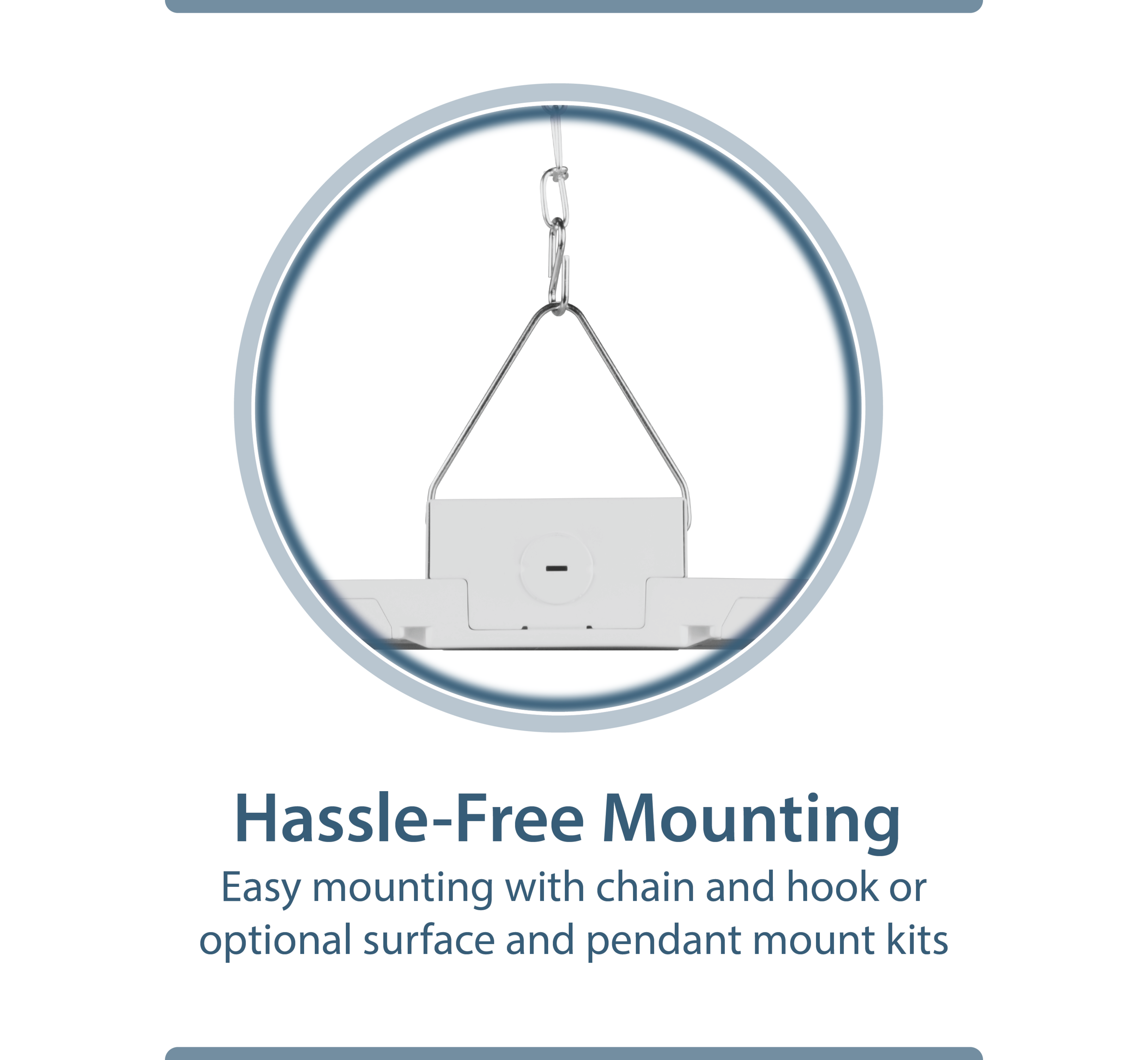

- V-hook and chain mounting system included
- Wireguard option available for increased fixture protection
- Pendant mount and surface mount kits available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- cULus1598 Listed for damp locations
- ASHRAE 90.1 compliance when specified with sensor option
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(10k) life >60,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
- DLC Premium and Standard Listing depending on optic distribution option
- UL impact test rated IK08/5 joules
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
