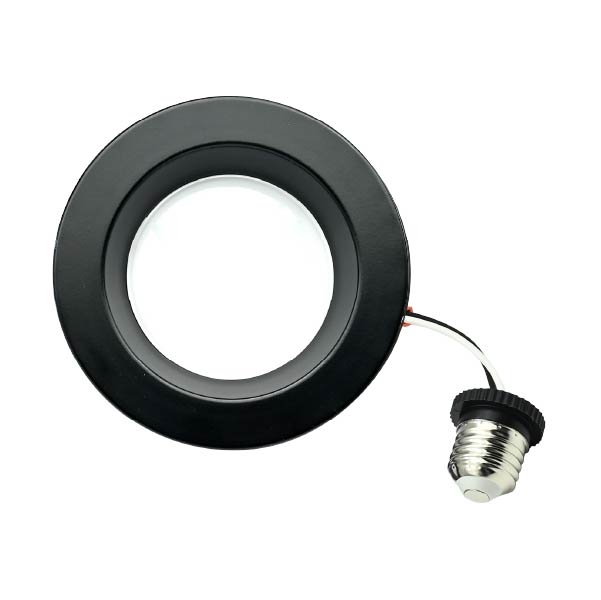

4-inch Black Selectable LED Downlight (12-Pack)
The NICOR IXD Series 4” & 5”/6” LED Downlight is the latest recessed LED downlight designed for remodel and new construction housings. This integrated LED retrofit light is perfect for replacing outdated recessed trims and light bulbs with the latest energy-efficient LED fixture. The advanced d…
The NICOR IXD Series 4” & 5”/6” LED Downlight is the latest recessed LED downlight designed for
remodel and new construction housings. This integrated LED retrofit light is perfect for replacing outdated recessed trims and light bulbs with the latest energy-efficient LED fixture. The advanced driver-on-board (DOB) technology combines performance with energy efficiency in a true low-profile design. The IXD features selectable color temperatures at 2700K, 3000K, 3500K, 4000K, and 5000K with refined dimming functionality for customized lighting in any room. In terms of light quality, the IXD achieves a CRI of >90 with an R9 value of >50 for true color rendering. Designed for easy plug-and play installation, the IXD is equipped with a quick-connect plug and medium-base (Edison) socket adapter for universal compatibility. No special wiring is required for the dimmer, and installation can be performed right out of the box; no additional parts are required. Available only in 12-packs. Backed by NICOR’s 5-year limited warranty.
- Selectable CCT provides five color temperature options
- Low-profile retrofit design fits new or pre-existing recessed housings
- High-performance LEDs deliver over 90 CRI with excellent color rendering
- Quick-connect plug and Edison adapter simplify installation
- Compatible with most standard 4", 5", and 6" recessed housings
Color Options:
Black
WhiteOrdering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens754 - 849 lm
-
Wattage9.5 - 9.9 W
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- Title 24
- JA8
- FCC Class B
- Damp-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features
Construction
- Steel housing for maximum durability
- Friction fit clips on 4” model
- Reinforced torsion (v-spring) clips for secure installations on 6” model
- Included EVA gasket to conform to AirTight rating when used with AirTight housing
- Compact, low-profile design to fit shallow housings
- Matte powder coat finish available in Black and White
Optical System
- Precision-engineered polycarbonate diffuser for uniform light distribution and reduced glare
- Features high-performance LEDs with >90 CRI and >50 R9 for true color rendering
- 5 Selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
Electrical
- Input voltage 120VAC (60Hz)
- Power factor: >0.9
- CCT selection switch located on side of housing
- Dimmable to 10% with most TRIAC dimmers (recommended dimmers on page 2)
- Operating temperature of -4°F to 113°F (-20°C to 45°C)
Installations
- Compatible with most 4” or 5” & 6” recessed housings
- Low-profile design, fits shallow recessed housings
- Quick-Connect plug allows for easy installation with modern LED housings
- Ships with Edison base socket string (GU24 socket string available)
Full Listings
- cETLus Intertek Listed under UL1598
- ENERGY STAR listed
- Title 24 (Except 5000K setting) and JA8 compliant
- Damp-location rated, suitable for areas with moisture/humidity
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70 >54,000 hours for IXD4
- LED lumen maintenance: L70 >102,000 hours for IXD56
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
