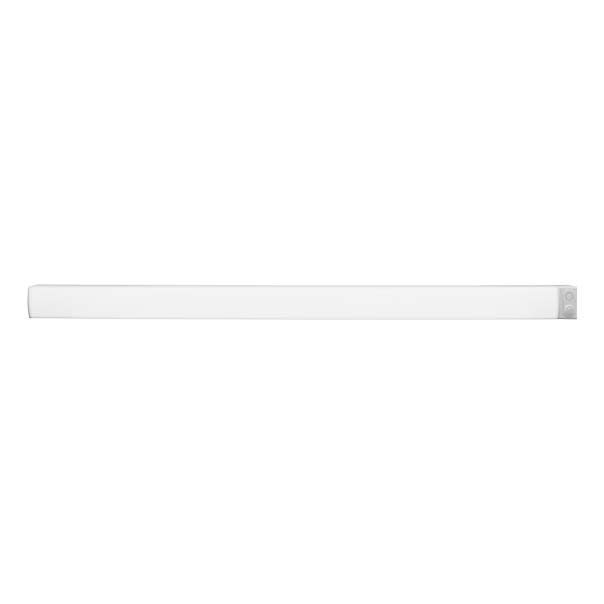

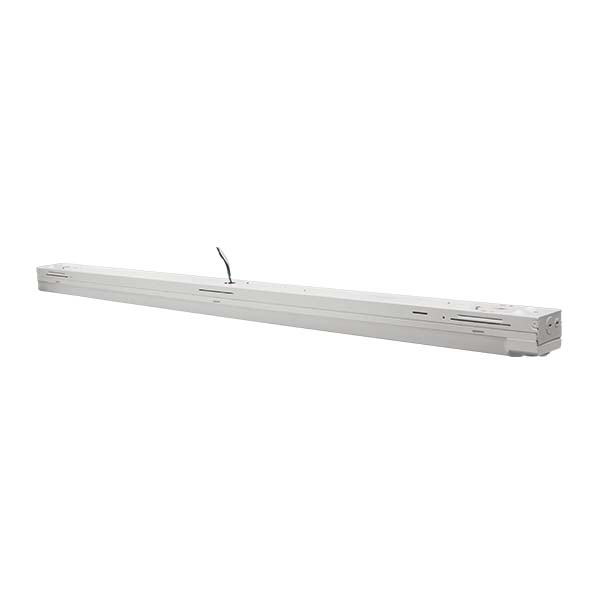

TUNABLE LED LINEAR STRIP

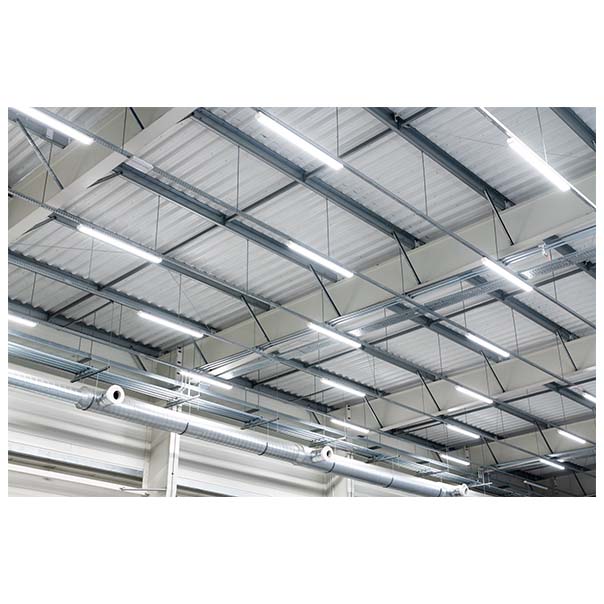

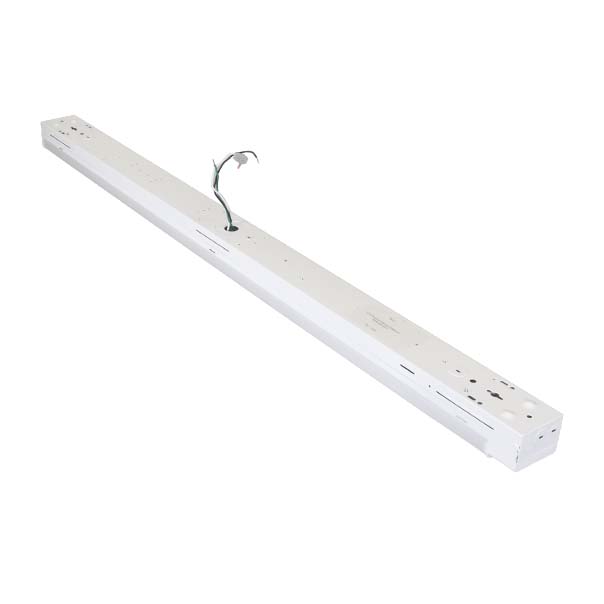

The LSL-NP LED Linear Strip offers adjustable light output and tunable CCT, delivering optimal performance and long life in a slim design ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications. LSL-NP meets DLC requirements for Stairwell and Passageway Luminiares with integrated Bluetooth wireless NLC controls. This versatile fixture is easy to surface mount on both ceilings and walls and can accommodate end-to-end runs. The LSL-NP features a toolless access lens module that is easily removed from the back channel for simple installation. The lens features a semi-circular, milky-white lens that offers a more polished aesthetic while eliminating hotspots, and is an economical, energy-efficient lighting alternative to single- lamp fluorescent strips and some wraparound fixtures. The integrated NLC controls provide energy savings and full Luminaire Level Lighting Control (LLLC) which may qualify for energy saving incentives.



Specifications

  • Semi-circular, milky-white diffuser eliminates hotspots and pixelation
  • Lens module retention method securely holds it in ceiling, wall, or pendant mount
  • Input voltage of 120-277VAC
  • Bluetooth driver offers adjustable light output and color tuning via the NLC app
  • CCT tunable to any CCT between 3000K-5000K
  • Wattage/lumen tunable output : 2’ (0-25W), 4’ (0-45W), 8’ (0-90W)
  • Full-range dimming from 0-10VDC if not using the NLC app
  • Power factor > 0.9, THD < 20%
  • Through wiring capable for end-to-end runs
  • Operating temperature rating of 0°F to 120°F (-18°C to 40°C)
  • NLC (Network Lighting Controls) standard
    • Bluetooth Low Energy (BLE) mesh network
    • Luminaire Level Lighting Control (LLLC)
    • Configurable with the NICOR NLC app available on iOS and Android devices

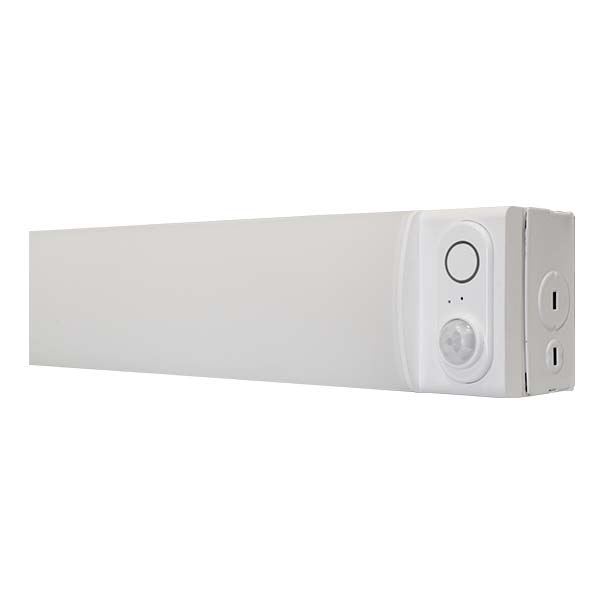

    • Provides full dimming control with occupancy and daylight harvesting functions
LSL-NP - 2 Foot

3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3096/2618/1909
Lumens

 3121/2640/1926
Lumens

 3168/2687/1957
Lumens

 3146/2672/1944
Lumens

24/20/15
Input Watts

24/20/15
Input Watts

24/20/15
Input Watts

24/20/15
Input Watts

129
lm/W

130
lm/W

132
lm/W

131
lm/W

84
CRI

84
CRI

84
CRI

84
CRI

Part Number:

 All:LSL1225A
LSL-NP - 4 Foot

3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

6401/5406/4837
Lumens

 6241/5270/4715
Lumens

 6647/5637/5044
Lumens

 6401/5406/4837
Lumens

47/39/35
Input Watts

47/39/35
Input Watts

47/39/35
Input Watts

47/39/35
Input Watts

127/130/129
lm/W

134/137/136
lm/W

142/146/145
lm/W

137/140/139
lm/W

84
CRI

84
CRI

84
CRI

84
CRI

Part Number:

 All:LSL1445A
LSL-NP - 8 Foot

3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

11,884/10,036/8980
Lumens

 12,482/10,402/9015
Lumens

 13,351/11,125/9642
Lumens

 12,803/10,669/9246
Lumens

93/75/64
Input Watts

93/75/64
Input Watts

93/75/64
Input Watts

93/75/64
Input Watts

127/134/140
lm/W

134/139/140
lm/W

143/149/150
lm/W

137/143/144
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 All:LSL1890A
LSL-NP - 2 Foot
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3096/2618/1909
Lumens

3121/2640/1926
Lumens

3168/2687/1957
Lumens

3146/2672/1944
Lumens

24/20/15
Input Watts

24/20/15
Input Watts

24/20/15
Input Watts

24/20/15
Input Watts

129
lm/W

130
lm/W

132
lm/W

131
lm/W

84
CRI

84
CRI

84
CRI

84
CRI

Part Number:

 Select:LSL1225SUS

LSL-NP - 4 Foot
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

6401/5406/4837
Lumens

6241/5270/4715
Lumens

6647/5637/5044
Lumens

6401/5406/4837
Lumens

47/39/35
Input Watts

47/39/35
Input Watts

47/39/35
Input Watts

47/39/35
Input Watts

127/130/129
lm/W

134/137/136
lm/W

142/146/145
lm/W

137/140/139
lm/W

84
CRI

84
CRI

84
CRI

84
CRI

Part Number:

 Select:LSL1445A

LSL-NP - 8 Foot
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

11,884/10,036/8980
Lumens

12,482/10,402/9015
Lumens

13,351/11,125/9642
Lumens

12,803/10,669/9246
Lumens

93/75/64
Input Watts

93/75/64
Input Watts

93/75/64
Input Watts

93/75/64
Input Watts

127/134/140
lm/W

134/139/140
lm/W

143/149/150
lm/W

137/143/144
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 Select:LSL1890A
