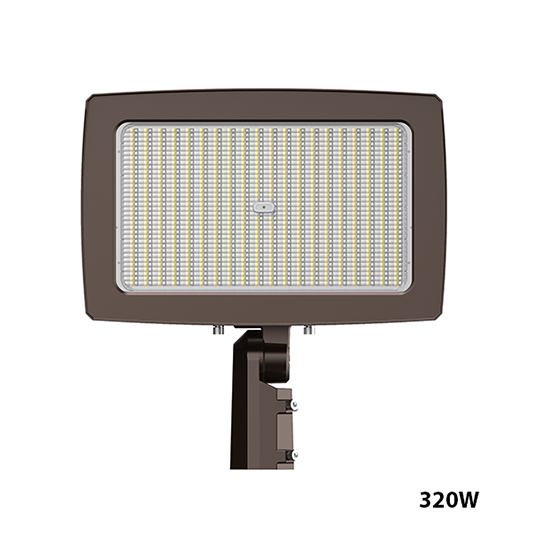

LED ROUND-BACK FLOOD LIGHT

Introducing the upgraded OFL4 Flood Light, a pinnacle of high-performance illumination that redefines outdoor lighting. With a traditional, deep form, it offers high efficiency with a versatile offering in one body. It’s constructed using the latest in LED technology, providing selectable wattage, color temperature, and beam throw options via an integrated switch. The OFL4 features a die-cast aluminum housing with a UV-stabilized powder-coat finish, and stainless-steel hardware for protection against the elements, ensuring long-lasting durability. The impact-resistant polycarbonate lens provides further protection while maintaining uniform light dispersion, enhanced by three options of beam distribution pattern and a high CRI value for vivid clarity. The OFL4 includes a pre-installed knuckle or slipfitter arm (150W and 320W fixtures will have the slipfitter) and a trunnion mount to suit your installation preference. Effortlessly improve landscapes, signage, facades, pathways, and open spaces with the OFL4, where superior lighting and versatility converge.



Specifications

  • Impact-resistant polycarbonate lens creates a uniform light distribution
  • Selectable NEMA distribution patterns: 5H5V, 6H6V, 7H6V
  • >80 CRI
  • Three color temperature and wattage options; selector switches located on the backside of the fixture
  • Input voltage of 120-277VAC, 50/60Hz
  • Power factor: ≥0.9
  • THD ≤ 20%
  • 6kV driver surge protection
  • 0-10V dimming standard
  • Operating temperature range: -40°F to 122°F (-40°C to 50°C)
  • Photocell is a standard feature (can be disabled in field)
OFL4 - 35 Watt at Distribution Pattern 6H6V
3000K
Warm White
4000K
Neutral
5000K
Cool

2128/3546/4965
Lumens

2262/3771/5279
Lumens

2260/3767/5274
Lumens

15/25/35
Input Watts

15/25/35
Input Watts

15/25/35
Input Watts

136
lm/W

152
lm/W

146
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

Select: OFL4035S
OFL4 - 60 Watt at Distribution Pattern 6H6V
3000K
Warm White
4000K
Neutral
5000K
Cool

4960/6377/8502
Lumens

5230/6725/8966
Lumens

5289/6800/9067
Lumens

35/45/60
Input Watts

35/45/60
Input Watts

35/45/60
Input Watts

148
lm/W

163
lm/W

156
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OFL4060S
OFL4 - 80 Watt at Distribution Pattern 6H6V
3000K
Warm White
4000K
Neutral
5000K
Cool

6248/8330/11,107
Lumens

6650/8867/11,822
Lumens

6621/8828/11,771
Lumens

45/60/80
Input Watts

45/60/80
Input Watts

45/60/80
Input Watts

146
lm/W

162
lm/W

155
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OFL4080S
OFL4 - 150 Watt at Distribution Pattern 6H6V
3000K
Warm White
4000K
Neutral
5000K
Cool

13,787/16,544/20,680
Lumens

 14,827/17,793/22,241
Lumens

 13,844/16,613/20,766
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

136
lm/W

152
lm/W

139
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OFL4150S
OFL4 - 320 Watt at Distribution Pattern 6H6V
3000K
Warm White
4000K
Neutral
5000K
Cool

28,122/36,558/44,995
Lumens

 30,021/39,027/48,033
Lumens

 28,809/37,451/46,094
Lumens

200/260/320
Input Watts

200/260/320
Input Watts

200/260/320
Input Watts

141
lm/W

156
lm/W

146
lm/W

81
CRI

81
CRI

81
CRI

Part Number:

 Select:OFL4320S
