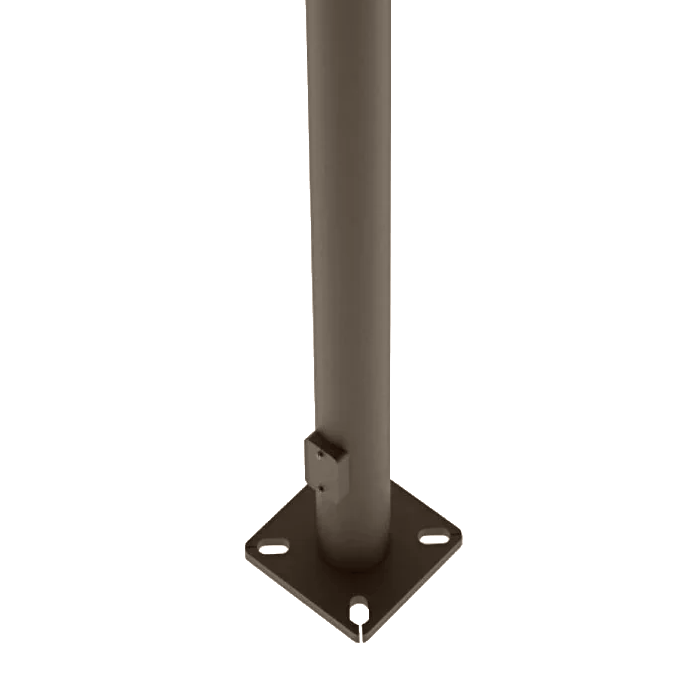

OPL Series 6-inch Round/Square Steel Pole
The OPL6 pole series provides a durable and versatile foundation for outdoor area lighting installations. Available in both square and round profiles with mounting heights from 20Ft to 39Ft, OPL6 poles are manufactured from heavy-duty 7-gauge steel and feature reinforced hand-holes, galvanized ancho…
The OPL6 pole series provides a durable and versatile foundation for outdoor area lighting installations. Available in both square and round profiles with mounting heights from 20Ft to 39Ft, OPL6 poles are manufactured from heavy-duty 7-gauge steel and feature reinforced hand-holes, galvanized anchor hardware, and a premium powder-coat finish. Multiple mounting configurations support a wide range of site lighting layouts, making the OPL6 an ideal solution for parking lots, campuses, pathways, and commercial outdoor environments.
- Compatible with NICOR OAL Series LED Area Lights
- Heavy-duty 7-gauge steel construction for maximum strength
- Available in square and round profiles up to 39Ft
- Premium powder-coat finish with removable pole cap
- Multiple mounting patterns support a variety of fixture layouts
- Compatible with slipfitters, tenon mounts, and pole-mounted luminaires
Color Options:
Architectural BronzeOrdering information
Downloads
Specifications
Listings & certifications
- Carbon steel tubing conforms to ASTM-A500 Grade B (7-guage)
- All welds conform to AWS D1.1 using ER70S-6 Electrodes
- Steel base plate flange conforms to ASTMA36 or equivalent (36 ksi minimum yield)
- Anchor bolts conform to AASHTO M314-90 Grade 55
- Anchor bolts galvanized per ASTM A153
Features
Construction
- Straight steel square with 6-inch sides
- General purpose pole for up to 39 foot mounting heights
- Pole shaft is from weldable-grade, cold-rolled, commercial quality carbon steel tubing conforming to ASTM-A500 Grade B (7-gauge)
- All welds conform to AWS D1.1 using ER70S-6 Electrodes
- Includes removable pole cap
- Fine-textured powder coat finish
- Available in Bronze
- Custom finishes available with cost adder
Electrical
- Reinforced 3x5” handhole with cover 1.5Ft from base
- Grounding Provision incorporating a tapped 1/2”- 13NC hole welded to frame
Installations
- 4-Bolt Steel Plate Base Flange of fabricated hot rolled carbon steel conforming to ASTMA36 or equivalent (36 ksi minimum yield)
- Color matching ABS plastic Base Cover (2-piece) with hardware
- 4x L-shaped steel anchor bolts, (1x36x4”) conformed to AASHTO M314-90 Grade 55 with 10-inch of threaded end galvanized per ASTM A153
- Galvanized steel hardware pack including: 8x Hex nuts, 4x Lock washers, 8x Flat washers
- Paper bolt circle template provided
Warranty
- 5-year limited system warranty standard
