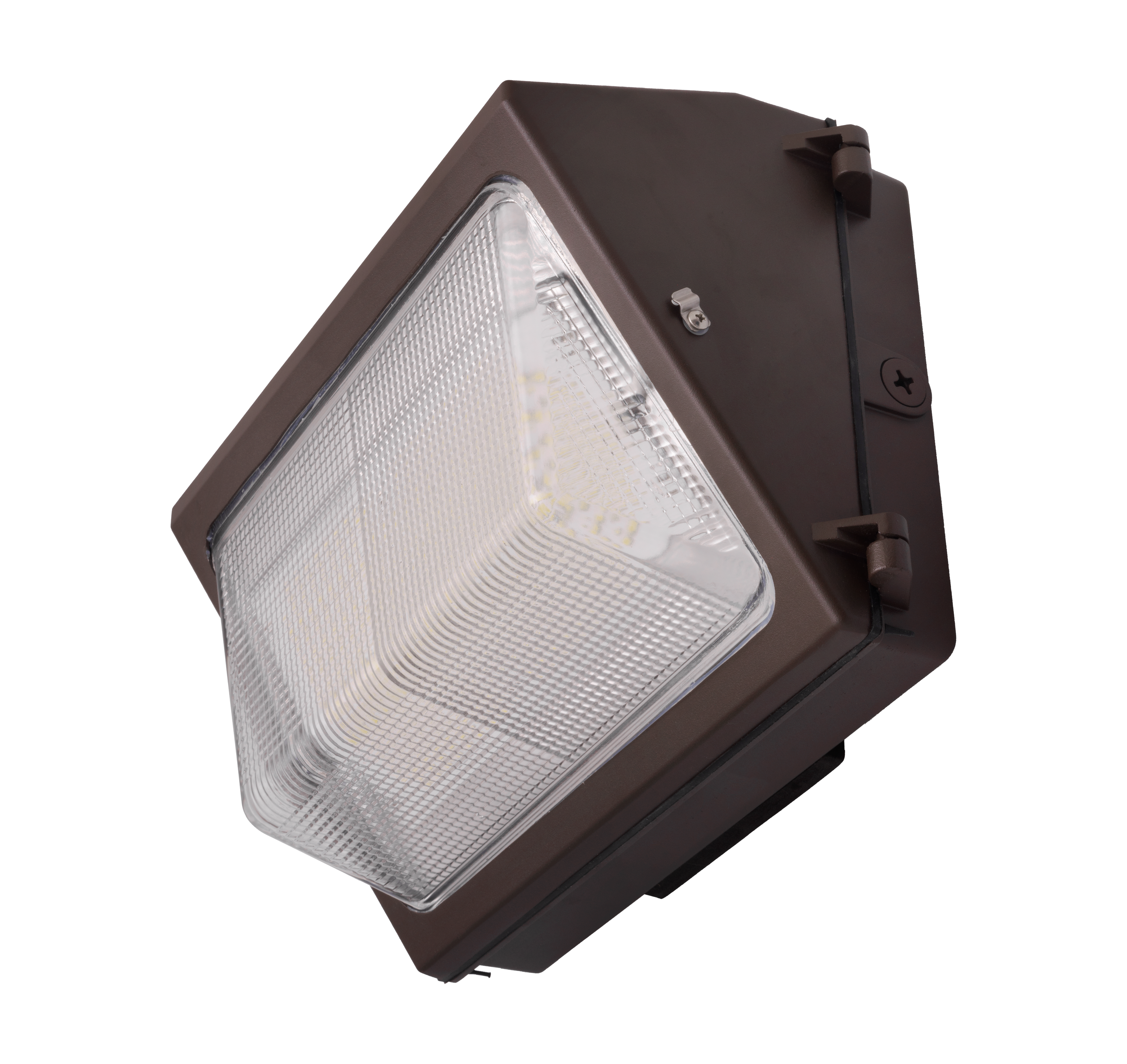

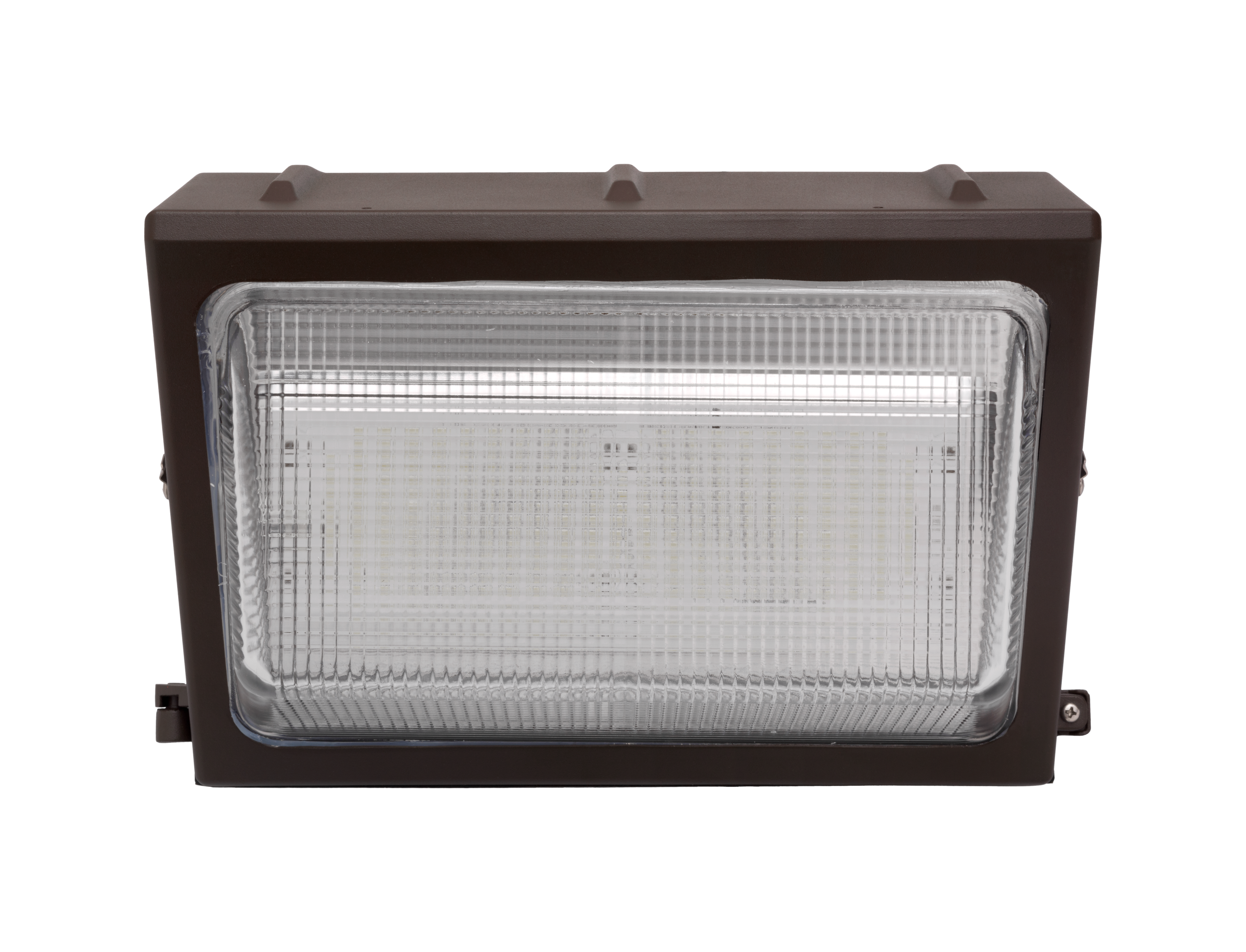

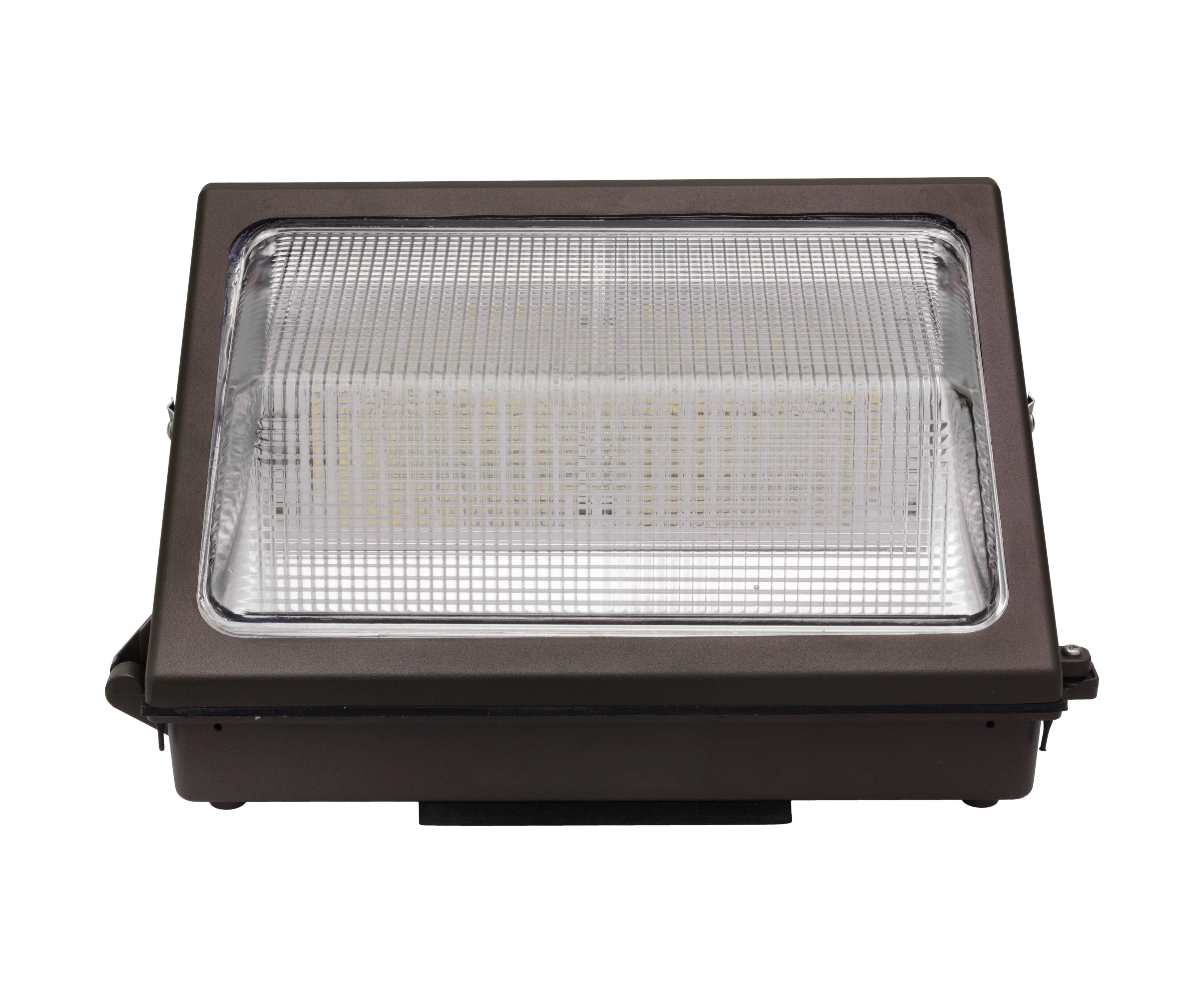

OWG3 120W Bronze LED Wall Pack in 5000K
The OWG3 LED Wallpack features the next-generation design of a traditional wallpack with Single CCT and Selectable CCT models. With output up to 156 lumens per watt, the Corvus delivers powerful light with uniform light distribution and is easy to install on walls or directly to a J-Box with its sep…

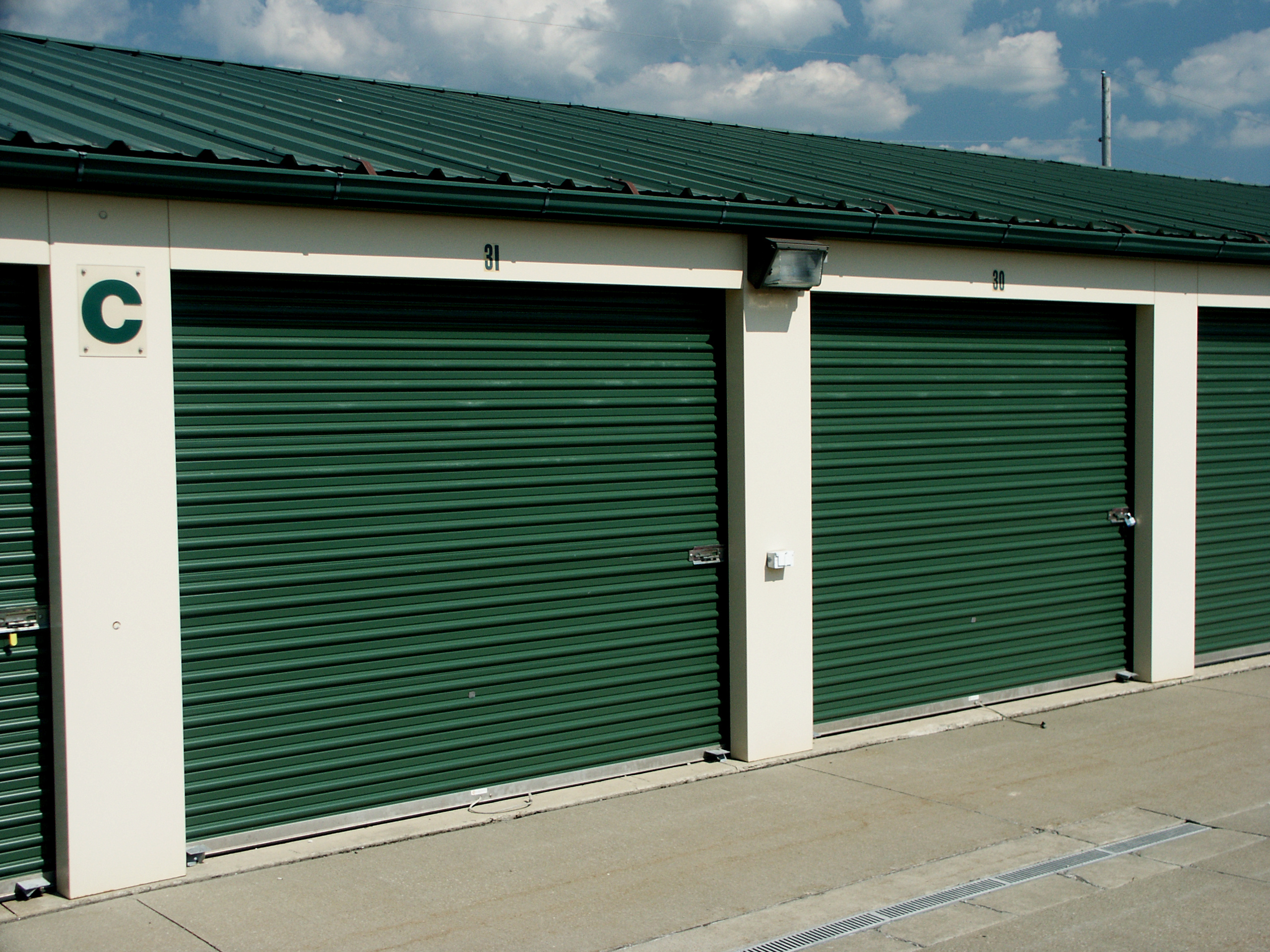

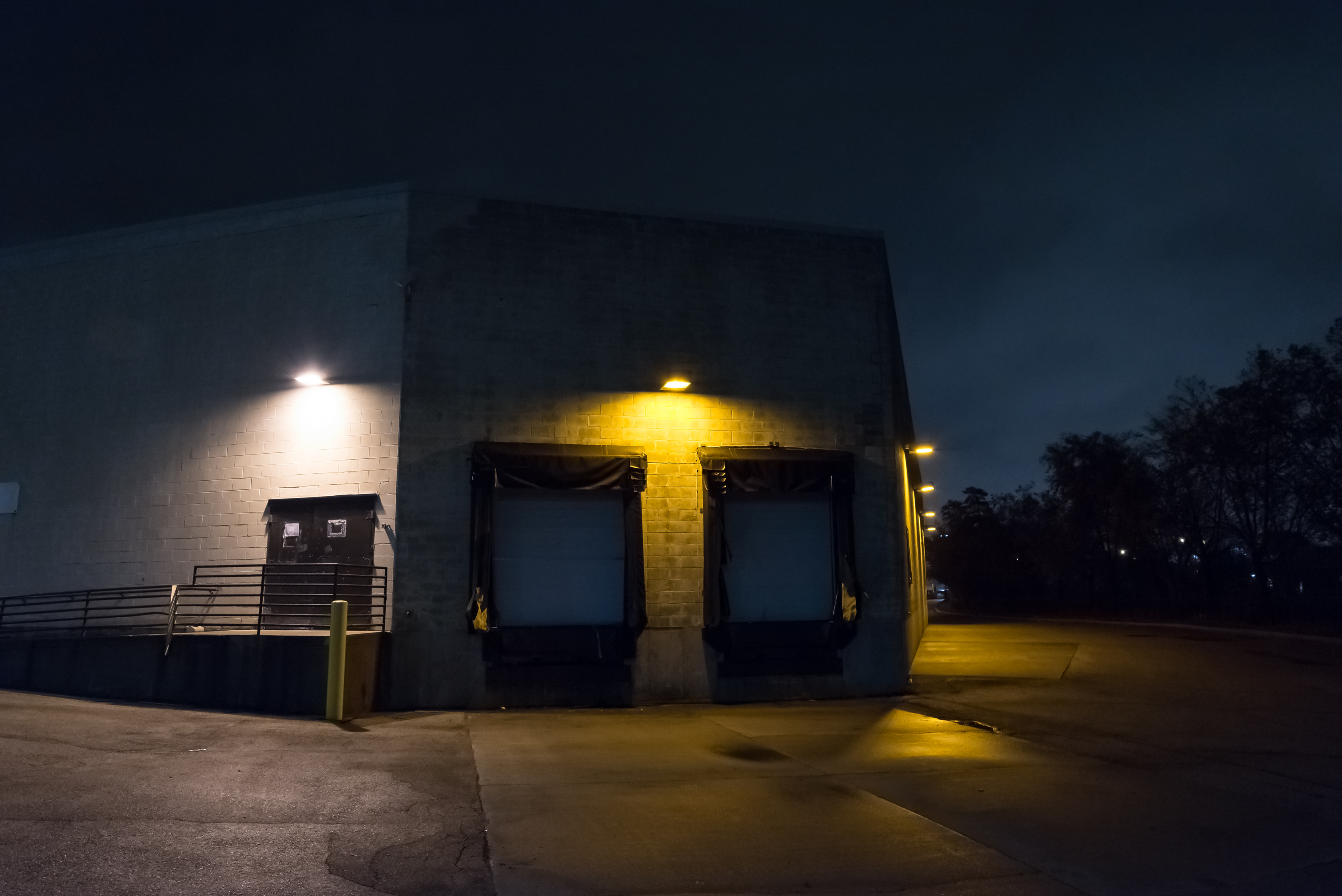

The OWG3 LED Wallpack features the next-generation design of a traditional wallpack with Single CCT and Selectable CCT models. With output up to 156 lumens per watt, the Corvus delivers powerful light with uniform light distribution and is easy to install on walls or directly to a J-Box with its separable hinged backplate. On Select models, an internal switch offers the ability to adjust the CCT to 3000, 4000, 5000, or 5700K. The Corvus has three knockouts for through-wiring or sensor additions and is an ideal solution for security and perimeter lighting.
- Available in 50W, 60W, 80W, and 120W models
- Single CCT (5000K) or Selectable (3000K, 4000K, 5000K, or 5700K)
- Optional photocell available
- High-efficiency and thermally protected driver
- Tempered prismatic glass lens for maximum output
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens17151
-
Wattage116.9
Listings & certifications
- cULus Listed
- DLC Standard
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class B
- Wet-Location (UL 1598)
Features

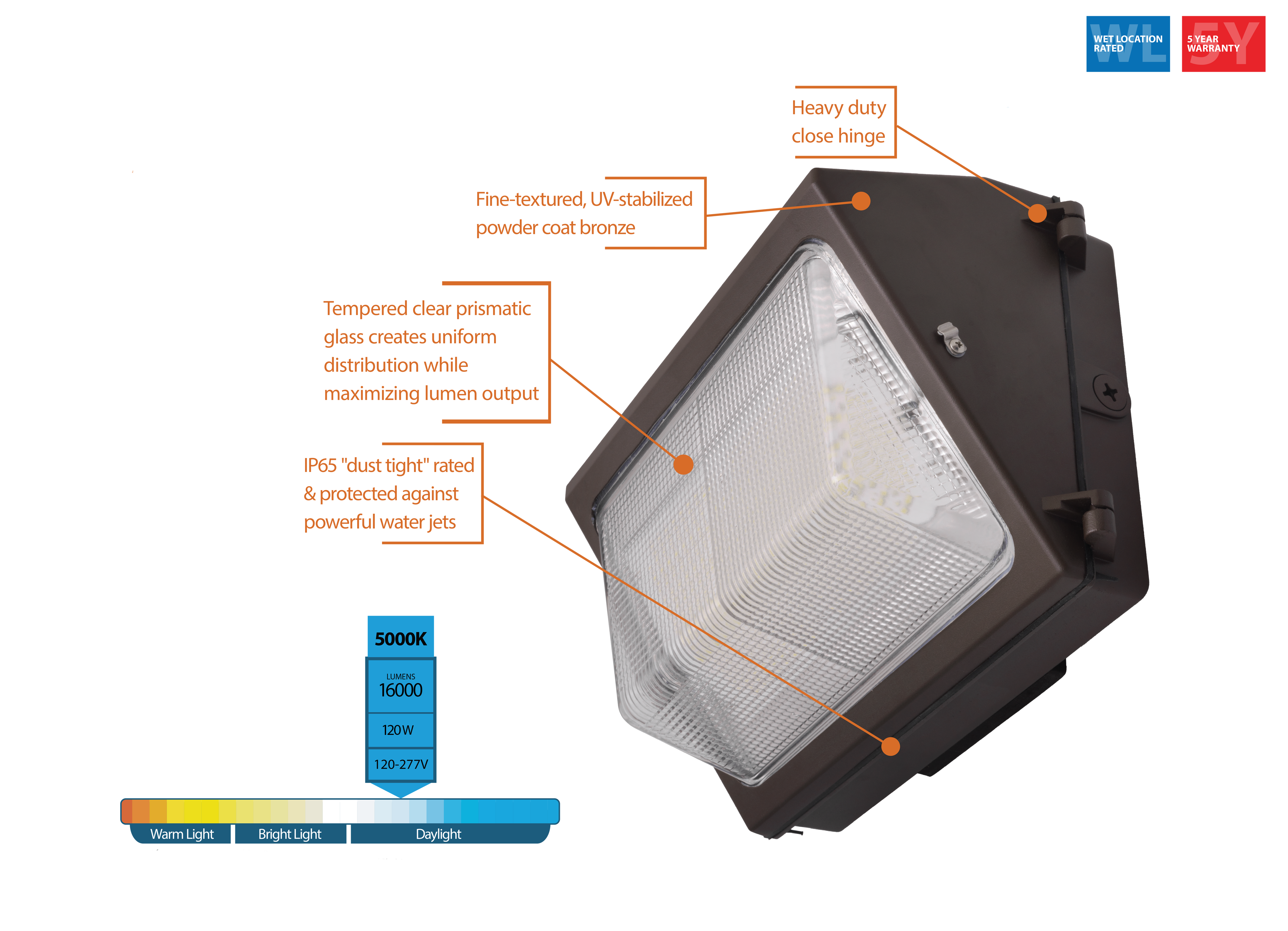

Construction
- Die-cast aluminum housing
- Three (3) 1/2” knockouts for conduit feed or sensors

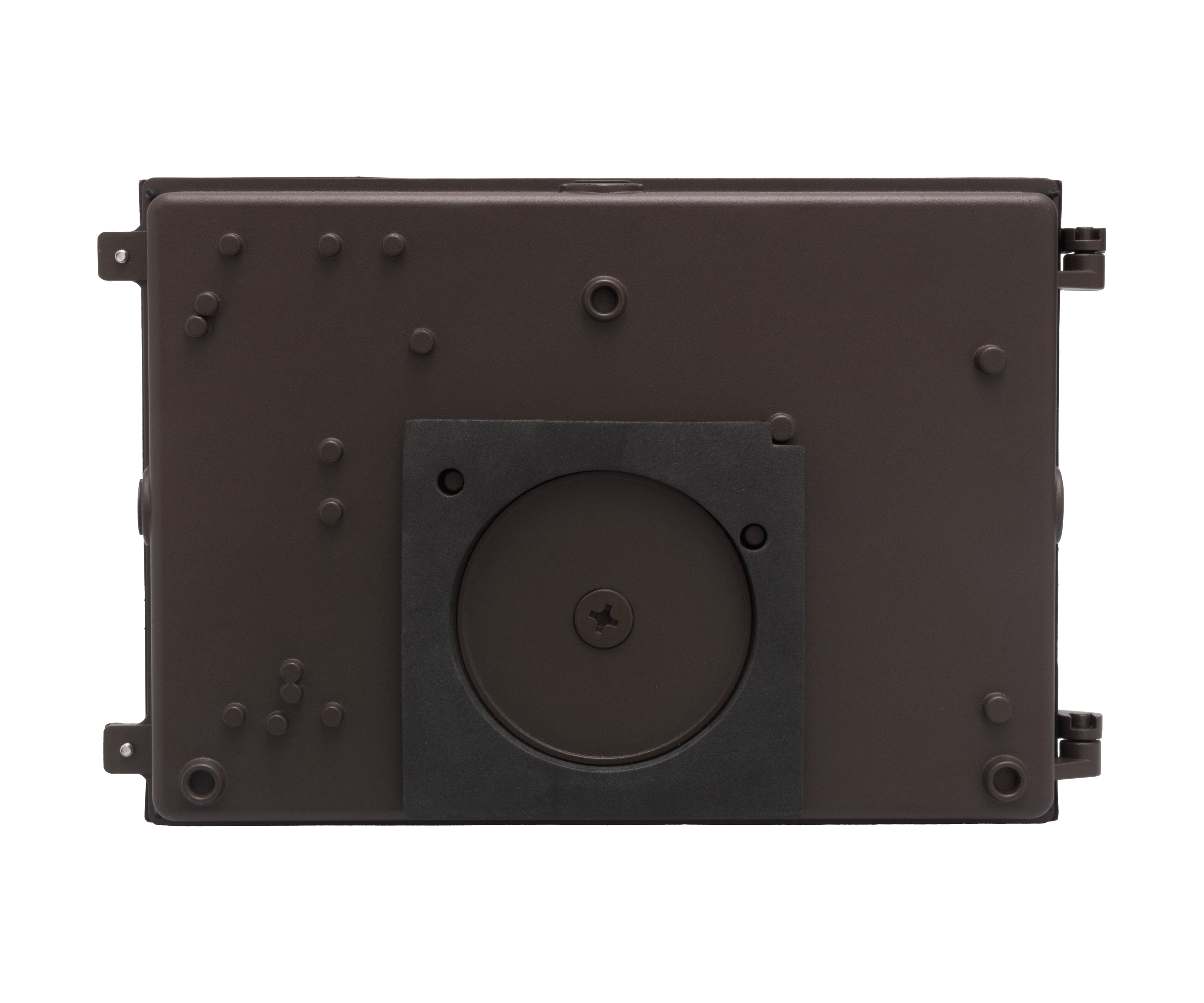

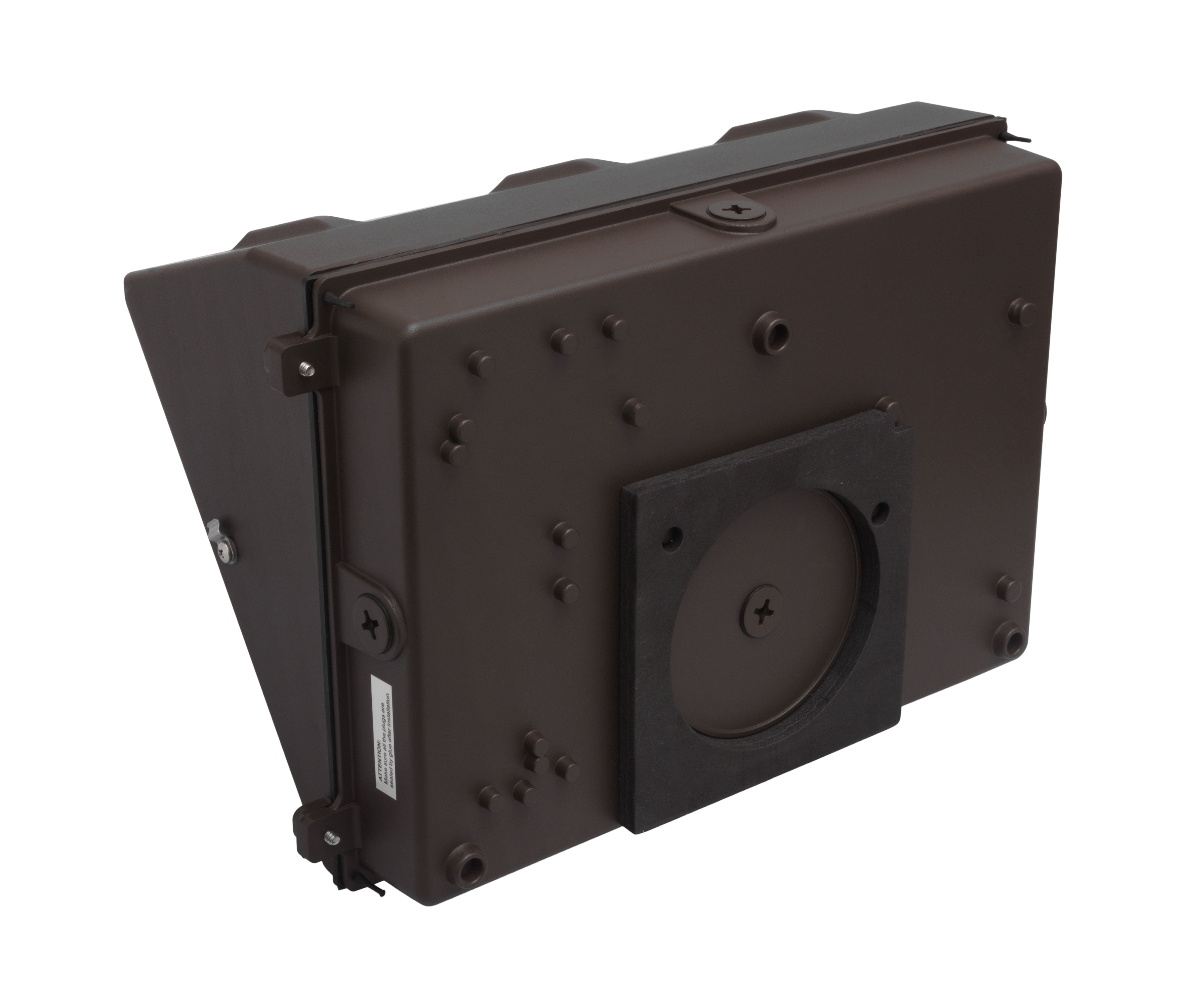

- Toolless, separable hinged backplate for easy installation and maintenance
- Stainless steel hardware
- Fine-textured, UV-stabilized powder coat bronze
Optical System
- Tempered clear prismatic glass maximizes lumen output
- Single CCT LED used for 5000K standard model.
- Selectable models use a dual emitter array that enables CCT selection of 3000, 4000, 5000 or 5700K
- Single CCT in 80 CRI and Select models in 70 CRI to improve safety and color definition in public places.
Electrical
- Thermally-protected, high-efficiency driver
- Input voltage of 120-277VAC
- Power Factor = >0.9
- THD = <20%
- Operating temperature rating of -4° to 104°F (-20°C to 40°C)
Installations
- Fixture mounts directly to J-Box and walls with screws
- Wiring possible through backplate or knockouts
- Separable hinged backplate to allow for easy mounting
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- cULus 1598 Listed for wet locations
- IP65 Rated
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- RoHS Compliant
- TM-21 Reported L70(9k) life >54,000 hours
- DLC Standard
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
