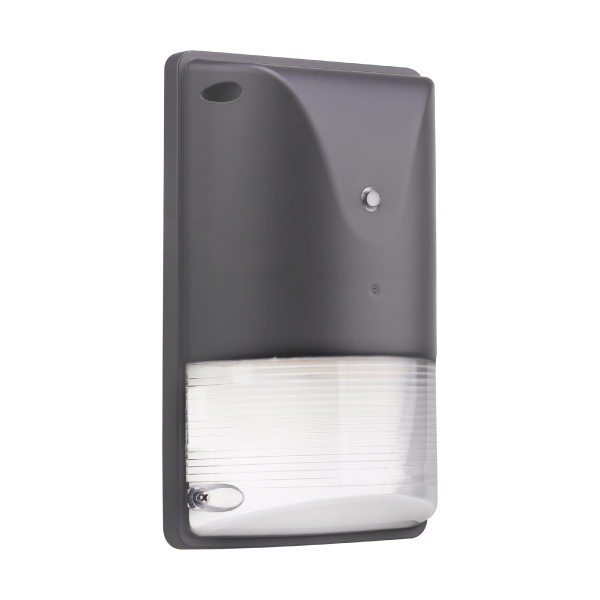

OWR4 20W Selectable LED Wall Pack
The OWR4 LED Wallpack combines a simple rectangular style with top performance and efficiency. The OWR4 features a single-piece, die-cast aluminum housing with a ribbed, UV and fire-resistant lens for even light distribution. It installs easily into a 4/O J-Box. The OWR4 is recommended for perimeter…
The OWR4 LED Wallpack combines a simple rectangular style with top performance and efficiency. The OWR4 features a single-piece, die-cast aluminum housing with a ribbed, UV and fire-resistant lens for even light distribution. It installs easily into a 4/O J-Box. The OWR4 is recommended for perimeter lighting as well as building entrances, garages, tunnels, other commercial spaces where general purpose lighting is desired. The OWR4 offers selectable wattages (High/Med/Low) and selectable CCT (3000K/4000K/5000K). Factory mounted photocell standard.
- Available in two models: 15W with Emergency back, or 20W Selectable
- Ribbed polycarbonate lens delivers even light distribution
- Factory-mounted photocell enables automatic dusk-to-dawn operation
- Durable IP65 housing supports wet-location installations
- Installs directly to standard 4/O junction boxes
Color Options:
Architectural BronzeOrdering information
Downloads
Specifications
-
Lifespan>54,000 -
Lumens1385 - 2902 lm
-
Wattage10, 15, 20
Listings & certifications
- UL Certified
- DLC 6.0 Premium
- IP65 Ingress Protection
- RoHS Compliant
- FCC Class A
- Wet-Location (UL 1598)
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Single-piece, injection-molded lens
- Die-cast aluminum backplate and plastic housing
- UV- and fire-resistant lens
- Stainless steel hardware
- Fine-textured, UV-stabilized bronze finish
Optical System
- High light transmittance polycarbonate
- Clear ribbed lens for even light distribution
- Utilizes advanced LED technology with selectable CCT of 3000K, 4000K, and 5000K
- CRI 80+
Electrical
- Thermally-protected, high-efficiency driver
- Input voltage of 120-277VAC
- Full-range dimming via 0-10VDC
- AC only model operating temperature rating: -40°F to 113°F (-40°C to 45°C)
- Emergency model operating temperature rating: 32°F to 113°F (0°C to 45°C)
- 15W model with single wattage; 20W model with selectable wattages (20/15/10W)
- Emergency model integrated 3.9W emergency driver
Installations
- Easy installation on 4/0 J-Box
- Fixture mounts directly to J-Boxes with screws
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cULus 1598 Listed for wet locations
- DLC 6.0 Premium Listed
- IP65 rated
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70 life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
