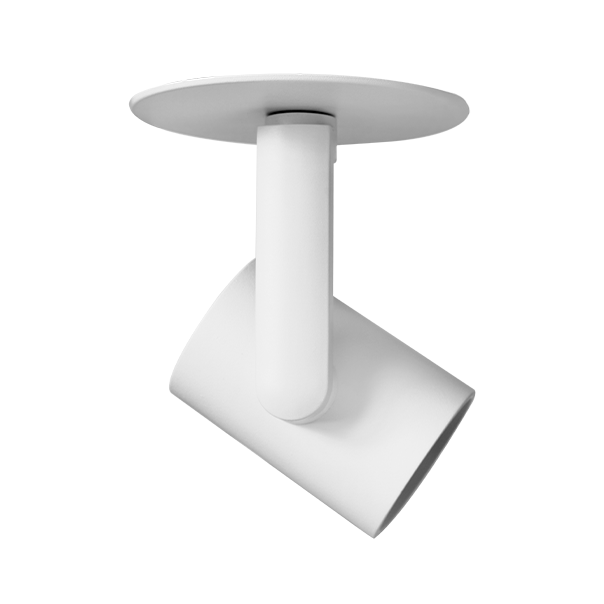

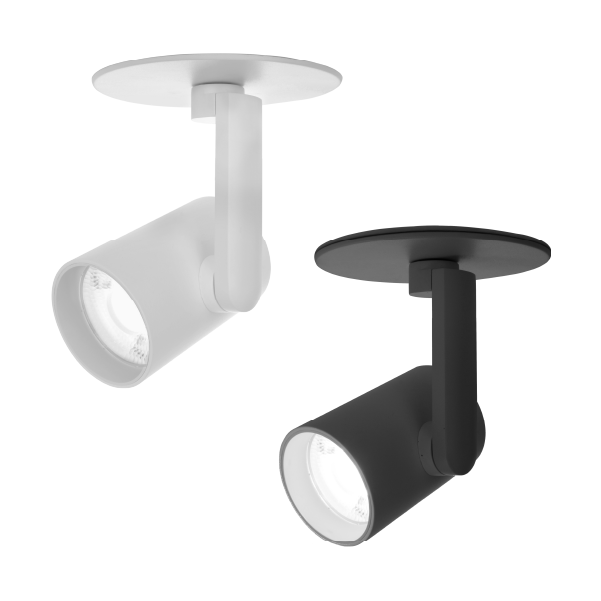

Name: RMP Series LED Monopoint
SKU: 28561

Specifications

• Die-cast aluminum housing routes heat away from electrical components
• Fixture stem rotates 355° and head tilts 180°
• Fixture lens provides a beam angle of 42°
• Selectable CCTs: 2700/3000/3500/4000/5000K (switch on driver)
• Utilizes high-performing LEDs with a CRI of 90
• Dimmable with compatible leading edge (TRIAC) to 10%
• Operating temperature of -4°F to 113°F (-20°C to 45°C)
• Spring-loaded retention tabs allow for easy installation into ceilings up to 3/4” thick with no need for a recessed housing

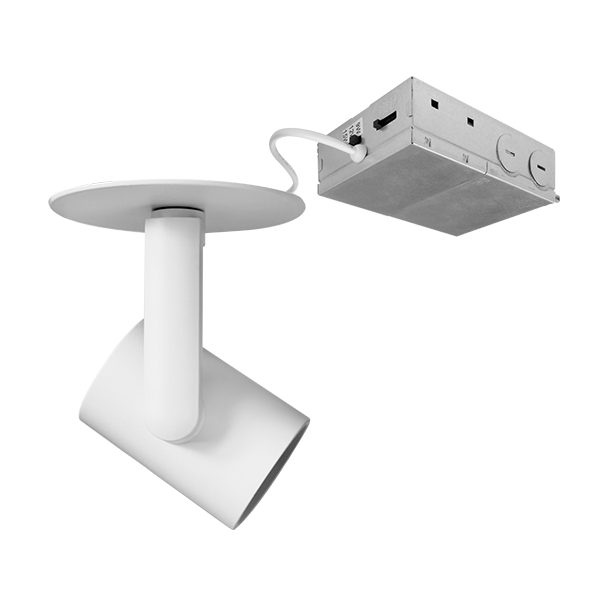

• Off-board driver/junction box includes four 1/2” KOs and three-port poke-in connectors
• cETLus 1598 Listed for damp locations
• 5-year limited system warranty

Downloads

– Sell Sheet
– Spec Sheet
– Installation Instructions
– IES Files

RMP - Select - 9W

2700K Warm	3000K Warm White	3500K Warm Neutral	4000K Neutral	5000K Cool
775 Lumens	809 Lumens	839 Lumens	877 Lumens	834 Lumens
8.8 Input Watts	8.7 Input Watts	8.5 Input Watts	8.5 Input Watts	8.8 Input Watts
88.2 lm/W	93.2 lm/W	98.6 lm/W	102.9 lm/W	94.3 lm/W
90 CRI	90 CRI	90 CRI	90 CRI	90 CRI

Part Number:

Select:

RMP1A3S15S120S942WH

RMP - Select - 12W

2700K Warm	3000K Warm White	3500K Warm Neutral	4000K Neutral	5000K Cool
1009 Lumens	1037 Lumens	1082 Lumens	1086 Lumens	1037 Lumens
12.0 Input Watts	11.7 Input Watts	11.4 Input Watts	11.5 Input Watts	11.9 Input Watts
84.1 lm/W	88.6 lm/W	94.9 lm/W	94.4 lm/W	87.1 lm/W
90 CRI	90 CRI	90 CRI	90 CRI	90 CRI

Part Number:
	Select:	RMP1A3S15S120S942WH

RMP - Select - 15W

2700K Warm	3000K Warm White	3500K Warm Neutral	4000K Neutral	5000K Cool
1217 Lumens	1297 Lumens	1371 Lumens	1391 Lumens	1305 Lumens
15.0 Input Watts	14.7 Input Watts	14.3 Input Watts	14.6 Input Watts	15.1 Input Watts
81.1 lm/W	88.2 lm/W	95.9 lm/W	95.3 lm/W	86.4 lm/W
90 CRI	90 CRI	90 CRI	90 CRI	90 CRI
