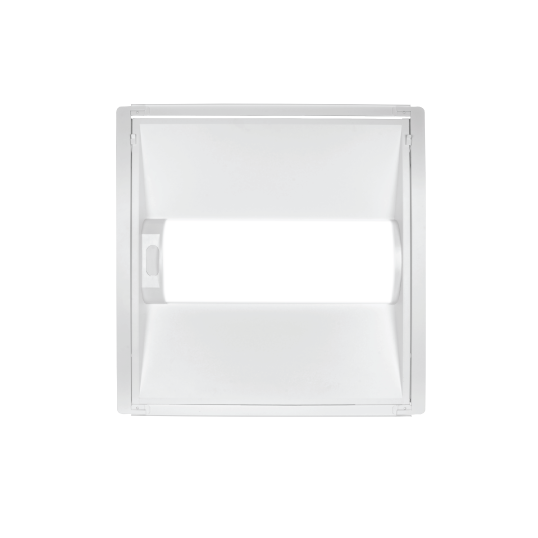

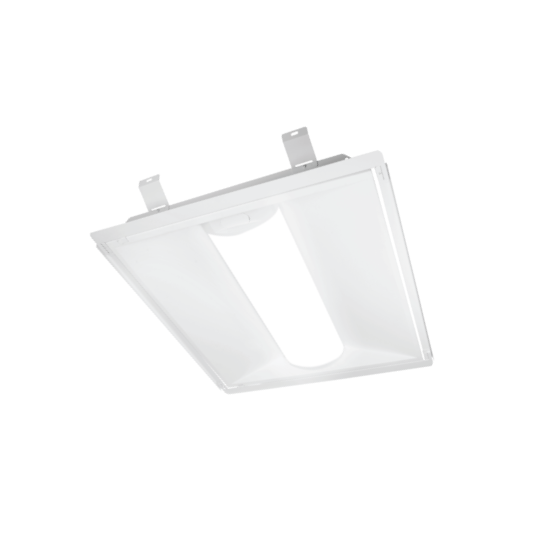

TAR 2×2 Selectable Architectural LED Troffer Retrofit Kit
The NICOR TAR Retrofit Troffers are designed to provide a simple, high-performance solution for upgrading existing fluorescent fixtures. Featuring an on-board sensor socket, these retrofit kits allow easy integration of occupancy or daylight sensors for advanced lighting control and energy savings. …
The NICOR TAR Retrofit Troffers are designed to provide a simple, high-performance solution for upgrading existing fluorescent fixtures. Featuring an on-board sensor socket, these retrofit kits allow easy integration of occupancy or daylight sensors for advanced lighting control and energy savings. Each fixture includes four selectable wattage settings to tailor light output to the specific application, providing flexibility for a variety of ceiling heights and environments. With five selectable color temperatures (3000K, 3500K, 4000K, 5000K, and 6500K), users can easily adjust the lighting to achieve the desired ambiance— from warm to daylight white. Engineered for quick and efficient installation, the retrofit design fits seamlessly into standard grid ceilings without the need for major modifications. Delivering high efficiency, long life, and a clean, modern appearance, the NICOR Select Series Retrofit Troffers are ideal for offices, schools, healthcare facilities, and retail spaces seeking to enhance performance and reduce maintenance costs.
- Five selectable color temperatures (3000K/3500K/4000K/5000K/6500K)
- Four Selectable wattage settings for application flexibility
- Retrofit design enables fast, single-person installation
- High-efficiency PMMA diffuser delivers smooth, uniform illumination
- Sensor-ready design supports occupancy and daylight controls
- Compatible with PIR sensors, NLC controls, emergency packs, and 0-10V dimmers
Color Options:
Ordering information
Downloads
Specifications
-
Lumens2160 - 4317 lm -
Wattage14, 17, 20, 28
Listings & certifications
- UL Certified
- DLC 6.0 Standard
- RoHS Compliant
- FCC Class A
- Damp-Location (UL 1598)
- DLC 6.0 Premium Listing for 1x4 and 2x4 models
- DLC 6.0 Standard Listing for 2x2 model
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- LM-79 and LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Durable steel construction with powder coat finish
- High efficiency, maintenance-free LED chamber
- Smooth formed sides for safe handling
Optical System
- Precision engineered PMMA diffuser
- High reflectivity internal coating
- No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
- 80 CRI for good color definition in public places
Electrical
- Input voltage of 120-277VAC
- Dim-to-off dimming via 0-10VDC controls
- Sensor-ready socket for field installable sensors
- CCT and Wattage selector switches accessible on driver
- Power factor > 0.9
- THD < 10%
- Operating temperature range: -4°F to 104°F (-20° to 40°C)
Installations
- Unique four rail system minimizes gaps, creating a more seamless look
- Quick and easy single person installation

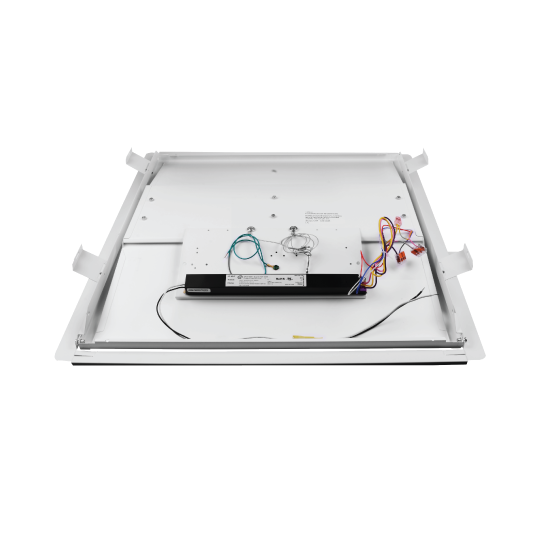

- Features an integral driver for easy installation
- Seismic wire provided for safe installation and operation
- Suitable for use in IC rated troffer housings
Full Listings
- cULus 1598 Listed for damp locations
- DLC 6.0 Premium Listing for 1x4 and 2x4 models
- DLC 6.0 Standard Listing for 2x2 model
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L90(9k) life >54,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
