ARCHITECTURAL LED TROFFER RETROFIT KIT

The NICOR TAR Retrofit Troffers are designed to provide a simple, high-performance solution for upgrading existing fluorescent fixtures. Featuring an on-board sensor socket, these retrofit kits allow easy integration of occupancy or daylight sensors for advanced lighting control and energy savings. Each fixture includes four selectable wattage settings to tailor light output to the specific application, providing flexibility for a variety of ceiling heights and environments. With five selectable color temperatures (3000K, 3500K, 4000K, 5000K, and 6500K), users can easily adjust the lighting to achieve the desired ambiance—from warm to daylight white. Engineered for quick and efficient installation, the retrofit design fits seamlessly into standard grid ceilings without the need for major modifications. Delivering high efficiency, long life, and a clean, modern appearance, the NICOR Select Series Retrofit Troffers are ideal for offices, schools, healthcare facilities, and retail spaces seeking to enhance performance and reduce maintenance costs.

Category: Tags:

Specifications

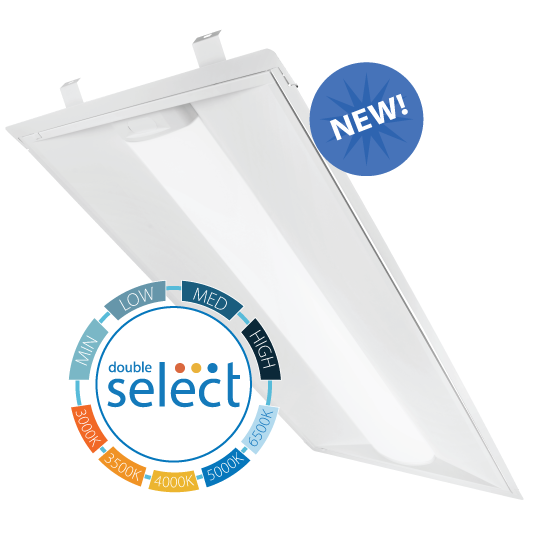

  • 4 selectable wattages (Min, Low, Med, High)
  • 5 color temperature options (3000K, 3500K, 4000K, 5000K, and 6500K)

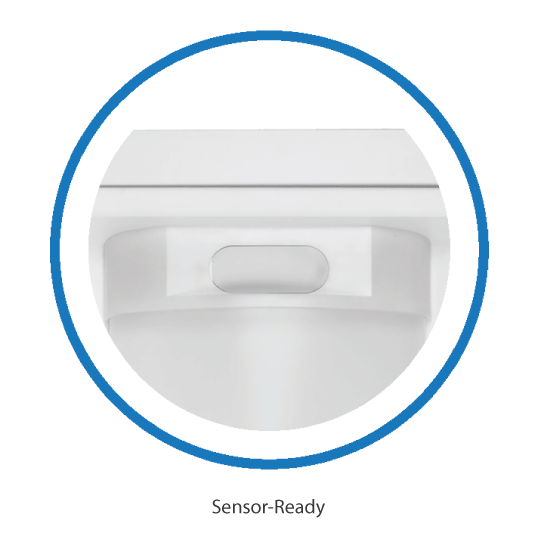

  • Sensor-ready for occupancy/daylight controls
  • BLE mesh for dimming, zoning, and daylight harvesting
  • DLC 6.0 Premium listed for energy efficiency
  • Quick retrofit into standard grid ceilings
  • Long-life LEDs (>54,000 hrs L90)
  • Durable steel construction with powder coat finish
  • 5-year limited system warranty

Downloads

– Spec Sheet
– Installation Instructions

– Sell Sheet
– Features and Benefits
– Comparison Sheet

– IES Files

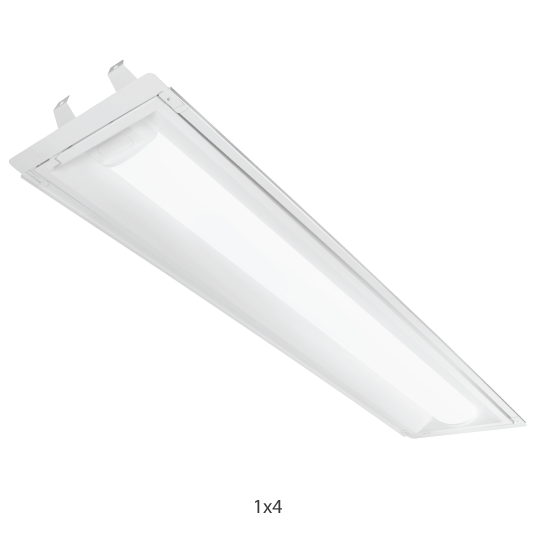

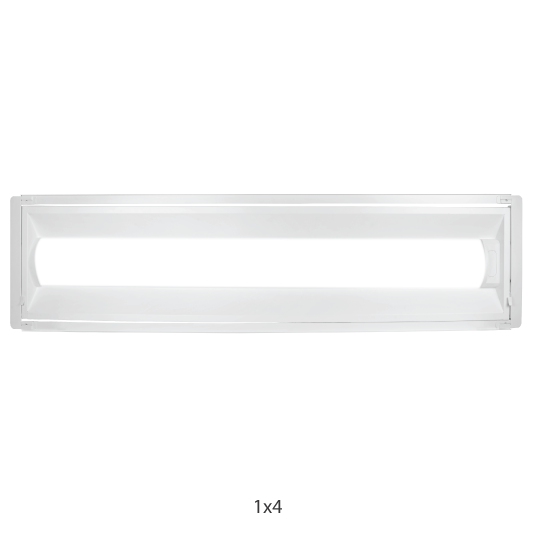

TARS3 - 1x4
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight
2191/2608/3007/4143
Lumens		2266/2698/3111/4285
Lumens		2342/2788/3215/4428
Lumens

2342/2788/3215/4428
Lumens

2266/2698/3111/4285
Lumens

13.8/17.2/20.3/28.9
Input Watts

13.6/16.9/20/28.5
Input Watts

13.4/16.7/19.7/28.1
Input Watts

13.6/16.9/20/28.4
Input Watts

13.8/17.1/20.2/28.8
Input Watts

159/152/148/143
Lm/W

167/159/156/150
Lm/W

174.9/167.1/163/158
Lm/W

158/164.8/1618/156
Lm/W

165/157/154/149
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

1x4TAR31428SUS8S

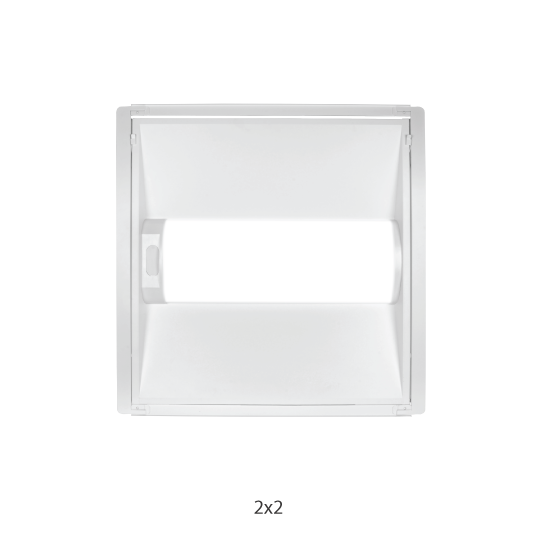

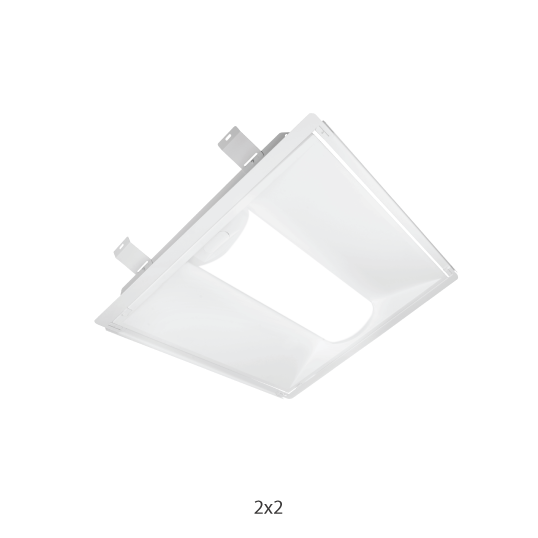

TARS3 - 2x2
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight
2162/2591/3028/4211
Lumens		2160/2589/3026/4208
Lumens		2187/2621/3063/4259
Lumens

2216/2656/3104/4317
Lumens

2164/2593/3031/4215
Lumens

14.0/17.0/20.0/28.8
Input Watts

13.9/16.8/19.8/28.5
Input Watts

13.7/16.6/19.6/28.1
Input Watts

13.8/16.8/19.7/28.4
Input Watts

14.0/17.0/20.0/28.8
Input Watts

154.4/152.4/151.4/146.4
Lm/W

155.9/153.9/152.8/147.8
Lm/W

159.7/157.7/156.6/151.5
Lm/W

160.5/158.4/157.3/152.2
Lm/W

154.2/152.2/151.2/146.2
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

2x2TAR32228SUS8S

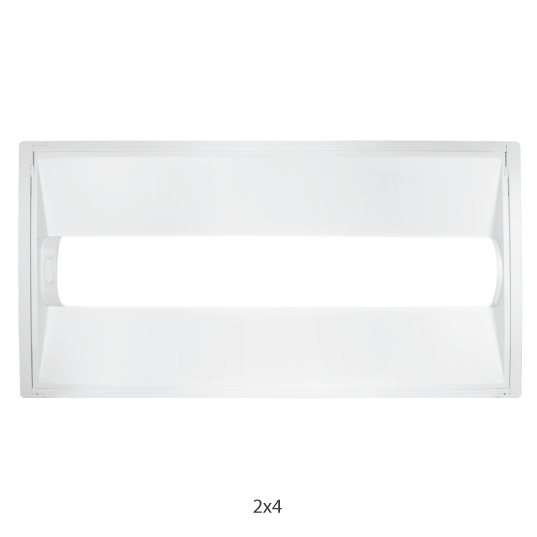

TARS3 - 2x4

3000K
Warm White		 3500K
Warm Neutral		 4000K
Neutral		 5000K
Cool		 6500K
Daylight
2662/3072/4294/5095
Lumens		 2670/3082/4308/5111
Lumens		 2694/3110/4347/5157
Lumens

2732/3153/4407/5229
Lumens

2669/3081/4306/5109
Lumens
17.4/20.2/28.6/34.15
Input Watts		 17.2/20.1/28.3/33.87
Input Watts		 17.0/19.8/28.0/33.46
Input Watts		 17.2/20.0/28.2/33.76
Input Watts		 17.4/20.3/28.7/34.25
Input Watts
153.2/151.9/150.3/149.2
Lm/W		 154.9/153.6/152.0/150.9
Lm/W

158.2/156.9/155.3/154.1
Lm/W

159.0/157.7/156.0/154.9
Lm/W

153.1/151.8/150.3/149.2
Lm/W
80+CRI 80+CRI 80+CRI 80+CRI

80+CRI

Part Number:
2x4 TAR32428SUS8S
TARS3 - 1x4
3000K
Warm White		3500K
Warm Neutral		4000K
Neutral		5000K
Cool		6500K
Daylight

2191/2608/3007/4143
Lumens

2266/2698/3111/4285
Lumens

2342/2788/3215/4428
Lumens

2342/2788/3215/4428
Lumens

2266/2698/3111/4285
Lumens

13.8/17.2/20.3/28.9
Input Watts

13.6/16.9/20/28.5
Input Watts

13.4/16.7/19.7/28.1
Input Watts

13.6/16.9/20/28.4
Input Watts

13.8/17.1/20.2/28.8
Input Watts

159/152/148/143
Lm/W

167/159/156/150
Lm/W

174.9/167.1/163/158
Lm/W

158/164.8/1618/156
Lm/W

165/157/154/149
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:

 1x4:TAR31428SUS8S

TARS3 - 2x2
3000K
Warm White		 3500K
Warm Neutral		 4000K
Neutral		 5000K
Cool		 6500K
Daylight

2162/2591/3028/4211
Lumens

2160/2589/3026/4208
Lumens

2187/2621/3063/4259
Lumens

2216/2656/3104/4317
Lumens

2164/2593/3031/4215
Lumens

14.0/17.0/20.0/28.8
Input Watts

13.9/16.8/19.8/28.5
Input Watts

13.7/16.6/19.6/28.1
Input Watts

13.8/16.8/19.7/28.4
Input Watts

14.0/17.0/20.0/28.8
Input Watts

154.4/152.4/151.4/146.4
Lm/W

155.9/153.9/152.8/147.8
Lm/W

159.7/157.7/156.6/151.5
Lm/W

160.5/158.4/157.3/152.2
Lm/W

154.2/152.2/151.2/146.2
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:
1x4: TAR31428SUS8S

TARS3 - 2x4
3000K
Warm White		 3500K
Warm Neutral		 4000K
Neutral		 5000K
Cool		 6500K
Daylight

2662/3072/4294/5095
Lumens

2670/3082/4308/5111
Lumens

2694/3110/4347/5157
Lumens

2732/3153/4407/5229
Lumens

2669/3081/4306/5109
Lumens

17.4/20.2/28.6/34.15
Input Watts

17.2/20.1/28.3/33.87
Input Watts

17.0/19.8/28.0/33.46
Input Watts

17.2/20.0/28.2/33.76
Input Watts

17.4/20.3/28.7/34.25
Input Watts

153.2/151.9/150.3/149.2
Lm/W

154.9/153.6/152.0/150.9
Lm/W

158.2/156.9/155.3/154.1
Lm/W

159.0/157.7/156.0/154.9
Lm/W

153.1/151.8/150.3/149.2
Lm/W

80+
CRI

80+
CRI

80+
CRI

80+
CRI

80+
CRI

Part Number:
2x4: TAR32428SUS8S
