SELECT LED BACKLIT TROFFER

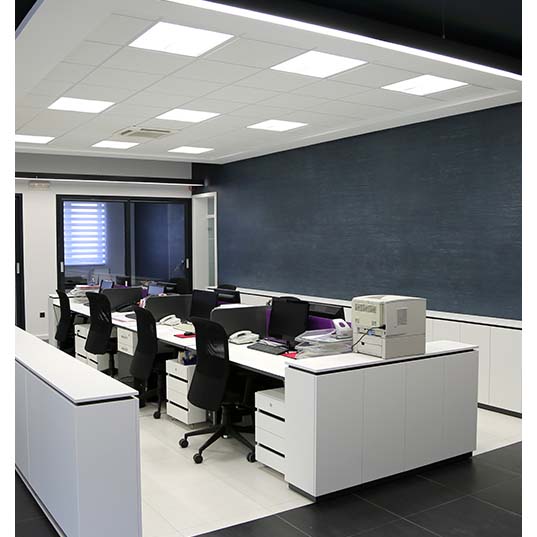

The TGL4 is a high-performance, contractor-grade LED troffer designed to meet the demands of commercial environments. Featuring a large, highly accessible junction box and a sealed, maintenance-free chamber with a seamless aluminum frame, it effectively keeps out dust and insects. The fixture is equipped with a precision-engineered, textured diffuser that provides maximum lumen output and uniform light distribution, eliminating hot spots or shadowing. Available with selectable CCT and lumen output options, users can choose between 3500K, 4000K, or 5000K CCTs, as well as low, medium, or high lumen outputs. Additionally, it holds the DLC 5.1 Standard certification, ensuring exceptional quality and performance. Ideal for offices, hospitals, and a variety of other commercial spaces, the TGL4 offers a reliable and efficient lighting solution.



Specifications

  • Patented internal optical system
  • Precision engineered polystyrene diffuser
  • High reflectivity internal coating
  • No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
  • 80 CRI for good color definition in public places
  • Input voltage of 120-277VAC
  • Dim-to-off dimming via 0-10VDC controls

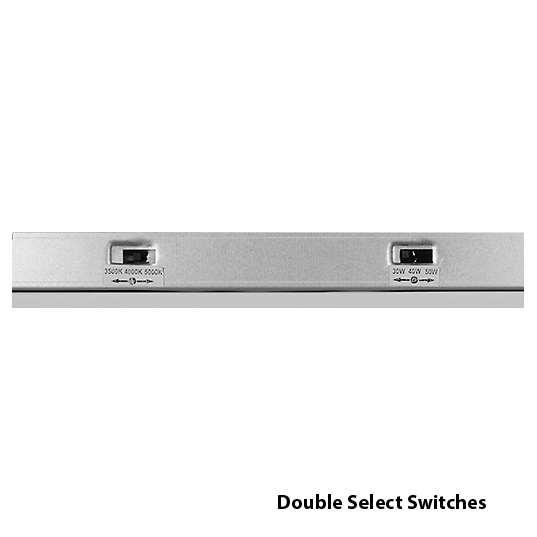

  • CCT and Wattage selector switches accessible on junction box
  • Power factor > 0.98
  • THD < 10%
  • Luminaire surge protection level: designed to withstand up to 2.5kV ring wave per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable Luminaires
  • Operating temperature range: 4°F to 104°F (-20° to 40°C)
2x2 - Select
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

2467/3701/4934
Lumens

2625/3938/5250
Lumens

2475/3713/4950
Lumens

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

123/123/115
lm/W

137/137/128
lm/W

125/125/117
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 Select:TGL422
2x4 - Select
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3035/4553/6070
Lumens

3223/4835/6446
Lumens

3039/4559/6079
Lumens

30/40/50
Input Watts

30/40/50
Input Watts

30/40/50
Input Watts

101/114/142
lm/W

112/126/157
lm/W

102/115/143
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 Select:TGL424
2x2 - Select
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

2467/3701/4934
Lumens

 2625/3938/5250
Lumens

 2475/3713/4950
Lumens

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

123/123/115
lm/W

137/137/128
lm/W

125/125/117
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 Select:TGL422

2x4 - Select
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

3035/4553/6070
Lumens

 3223/4835/6446
Lumens

 3039/4559/6079
Lumens

30/40/50
Input Watts

30/40/50
Input Watts

30/40/50
Input Watts

101/114/142
lm/W

112/126/157
lm/W

102/115/143
lm/W

84
CRI

84
CRI

84
CRI

Part Number:

 Select:TGL424
