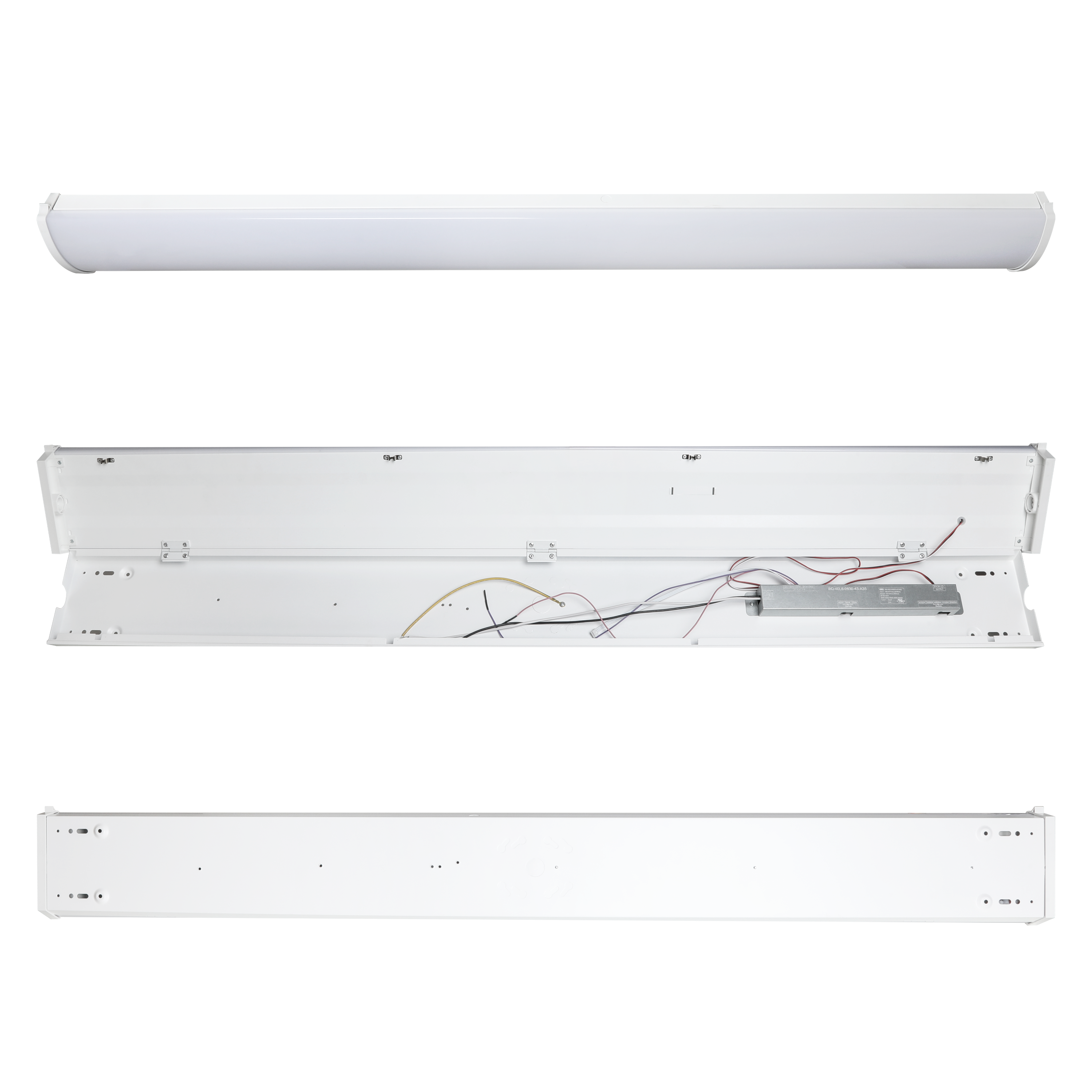

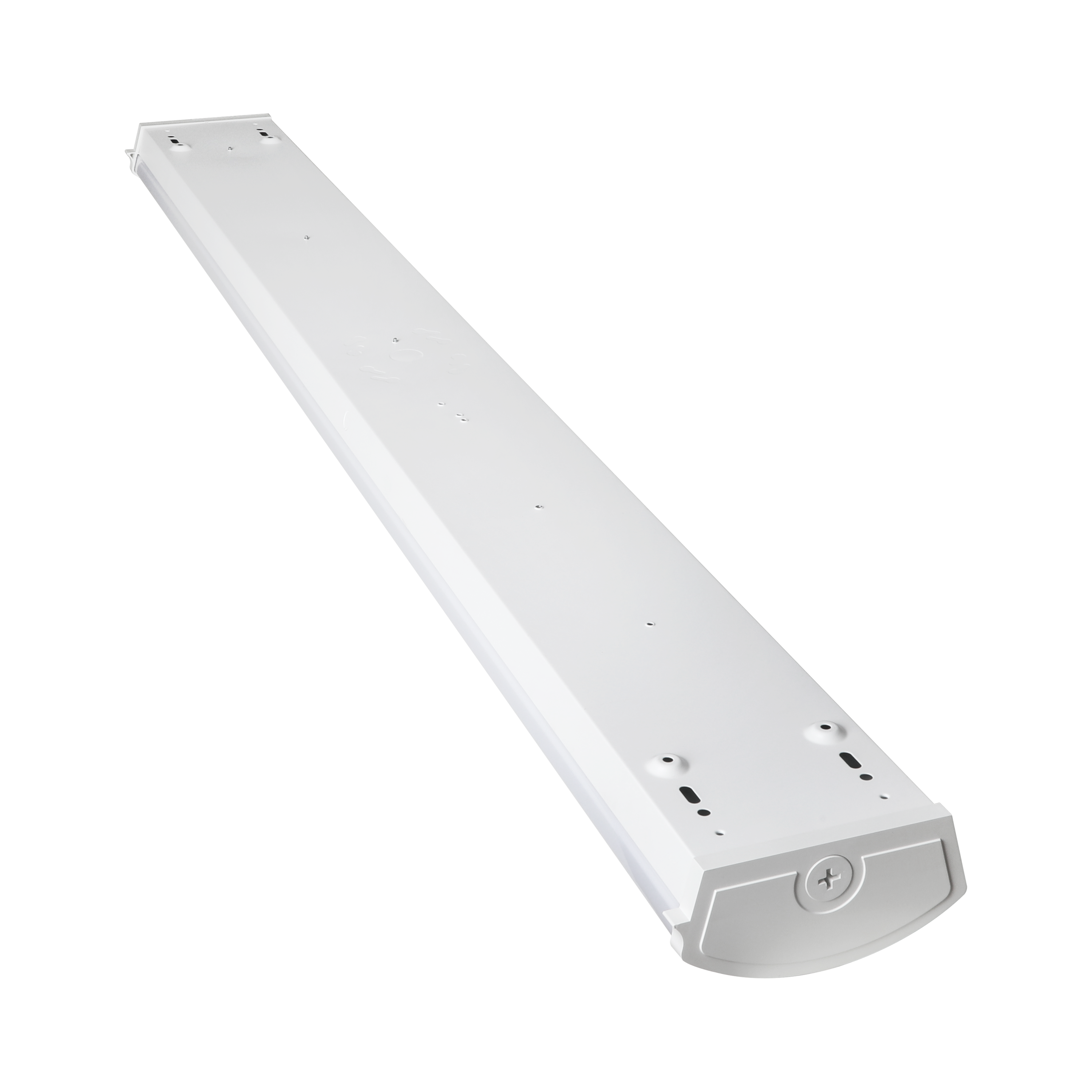

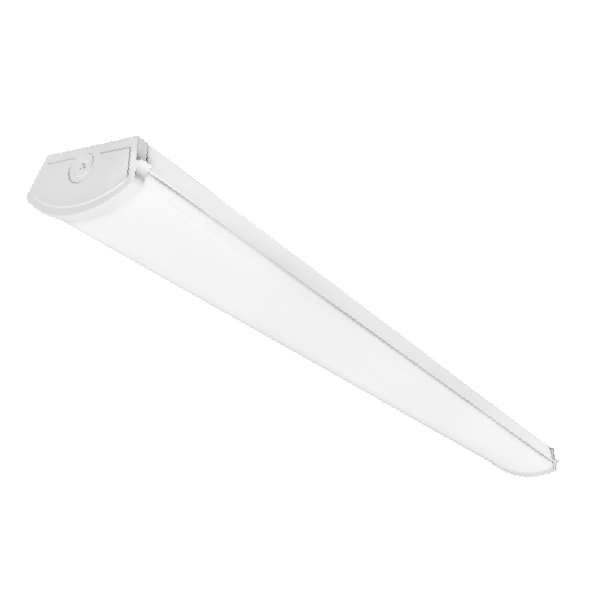

WPA 4Ft Selectable LED Linear Wraparound
The WPA LED Linear Wrap is a cost-effective, energy-efficient alternative to traditional fluorescent wrap fixtures. Its modern, low-profile design features a curved, milky-white lens for uniform light distribution and an enhanced aesthetic without hotspots. The WPA offers field-selectable wattage an…

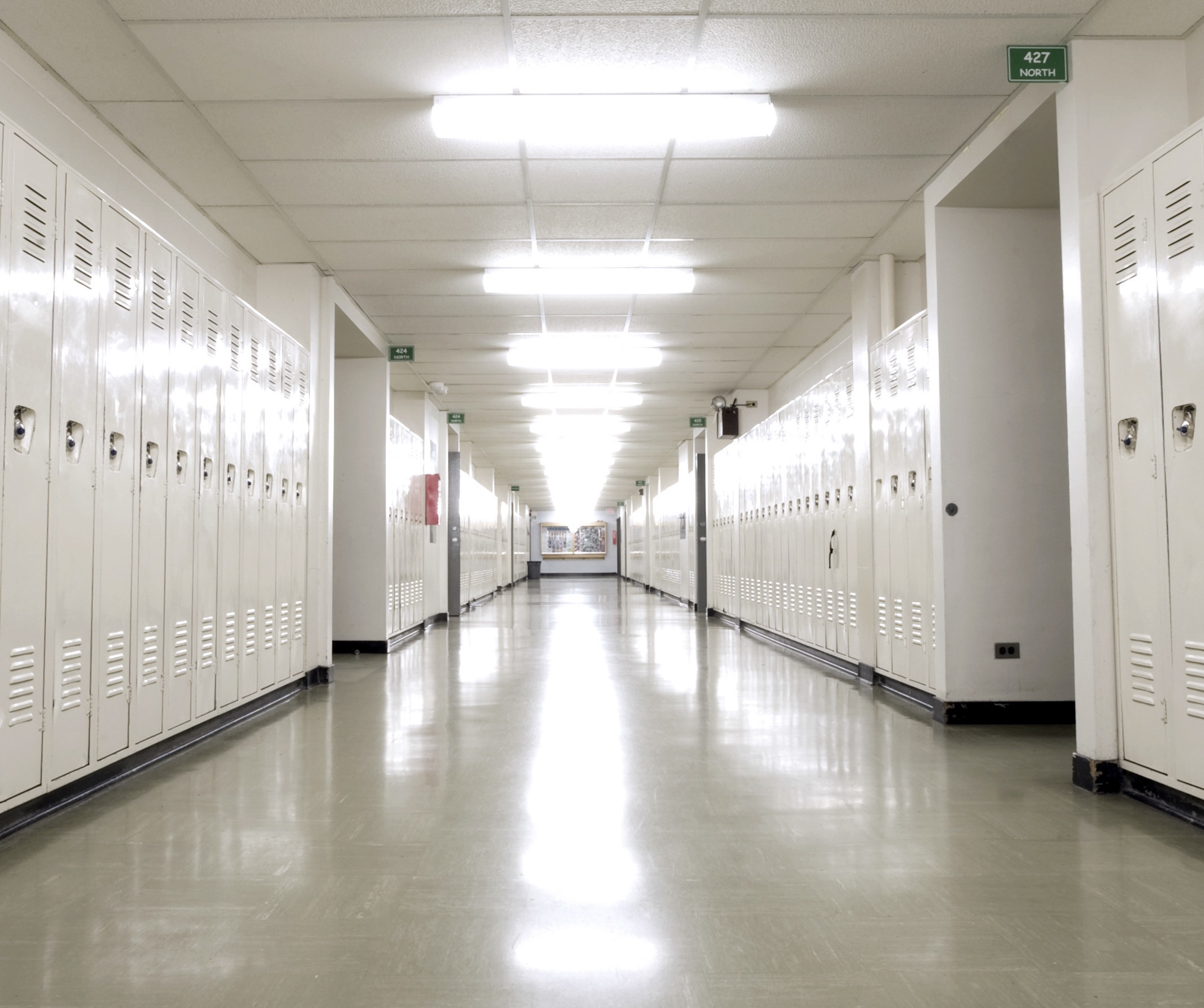

The WPA LED Linear Wrap is a cost-effective, energy-efficient alternative to traditional fluorescent wrap fixtures. Its modern, low-profile design features a curved, milky-white lens for uniform light distribution and an enhanced aesthetic without hotspots. The WPA offers field-selectable wattage and CCT, allowing customization of both light output and color temperature on-site. Available CCT options include 3000K, 3500K, 4000K, 5000K, and 6500K, with selectable lumen outputs of 25W, 35W, or 45W to suit a variety of application needs. Integrated lens latches provide tool-free access for easy installation and maintenance. Suitable for surface mounting on ceilings or walls, the WPA is ideal for retail, warehouse, residential utility, light commercial, and industrial environments.
- Five selectable color temperatures (3000K/3500K/4000K/5000K/6500K)
- Durable steel body with white powder coat finish
- Precision-engineered polystyrene diffuser with fyllu enclosed chamber
- Operating temperature range: -4°F to 122°F (-20°C to 50°C)
- >80 CRI for good color definition
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>60,000 -
Lumens3115 - 5963 lm
-
Wattage25, 35, 45
Listings & certifications
- UL Certified
- DLC 5.1 Premium
- RoHS Compliant
- FCC Class A
- Damp-Location (UL 1598)
- Testing performed in accordance with IESNA standards
Features
Construction

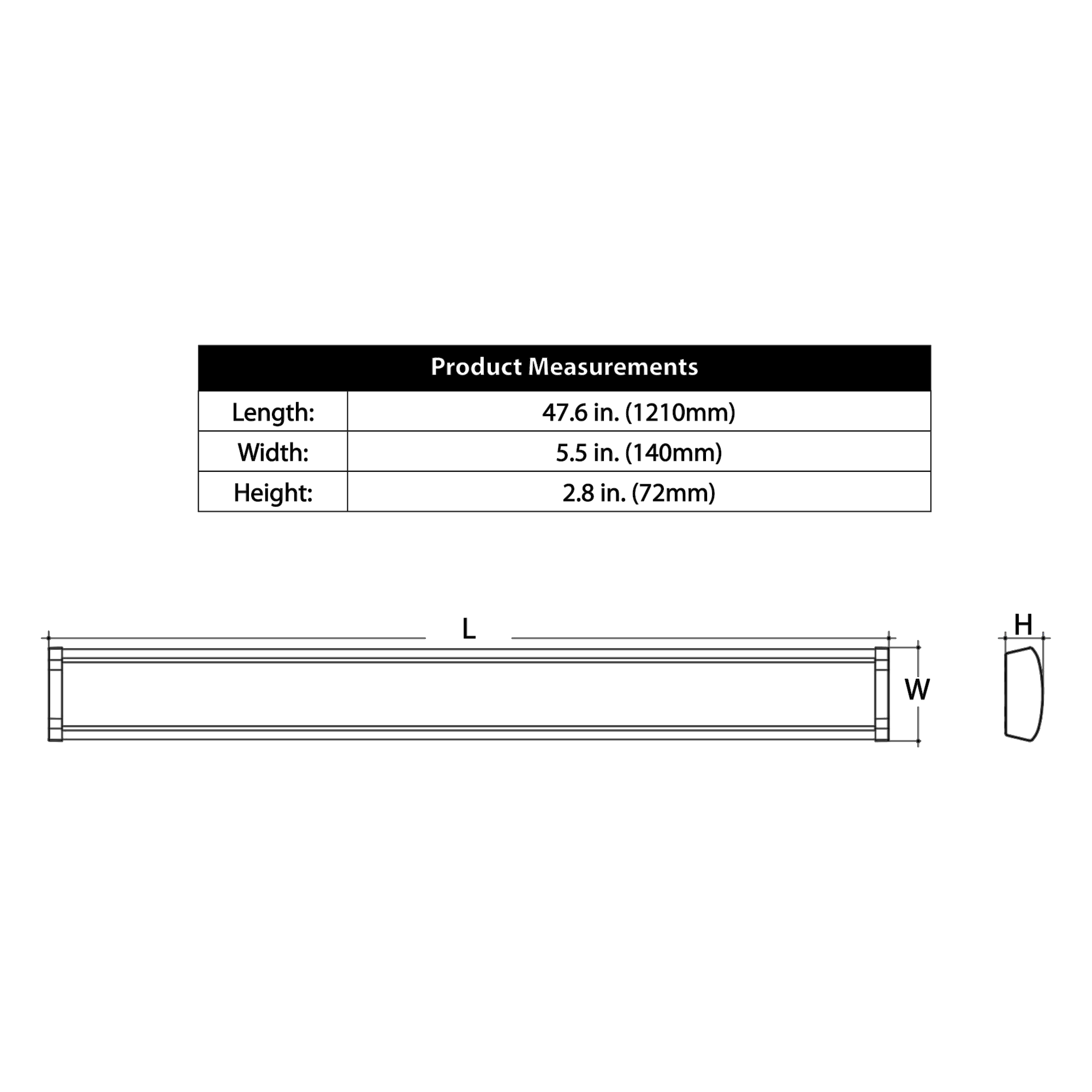

- 4Ft length for exceptional coverage
- Durable steel body with white powder coat finish

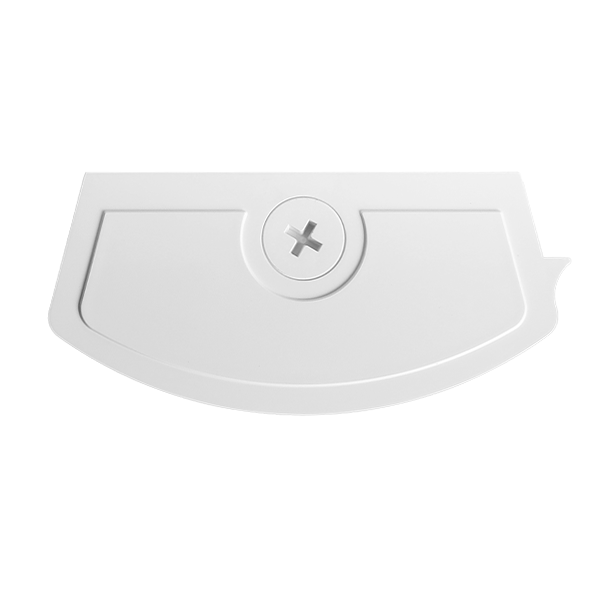

- White polymer endcaps with 1/2" knockout
- Smooth formed sides for safe handling
Optical System
- Precision engineered polystyrene diffuser
- Fully enclosed light chamber keeps ou dust and debris
- Selectable CCTs of 3000K, 3500K, 4000K, 5000K, and 6500K
- >80 CRI for excellent color definition
Electrical
- Input voltage of 120-277VAC with 12V aux output
- CCT and wattage selector switch accessible on the driver
- Selectable power levels: 45/35/25W
- Dim to off dimming via 0-10VDC controls
- Operating temperature range: -4°F to 122°F (-20°C to 50°C)
- Emergency Battery Backup option available
Installations
- Quick and easy single person installation

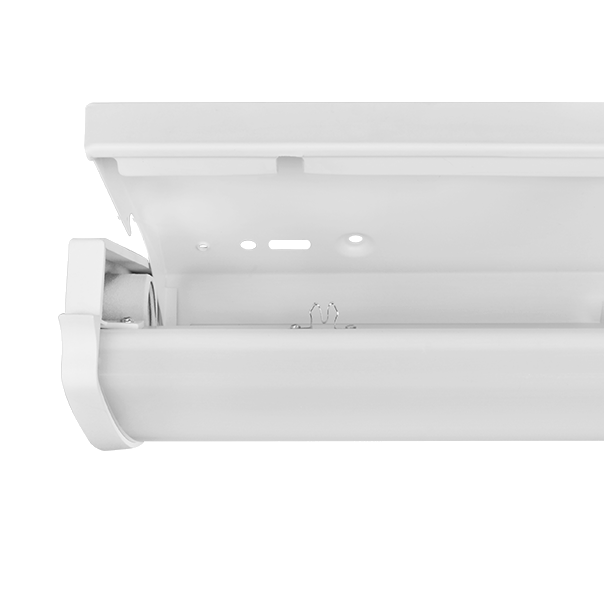

- Hinged body protects light engine during installation
- Mounting to surface, junction box, or suspension possible
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the fixture or electrical distribution panel
Full Listings
- cULus 1598 Listed for damp locations
- DLC 5.1 Premium listed
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions
- TM-21 Reported L70(9k) life >60,000 hours, L90(9k) life = 23,000
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
