6in

Introducing the CDG LED Commercial Downlight System, a versatile lighting solution that combines modular design features with Selectable wattage/color temperature and wireless control technology. The galvanized steel frame features field-swappable mounting collars for both 4” and 6” trim reflectors available in multiple finishes. For retrofit applications, ditch the frame entirely and mount the trim directly via pre-installed retention clips. The remote junction box/driver is equipped with a hinged door for through-wiring and optional clips for effortless frame attachment. Standard field-adjustable optics produce a range of 36° to 60°, while the optional narrow optic spans 22° to 36° for a more focused light distribution. A wall wash lens can be added to either optic for refined directional lighting. The CDG operates at 120-277V with 0-10V dimming and a 12V accessory wire for Bluetooth control via the NICOR NLC app. Add 4W or 8W emergency backup for added safety and security. NICOR’s CDG System sets a new standard in commercial lighting, defining versatility, convenience, and innovation.

Introducing the CDG LED Commercial Downlight System, a versatile lighting solution that combines modular design features with Selectable wattage/color temperature and wireless control technology. The galvanized steel frame features field-swappable mounting collars for both 4” and 6” trim reflectors available in multiple finishes. For retrofit applications, ditch the frame entirely and mount the trim directly via pre-installed retention clips. The remote junction box/driver is equipped with a hinged door for through-wiring and optional clips for effortless frame attachment. Standard field-adjustable optics produce a range of 36° to 60°, while the optional narrow optic spans 22° to 36° for a more focused light distribution. A wall wash lens can be added to either optic for refined directional lighting. The CDG operates at 120-277V with 0-10V dimming and a 12V accessory wire for Bluetooth control via the NICOR NLC app. Add 4W or 8W emergency backup for added safety and security. NICOR’s CDG System sets a new standard in commercial lighting, defining versatility, convenience, and innovation.

The Fire Rated REL Recessed Downlight meets the latest codes for multi-family fire rating with a 2-hour certification per UL263. The edge-lit technology makes it a practical solution with high performance and five CCT selectability options (2700K, 3000K, 3500K, 4000K, and 5000K) for ultimate customization. Adjustable spring-loaded retention tabs allow a secure fit for easy installation in both new construction and remodel applications. The REL-FR is an ideal solution for apartment buildings, townhomes, condos, and commercial applications.

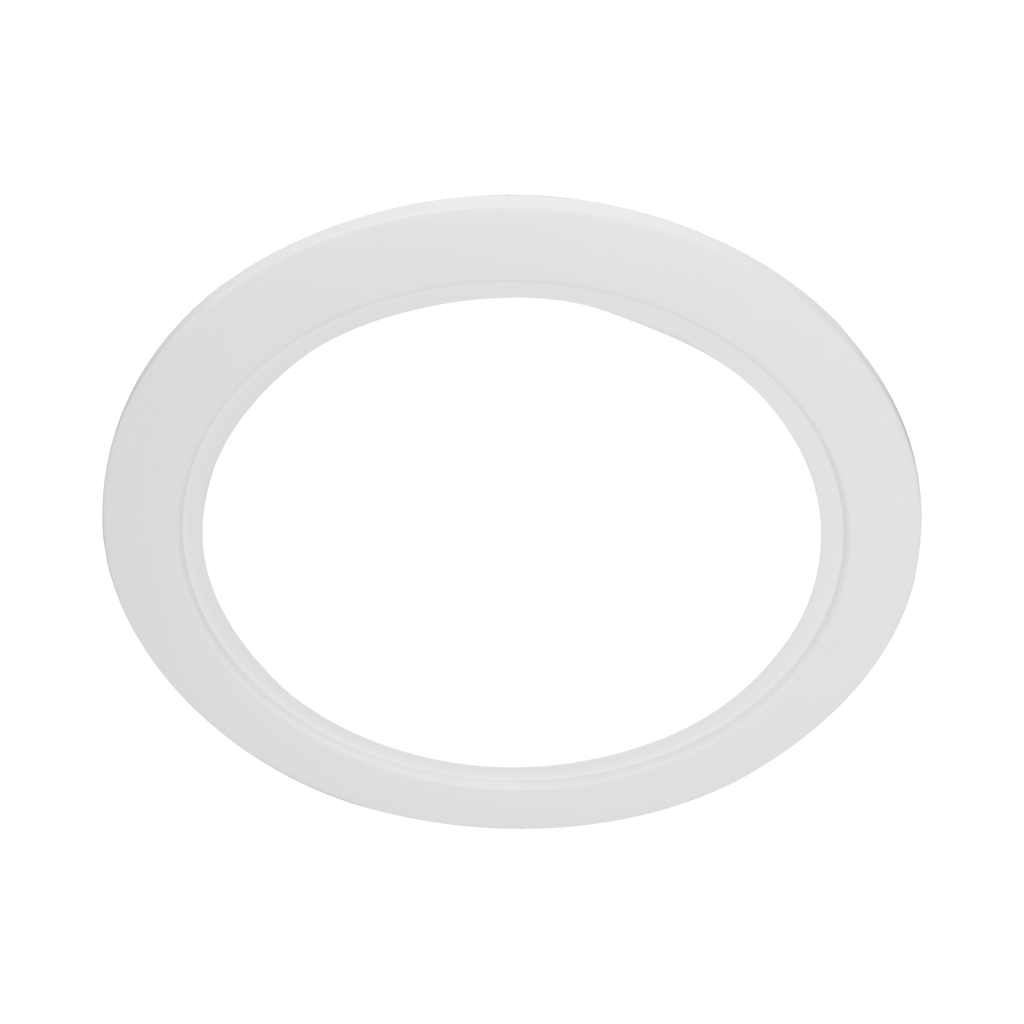

The REL Series Goof Ring provides a seamless structure to cover over cut or ragged edged holes when installing the REL series of fixtures.

The DSEv3 Selectable Surface Mount Downlight offers a slim profile in both round and square apertures with CCT selectability. The edge-lit technology uses a reflective light guide panel that disperses light through a diffused lens, making it a practical and economical solution with high performance. Available in a variety of diameters, the DSEv3 brings flexible option with a clean aesthetic and excellent performance to any area of the home.

The color trims gives an additional decorative element to the REL fixtures. The simple tab system attaches the trim on to the face of REL Series downlights.

The RSDS-M Surface Mount Downlight with PIR Motion Sensor offers a thin installation solution that provides automatic on/off control. Select the CCT (3000/4000/5000K) with the flip of a switch. Installation is easier than ever with the twist lock diffuser that can be removed for installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. Perfect for bringing even illumination with automatic controls to closets, pantries, and similar areas.

The REL Regressed Edge Lit Downlight offers a regressed design using baffles to bring depth and a clean aesthetic to any room. The edge-lit technology makes it a practical solution with high performance and five CCT selectability (2700K, 3000K, 3500K, 4000K, and 5000K) for ultimate customization. Adjustable spring-loaded retention tabs allow a secure fit and easy installation. Perfect for adding light in tight spaces such as hallways, bathrooms, basements, and utility closets.

The RSD Single CCT Downlight offers a thin installation solution designed to fit the tightest of spaces. Installation is easier than ever with the twist lock diffuser that can be removed during installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. Available in your choice of 2700K, 3000K, 4000K or 5000K CCT depending on your desired light temperature. Perfect for bringing even illumination to any area of your home.

The REL Single CCT Edge Lit Downlight offers an attractive aesthetic with a low profile. The edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow a secure fit and easy installation. Perfect for adding light in tight spaces such as hallways, bathrooms, basements, and utility closets.

The REL Selectable Edge Lit Downlight with universal voltage input, offers an attractive aesthetic with a low profile in 6” round forms. The CCT selectable, edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow for a secure fit and easy installation. It’s perfect for adding light in commercial or multi-family spaces such as offices, hallways, corridors, and entries.

The RSDS-M Surface Mount Downlight with PIR Motion Sensor offers a thin installation solution that provides automatic on/off control. Select the CCT (3000/4000/5000K) with the flip of a switch. Installation is easier than ever with the twist lock diffuser that can be removed for installation. The direct box mount ensure it sits flush to the ceiling for a clean and professional look. Perfect for bringing even illumination with automatic controls to closets, pantries, and similar areas.
