IMS DALI-2 to 0/1-10V Power Pack with 20A Relay
The IMS320D10RLY is a versatile lighting control interface that converts DALI commands into a 0/1-10V dimming signal while providing integrated load switching through a high-capacity 20A relay. Designed for commercial and industrial lighting applications, it supports 100-277VAC input and delivers a 0/1-10V, 100mA sink output for controlling compatible LED drivers and dimmable ballasts. The unit also features a 24V auxiliary power output for powering connected control devices. Its UL-listed, plenum-rated design makes it ideal for modern lighting control systems requiring reliable DALI-to-analog dimming conversion and load control.

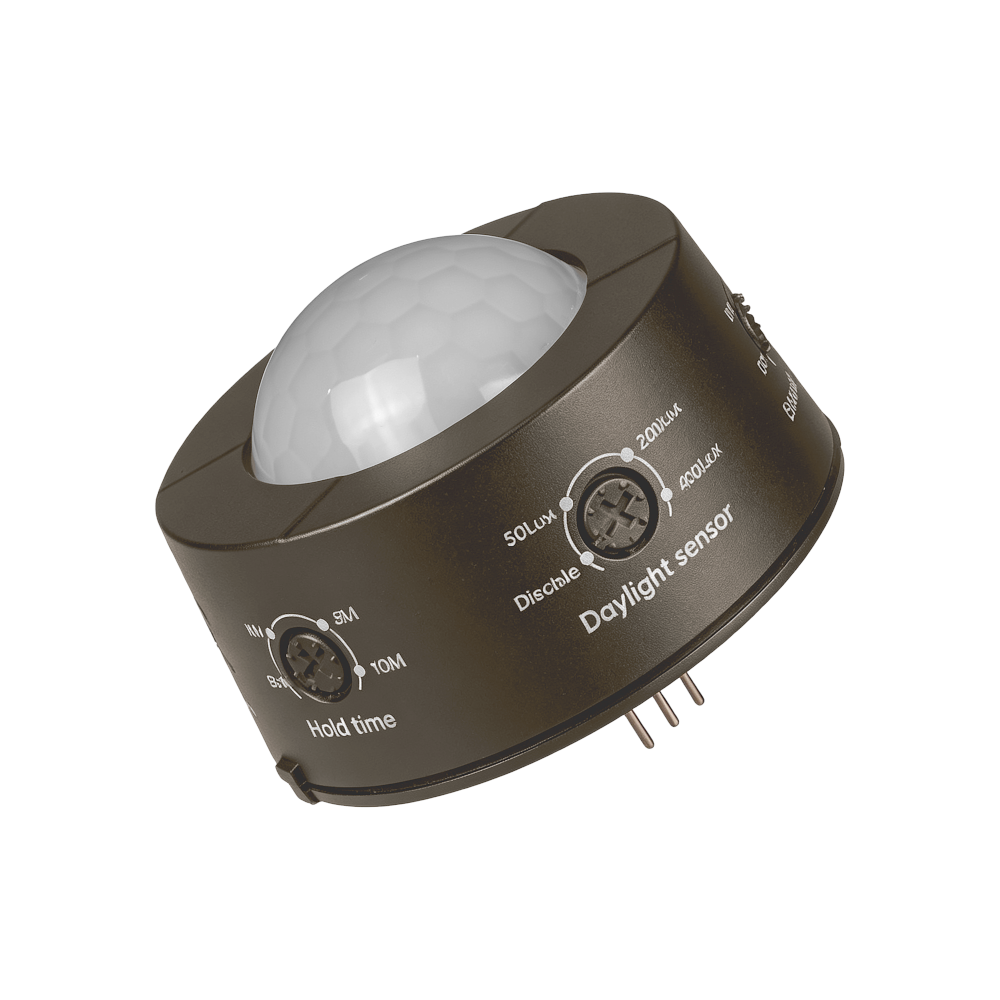

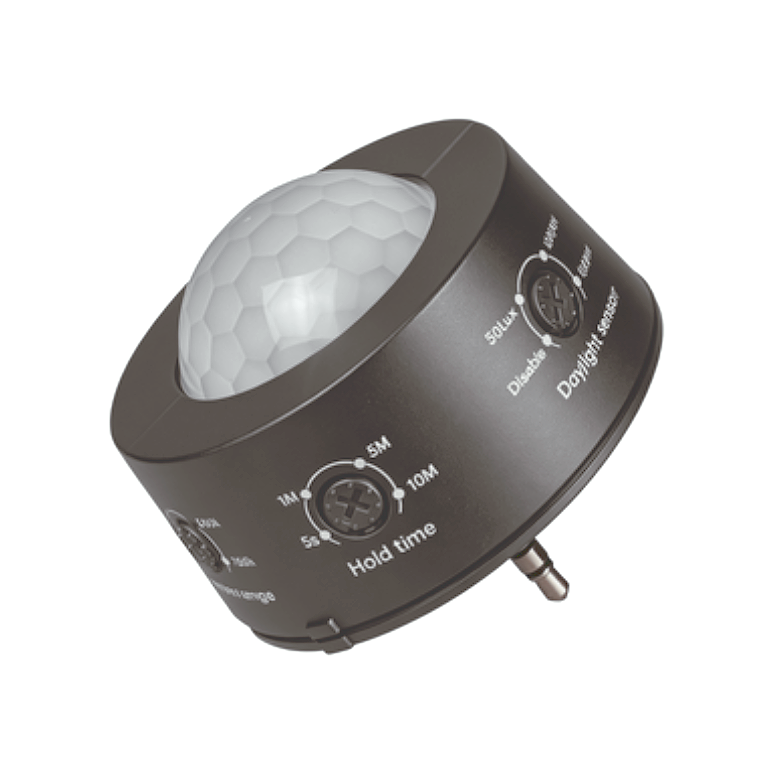

NLC Plug and Play Long-Range Sensor with Lens (Wet-Location)
The NLCEFS106-WHBL is a low voltage Bluetooth wireless PIR/Daylight sensor. The integrated 3.5mm jack is designed for easy installation with socket sensor enabled outdoor luminaires. It provides 360° coverage at heights ranging from 20-40Ft with the standard WHBL102B lens. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android). Additional Lens options are available, see the accessories section.
NLC Real-Time-Clock USB Dongle
The NLCCR01RTC is a real-time clock (RTC) powered via a USB-A receptacle. A CR2032 battery provides backup power, maintaining the internal clock during power outages. The NLCCR01RTC synchronizes all devices within a zone, ensuring precise and consistent scheduling across the entire system. Commissioned via NICOR NLC app (iOS and Android compatible).
NLC Wireless Long-Range RTC USB Dongle Enclosure with Signal Booster
The NICOR NLCCR02WENCL is an IP65-rated enclosure housing a Real-Time Clock and signal booster for outdoor NLC controls. The Real-Time Clock will provides an astromonical clock for sunset and sunrise scheduling. The signal booster extends the communication range up to 1,640 feet (500 meters), substantially improving network coverage. Designed for full compatibilitywith the NICOR NLC ecosystem, this versatile solution adapts to diverse wet location applications, offering flexible deployment options and enhanced network performance in challenging environments. The NLCCR02WENCL is commissioned with the NICOR NLC app (iOS and Android).
NLC Wireless 3-Button Wall Control Switch
The NICOR NLCWP1013SA0 is a line-voltage Bluetooth wireless wall switch. Featuring 3-key control (ON/OFF, DIM+, DIM-), it provides wireless lighting control of NICOR NLC devices via Bluetooth connectivity. The switch can be used to retrofit a standard wall switch and requires a neutral wire connection. Setup and commissioning requires the NICOR NLC mobile app (IOS and Android).
NLC Line-Voltage 7-Button Wall Control Switch
The NLCWP1017SA0 is a 7-button line-voltage Bluetooth switch designed for applications where battery use is not practical. It provides 4 separate scenes, Dim up / Dim down, and ON/OFF functions. It is sized to pair with a Decora wall plate. Setup and commissioning requires the NICOR NLC mobile app (IOS and Android).
NLC Plug and Play Long-Range Controller Node
The NLCWPPA102AUXWC1 is a Bluetooth control node designed for outdoor and wet-location applications. It has an enhanced antenna that supports wireless communication up to 328 feet (100 meters) between system nodes. The UV resistant and IP66 rated enclosure protects against harsh environments while ensuring reliable performance. The device is commissioned using the NICOR NLC app for iOS and Android (iOS and Android).
NLC Wireless 20A Zone and Plug Load Controller with 12V/ECO Port
The NLCPPA104SB1 Series Bluetooth zone controllers feature a 20A relay for controlling higher capacity loads than standard fixture controllers. The NLCPPA104SB1 incorporates external 0-10VDC plus 12VDC output push-in terminals and a RJ45 port to support Eco-Sensors. The NLCPPA104SB1 supports switching of up to 20A plug loads and 1HP motor loads.
NLC Wireless 4-Button Switch with PIR Sensor
The NLCIWS102B1 is a line-voltage switch featuring integrated PIR occupancy and daylight sensing, with a built-in relay rated for lighting loads up to 6A. The unit consists of a 4-button interface that provides manual Dim Up, Dim Down, ON, and OFF control. Setup and commissioning require the NICOR NLC mobile app (iOS and Android). Note: The NLCIWS102B1 does not provide wired 0-10V dimming connections. 0-10v dimming is controlled via Bluetooth through other NLC components.
NLC Wireless 4-Button Switch with PIR and Ultrasonic Sensor
The NLCDWS102B1 is a line-voltage switch featuring integrated dual-tech PIR / Ultrasonic sensing with daylight detection capabilities. A built-in relay provides control for lighting loads up to 6A. The unit consists of a 4-button interface that provides manual Dim Up, Dim Down, ON, and OFF control. Setup and commissioning require the NICOR NLC mobile app (iOS and Android). Note: The NLCDWS102B1 does not provide wired 0-10V dimming connections. 0-10V dimming is controlled via Bluetooth through other NLC components.
