The NLCPC1 Bluetooth zone controller is designed to efficiently manage higher capacity loads with its 20A relay. Featuring a 0-10V push-in port, it enables dimming control for up to 48.5mA sinking current. This controller supports switching for up to 20A plug loads and 1HP motor loads, providing versatile control options. Installation is convenient, as the NLCPC1 can be securely attached to any 1/2-inch knockout using the included threaded nut. Setup and commissioning are streamlined with the NICOR NLC mobile app (iOS and Android).

The NLCPS1 is an inline power pack designed to provide low-voltage (12V) supply and to receive dimming signal from NLC Wireless Bluetooth sensors. It operates at 3A (max) load at 120/277V and provides 0-10V dimming capability to luminaires. The NLCPS1 can be secured directly to any 1/2-inch knockout using the threaded nut included.

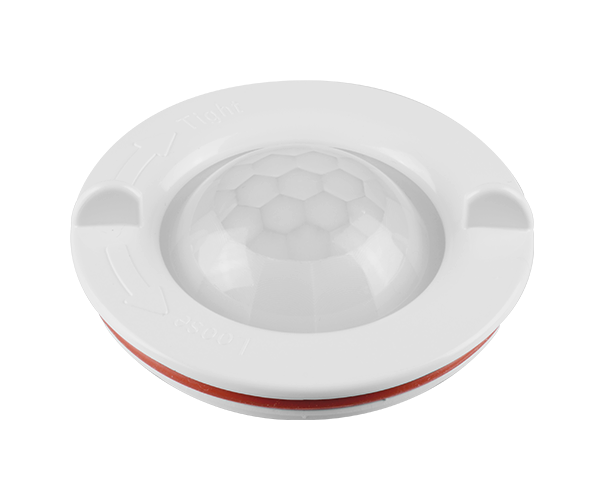

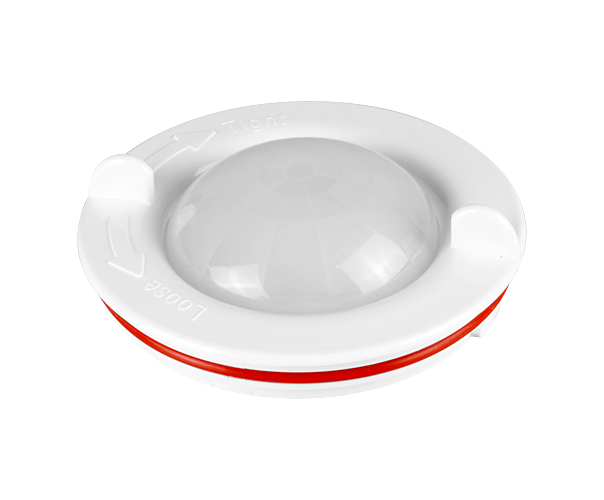

The NLC Fresnel Lenses are designed to work with NLC sensors (see Product Compatibility below). Each Fresnel lens offers 360° high-density coverage at various heights. The twist-and-lock mechanism facilitates easy lens swapping, while the IP66 rating ensures complete protection against solid particles and significant water resistance. This feature makes them exceptionally suitable for environments such as manufacturing facilities, warehouses, and other large installation spaces.

The NLC Fresnel Lenses are designed to work with NLC sensors (see Product Compatibility below). Each Fresnel lens offers 360° high-density coverage at various heights. The twist-and-lock mechanism facilitates easy lens swapping, while the IP66 rating ensures complete protection against solid particles and significant water resistance. This feature makes them exceptionally suitable for environments such as manufacturing facilities, warehouses, and other large installation spaces.

The NLC Fresnel Lenses are designed to work with NLC sensors (see Product Compatibility below). Each Fresnel lens offers 360° high-density coverage at various heights. The twist-and-lock mechanism facilitates easy lens swapping, while the IP66 rating ensures complete protection against solid particles and significant water resistance. This feature makes them exceptionally suitable for environments such as manufacturing facilities, warehouses, and other large installation spaces.

The NLCSPFW1WH is an integrated low-voltage Bluetooth wireless PIR/Daylight sensor. It provides 360° coverage at heights ranging from 15 to 18Ft with a coverage area extending out to 32Ft (when mounted at a 18Ft height). The NLCSPFW1WH comes factory installed on mid-range luminaires. Pair it with the NLCPS1 as a power supply/fixture controller(integral to luminaire from factory). Setup and commissioning requires the NICOR NLC mobile app (iOS and Android compatible).

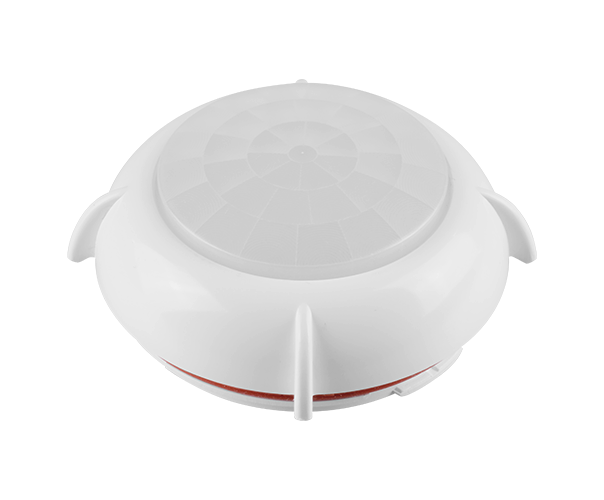

The NLCSPIHW1WH is an integrated low-voltage Bluetooth wireless PIR/Daylight sensor designed for the NICOR NLC System, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, it provides 360° coverage at heights ranging from 8 to 18Ft with a coverage diameter up to 40Ft. With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, the NLCSPIHW1WH is an ideal choice for indoor office spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).

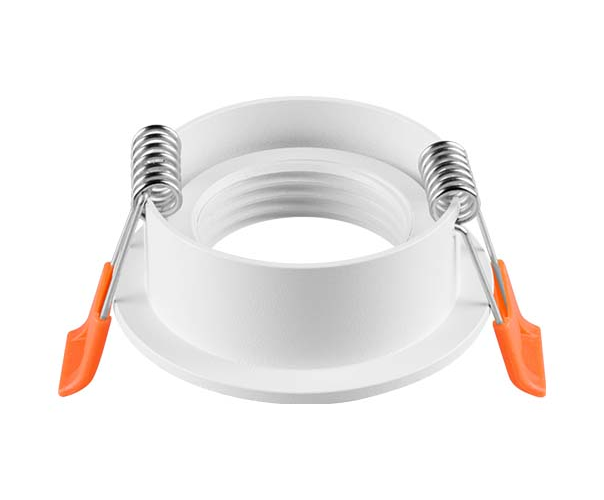

The NLCSPCMOUNT1 is a recessed ceiling mount designed to work with NICOR’s NLCSPC series of wireless PIR/Daylight sensor. The adjustable spring-loaded retention tabs provide a secure fit within a 1.60” diameter cut-out.

The NLCSPCW is a low-voltage Bluetooth wireless PIR/Daylight sensor designed for the NICOR NLC System, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor offers easy installation and use, providing 360° coverage at heights up to 18Ft. With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, the NLCSPCW is an ideal choice for indoor office spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).

The NLCSPEJ is a low-voltage Bluetooth wireless PIR/Daylight sensor with a 3.5mm Jack/AUX connector, designed for the NICOR NLC System, perfect for Luminaire Level Lighting Controls (LLLCs). Constructed from high-rated fire retardant material, this sensor offers easy installation and use, with a plug-n-play system for fixtures with a 12V output 3.5mm jack sensor socket ready. Providing 360° coverage at heights from 20Ft to 40Ft, it offers long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, making it ideal for warehouses, garages, gymnasiums, and other industrial spaces.

The NLCE1 is an energy monitoring and real time clock dongle for collecting energy consumption data in order to generate an energy report and to sync all devices in one zone. NLCE1 records the energy consumption raw data for every device in the zone in 15 minute intervals for up to 100 device group. It will generate approximately 28MB of data in a month. For longer periods, use an SD card with a minimum of 700MB. Refer to Energy Monitoring Instructions for detailed information.

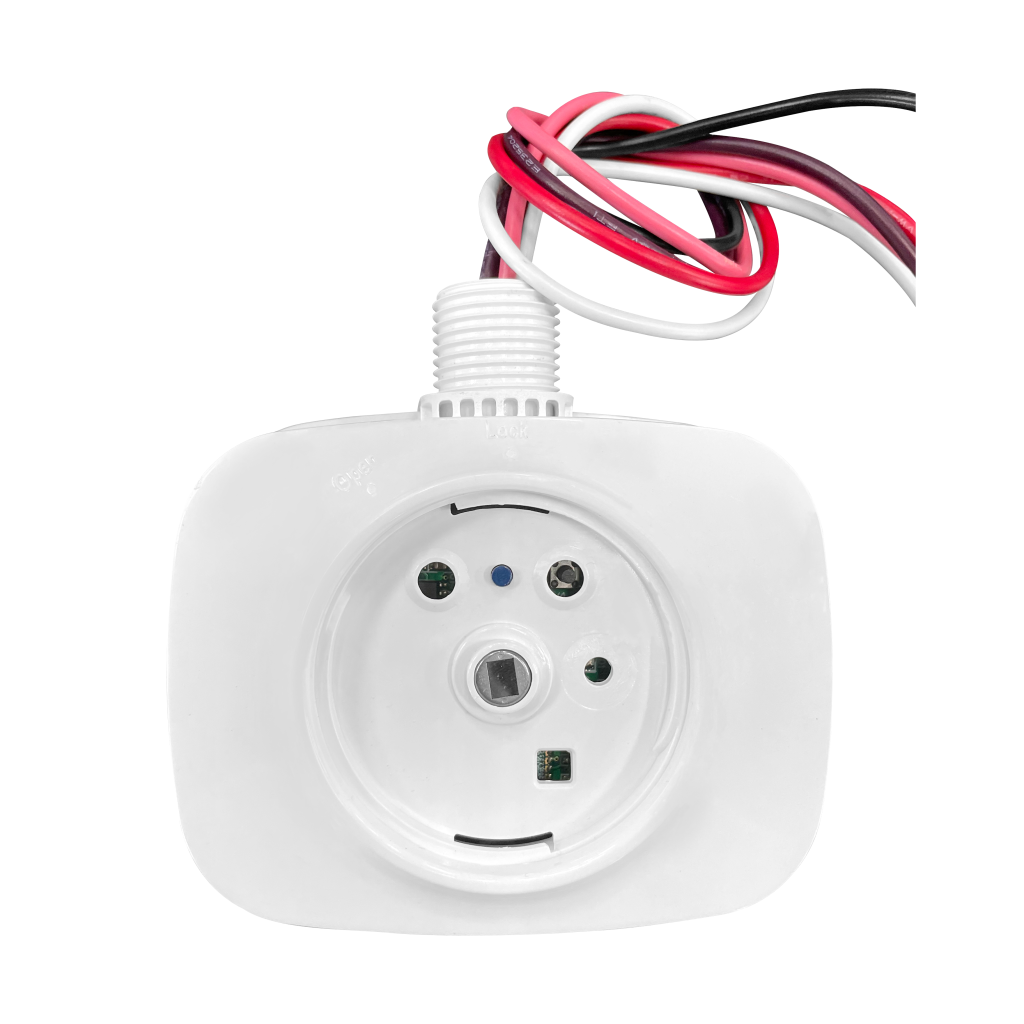

The NLCSPEW1WH-LHW is our line-voltage Bluetooth wireless PIR/Daylight sensor designed exclusively for the NICOR NLC System making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor ensures easy installation and operation, which is particularly ideal for retrofit applications. For optimal performance, ensure your retrofit fixtures are 0-10V compatible. Offering 360° coverage at heights from 20ft to 40ft with the standard -LHW lens (high bay, wide pattern). With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, making it ideal for warehouses, garages, gymnasiums, and other industrial spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).
