NLC Wireless Lighting Controls Kit for LED High-Bays
The NLCIND3.5 is a low-voltage Bluetooth wireless PIR/Daylight sensor kit designed for NICOR LED High-Bays, perfect for Luminaire Level Lighting Controls (LLLCs). Constructed from high-rated fire retardant material, this sensor features a 12V output 3.5mm jack sensor socket ready. Providing 360° coverage at heights from 20Ft to 40Ft, the NLCIND3.5 offers long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, making it ideal for LED high-bays installed in warehouses, garages, gymnasiums, and other industrial spaces.
NLC Wall-Mount Switch Base with Faceplate
The NLCWP1WH is a wall-mount switch base with snap-on faceplate. It’s designed to work with NICOR’s NLCW31WH and NLCW51WH wireless control switches. Fit’s a standard single-gang junction box.
NLC Wireless 5-Button Wall Control Switch
The NLC Bluetooth Wireless Wall Switch Series offers two unique switch designs in 3-button and 5-button configurations. Both provide wireless remote control of NLC enabled luminaires as a handheld device or wall-mounted switch. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android). For wall mounting, add the NLCWP1WH wall switch base with faceplate.
NLC Wireless 3-Button Wall Control Switch
The NLC Bluetooth Wireless Wall Switch Series offers two unique switch designs in 3-button and 5-button configurations. Both provide wireless remote control of NLC enabled luminaires as a handheld device or wall-mounted switch. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android). For wall mounting, add the NLCWP1WH wall switch base with faceplate.
NLC Wireless 20A Zone and Plug Load Controller
The NLCPC1 Bluetooth zone controller is designed to efficiently manage higher capacity loads with its 20A relay. Featuring a 0-10V push-in port, it enables dimming control for up to 48.5mA sinking current. This controller supports switching for up to 20A plug loads and 1HP motor loads, providing versatile control options. Installation is convenient, as the NLCPC1 can be securely attached to any 1/2-inch knockout using the included threaded nut. Setup and commissioning are streamlined with the NICOR NLC mobile app (iOS and Android).
NLC Low-Voltage Power Supply Pack
The NLCPS1 is an inline power pack designed to provide low-voltage (12V) supply and to receive dimming signal from NLC Wireless Bluetooth sensors. It operates at 3A (max) load at 120/277V and provides 0-10V dimming capability to luminaires. The NLCPS1 can be secured directly to any 1/2-inch knockout using the threaded nut included.

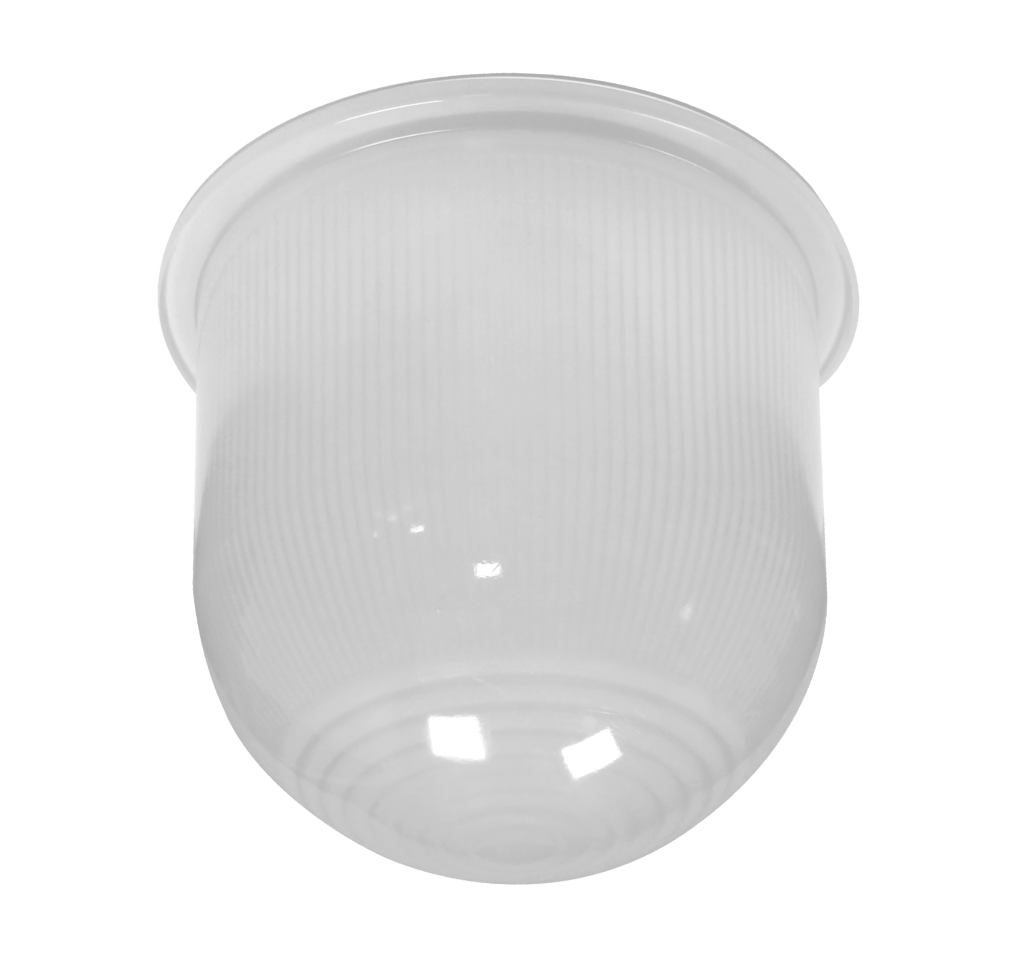

NLC Mid-Mount (Wide Distribution) Fresnel Occupancy Sensor Lens
The NLC Fresnel Lenses are designed to work with NLC sensors (see Product Compatibility below). Each Fresnel lens offers 360° high-density coverage at various heights. The twist-and-lock mechanism facilitates easy lens swapping, while the IP66 rating ensures complete protection against solid particles and significant water resistance. This feature makes them exceptionally suitable for environments such as manufacturing facilities, warehouses, and other large installation spaces.
NLC High-Mount (Narrow Distribution) Fresnel Occupancy Sensor Lens
The NLC Fresnel Lenses are designed to work with NLC sensors (see Product Compatibility below). Each Fresnel lens offers 360° high-density coverage at various heights. The twist-and-lock mechanism facilitates easy lens swapping, while the IP66 rating ensures complete protection against solid particles and significant water resistance. This feature makes them exceptionally suitable for environments such as manufacturing facilities, warehouses, and other large installation spaces.
NLC High-Mount (Wide Distribution) Fresnel Occupancy Sensor Lens
The NLC Fresnel Lenses are designed to work with NLC sensors (see Product Compatibility below). Each Fresnel lens offers 360° high-density coverage at various heights. The twist-and-lock mechanism facilitates easy lens swapping, while the IP66 rating ensures complete protection against solid particles and significant water resistance. This feature makes them exceptionally suitable for environments such as manufacturing facilities, warehouses, and other large installation spaces.
NLC Wireless Integrated Low-Voltage PIR/Daylight Sensor
The NLCSPIHW1WH is an integrated low-voltage Bluetooth wireless PIR/Daylight sensor designed for the NICOR NLC System, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, it provides 360° coverage at heights ranging from 8 to 18Ft with a coverage diameter up to 40Ft. With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, the NLCSPIHW1WH is an ideal choice for indoor office spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).
NLC Spring-Loaded Recessed Ceiling Mount
The NLCSPCMOUNT1 is a recessed ceiling mount designed to work with NICOR’s NLCSPC series of wireless PIR/Daylight sensor. The adjustable spring-loaded retention tabs provide a secure fit within a 1.60” diameter cut-out.
NLC Wireless Low-Voltage Ceiling Sensor
The NLCSPCW is a low-voltage Bluetooth wireless PIR/Daylight sensor designed for the NICOR NLC System, making it perfect for your Luminaire Level Lighting Controls (LLLCs) needs. Constructed from the highest-rated fire retardant material, this sensor offers easy installation and use, providing 360° coverage at heights up to 18Ft. With long-term flexibility, better occupant experience, and cost efficiency compared to non-controlled fixtures, the NLCSPCW is an ideal choice for indoor office spaces. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).
