NLC Wireless 20A Zone and Plug Load Controller with 12V/ECO Port
The NLCPPA104SB1 Series Bluetooth zone controllers feature a 20A relay for controlling higher capacity loads than standard fixture controllers. The NLCPPA104SB1 incorporates external 0-10VDC plus 12VDC output push-in terminals and a RJ45 port to support Eco-Sensors. The NLCPPA104SB1 supports switching of up to 20A plug loads and 1HP motor loads.
NLC Wireless 3A Zone Load Controller
The NLCPC2 is a Bluetooth wireless fixture controller that seamlessly converts any standard 0-10V luminaires into wireless controlled fixtures. It can also be connected to non-Bluetooth sensors (NLCSPCWNBWH). It operates a 3A (max) load at 120/277V to control luminaires while providing 0-10V dimming capability to luminaires. The NLCPC2 can be secured directly to any 1/2-inch knockout using the threaded nut included. Setup and commissioning requires the NICOR NLC mobile app (iOS and Android).

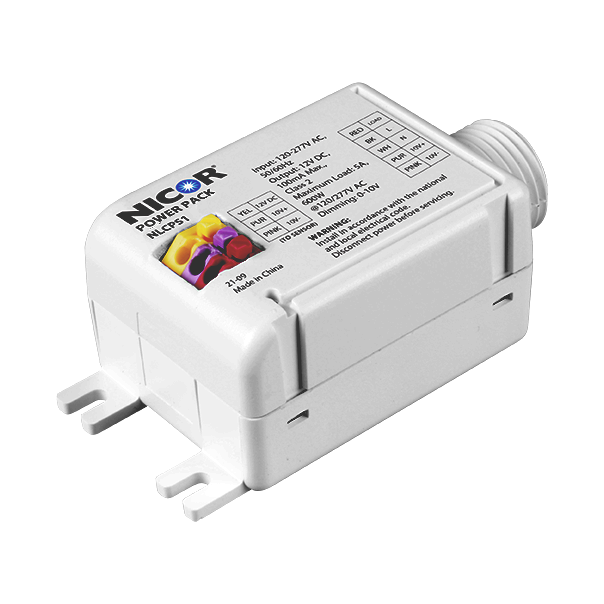

NLC Low-Voltage Power Supply Pack
The NLCPS1 is an inline power pack designed to provide low-voltage (12V) supply and to receive dimming signal from NLC Wireless Bluetooth sensors. It operates at 3A (max) load at 120/277V and provides 0-10V dimming capability to luminaires. The NLCPS1 can be secured directly to any 1/2-inch knockout using the threaded nut included.
