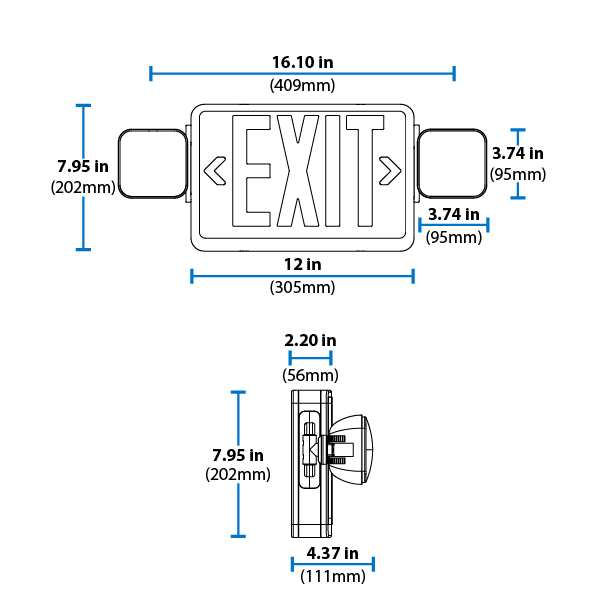

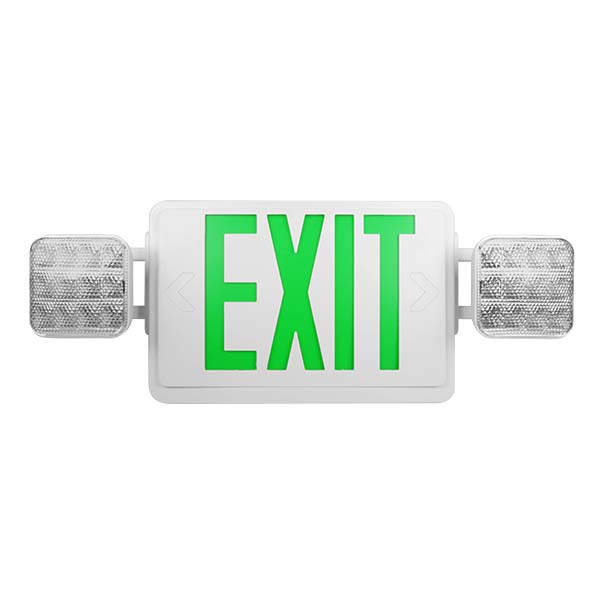

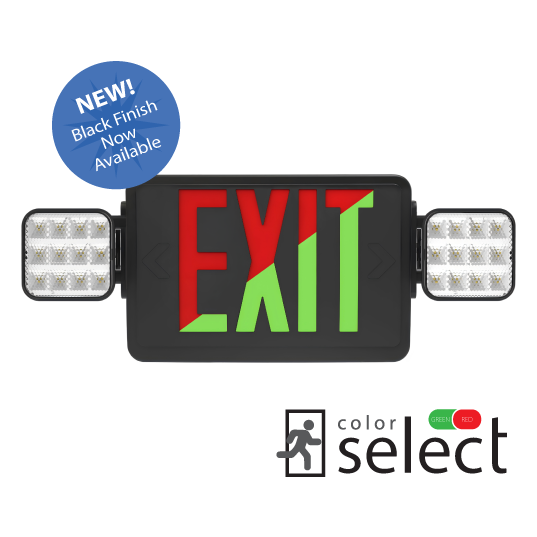

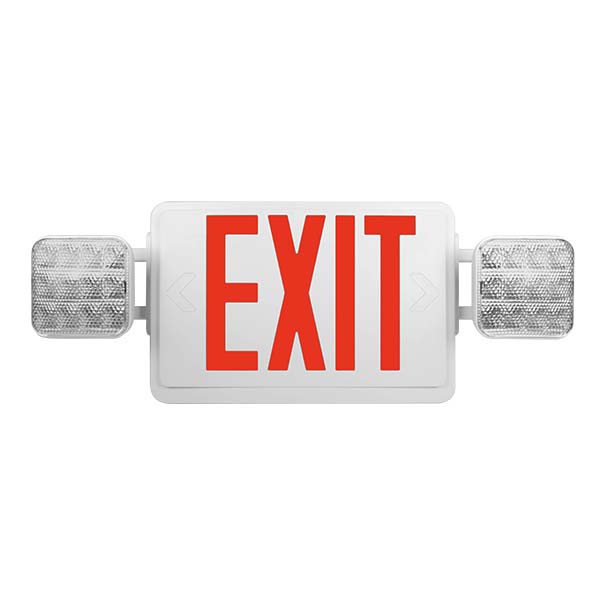

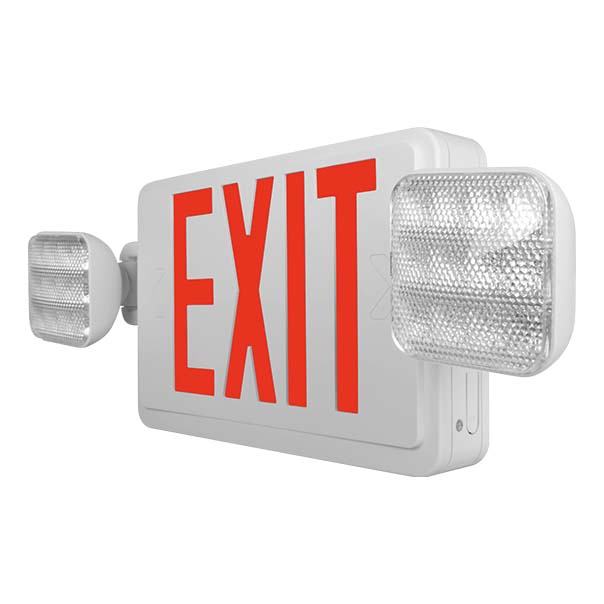

LED EMERGENCY EXIT SIGN COMBO

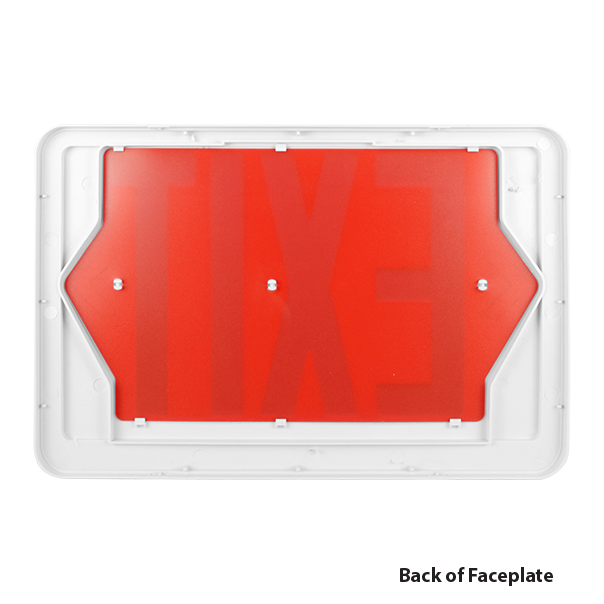

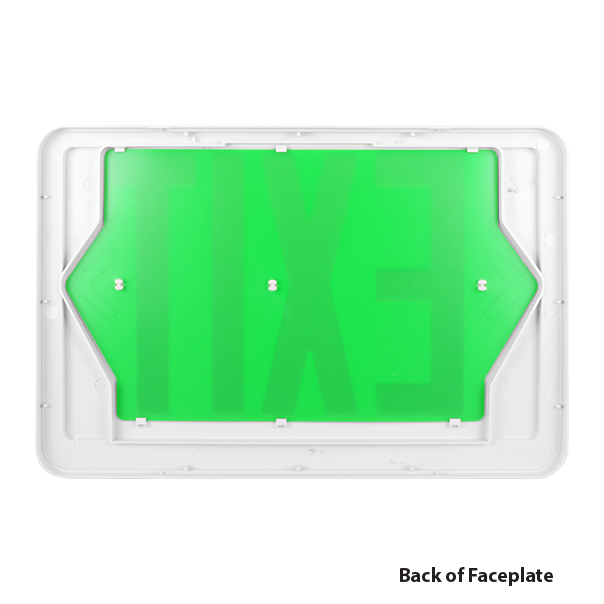

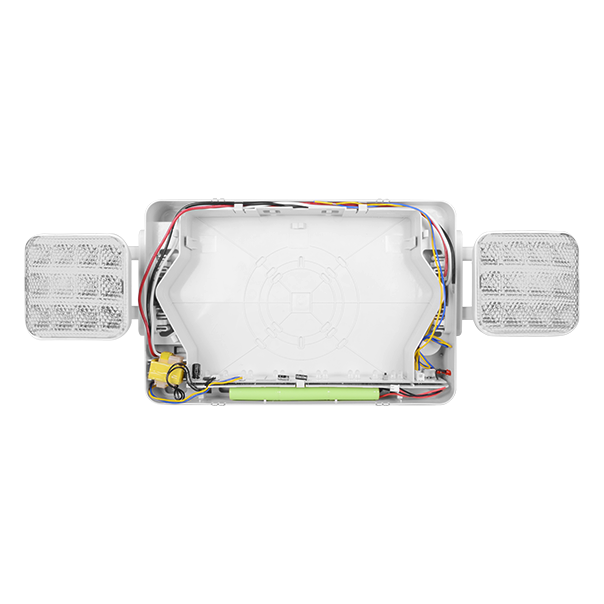

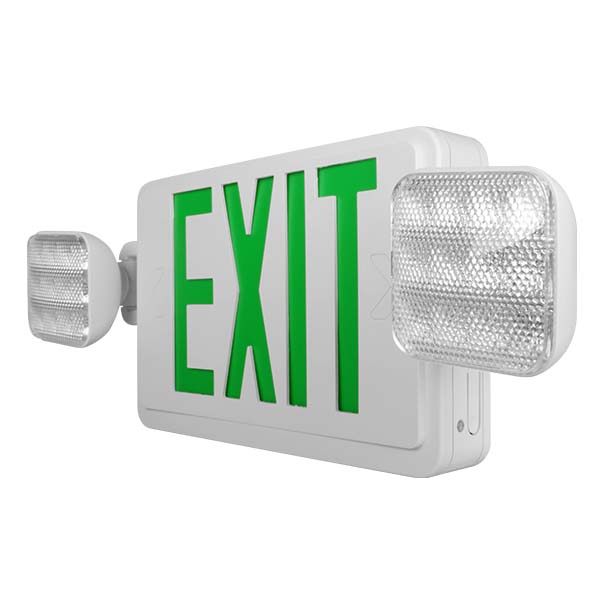

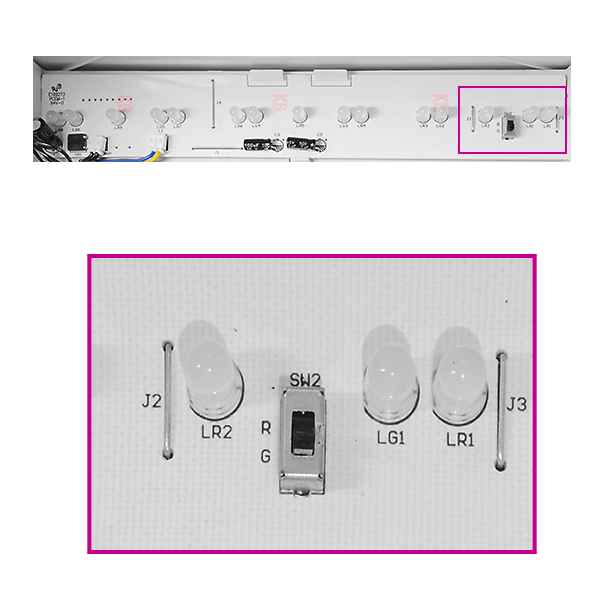

The ECL1-Select LED Emergency Exit Sign Combo features field-selectable red and green lettering. With included templates for both colors, simply install the slide color you need and flip the LED switch inside to match. The ECL1 is offered in white and black and features a universal mounting bracket for simple installation anywhere, and 90-minute emergency operation with integrated test button. This series is available in both a standard and remote-capable option to use with Remote Heads (2 max), available separately. The ECL1-Select is the ideal low-energy choice for multifamily, commercial, and retail settings.

Specifications

  • Injection molded thermoplastic ABS housing
  • White and Black finishes available
  • UL-94V-0 flame rating - Flame Retardant

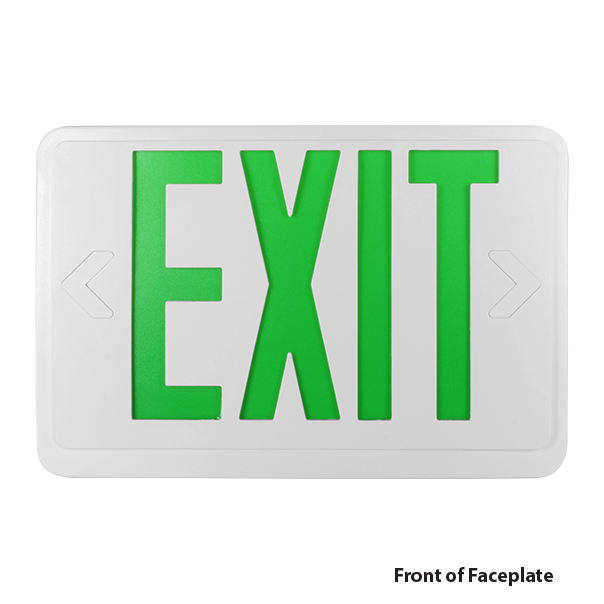

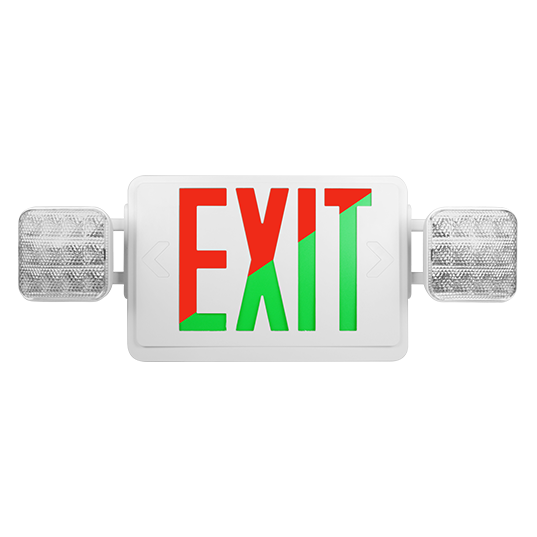

  • Field Selectable Red and Green LED light and lettering
  • 6” Letter height
  • Supplied with faceplates for single or double face configuration
  • 120/277V dual voltage operation

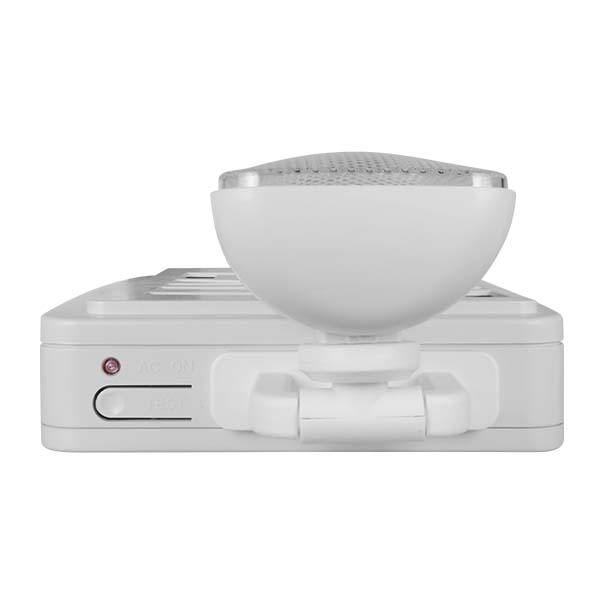

  • LED indicator light & push-button test switch
  • 90 Min capacity on emergency mode
  • Remote Capability up to 3W (1.5W per remote head)
  • 3.6V per remote head
  • Damp location rated
  • Operating temperature rating of 32˚F to 104˚F (0˚C - 40˚C)



Part Numbers:

ECL120UNVWHS2 - White Emergency Combo Light - Red or Green Text (Selectable)
ECL120UNVWHS2R - White Emergency Combo Light - Red or Green Text (Selectable) with Remote Head

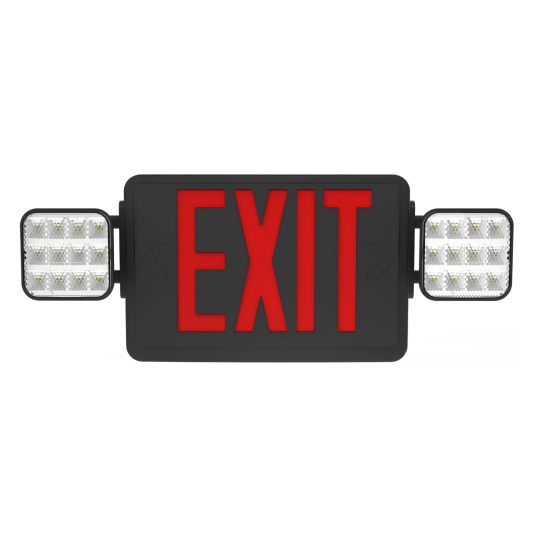

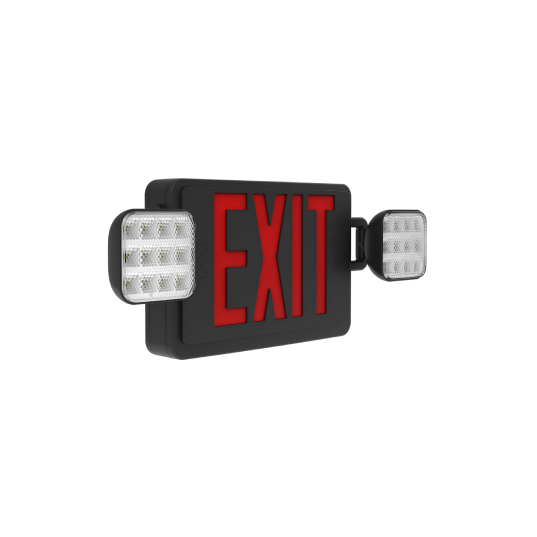

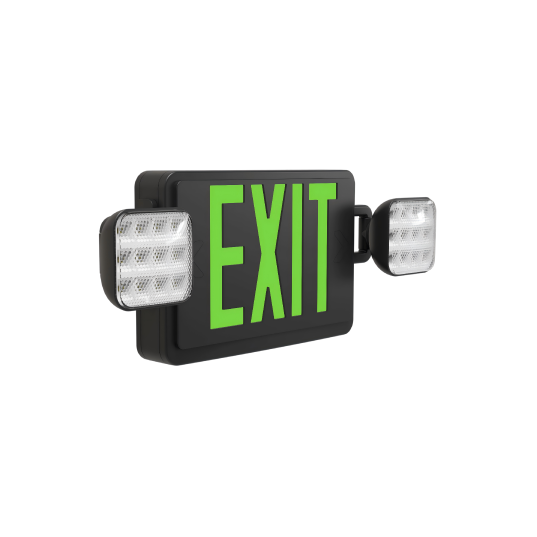

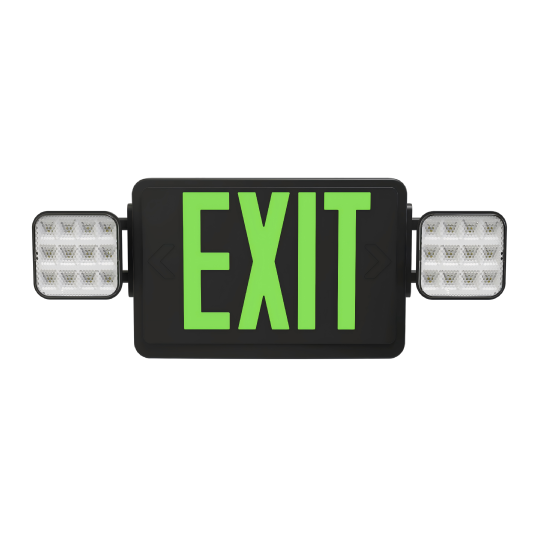

ECL120UNVBKS2 - Black Emergency Combo Light - Red or Green Text (Selectable)
ECL120UNVBKS2R - Black Emergency Combo Light - Red or Green Text (Selectable) with Remote Head

Remote Head Accessories

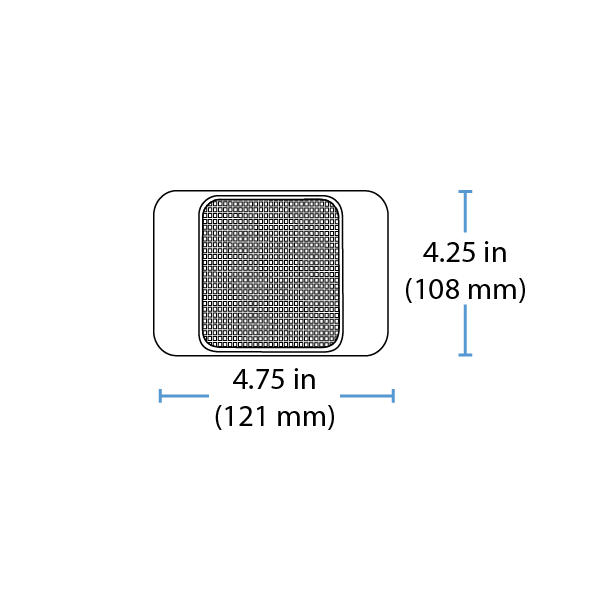

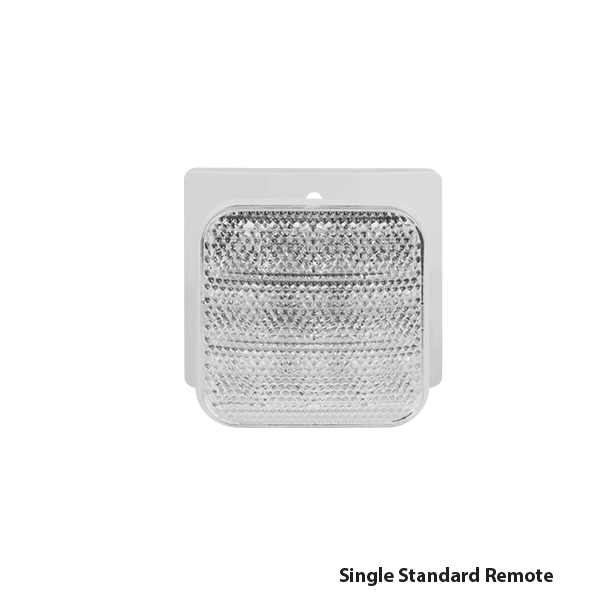

ECL120RH1 - Standard Single Remote Head

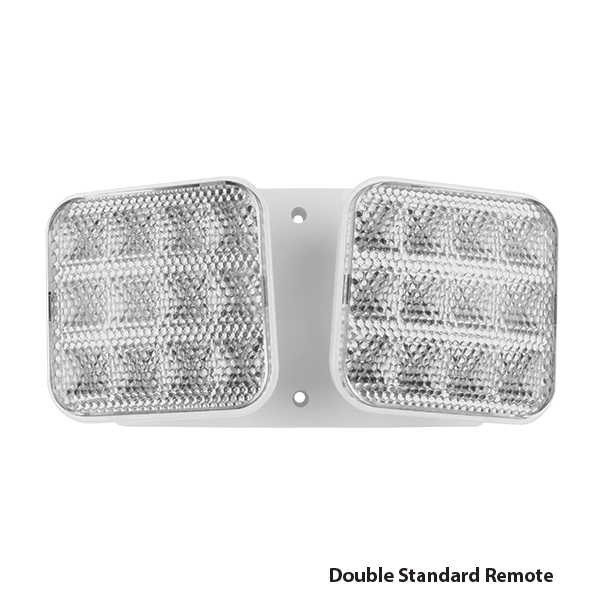

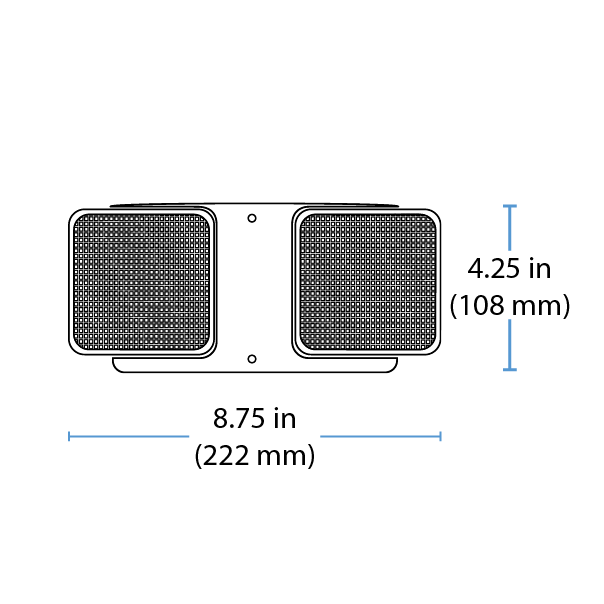

ECL120RH2 - Standard Double Remote Head

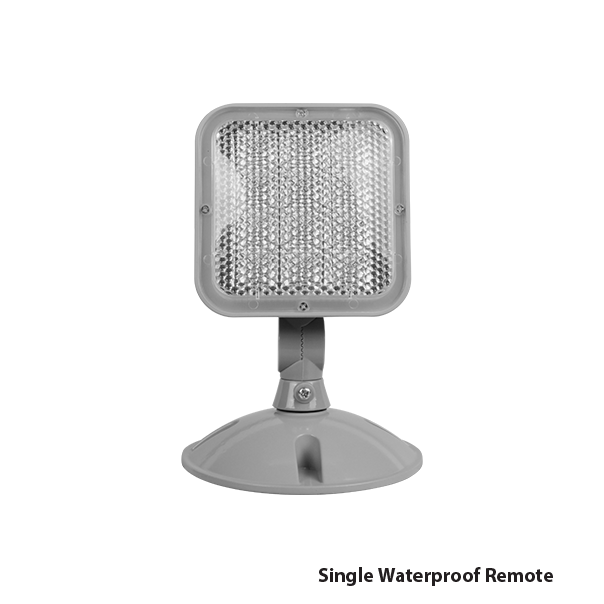

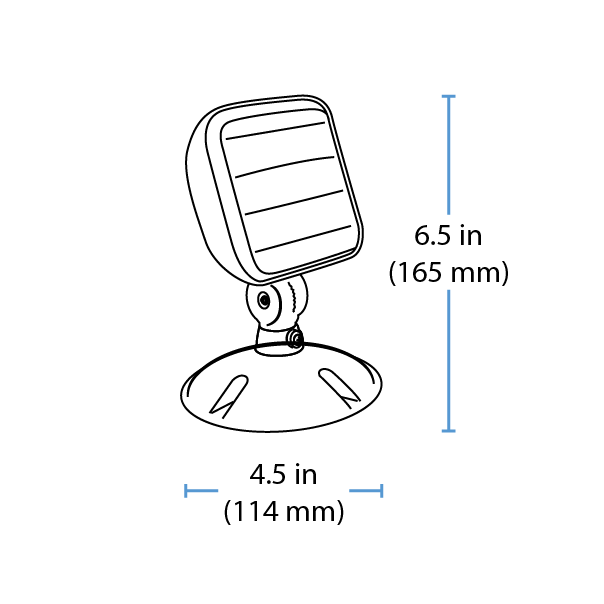

ECL120RHWP1 - Waterproof Single Remote Head

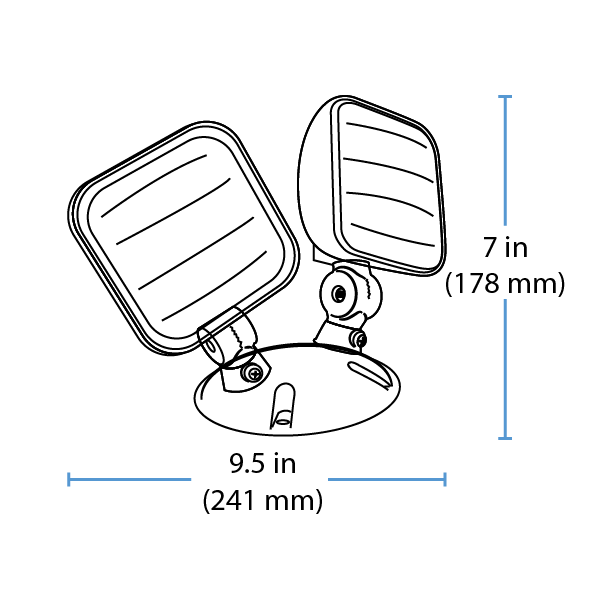

ECL120RHWP2 - Waterproof Double Remote Head
