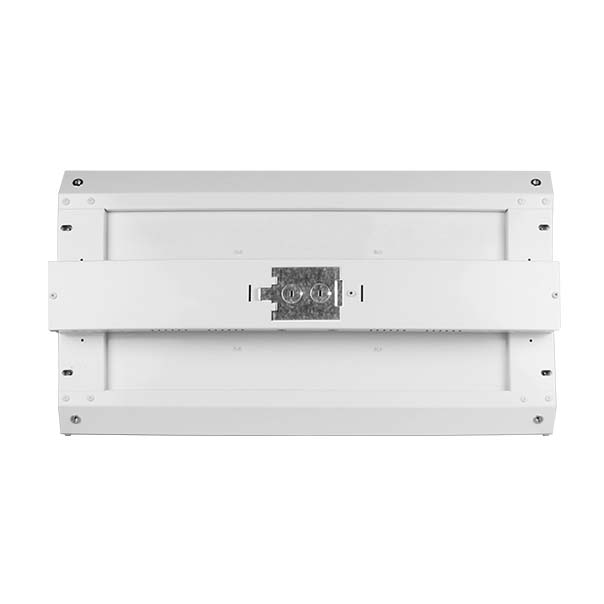

LED LINEAR LOW BAY/HIGH BAY

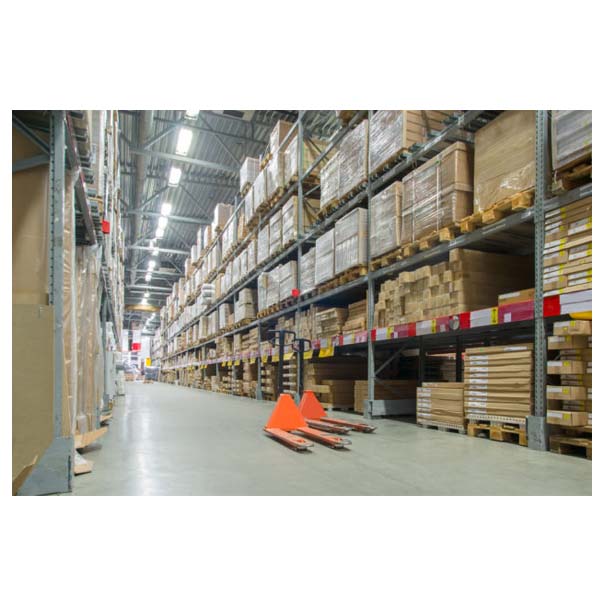

The HBL4 LED Linear Low Bay/High Bay improves on the HBL model by providing higher performance and DLC 5.1 Premium ratings. The ideal lumen package for replacing metal halide and linear fluorescent high bay systems the fixture supplies an output greater than 130 lumens per watt. This energy-efficient and economical fixture offers high performance and long life, excellent color rendering, and even uniformity. The HBL4 is available in 4000K and 5000K color temperatures and has suggested mounting heights from 15ft and above, making it the perfect solution for warehouses, gymnasiums, garages and other storage areas, commercial and manufacturing facilities, as well as open and stack aisle applications.

Categories: Tag:

Specifications

  • Frosted acrylic lens
  • CCTs of 4000K or 5000K with >80 CRI
  • Offers four power levels: 105W, 155W, 210W, 300W
  • Utilizes advanced LED technology with CCT of 4000K and 5000K with >74 CRI
  • Operating temperature rating of -40ºF to 122ºF (-40ºC to 50ºC)
  • 10kA surge protection standard
  • Input voltage of 120-277V, 347-480V input option available
  • Dimming: 0-10V standard
HBL4 - 105W
4000K
Neutral
5000K
Cool

14780
Lumens

14914
Lumens

106
Input Watts

106
Input Watts

139.4
lm/W

140.7
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000KHBL4105UV4K
 5000KHBL4105UV5K
HBL4 - 155W
4000K
Neutral
5000K
Cool

21460
Lumens

21546
Lumens

155
Input Watts

155
Input Watts

138.5
lm/W

139.1
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000KHBL4155UV4K
 5000KHBL4155UV5K
HBL4 - 210W
4000K
Neutral
5000K
Cool

27302
Lumens

27550
Lumens

205
Input Watts

205
Input Watts

133.1
lm/W

134.3
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000KHBL4210UV4K
 5000KHBL4210UV5K
HBL4 - 300W
4000K
Neutral
5000K
Cool

41178
Lumens

41933
Lumens

305
Input Watts

305
Input Watts

135.1
lm/W

137.6
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000KHBL4300UV4K
 5000KHBL4300UV5K
HBL4 - 105W
4000K
Neutral
5000K
Cool

14780
Lumens

14914
Lumens

106
Input Watts

106
Input Watts

139.4
lm/W

140.7
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBL4105UV4K
 5000K:HBL4105UV5K

HBL4 - 155W
4000K
Neutral
5000K
Cool

21460
Lumens

21546
Lumens

155
Input Watts

155
Input Watts

138.5
lm/W

139.1
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBL4155UV4K
 5000K:HBL4155UV5K

HBL4 - 210W
4000K
Neutral
5000K
Cool

27302
Lumens

27550
Lumens

205
Input Watts

205
Input Watts

133.1
lm/W

134.3
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBL4210UV4K
 5000K:HBL4210UV5K

HBL4 - 300W
4000K
Neutral
5000K
Cool

41178
Lumens

41933
Lumens

305
Input Watts

305
Input Watts

135.1
lm/W

137.6
lm/W

80
CRI

80
CRI

IES Download

IES Download

Part Numbers:

 4000K:HBL4300UV4K
 5000K:HBL4300UV5K
