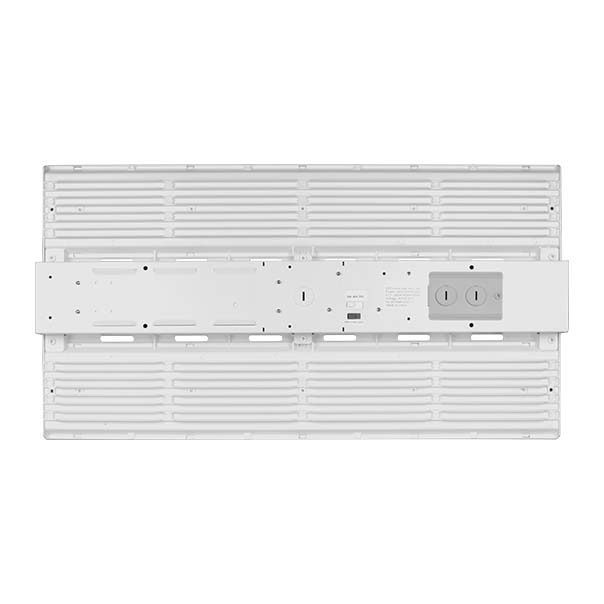

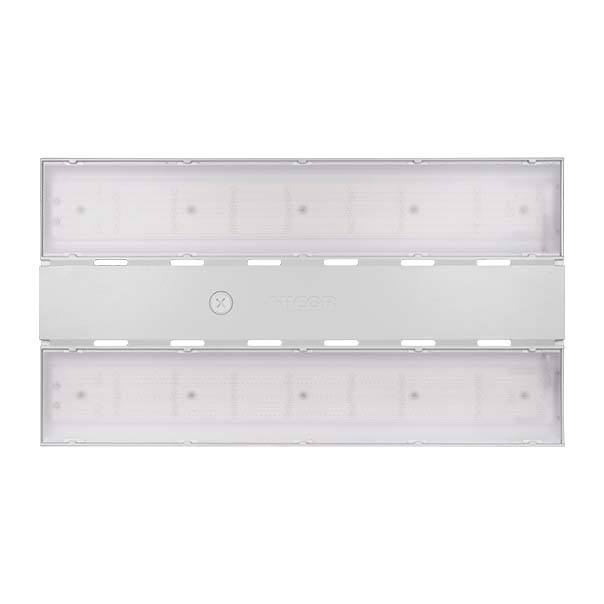

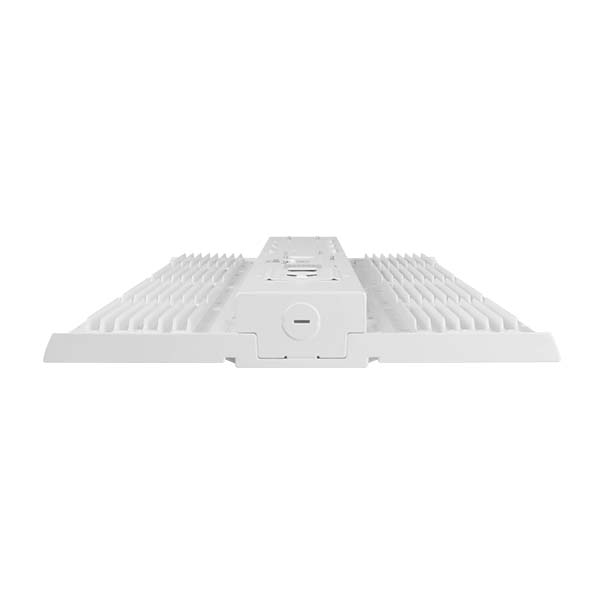

HML2 – LED High-Performance High Bay

Specifications

• Standard diffused lens
• Optional aisle lens (45° x 100°) available
• Optional wide lens (105° x 105°) available
• Available CCTs of 3500K*, 4000K, 5000K, and 5700K* with >80 CRI (*Special Order)

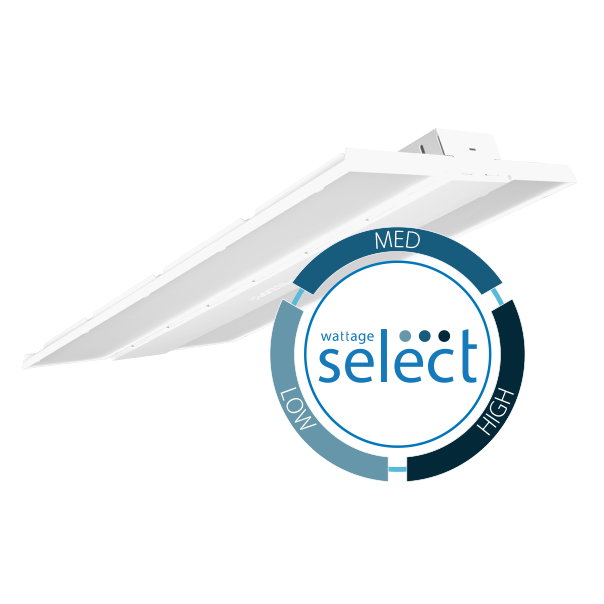

• Selectable power levels: 320/270/220W
• Operating temperature rating of -4ºF to 131ºF (-20ºC to 55ºC)
• Input voltage of 120-277V, 277-480V input option available
• Dimming: 0-10V standard
• Pre-installed 3.5mm sensor socket

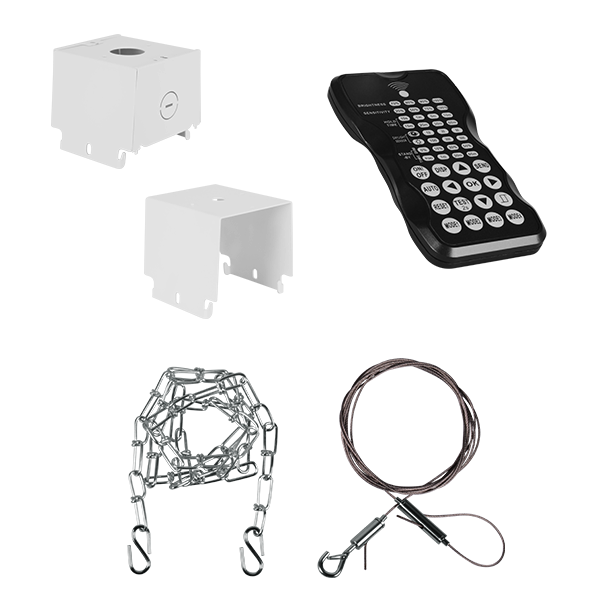

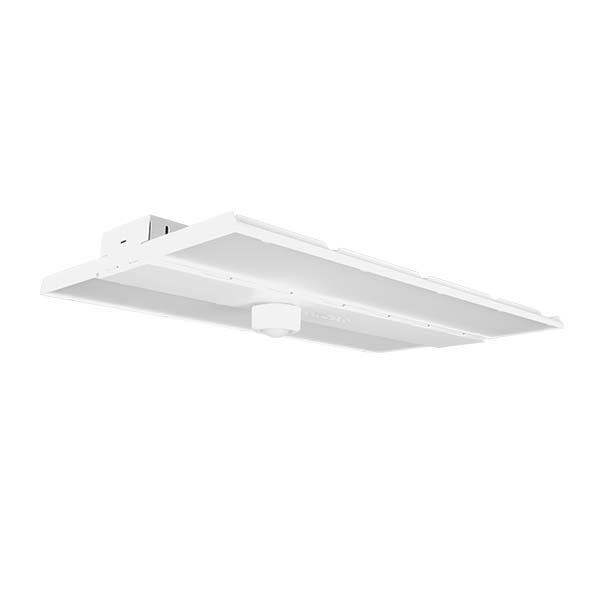

• Field installable multifunction MW or PIR sensor available
• Standard full-range dimming with compatible 0-10VDC dimmers
• 12VDC output provides power to off-board sensors or controls
• NLC (Network Lighting Controls)
  • Bluetooth Low Energy (BLE) mesh network providing Luminaire Level Lighting Control
  • Field installable BLE PIR/Daylight sensor (NLCIND3.5) available
  • Configurable with the NICOR NLC app available on iOS and Android devices
  • Provides full dimming control with occupancy and daylight harvesting functions
