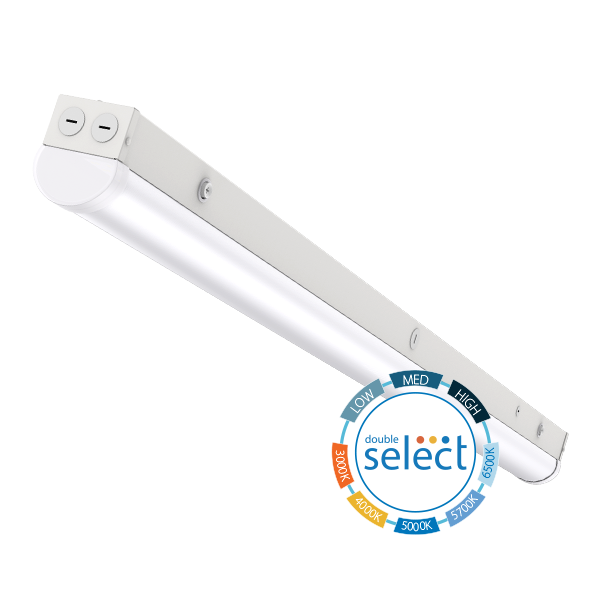

SELECTABLE CCT & OUTPUT LED LINEAR STRIP

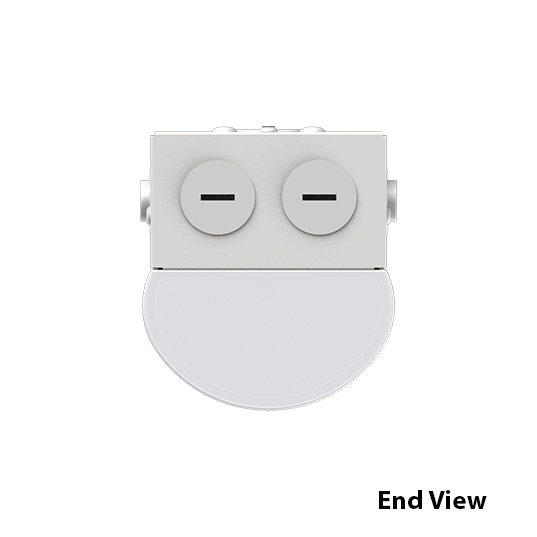

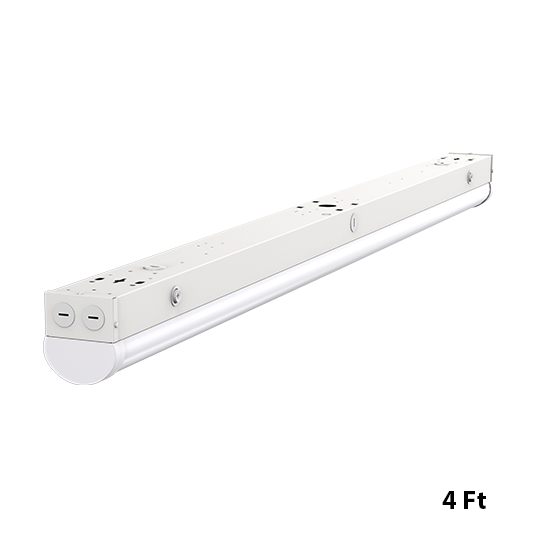

The new LSC2 Select LED Linear Strip adds on to our tried-and-true linear strip with selectable CCT and light output options. This versatile fixture is easy to surface mount on both ceilings and walls and can accommodate continuous runs. The LSC2 features a semicircular, milky-white lens that offers a more polished aesthetic while eliminating hotspots, and is an economical, energy-efficient lighting alternative to single lamp fluorescent strips and some wraparound fixtures. For even greater energy savings, an optional microwave occupancy sensor is also available. The LSC2 delivers optimal performance and long life in a slim design that’s ideal for general ambient lighting in retail, warehouse, residential utility, and light commercial or industrial applications.



Category: Tags:

Specifications

  • Semi-circular, diffuser eliminates hotspots and pixelation
  • Push button lens retention method securely holds diffuser in ceiling or wall mount
  • CCT selectable at 3000K, 4000K, 5000K, 5700, or 6500K
  • 80 CRI for good color definition in public places
  • Input voltage of 120-277VAC
  • Dim-to-off dimming via 0-10VDC controls
  • Sensor-Ready feature with 12V accessory output behind lens
  • Through wiring capable for continuous runs
  • CCT and Wattage selector switches accessible on junction box
  • Emergency backup available
  • Power factor > 0.9
  • THD < 10%
  • Luminaire surge protection level: designed to withstand up to 2.5kV ring wave per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable Luminaires
  • Operating temperature rating of -4°F to 122°F (-20°C to 50°C)

Downloads

– Features and Benefits
– Comparison Sheet
– Sell Sheet

– Spec Sheet
– Installation Instructions

– IES Files

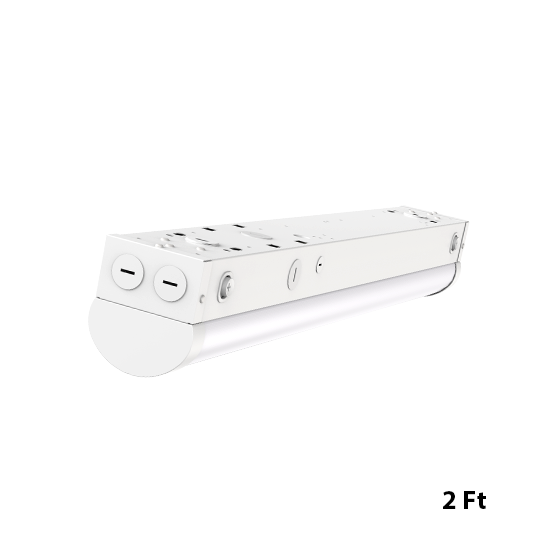

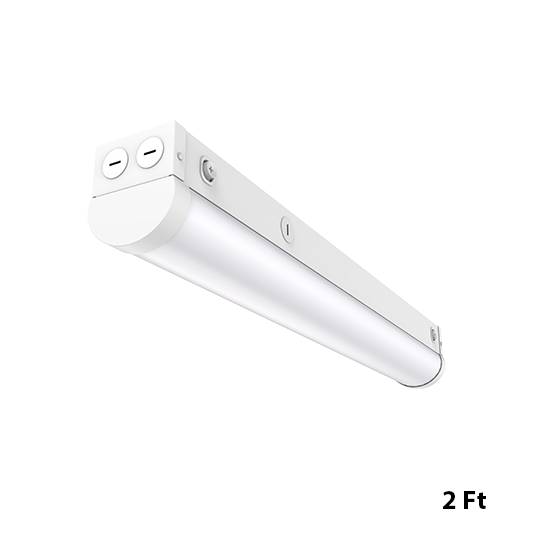

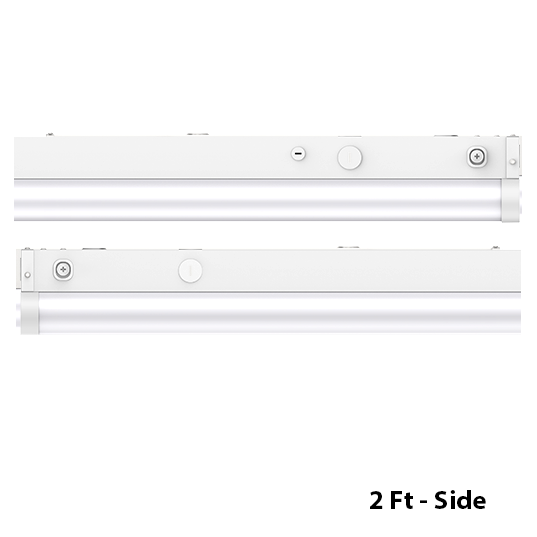

LSC2 Select - 2'
3000K
Warm White		4000K
Neutral		5000K
Cool		5700K
Crisp		6500K
Daylight

1917/2551/3199
Lumens

 2100/2795/3505
Lumens

 2088/2779/3485
Lumens

 2066/2750/3448
Lumens

 1852/2700/3386
Lumens

15/20/25
Input Watts

15/20/25
Input Watts

15/20/25
Input Watts

15/20/25
Input Watts

15/20/25
Input Watts

127/126/127
lm/W

144/144/143
lm/W

143/142/141
lm/W

140/139/138
lm/W

126/137/137
lm/W

86
CRI

86
CRI

86
CRI

86
CRI

86
CRI

Part Number:

Select: LSC2225S

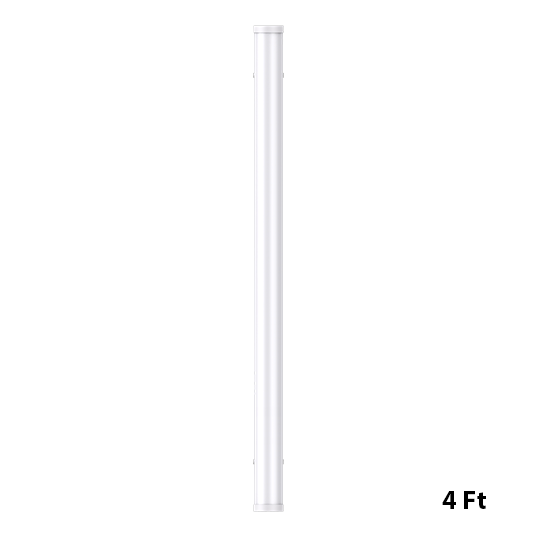

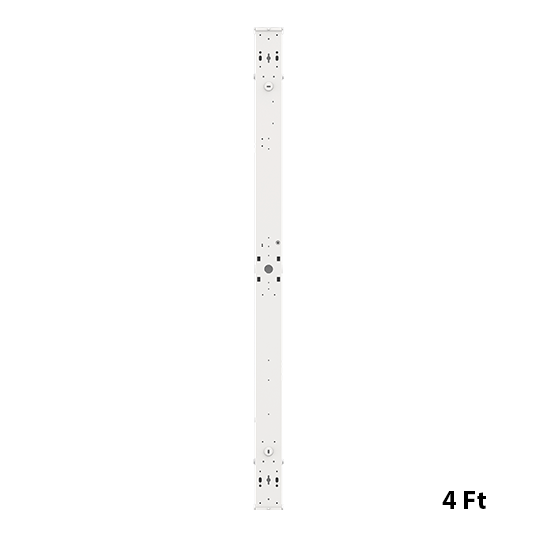

LSC2 Select - 4'
3000K
Warm White		4000K
Neutral		5000K
Cool		5700K
Crisp		6500K
Daylight

2562/3836/5131
Lumens

 2761/4135/5530
Lumens

 2788/4175/5584
Lumens

 2754/4124/5516
Lumens

 2558/4129/5523
Lumens

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

126/126/127
lm/W

142/142/141
lm/W

145/145/143
lm/W

142/142/140
lm/W

128/137/136
lm/W

86
CRI

86
CRI

86
CRI

86
CRI

86
CRI

Part Number:

Select: LSC2440S

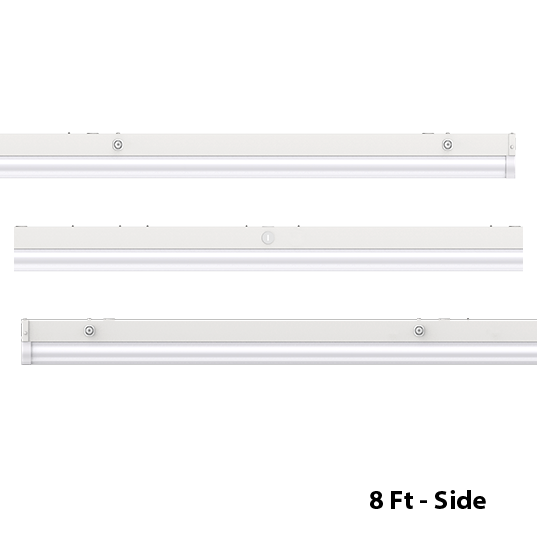

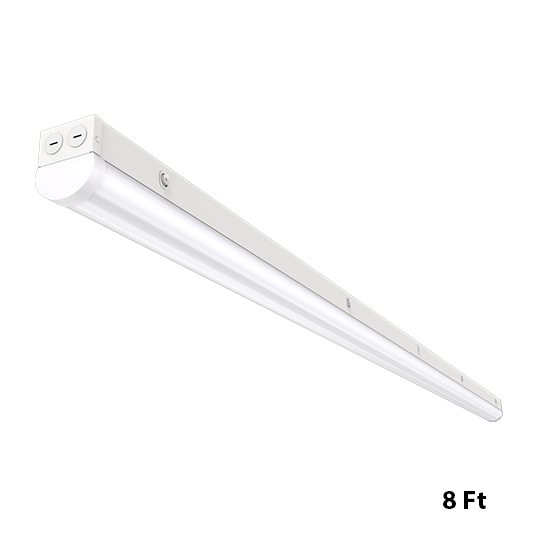

LSC2 Select - 8'
3000K
Warm White		4000K
Neutral		5000K
Cool		5700K
Crisp		6500K
Daylight

7753/9031/10,353
Lumens

 8314/9684/11,102
Lumens

 8411/9797/11,231
Lumens

 8345/9721/11,144
Lumens

 7713/9634/11,044
Lumens

60/70/80
Input Watts

60/70/80
Input Watts

60/70/80
Input Watts

60/70/80
Input Watts

60/70/80
Input Watts

128
lm/W

143/143/142
lm/W

146/146/145
lm/W

143/143/142
lm/W

129/138/137
lm/W

86
CRI

86
CRI

86
CRI

86
CRI

86
CRI

Part Number:

Select: LSC2880S
