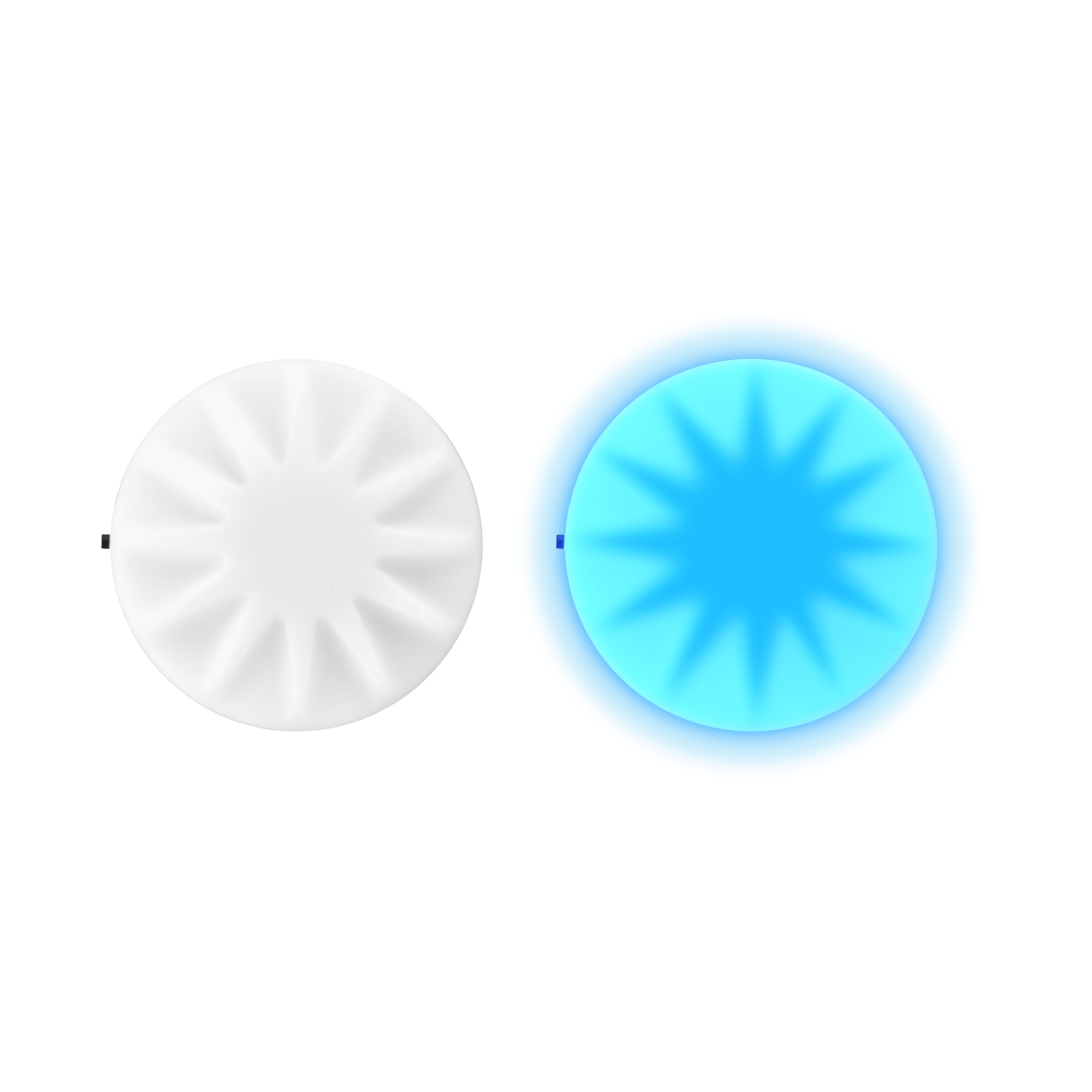

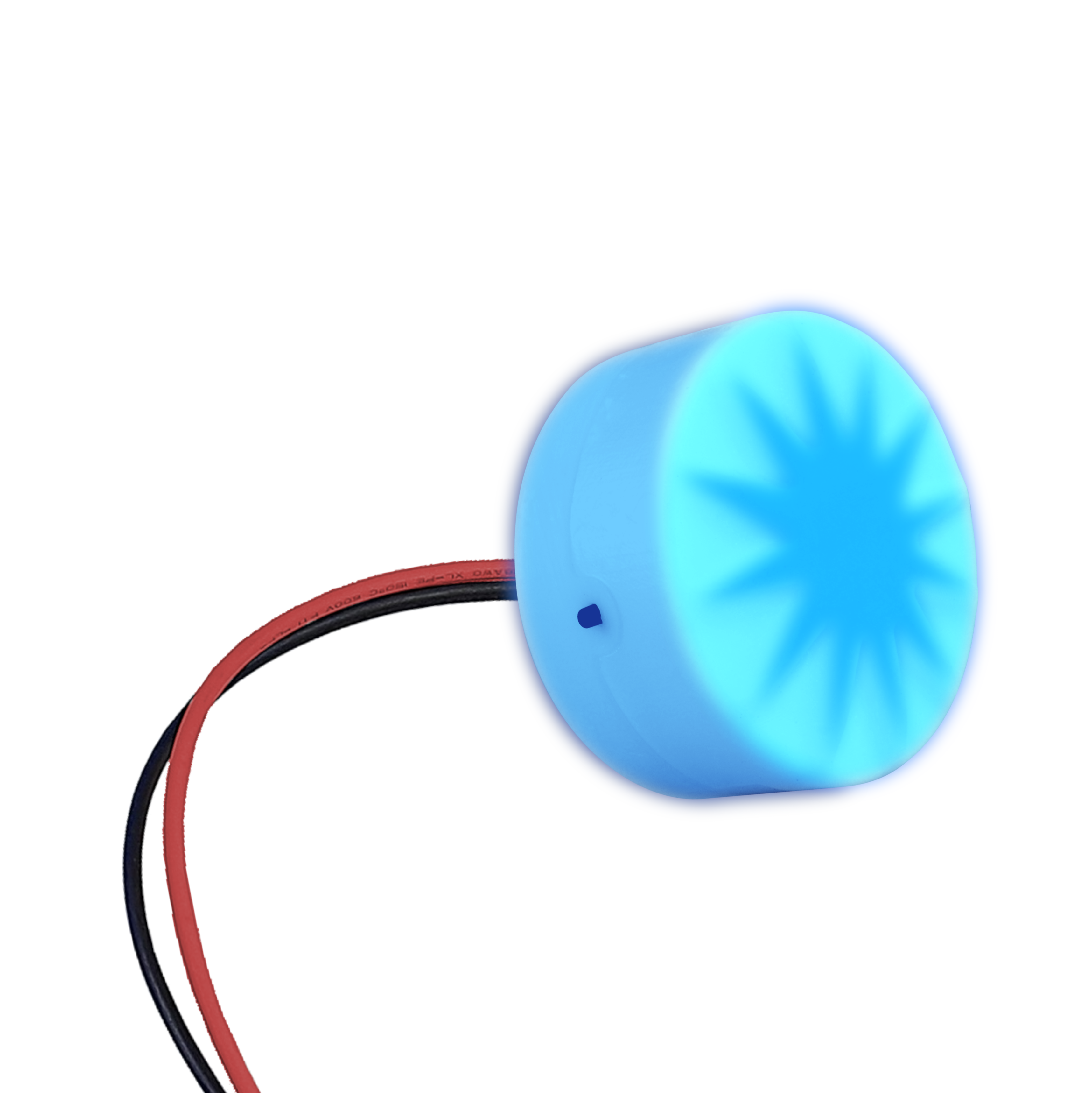

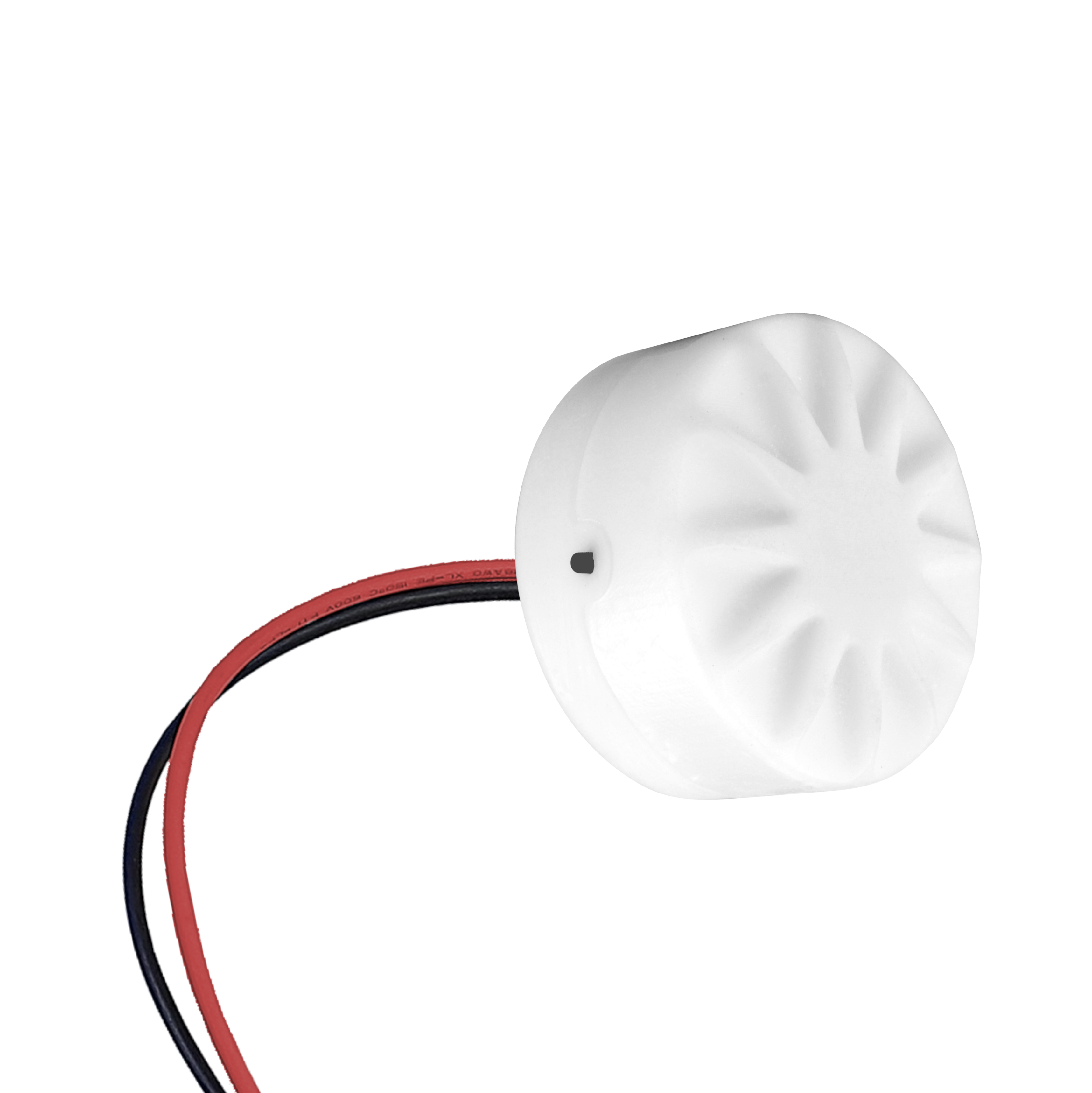

Remote Strobe Accessory for PRCP2A
The PrimeChime Plus 2A (PRCP2A) continues to define what a modern doorbell should be. The latest iteration has been enhanced to meet ADA compliance standards with the addition of an integrated strobe light feature and optional remote strobe. With improved video doorbell compatibility, the PRCP2A is …
The PrimeChime Plus 2A (PRCP2A) continues to define what a modern doorbell should be. The latest iteration has been enhanced to meet ADA compliance standards with the addition of an integrated strobe light feature and optional remote strobe. With improved video doorbell compatibility, the PRCP2A is the ideal choice for homebuilders and homeowners alike. The PRCP2A is equipped with all the latest features, offering five user-selected ring tones and five-volume levels accessible through a simple single button, voice-guided interface. The PRCP2A seamlessly combines both line voltage and low voltage into a single unit and features a paintable, screwless faceplate for effortless installation. Each PRCP2A can be wired to two separate doorways, each with their own unique chime tone, so you always know which door to answer. Have more entrances? Two units can be daisy-chained to cover additional doorways and provide additional coverage in larger homes. The PRCP2A kit includes two standard pushbuttons (illuminated), mounting hardware, installation instructions, and a 1-year warranty. Additional decorative and stucco buttons are also available in a variety of colors to match your home’s exterior.
- Compatible with many popular video doorbell cameras
- Meets ADA compliance standards with integrated strobe light and optional remote strobe
- Selectable chime tones (5) and volume levels (5) for customizable alerts
- Integrated transformer -combines line and low voltage in a standard dual-gang box
- Optional doorbell buttons available in stucco and decorative designs
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
- UL Certified
- ADA Compliant (Hearing)
- FCC Class B
- Patent Pending
Features
Construction
- ABS Housing
- Combines line voltage and low voltage in a single unit
- Screwless ABS Faceplate
- Two-wire pigtail for line voltage input
- Multiple poke-in connectors for low voltage output for front and back doorbells
- Blue strobe light acts as visual indicator of chime ringing
- Matte White
- Faceplate is field paintable
Electrical
- Integrated transformer
- Input: 120VAC/60Hz
- Output: 20VAC
- Digital control board with speaker
- Five selectable chime tones : Ding Dong, Westminster, 3-Note, 5-Note, and 7-Note
- Five selectable chime tone volume settings
- Voice guided setup during selection
- Strobe can be activated/deactivated
Installations
- Installs quickly into a standard two-gang dual-voltage wall box
- Includes two lighted rectangle doorbell buttons
- Compatible with many popular video doorbell buttons (see compatibility list and/or test for compatibility before installation)
- Daisy chain two PrimeChime Plus 2 units (max 200Ft total wire length. Each requires 120VAC input)
- Doorbell buttons connect with 18ga-22ga solid wire (max 100Ft distance)
- For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels
Full Listings
- UL Certified
- ADA compliant
- FCC Class B
- Patent Pending
Warranty
- 1 year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
