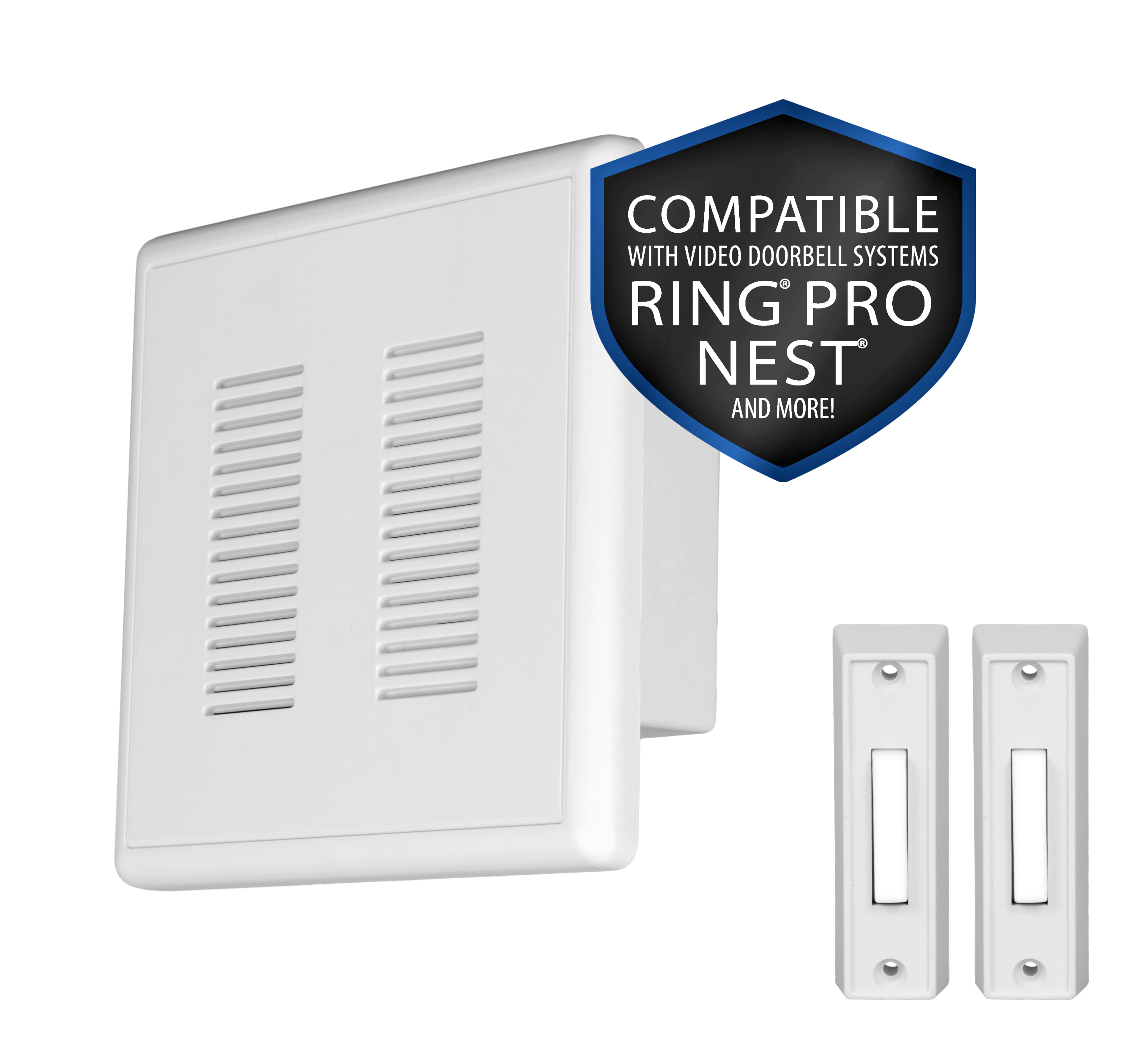

PrimeChime Plus 2 – Video Compatible Door Chime Kit with Lighted Buttons
The PrimeChime Plus 2® continues to define what a modern doorbell should be. The latest version offers Melody Selection with five different, user selected, ring tones and five different volume levels using a simple single button, voice guided, interface. The PRCP2 combines both line voltage and low …
The PrimeChime Plus 2® continues to define what a modern doorbell should be. The latest version offers Melody Selection with five different, user selected, ring tones and five different volume levels using a simple single button, voice guided, interface. The PRCP2 combines both line voltage and low voltage into a single unit and offers a paintable, screwless faceplate for simple installation and a seamless look. Separate, selectable, ring tones for front and rear doors allows you to keep track of exactly which door to answer. NICOR’s lighted button makes your doorbell easily visible to visitors at all times of day, welcoming them to your home and the improved compatibility with most video doorbell buttons improves security and peace of mind.
- Compatible with many popular video doorbell cameras
- Selectable chime tones (5) and volume levels (5) for customizable alerts
- Quick installation into standard two-gang dual-voltage wall boxes
- Integrated transformer -combines line and low voltage in a single unit
- Optional doorbell buttons available in stucco and decorative designs
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
- UL Certified
- FCC Class B
- Patent Pending
Features
Construction
- ABS Housing
- Combines line voltage and low voltage in a single unit
- Screwless ABS Faceplate
- Two-wire pigtail for line voltage input
- Multiple poke-in connectors for low voltage output for front and back doorbells
- Selection push button and indicator light behind face plate
- Matte White
- Faceplate is field paintable
Electrical
- Integrated transformer
- Input: 120VAC/60Hz
- Output: 20VAC
- Digital control board with speaker
- Five selectable chime tones : Ding Dong, Westminster, 3-Note, 5-Note, and 7-Note
- Five selectable chime tone volume settings
- Voice guided setup during selection
Installations
- Installs quickly into a standard two-gang dual-voltage wall box
- Includes two lighted rectangle doorbell buttons
- Compatible with many popular video doorbell buttons (see compatibility list and/or test for compatibility before installation)
- Daisy chain two PrimeChime Plus 2 units (max 200Ft total wire length. Each requires 120VAC input)
- Doorbell buttons connect with 18ga-22ga solid wire (max 100Ft distance)
- For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels
Full Listings
- UL Certified
- FCC Class B
- Patent Pending
Warranty
- 1 year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
