PRIMECHIME+2A Series

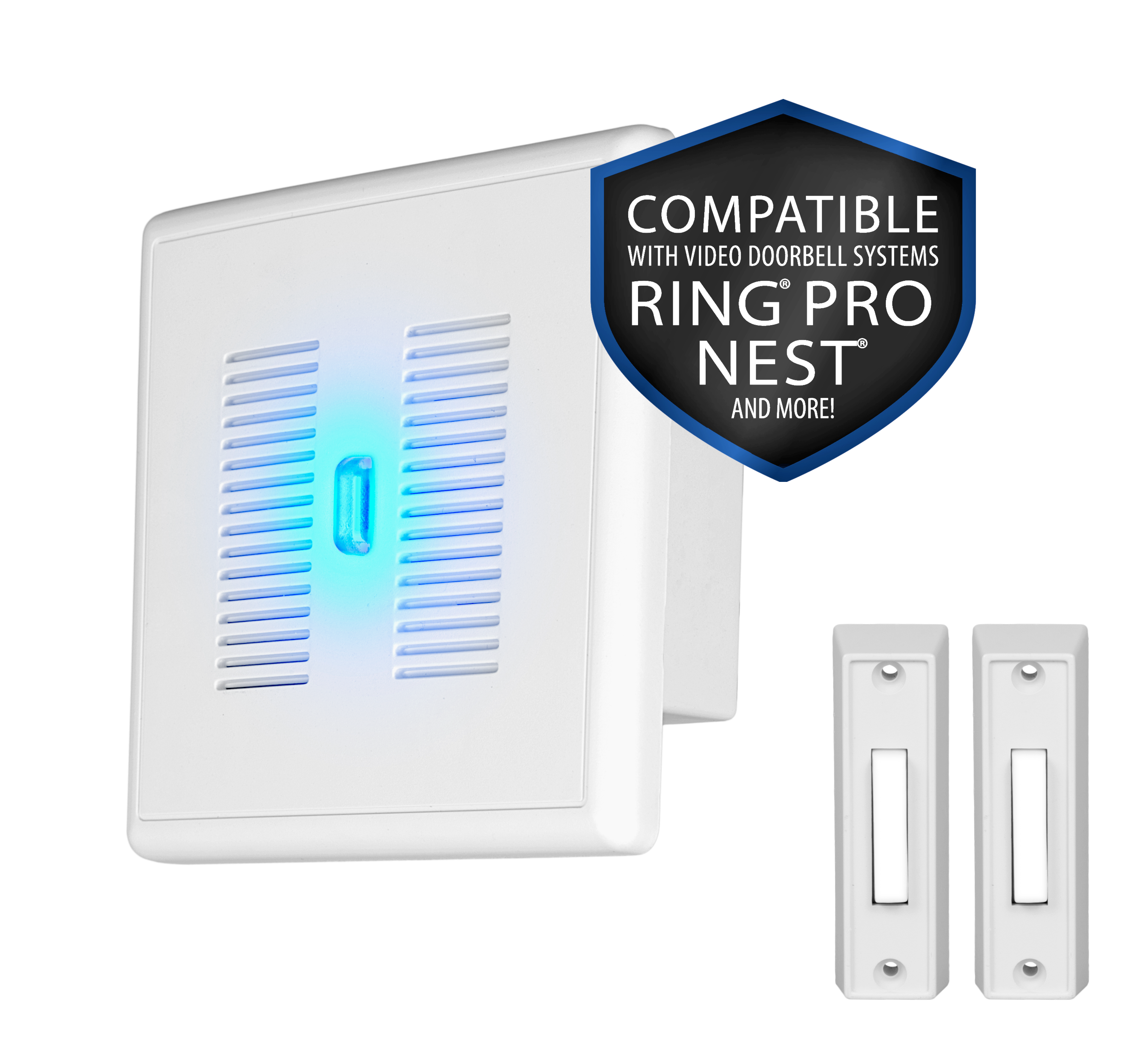

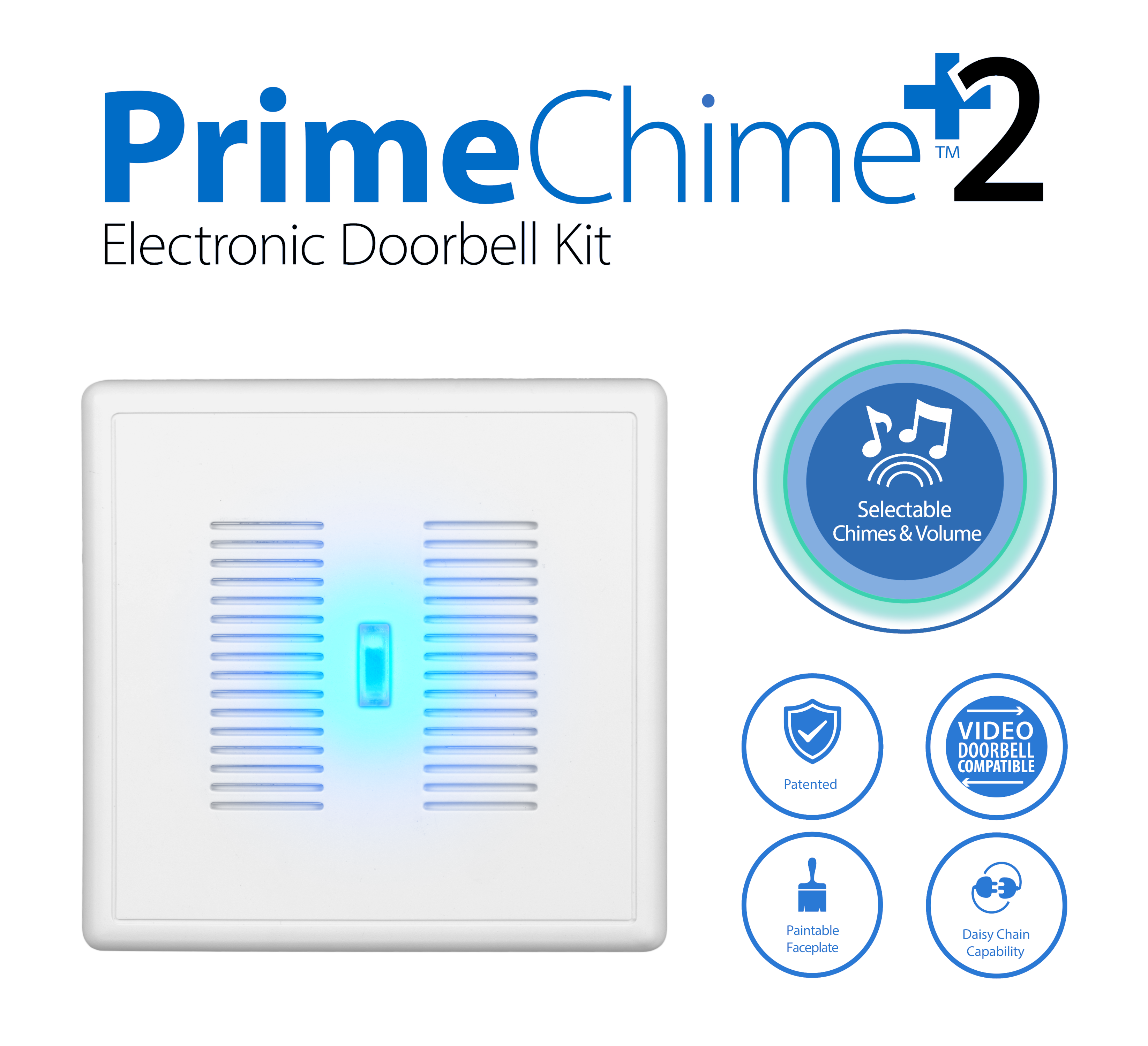

PrimeChime Plus 2 – ADA Compliant Video Compatible Door Chime Kit with Lighted Buttons

Ordering information

Accessories

  • SC200DV

Downloads

Specifications

Listings & certifications

Listings & Certifications
  • UL Certified
  • ADA Compliant (Hearing)
  • FCC Class B
  • Patent Pending

Features

Construction

  • ABS Housing
  • Combines line voltage and low voltage in a single unit
  • Screwless ABS Faceplate
  • Two-wire pigtail for line voltage input
  • Multiple poke-in connectors for low voltage output for front and back doorbells
  • Blue strobe light acts as visual indicator of chime ringing
  • Matte White
  • Faceplate is field paintable

Electrical

  • Integrated transformer
  • Input: 120VAC/60Hz
  • Output: 20VAC
  • Digital control board with speaker
  • Five selectable chime tones : Ding Dong, Westminster, 3-Note, 5-Note, and 7-Note
  • Five selectable chime tone volume settings
  • Voice guided setup during selection
  • Strobe can be activated/deactivated

Installations

  • Installs quickly into a standard two-gang dual-voltage wall box
  • Includes two lighted rectangle doorbell buttons
  • Compatible with many popular video doorbell buttons (see compatibility list and/or test for compatibility before installation)
  • Daisy chain two PrimeChime Plus 2 units (max 200Ft total wire length. Each requires 120VAC input)
  • Doorbell buttons connect with 18ga-22ga solid wire (max 100Ft distance)
  • For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels

Full Listings

  • UL Certified
  • ADA compliant
  • FCC Class B
  • Patent Pending

Warranty

  • 1 year limited system warranty standard
  • Warranty does not cover product failure due to an overvoltage event (power surge)
