PrimeChime Plus 2 – Mini Wireless Doorbell Button
The PrimeChime Plus 2 Mini® brings the trusted performance of NICOR’s full-size PrimeChime Plus 2® into a sleek, compact design that fits perfectly into a standard singlegang junction box. This easy-to-install doorbell system works with most popular video doorbells, combining both line voltage and l…
The PrimeChime Plus 2 Mini® brings the trusted performance of NICOR’s full-size PrimeChime Plus 2® into a sleek, compact design that fits perfectly into a standard singlegang junction box. This easy-to-install doorbell system works with most popular video doorbells, combining both line voltage and low voltage in one convenient unit. For even greater convenience, the PrimeChime Plus 2 Mini® now supports a wireless doorbell button option, allowing you to place an additional button anywhere without running wires—perfect for side entrances, back doors, or garage access. This feature offers flexibility and extra security for every part of your home, making the PRMC a reliable and adaptable choice for modern living.
- Includes wireless doorbell button for easy placement (eliminates bell wiring)
- Compatible with many popular video doorbell cameras (wired)
- Selectable chime tones (5) and volume levels (5) for customizable alerts
- Integrated transformer -combines line and low voltage in a single unit
- Optional doorbell buttons available in stucco and decorative designs
Color Options:
Ordering information
Downloads
Specifications
Listings & certifications
- UL Certified
- FCC Class B
- Patent Pending
Features
Construction
- ABS Housing
- Combines line voltage and low voltage in a single unit
- Screwless ABS Faceplate
- Two-wire pigtail for line voltage input
- Multiple poke-in connectors for low voltage output for front and back doorbells
- Matte white faceplate is field paintable
Electrical
- Integrated transformer
- Input: 120VAC/60Hz
- Output: 24VAC max
- Digital control board with speaker
- Five selectable melodies : Ding Dong, Westminster, 3 note, 5 note, and 7 note
- Five selectable volume levels
- Voice guided setup during selection
Installations
- Installs quickly into most non-metallic single-gang junction boxes

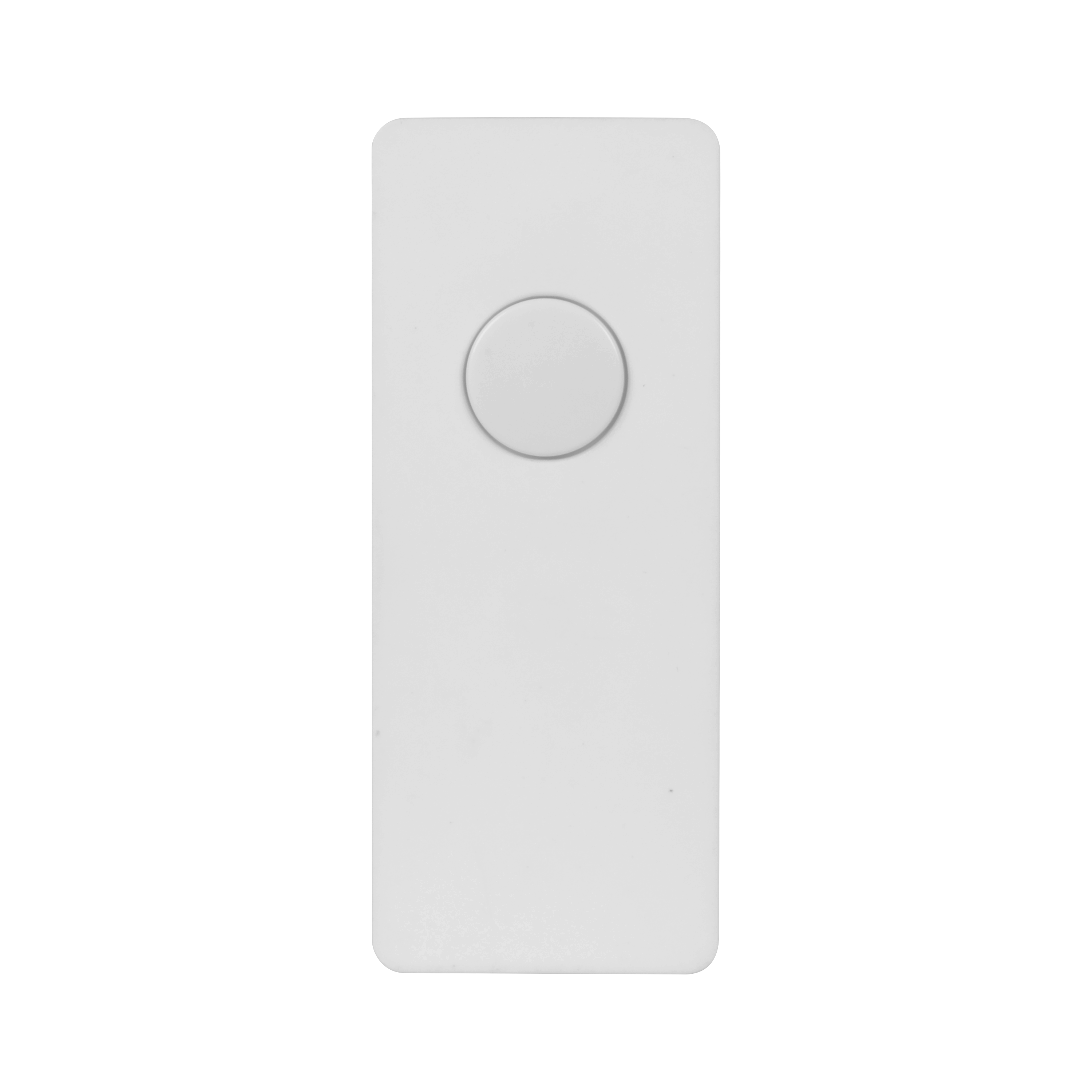

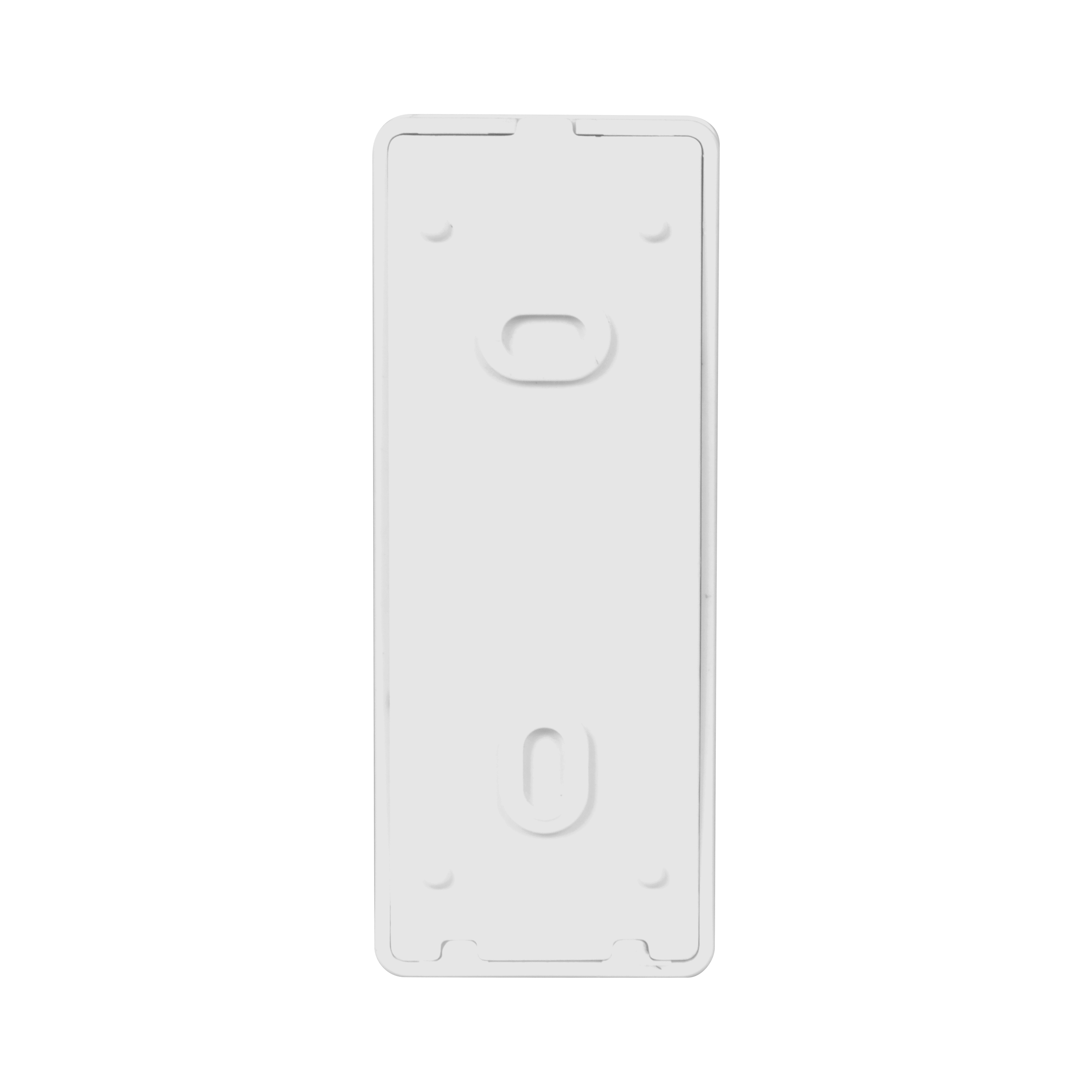

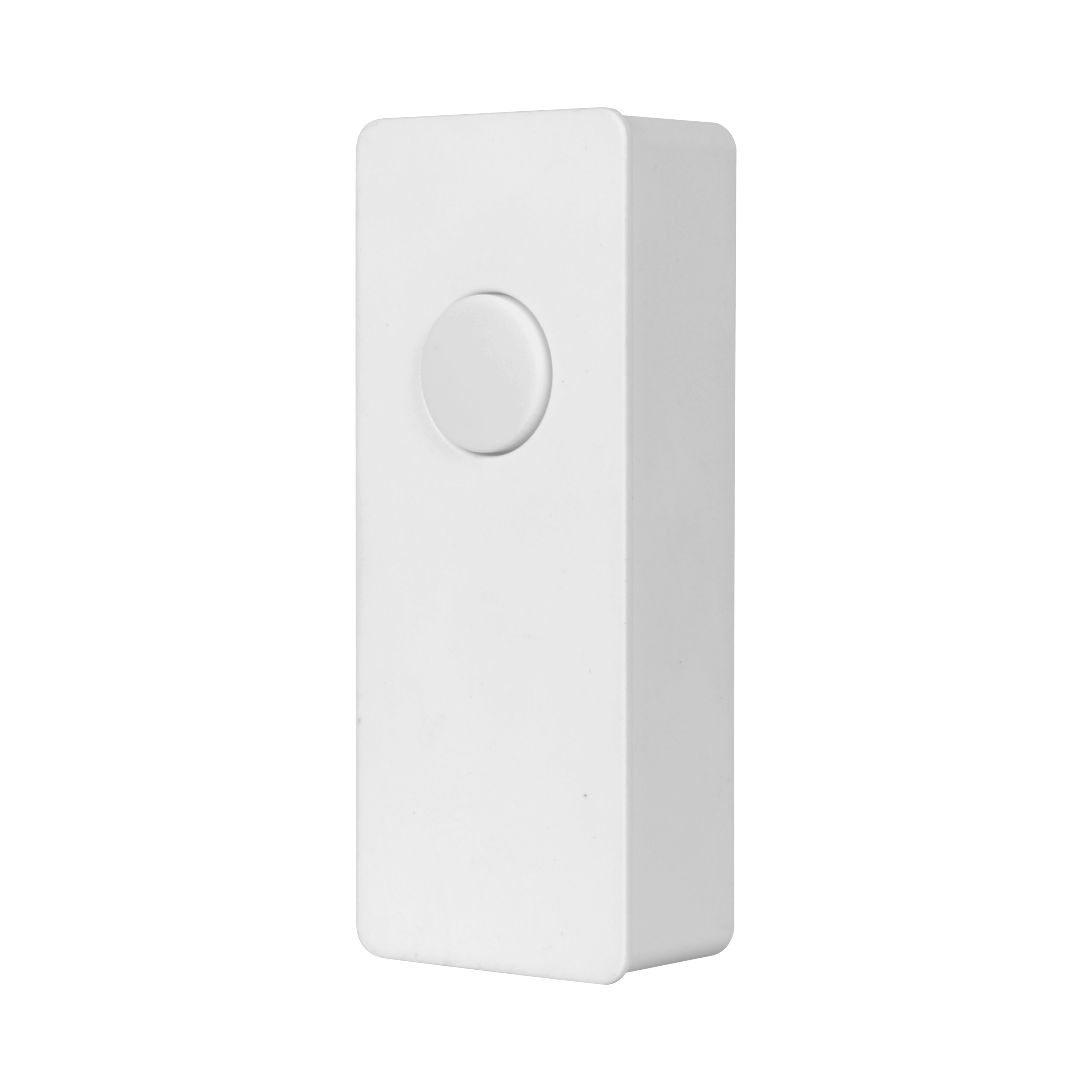

- Includes one wireless, battery powered doorbell button
- Wireless button range up to 120ft in open air
- Compatible with many popular video doorbell buttons (see compatibility list and/or test for compatibility before installation)
- Able to drive up to 2 video doorbells at the same time.
- Daisy chain up to 10 PrimeChime Plus Mini® units (max 400Ft total wire length. Each requires 120VAC input)
- For installations where higher power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panels
Full Listings
- UL Certified
- FCC Class B
- Patent Pending
Warranty
- 1 year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
