6″ SELECTABLE UNIVERSAL INPUT EDGE LIGHT

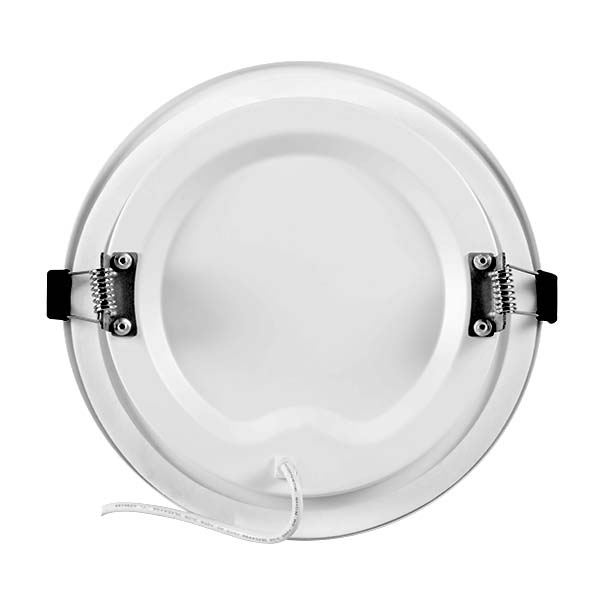

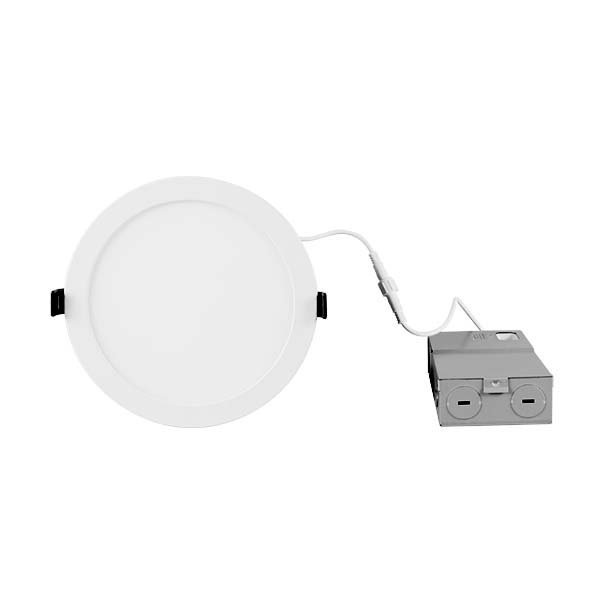

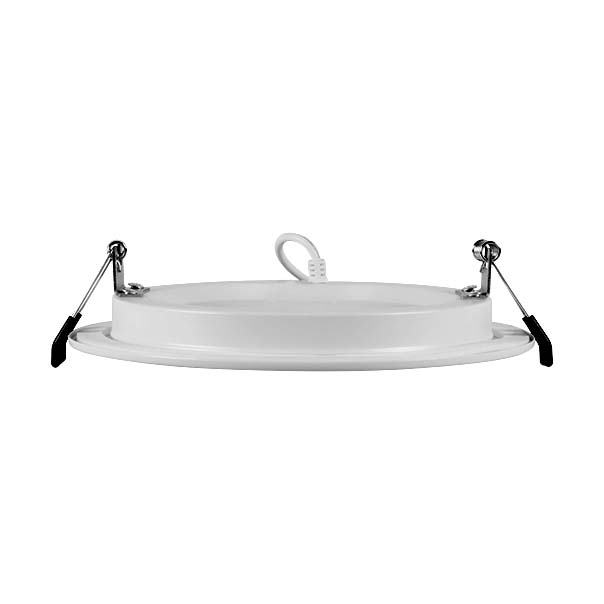

The REL Selectable Edge Lit Downlight with universal voltage input, offers an attractive aesthetic with a low profile in 6” round forms. The CCT selectable, edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow for a secure fit and easy installation. It’s perfect for adding light in commercial or multi-family spaces such as offices, hallways, corridors, and entries.



* Except 5000K

Specifications

  • Precision engineered optical stack creates uniform light distribution that maximizes lumen output
  • Utilizes high performing LEDs with 90+ CRI and an R9 > 50

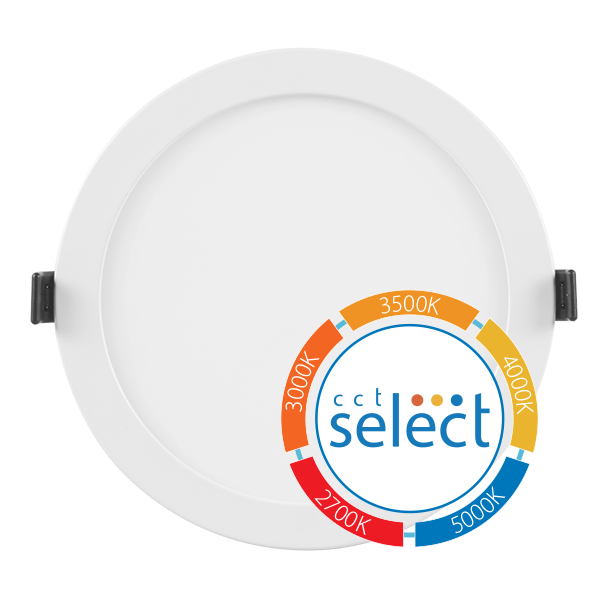

  • Offered in 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
  • Input voltage of 120-277VAC

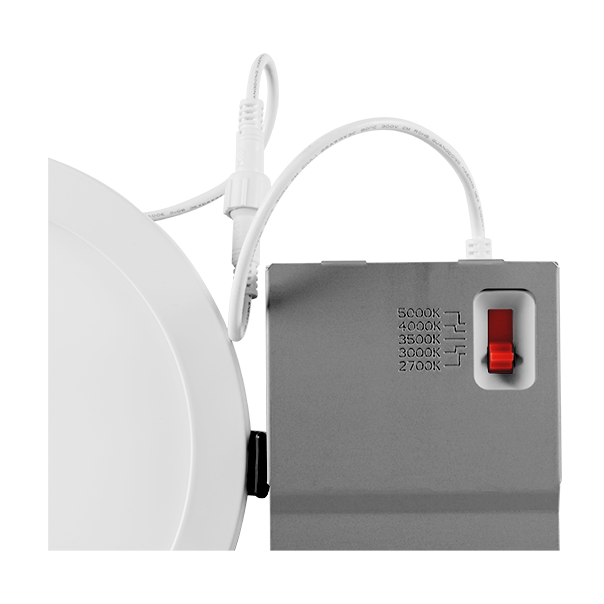

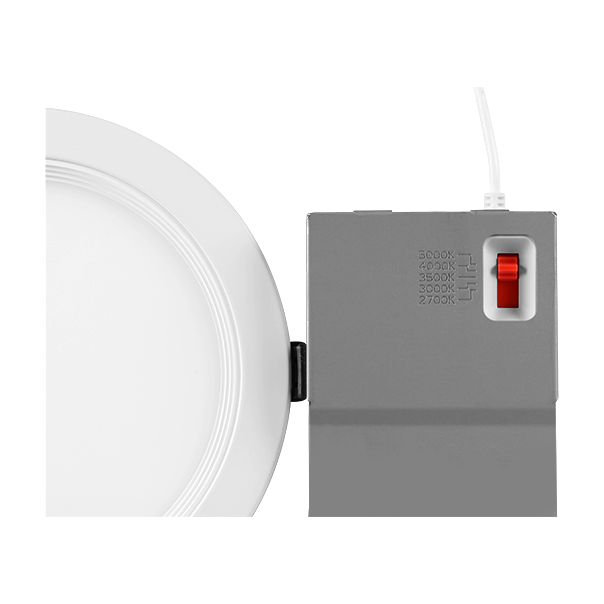

  • CCT selector switch located on driver
  • Dimmable to 5% with compatible phase cut or 0-10VDC dimmers
  • Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
REL6-UNV

2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1044
Lumens

1102
Lumens

1160
Lumens

1169
Lumens

1148
Lumens

13
Input Watts

13
Input Watts

13
Input Watts

13
Input Watts

13
Input Watts

82.9
lm/W

87.5
lm/W

92.1
lm/W

92.8
lm/W

91.1
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

92
CRI

Select IES Download

Select IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 SelectREL61UNVSRDWH
REL6-UNV
2700K
Warm
3000K
Warm White
3500K
Warm Neutral
4000K
Neutral
5000K
Cool

1044
Lumens

1102
Lumens

1160
Lumens

1169
Lumens

1148
Lumens

13
Input Watts

13
Input Watts

13
Input Watts

13
Input Watts

13
Input Watts

82.9
lm/W

87.5
lm/W

92.1
lm/W

92.8
lm/W

91.1
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

92
CRI

Select IES Download

Select IES Download

Select IES Download

Select IES Download

Select IES Download

Part Numbers:

 Select:REL61UNVSRDWH
