REL6-UNV Series

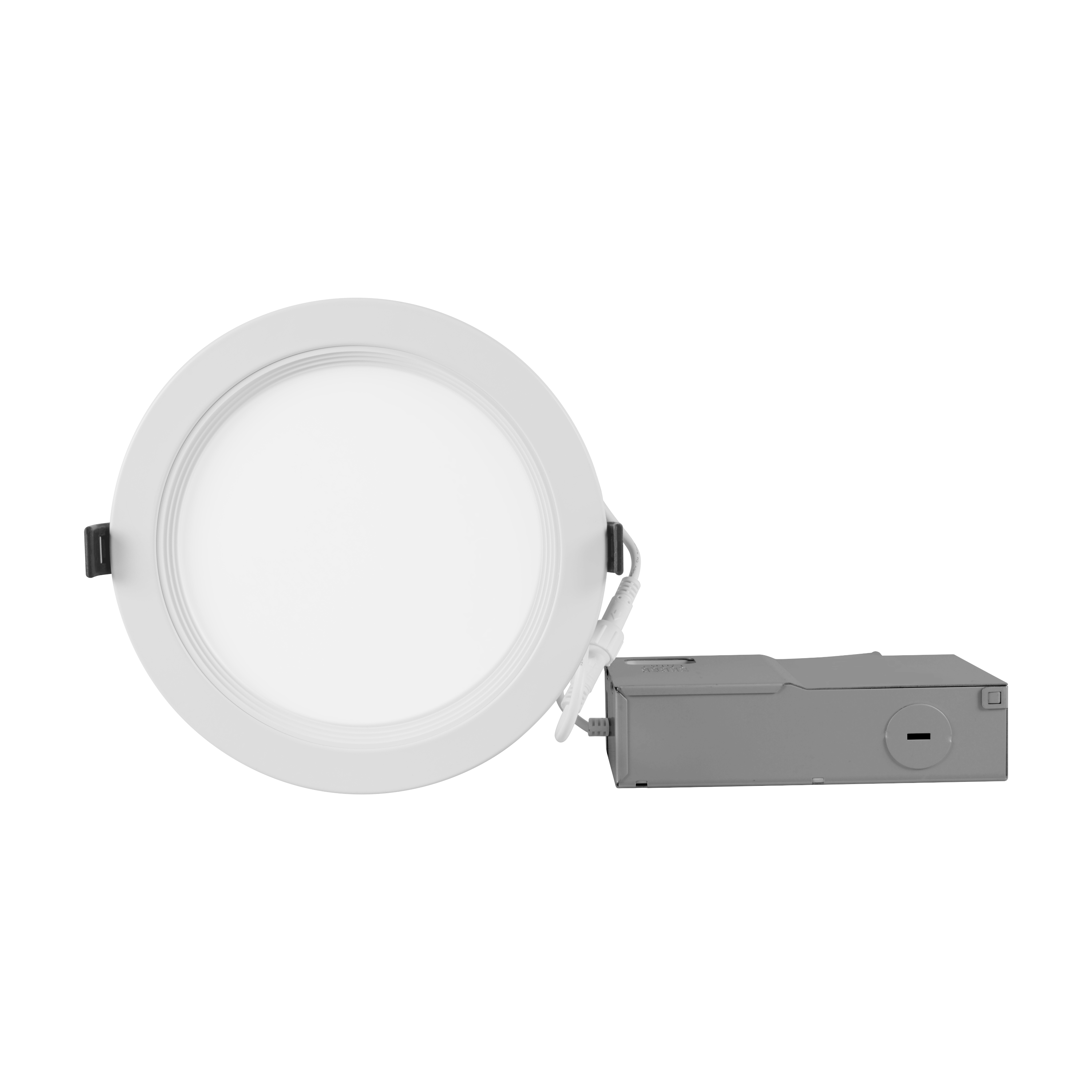

REL Series 6-inch White LED Selectable 120-277V Canless Downlight
Product description
The REL Selectable Edge Lit Downlight with universal voltage input, offers an attractive aesthetic with a low profile in 6” round forms. The CCT selectable, edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow for a secure fit and eas…
The REL Selectable Edge Lit Downlight with universal voltage input, offers an attractive aesthetic with a low profile in 6” round forms. The CCT selectable, edge-lit technology makes it a practical solution with high performance. Adjustable spring-loaded retention tabs allow for a secure fit and easy installation. It’s perfect for adding light in commercial or multi-family spaces such as offices, hallways, corridors, and entries.
- Input voltage of 120-277VAC for residential or commercial applications
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Excellent color rendering with >90 CRI (R9 >50) and glare-free illumination
- Cast aluminum IC-Rated housing with 0-10V dimming
- Spring-loaded tabs for quick canless installation. Template included
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan> 54,000 -
Lumens1129 - 1265 lm
-
Wattage12.6
Listings & certifications
Listings & Certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- TAA Compliant
- Title 24
- JA8
- IC-Rated
- Airtight (ASTM E283)
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
Other Certifications
- Testing performed in accordance with IESNA standards
- Meets or exceeds ASTM-283 Airtight Requirements
Features
Construction
- Cast aluminum housing routes heat away from electrical components
- Edge-Lit technology allows for extremely thin fixture depth
- Adjustable, spring loaded retention tabs ensure secure fixture retention
- Off-board driver minimizes installation height and maximizes fixture life through improved heat management
Optical System
- Precision engineered optical stack creates uniform light distribution that maximizes lumen output
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
- Offered in 5CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
Electrical
- Input voltage of 120-277VAC
- CCT selector switch located on driver
- Dimmable to 5% with compatible phase cut or 0-10VDC dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations
- Spring loaded retention tabs allow for easy installation into ceilings up to 3/4” thick with no need for a recessed housing
- Off-board driver/junction box includes three 1/2” KOs and three-port poke-in connectors
- Paper cutting template included
- Accessory metal rough-in template and frames available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Classified for wet locations
- ENERGY STAR Certified
- CA Title 24 Compliant
- Certified for direct contact with insulation (IC-rated)
- Meets Airtight requirements per ASTM E283
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70(9k)>54,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
