SELECTABLE LED BACKLIT TROFFER

The TGLS3 is a contractor grade Troffer that will exceed quality and performance for most commercial spaces. The TGLS3 LED Troffer features a pre-mounted driver and a maintenance-free, fully sealed chamber with seamless aluminum frame to keep bugs and dust out. The fixture utilizes a precision-engineered, textured diffuser to deliver maximum lumen output and optimal uniformity without revealing hot spots or shadowing. Provided with CCT and lumen output selectable options with the choice of 3500K, 4000K, or 5000K CCTs and low, medium, and high lumen output. It is also DLC 5.1 Standard certified, ensuring top of the line quality and performance. The TGLS3 is the perfect lighting solution for offices, hospitals, and other commercial spaces.



Categories: Tags:

Specifications

  • Patented internal optical system
  • Precision engineered polystyrene diffuser
  • High reflectivity internal coating
  • No visible diodes, hot-spots, or shadows providing high uniformity, and reduced glare
  • 80 CRI for good color definition in public places
  • Input voltage of 120-277VAC
  • Dim-to-off dimming via 0-10VDC controls
  • 12V accessory output to power sensors or other control items

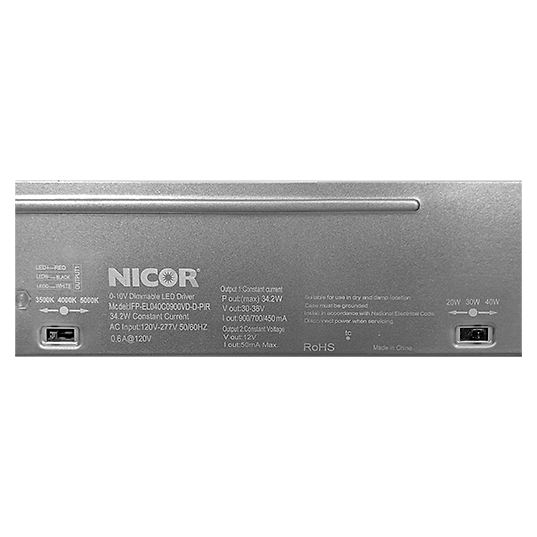

  • CCT and Wattage selector switches accessible on junction box
  • Power factor > 0.98
  • THD < 10%
  • Luminaire surge protection level: designed to withstand up to 2.5kV ring wave per ANSI C82.77-5-2017 requirements for Indoor Hard-wired and Indoor Portable Luminaires
  • Operating temperature range: 4°F to 104°F (-20° to 40°C)

Downloads

– Comparison Sheet
– Sell Sheet

– Spec Sheet
– Installation Instructions

– ies Files

1x4 - Select
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

2180/3293/4449
Lumens

2257/3408/4605
Lumens

2148/3243/4382
Lumens

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

110
lm/W

114
lm/W

109
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select:TGLS314U

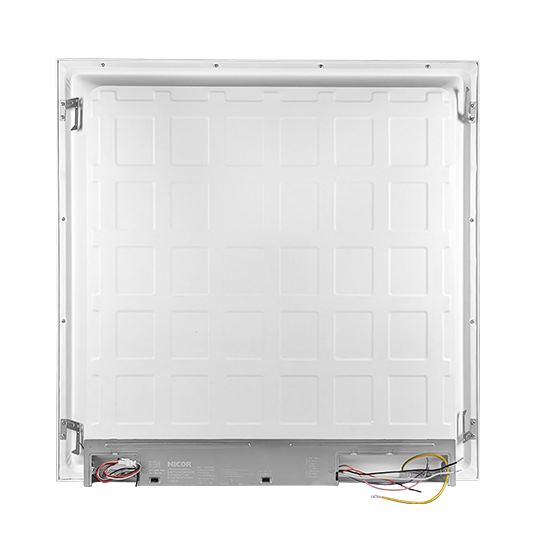

2x2 - Select
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

2178/3311/4444
Lumens

2289/3480/4671
Lumens

2258/3433/4608
Lumens

20/30/40
Input Watts

20/30/40
Input Watts

20/30/40
Input Watts

111
lm/W

117
lm/W

115
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select:TGLS322U

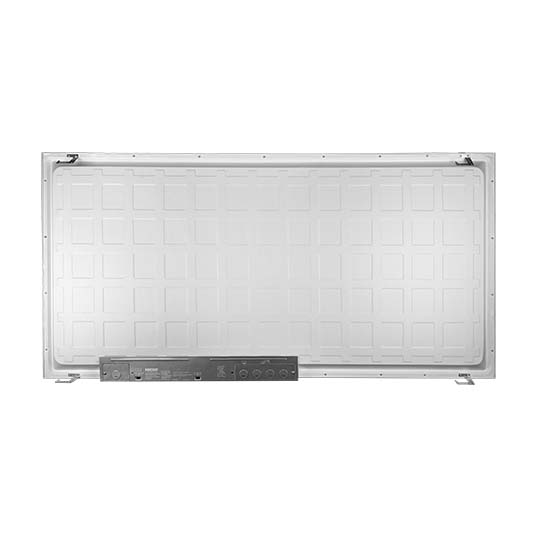

2x4 - Select
3500K
Warm Neutral		4000K
Neutral		5000K
Cool

3506/4701/5483
Lumens

3847/5158/6016
Lumens

3718/4985/5814
Lumens

30/40/50
Input Watts

30/40/50
Input Watts

30/40/50
Input Watts

115
lm/W

126
lm/W

122
lm/W

83
CRI

83
CRI

83
CRI

Part Number:

 Select:TGLS324U
