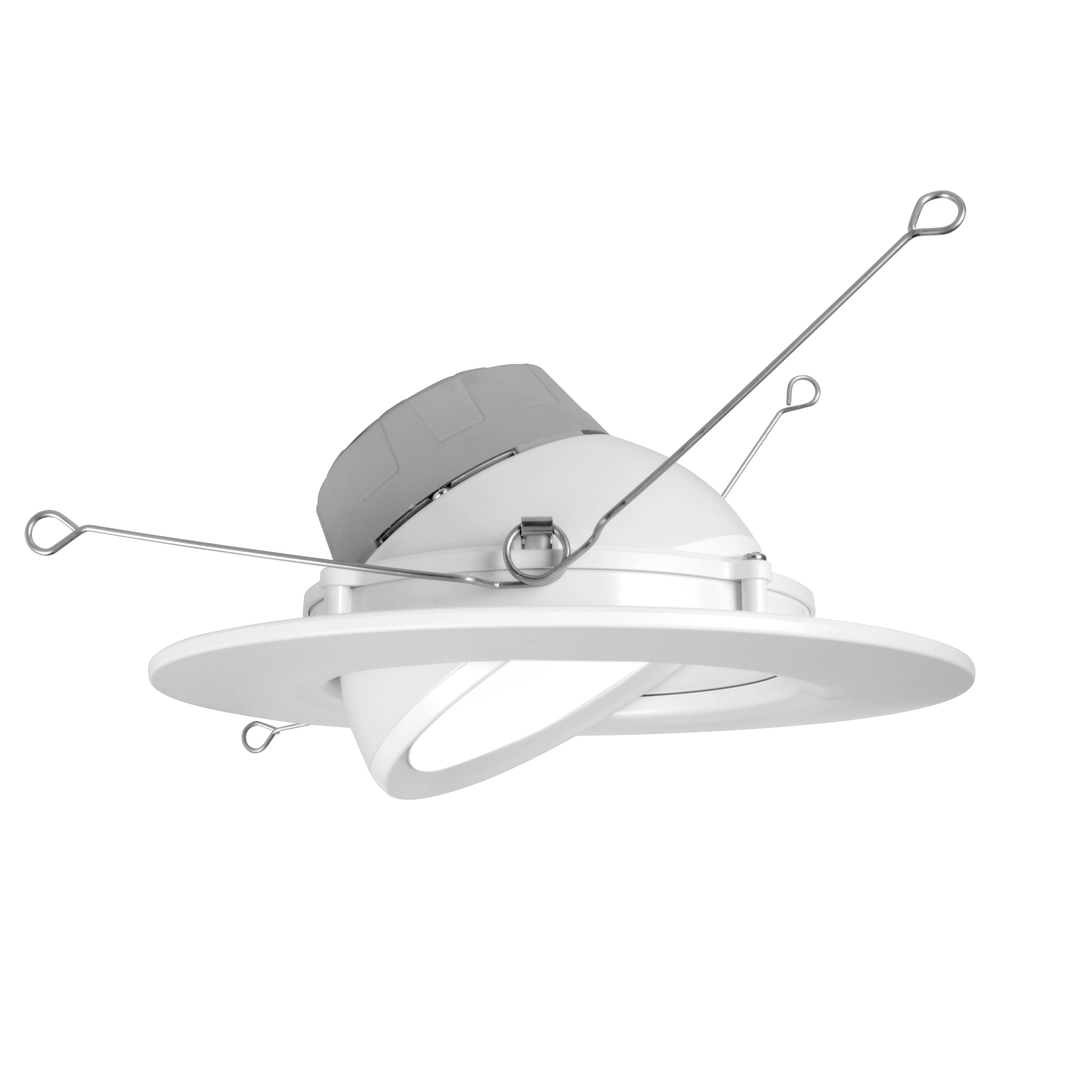

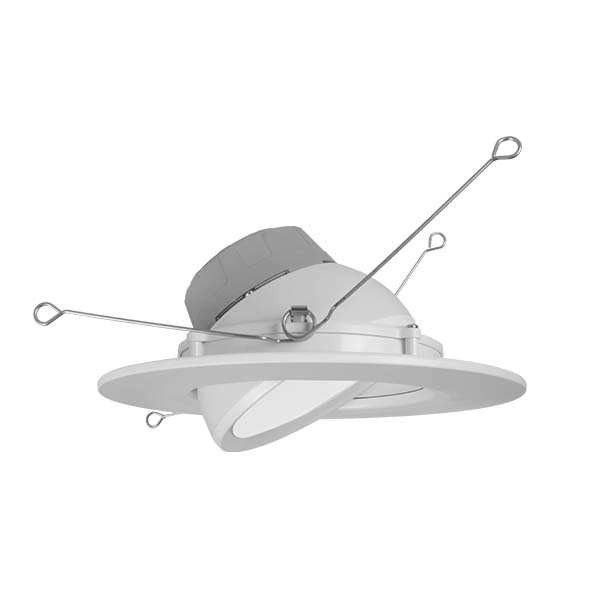

DCG Series 6-inch White LED Selectable Recessed Gimbal
The DCG Recessed LED Gimbal Downlight Series provides an economical and straightforward solution for transitioning from traditional incandescent lighting to a durable, energy-efficient LED system. Its user-friendly twist-and-turn mechanism ensures precise gimbal positioning, offering up to 350° of r…
The DCG Recessed LED Gimbal Downlight Series provides an economical and straightforward solution for transitioning from traditional incandescent lighting to a durable, energy-efficient LED system. Its user-friendly twist-and-turn mechanism ensures precise gimbal positioning, offering up to 350° of rotation and 30° of adjustable tilt for the 4” version and up to 354° of rotation and 30° of adjustable tilt for the 6” model, making it a versatile solution for sloped ceilings and wall wash applications. With its sleek, flush-mounted design, the DCG not only delivers exceptional functionality but also enhances the aesthetic appeal of any interior space.
- Designed to fit 6” recessed housings
- 5 Selectable color temperature settings
- 30° vertical tilt and 354° horizontal rotation
- Durable polymer flange to eliminate rust

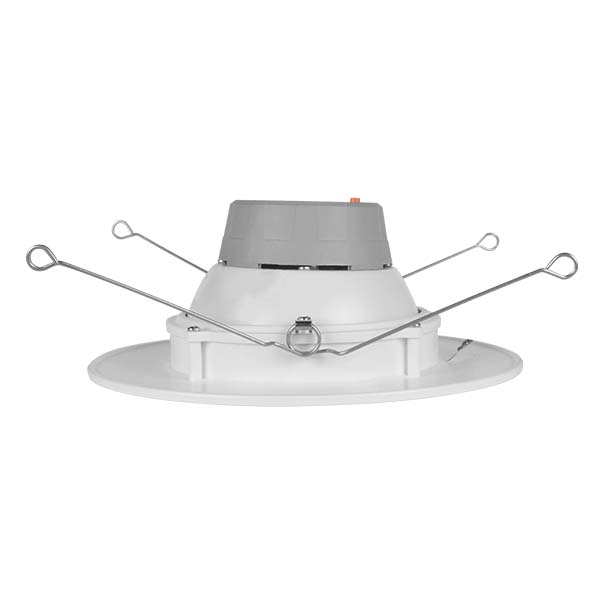

- Steel torsion clip mounting system for easy installation
Ordering information
Downloads
Specifications
-
Lifespan54000 -
Lumens921 - 979 lm
-
Wattage9.4
Listings & certifications
- cETLus Intertek Listed
- Title 24
- JA8-E
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- Damp-Location (ETL 1598)
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction
- Durable polymer flange
- Fully captured V-springs on 6”
- Friction fit arms on 4”
- Matte finish, available in black or white
Optical System
- Polystyrene diffuser creates uniform light distribution with reduced glare
- Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Beam angle of 90°
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
Electrical
- Input voltage 120VAC, 60Hz
- Power factor: ≥0.97
- THD ≤ 20%

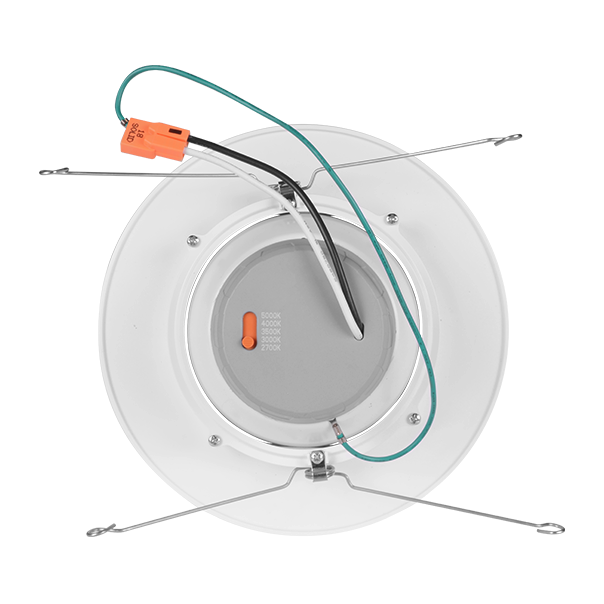

- CCT selection switch on back of housing
- Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations
- Compatible with most 4” or 5” & 6” recessed housings
- Suitable for IC-rated housings
- Quick and easy installation with an IDEAL luminaire connector and friction fit mounting system
- Ships with Edison base socket string (GU24 socket string available)
Full Listings
- cETLus 1598 Classified for damp locations
- CA Title 24 compliant (JA8)
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- TM-21 Reported L70(10K) hours = 54,000hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
