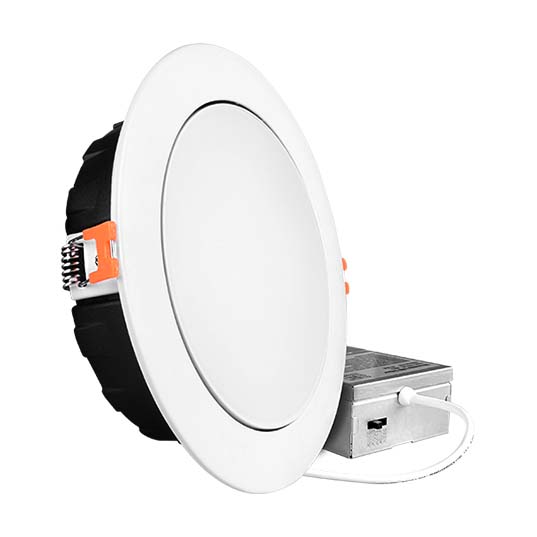

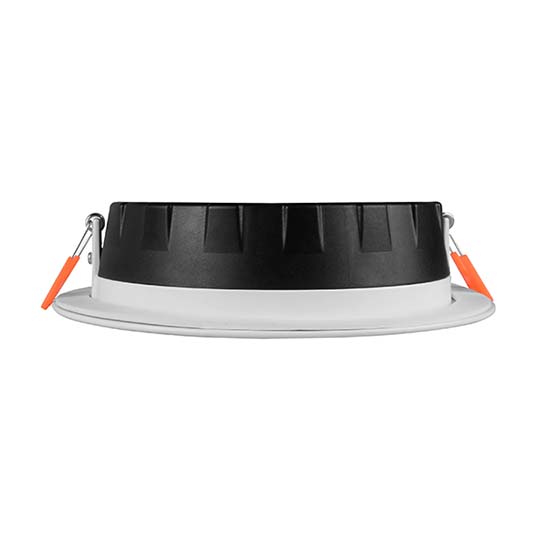

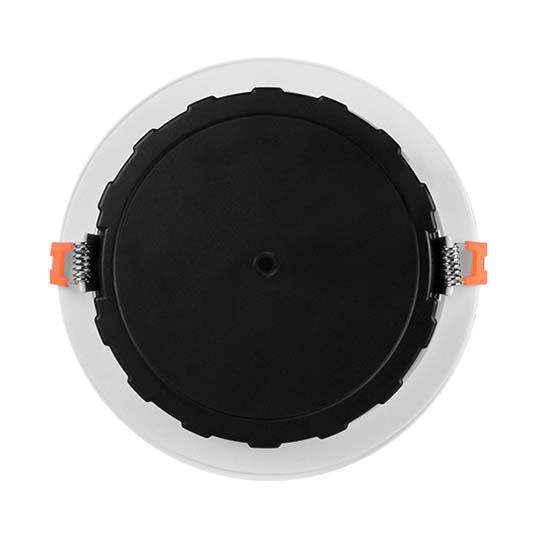

6″ White Canless Selectable LED Gimbal Downlight
Introducing the RWG, our sleek Edge Lit LED Gimbal, the perfect fusion of modern design and innovative lighting technology. This gimbal features a minimalist profile, making it an eye-catching addition to any space while providing versatile illumination. The edge-lit design and premium diffuser ensu…
Introducing the RWG, our sleek Edge Lit LED Gimbal, the perfect fusion of modern design and innovative lighting technology. This gimbal features a minimalist profile, making it an eye-catching addition to any space while providing versatile illumination. The edge-lit design and premium diffuser ensures a soft, diffused glow that enhances your environment without harsh shadows, creating a warm and inviting atmosphere. Constructed with highquality materials, the LED gimbal is energy-efficient, offering long-lasting performance with minimal heat output. With its adjustable gimbal mechanism of 20° of tilt and 180° rotation, you can effortlessly direct the light to highlight artwork, architectural features, or simply illuminate your room according to your mood.
- Versatile low profile, airtight, IC rating allows for use in most applications

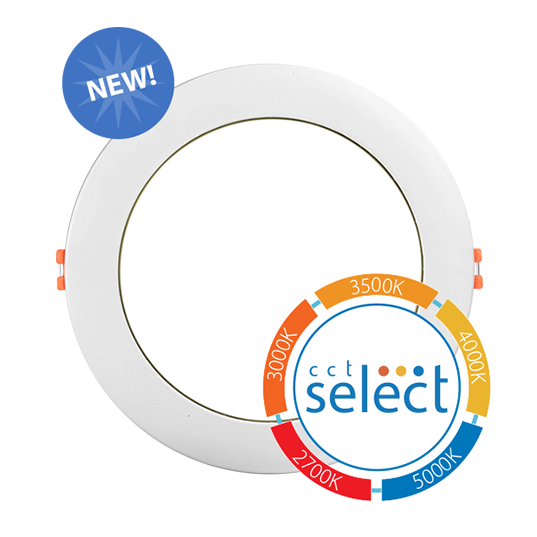

- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Die-cast aluminum housing with white powder coat finish
- Adjustable lighting at 180° rotation and 20° tilt
- Precision-engineered optical stack creates a uniform light distribution that maximizes lumen output
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens1219 - 1288 lm
-
Wattage12.9
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- Title 24
- JA8
- IC-Rated
- Airtight (ASTM E283)
- NFPA 70 Compliant
- RoHS Compliant
- FCC Class B
- Wet-Location (ETL 1598)
- Testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
Features
Construction
- Die-cast aluminum housing
- 180° rotation and 20° Tilt
- Adjustable, spring loaded retention tabs ensure secure fixture retention

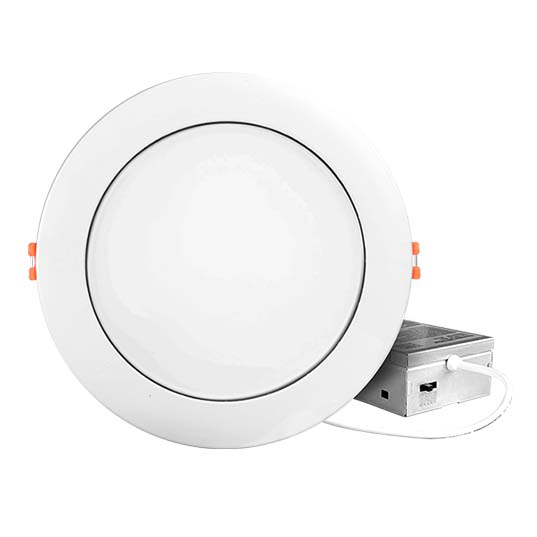

- Off-board driver minimizes installation height and maximizes fixture life through improved heat management
Optical System
- Precision engineered optical stack creates uniform light distribution that maximizes lumen output
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
- 5CCT selection of 2700K, 3000K, 3500K, 4000K, and 5000K (3000K default)
- CCT selection switch on driver
Electrical
- Input voltage 120VAC, 60Hz
- Power factor: ≥0.9
- THD ≤ 20%
- Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature of -4°F to 113°F (-20°C to 45°C)
Installations
- Spring loaded retention tabs allow for easy installation into ceilings up to 3/4” thick with no need for a recessed housing
- Off-board driver/j-box includes three 1/2” KOs and three-port poke-in connectors
- Paper cutting template included
- Accessory metal rough-in template and frames available
- Accessory extension cables available
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
Full Listings
- cETLus 1598 Classified for wet locations
- CA Title 24 compliant (JA8)
- Certified for direct contact with insulation (IC-Rated)
- Meets Air Tight requirements per ASTM E283
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant: Free from harmful and hazardous materials
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- LED lumen maintenance: L70(9k)>50,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge). For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
