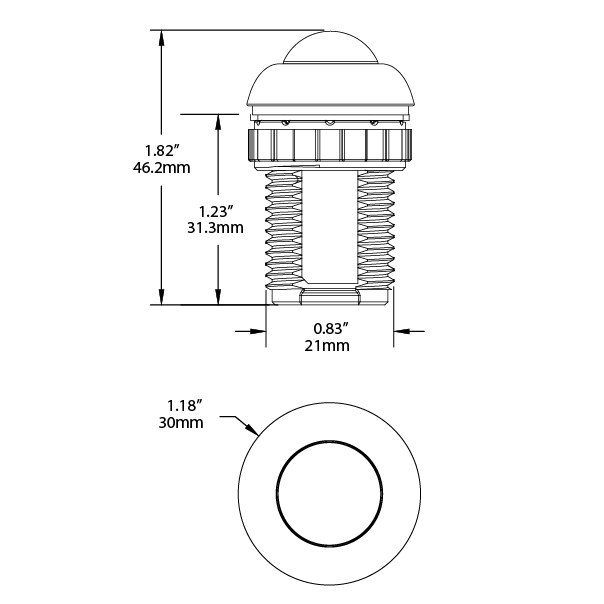

NLC LOW-VOLTAGE PIR/DAYLIGHT SENSOR

The NLCSPCWNBWH is a low-voltage PIR/Daylight sensor. It provides 360° coverage at heights ranging from 8 to 15ft with a coverage diameter of 48Ft (when mounted at a 15Ft height). Setup and commissioning requires the NICOR NLC mobile app (Android/iPhone).



Categories: Tag:

Specifications

  • Bluetooth Low-Energy Mesh Network when connected with NLCPC2
  • Controlled with the NLC App for both iOS and Android smartphones
  • Bluetooth can be transmitted up to 100ft
  • BLE 4.2 MESH IEEE 802.15.1
  • Input voltage of 12V
  • Operating temperature rating of -22°F to 131°F (-30°C to 55C)



Part Number:

NLCSPCWNBWH

Downloads

– Spec Sheet
– Installation Instructions
