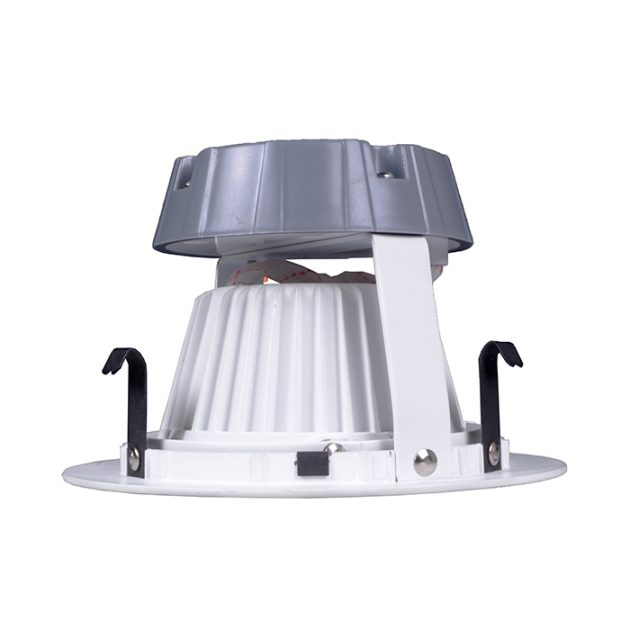

GIMBAL RECESSED LED DOWNLIGHT

The DCG LED Downlight Gimbal Series provides an economical, easy-to-install upgrade from incandescent lighting to a long-lasting and energy-efficient LED solution. Its easy to use twist-and-turn design allows for fine adjustment of the gimbal position. The 354° of rotation and 35° of adjustable tilt makes the DCG suitable for sloped ceilings and wall wash. The sleek design enhances any interior space with its flush mounting and aesthetic appeal.



Specifications

  • Input voltage 120VAC
  • Dimmable to less than 5% with recommended TRIAC dimmers
  • Operating temperature of 0° to 104°F (-18°C to 40°C)
  • TM-21 Reported L70(10K) hours = 56,000
  • LM-79, LM-80 testing performed in accordance with IESNA standards
  • Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
DCG4
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

534
Lumens

545
Lumens

565
Lumens

572
Lumens

7.5
Input Watts

7.5
Input Watts

7.5
Input Watts

7.5
Input Watts

71.4
lm/W

72.8
lm/W

75.5
lm/W

76.4
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DCG421202K
 3000K:DCG421203K
 4000K:DCG421204K
 5000K:DCG421205K
DCG6
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

832
Lumens

848
Lumens

880
Lumens

891
Lumens

10.4
Input Watts

10.4
Input Watts

10.4
Input Watts

10.4
Input Watts

80.0
lm/W

81.6
lm/W

84.7
lm/W

85.7
lm/W

93
CRI

93
CRI

93
CRI

93
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DCG621202K
 3000K:DCG621203K
 4000K:DCG621204K
 5000K:DCG621205K
