DLR56v5-800LM Series
DLR56 (v5) 5in/6in 800 Lumen Recessed LED Downlight, 2700K White Baffle
Product description

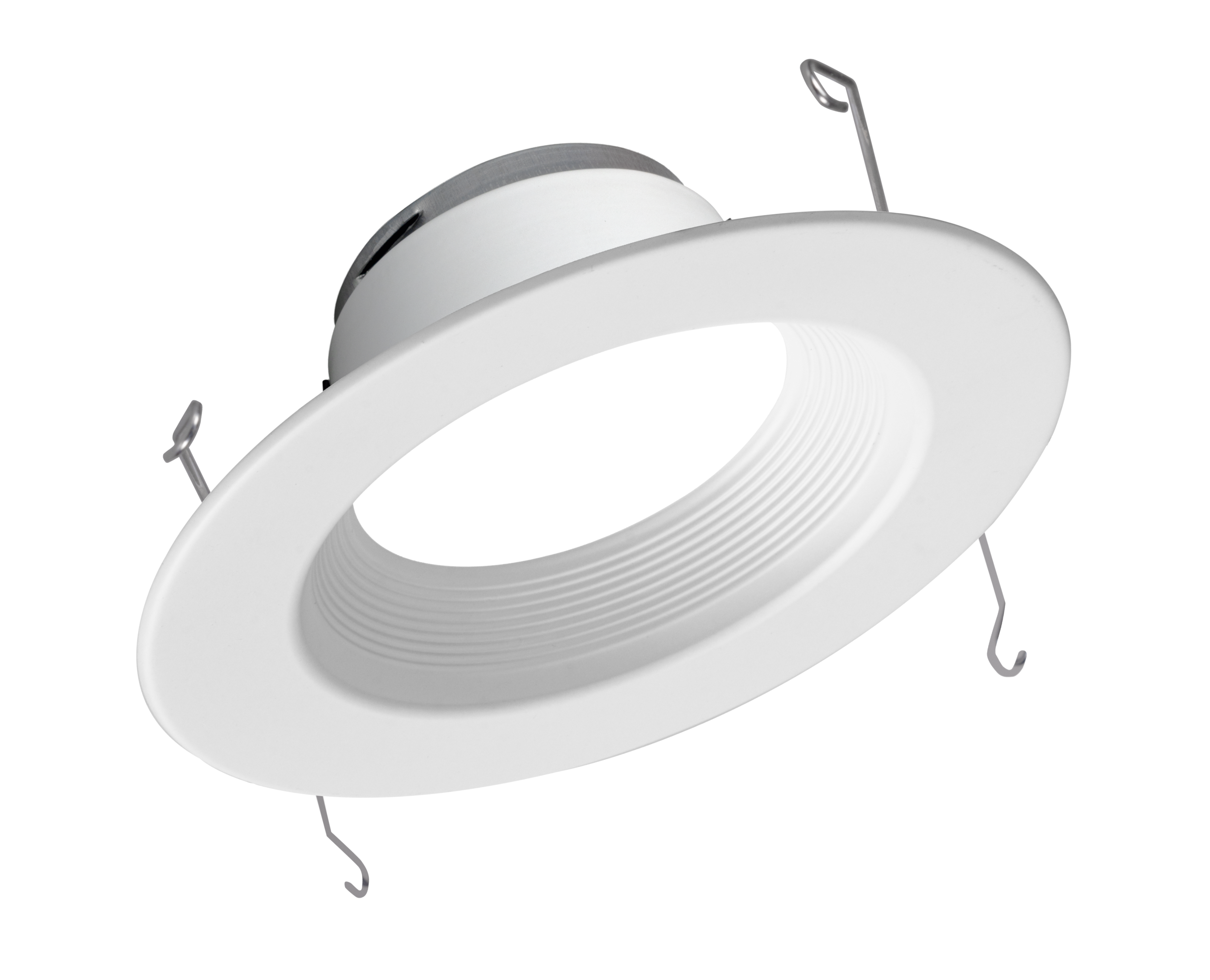

The DLR56 from NICOR is a 5” & 6” recessed LED downlight that is ideal for new construction using the patented new construction frame and retrofit into most 5” and 6” housings. Improved to meet the newest certification standards, the DLR56 is over 70 LPW, 90+ CRI and R9 greater than 60. The DLR56v5 …
The DLR56 from NICOR is a 5” & 6” recessed LED downlight that is ideal for new construction using the patented new construction frame and retrofit into most 5” and 6” housings. Improved to meet the newest certification standards, the DLR56 is over 70 LPW, 90+ CRI and R9 greater than 60. The DLR56v5 system of the downlight combined with the frame provides the lowest overall system cost for energy efficient, high quality lighting.
- Spun aluminum trim routes heat away from electrical components
- Ultra low profile, integrated driver designed for DLR56 frame use
- Airtight when used with DLR56 frame
- Also allows for retrofit into shallow housings
- Exterior white powder coat finish

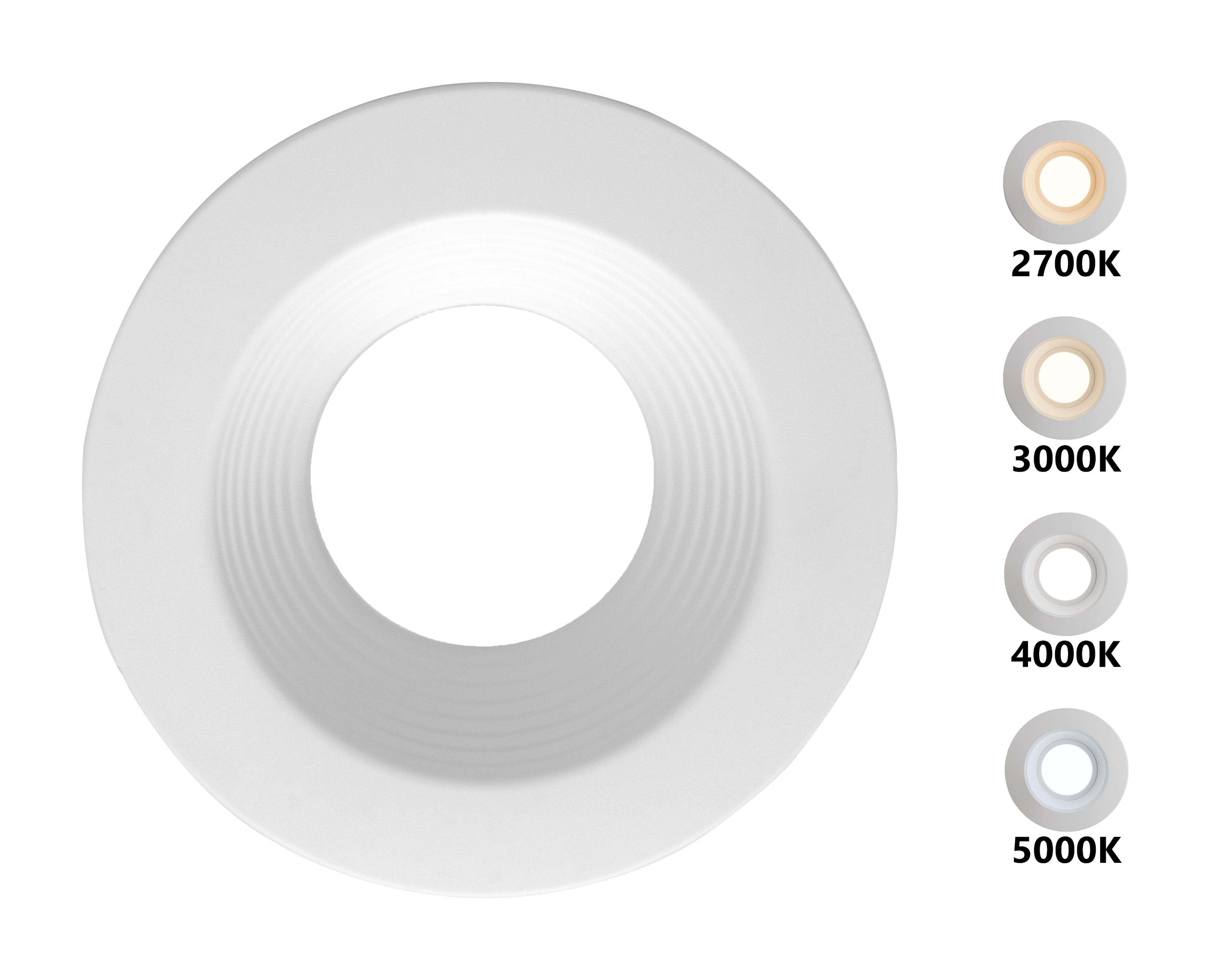

Color Options:
Ordering information
Accessories
- DLR56-5-TR-BK
- DLR56-5-TR-NK
- DLR56-5-TR-OB
Downloads
Specifications
-
Lifespan>60,000 -
Lumens915
-
Wattage12.2
Listings & certifications
Listings & Certifications
- cULus Classified
- Title 24
- JA8
- IC-Rated
- Airtight (ASTM E283)
- FCC Class B
- Wet-Location
Other Certifications
- Testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Features
Construction

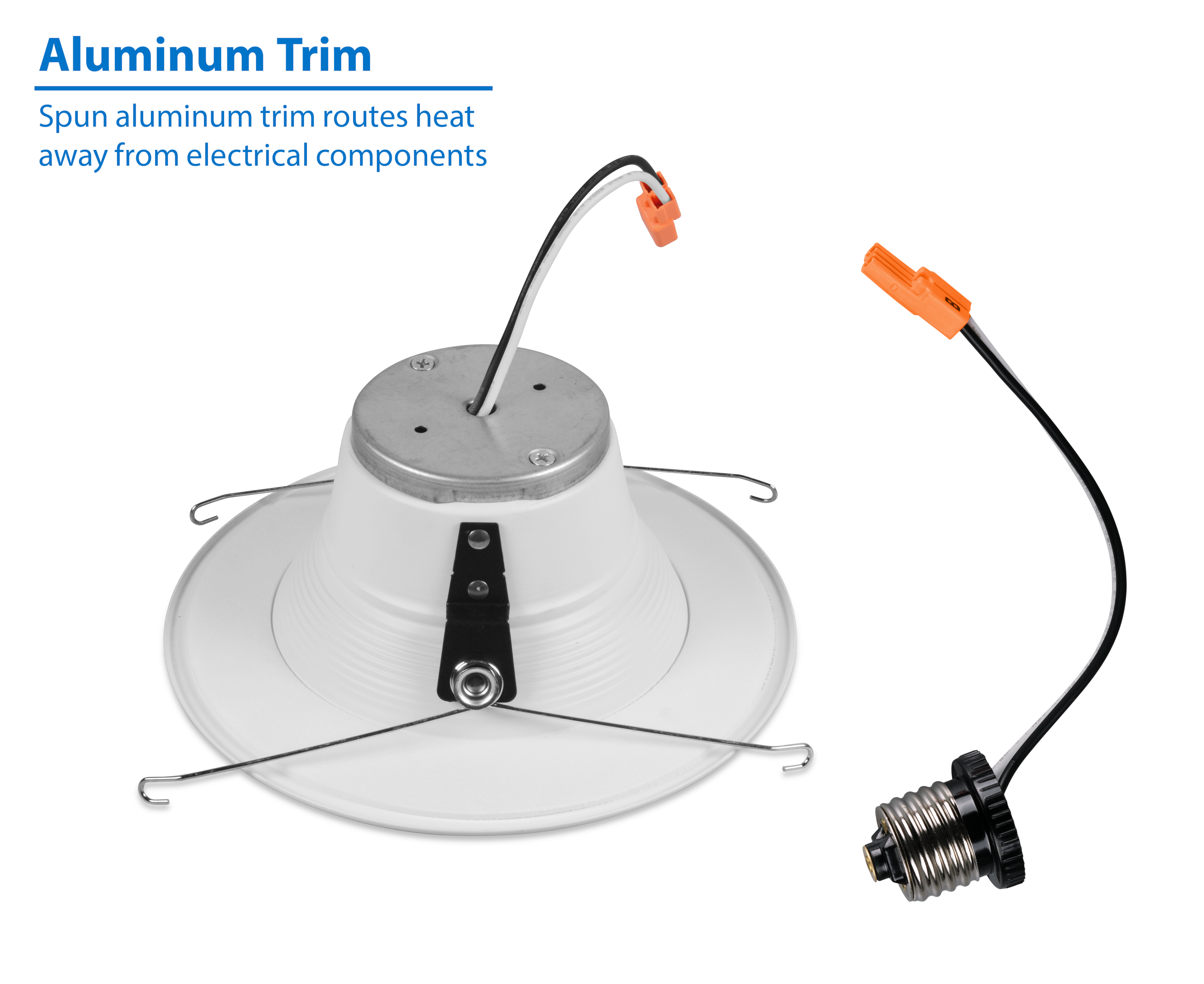

- Spun aluminum trim routes heat away from electrical components
- Ultra low profile, integrated driver designed for DLR56 frame use
- Airtight when used with DLR56 frame
- Also allows for retrofit into shallow housings
- Exterior white powder coat finish
- Available accessory trim covers in Black, Oil-Rubbed Bronze and Nickel
Optical System
- Polystyrene diffuser and reflector cone create a uniform light distribution that reduces glare without sacrificing lumen output

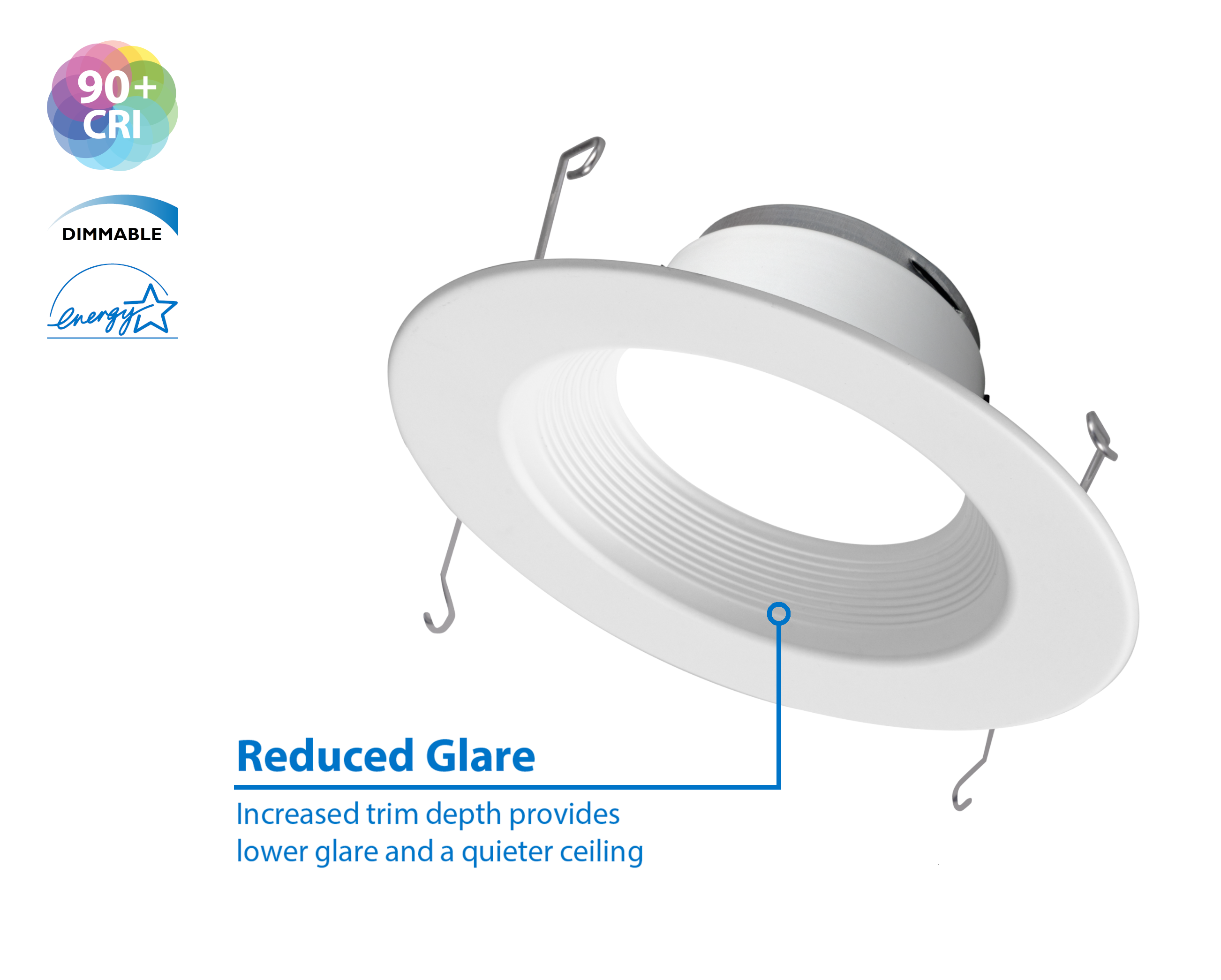

- Increased trim depth provides lower glare and a quieter ceiling
Electrical
- Utilizes high performing LEDs with >90 CRI and an R9 >60 (not available on 5000K)
- Dimmable to 5% with compatible TRIAC dimmers
- Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
- Input voltage of 120VAC
- Lifetime rated for greater than 60,000 hours
- LM-79 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Installations
- Compatible with patented DLR56 frame
- Compatible with most 5” and 6” recessed housings

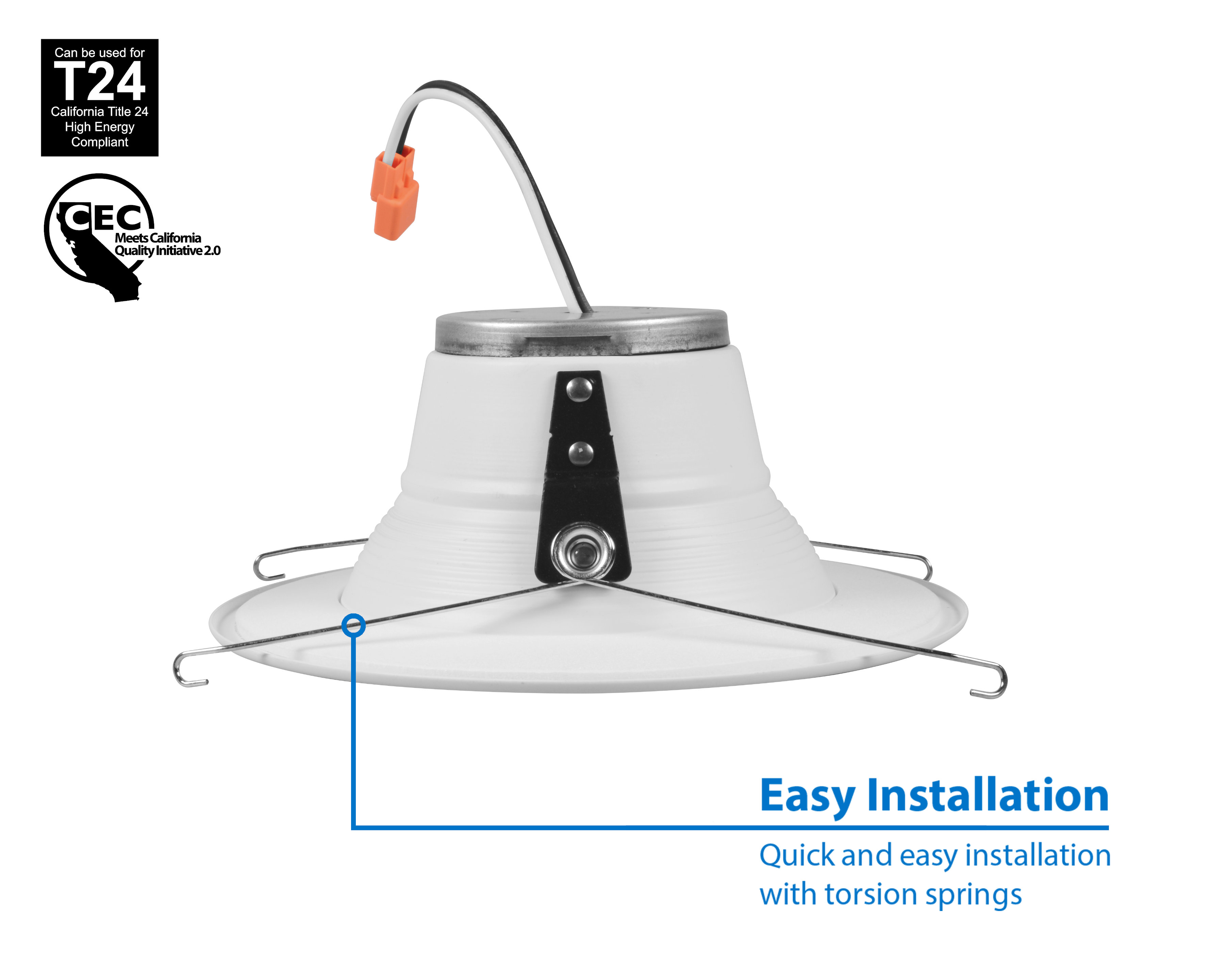

- Quick and easy installation with an IDEAL luminaire connector and torsion spring mounting system

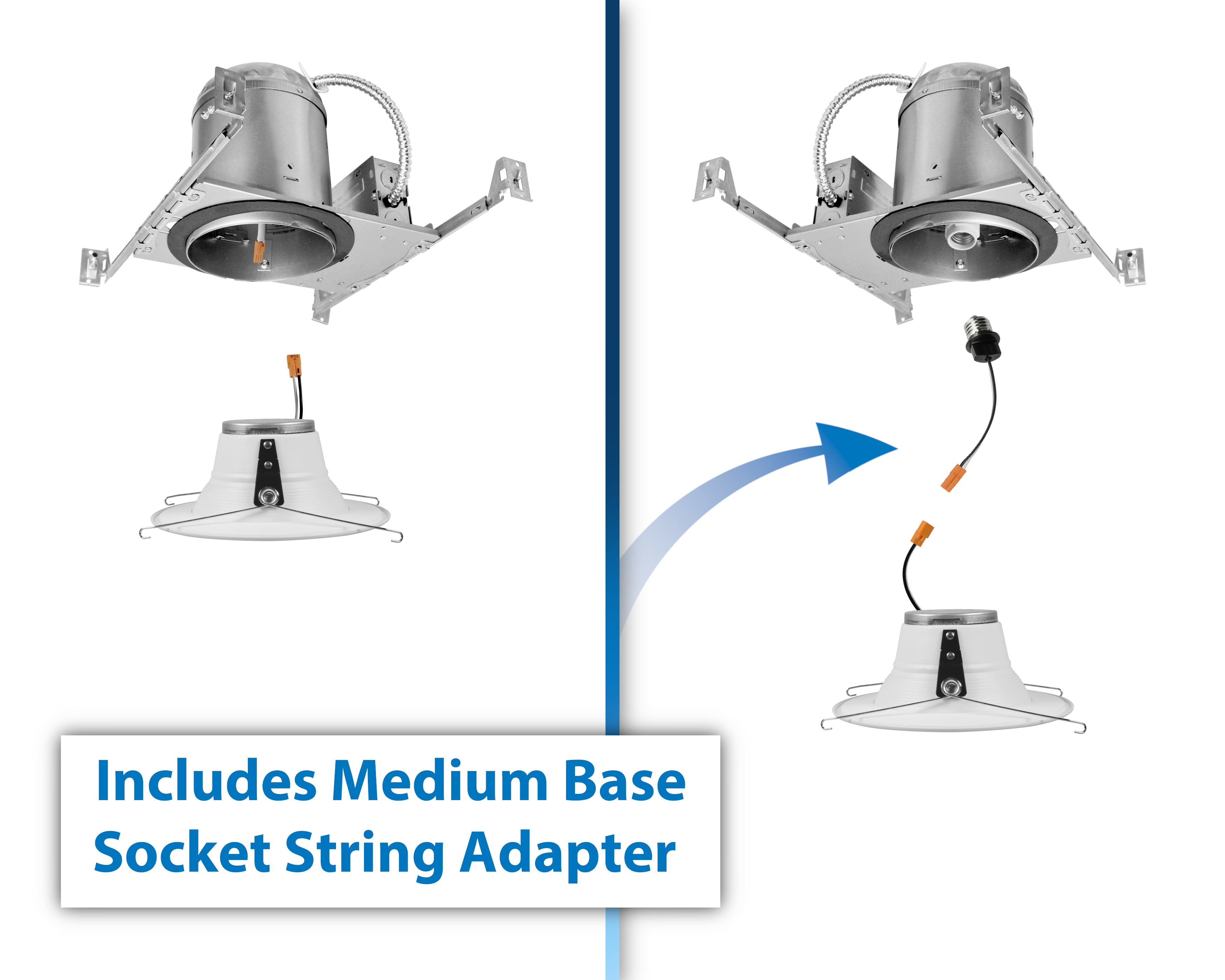

- Ships with Edison base socket string (GU24 socket string available)

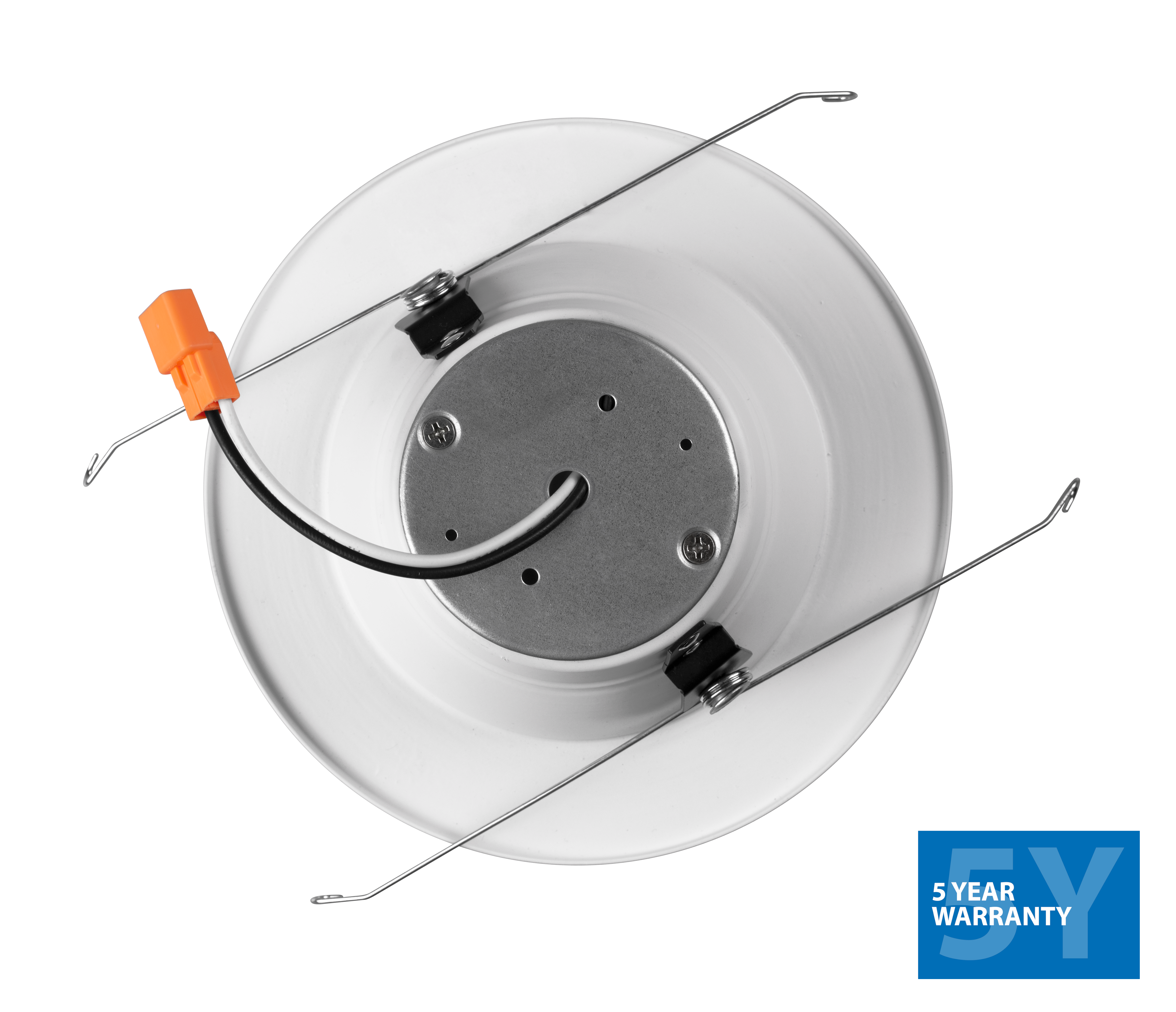

Warranty
- 5-year limited system warranty
