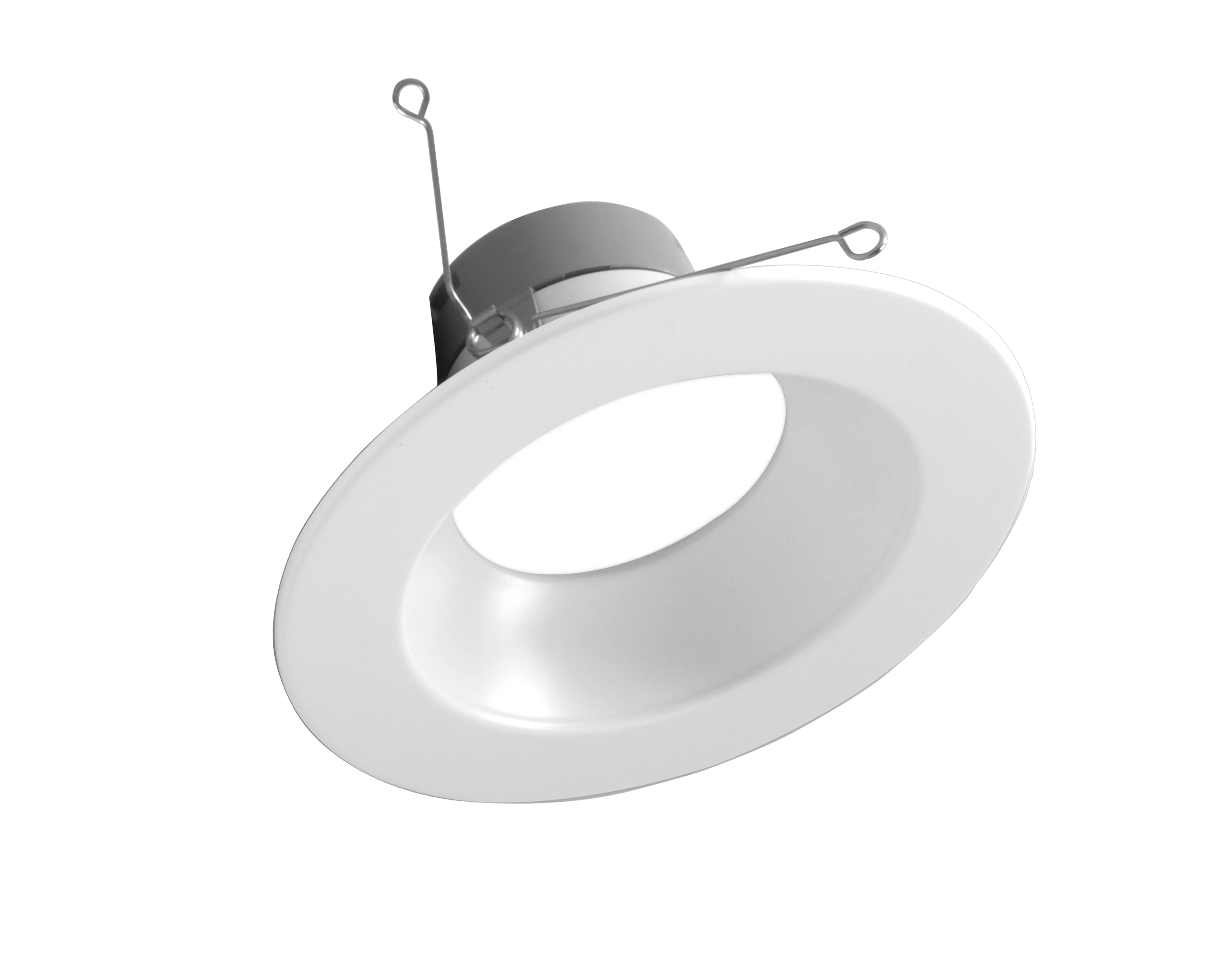

DLR56(v6) 5/6-inch White 1200 Lumen Selectable Recessed LED Downlight
The DLRv6 is the newest generation of NICOR retrofit downlight, now in Single CCT and Selectable CCT models. The DLRv6 from NICOR is a 4” or 5”/6” recessed LED downlight that is ideal for new construction using standard housings or the patented new construction frame, or as a retrofit into most 4”, …
The DLRv6 is the newest generation of NICOR retrofit downlight, now in Single CCT and Selectable CCT models. The DLRv6 from NICOR is a 4” or 5”/6” recessed LED downlight that is ideal for new construction using standard housings or the patented new construction

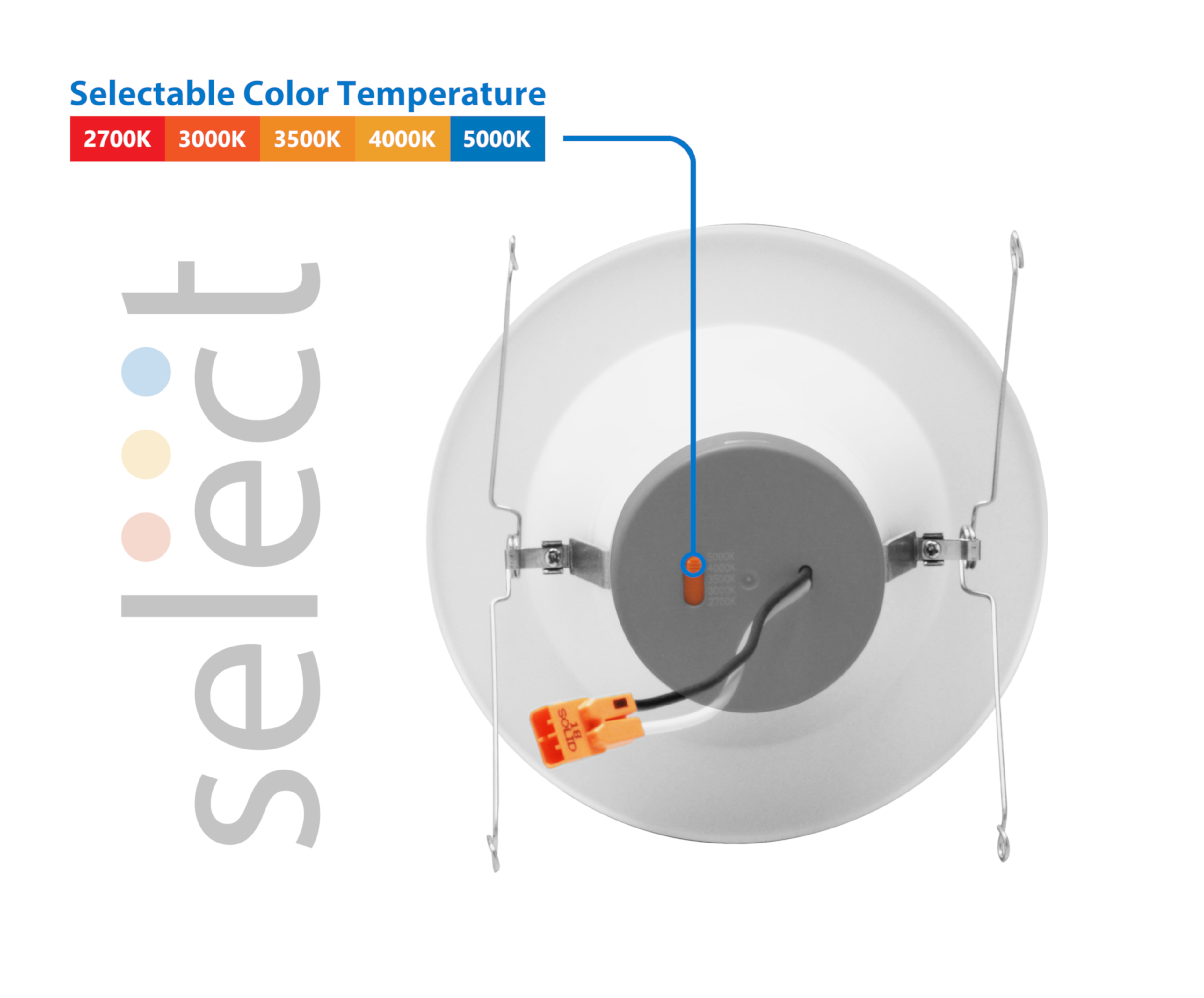

frame, or as a retrofit into most 4”, 5”, or 6” housings. Improved to meet the newest certification standards, the DLR series is over 80Lm/W, 90+ CRI, and R9 greater than 50. The DLR Single CCT is available in 3000K. With a micro-switch on the driver cap, the DLR Select offers the ability to adjust the CCT to 2700K, 3000K, 3500K, 4000K, or 5000K. The DLRv6 system of the downlight combined with the frame provides the lowest overall system cost for energy efficient, high quality lighting.
- Available in Single or Selectable color temperature models
- Exceptional color rendering rated at >90 CRI with R9 >50
- Premium product efficiency with >80Lm/W and >54,000-hour lifespan
- Durable powder-coated steel trim
- Installs easily into recessed housings with quick-connect port
- Magnetic trims available in Black, Bronze, or Nickel
- Compatible with patented NICOR frame-in kit
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>72,000 -

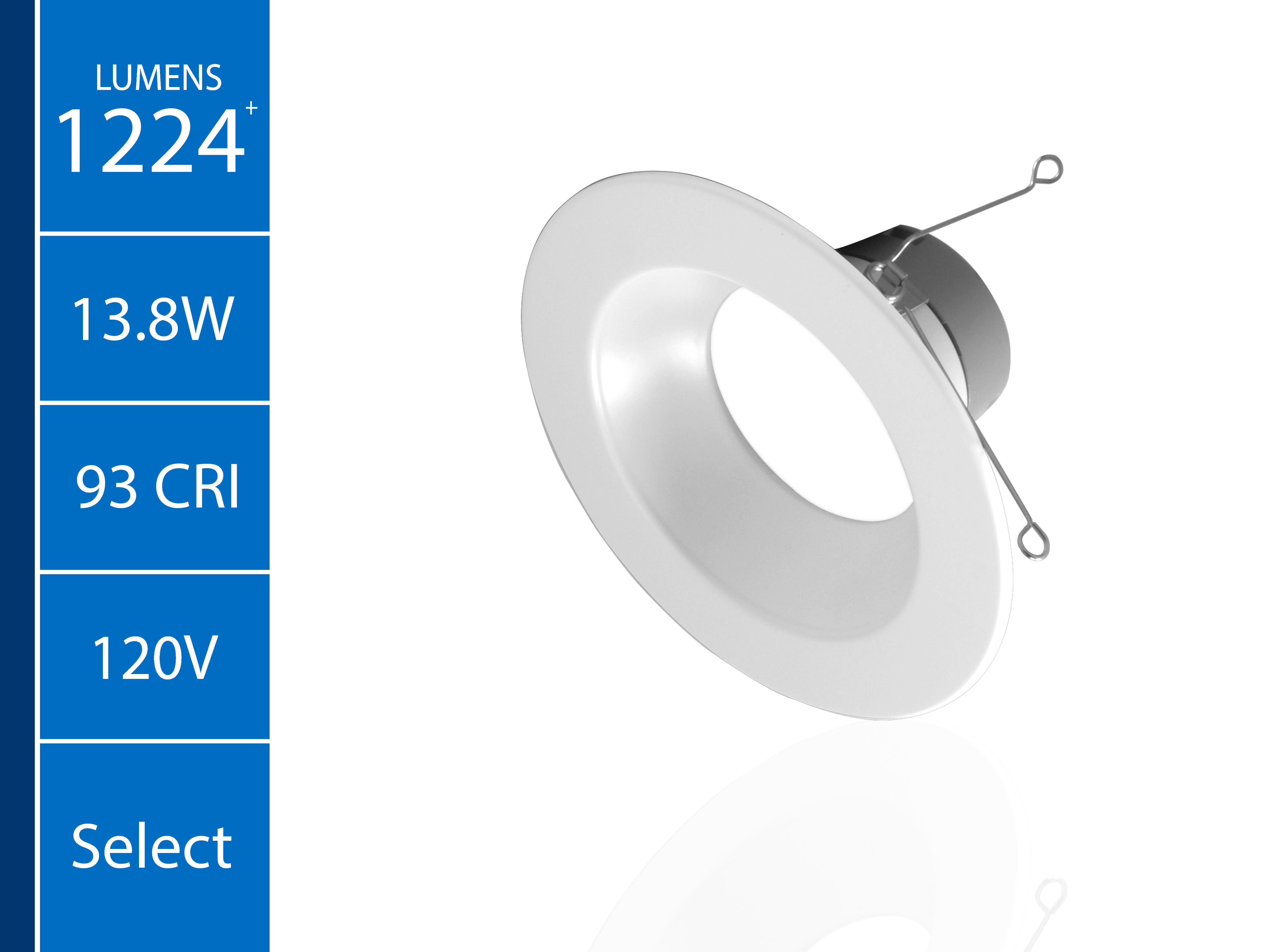

Lumens1224 - 1248 lm
-
Wattage13.4 - 13.9 W
Listings & certifications
- cETLus Intertek Classified
- ENERGY STAR Certified
- TAA Compliant
- Title 24
- JA8
- Title 20
- IC-Rated
- Airtight (ASTM E283)
- NFPA 70 Compliant
- NEC 410.16 (A)(3)
- NEC 410.16 (C)(5)
- RoHS Compliant
- FCC Class B
- ICES-005 Compliant
- Wet-Location (ETL 1598)
- Patented
- LM-79 and LM-80 testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- Airtight when used with compatible DLR-FRAME
Features
Construction
- Powder coated steel trim routes heat away from electrical components
- Polymer driver cover for durability

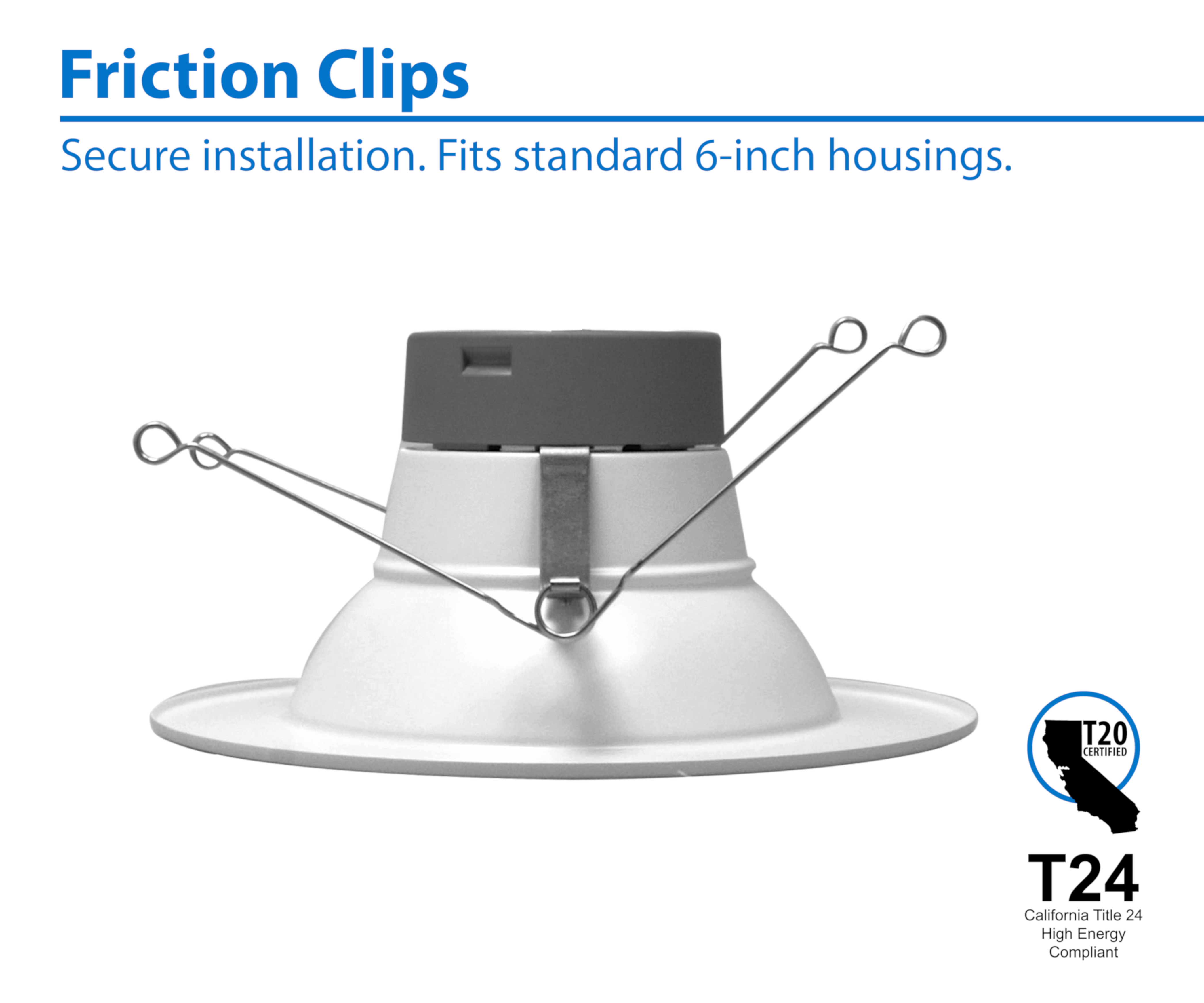

- Fully captured V-springs on 6”
- Friction fit arms on 4”
- Included EVA gasket to conform to AirTight rating when used with AT housing or DLR-5-FRAME
- Exterior white powder coat finish

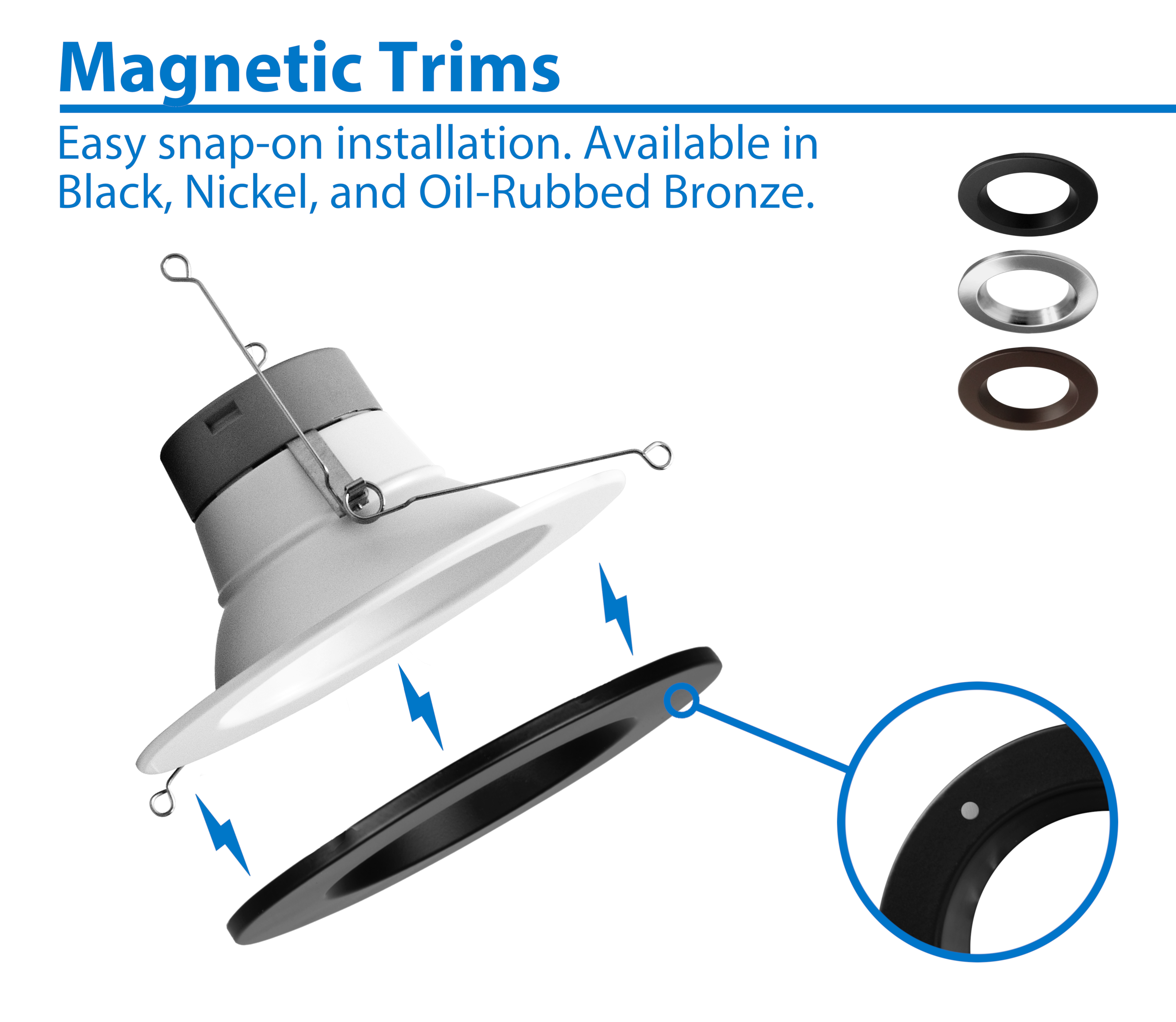

- Available magnetic accessory trim covers in Black, Oil-Rubbed Bronze and Nickel
Optical System
- Single CCT LED used for 3000K standard model

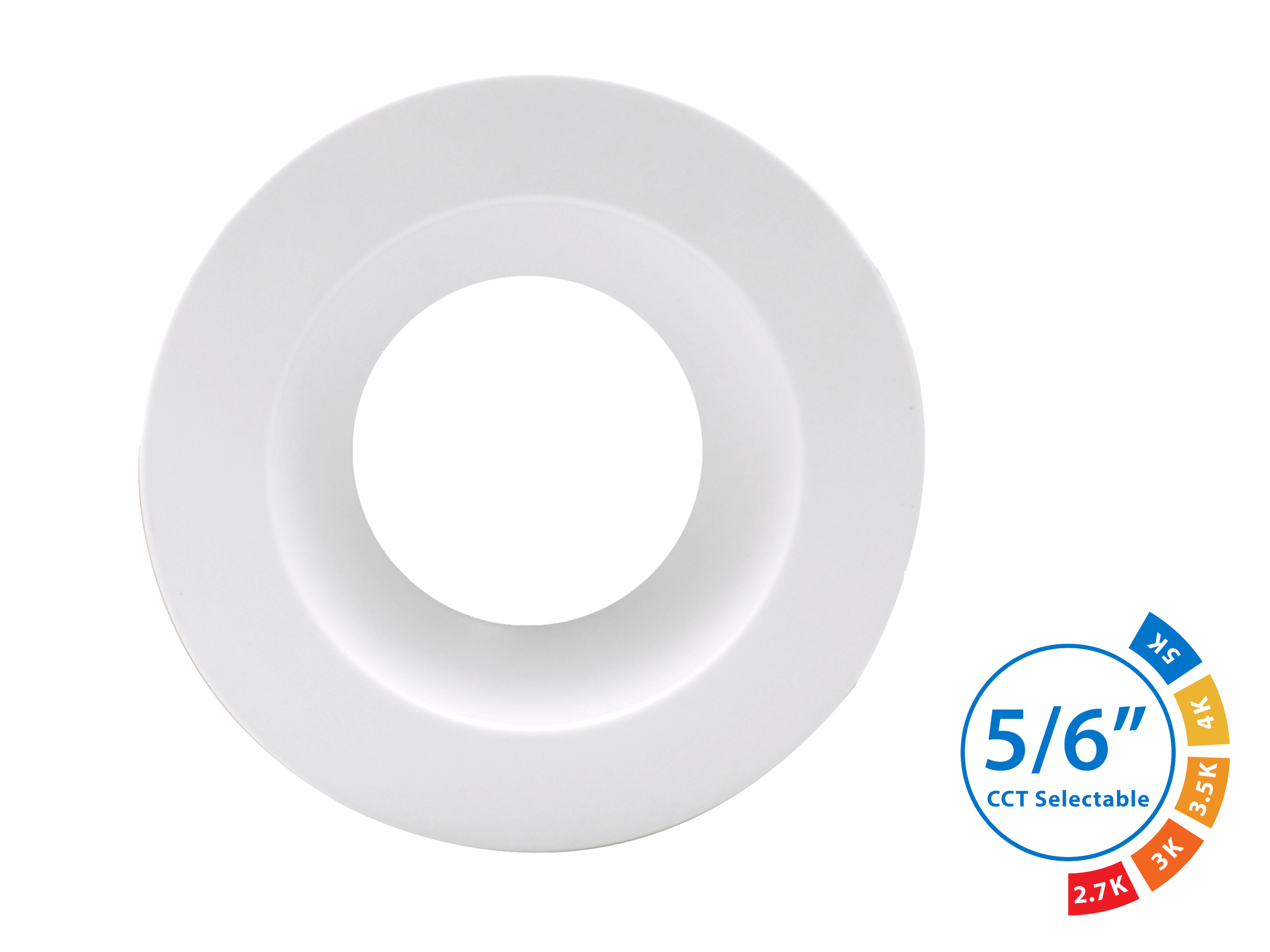

- Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K

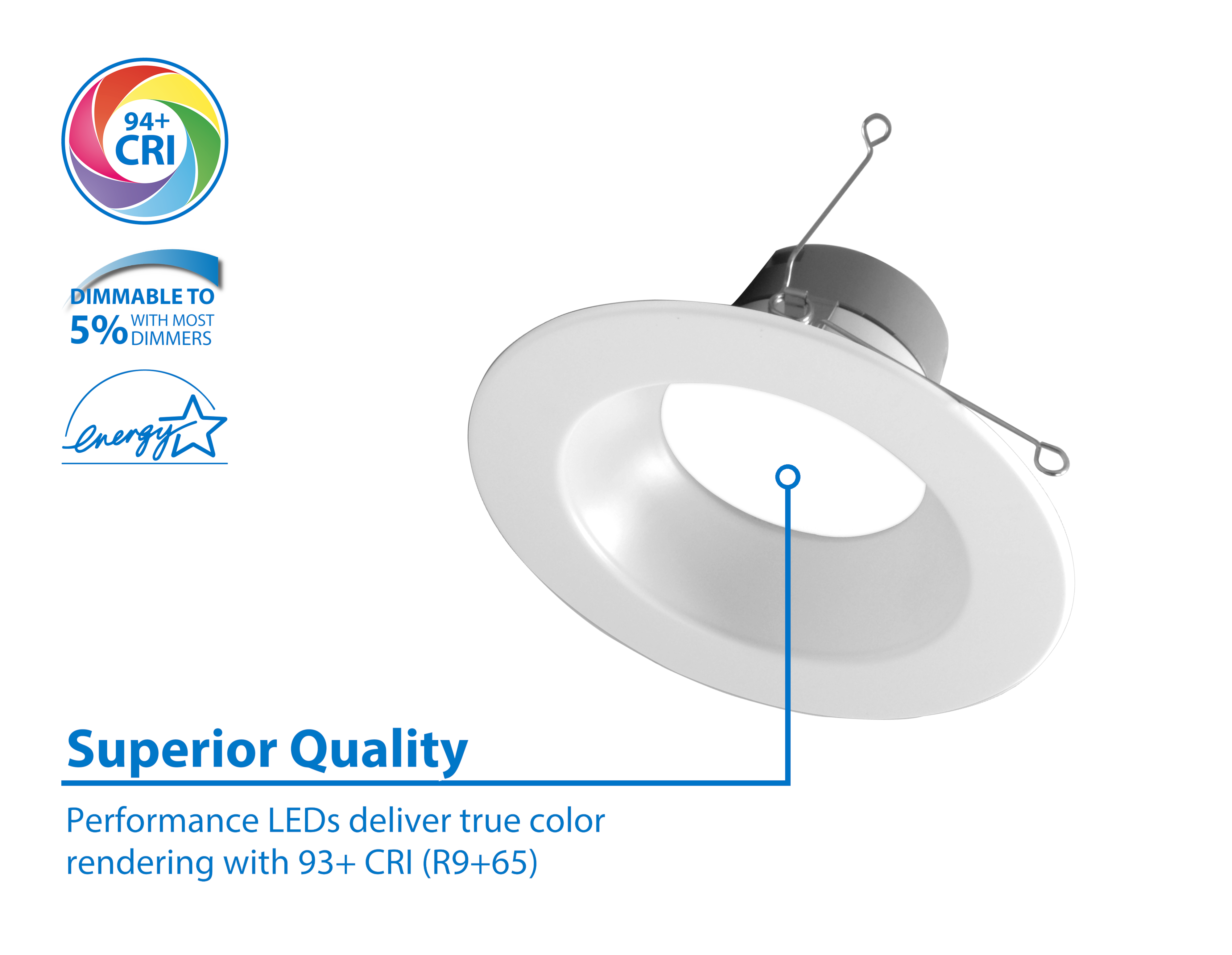

- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
- Polystyrene diffuser creates uniform distribution without sacrificing lumen output
Electrical
- Input voltage of 120VAC
- Dimmable to 5% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
Installations
- Compatible with patented DLR frame
- Compatible with most 4” or 5” & 6” recessed housings
- Quick and easy installation with an IDEAL luminaire connector and torsion spring or friction fit mounting system

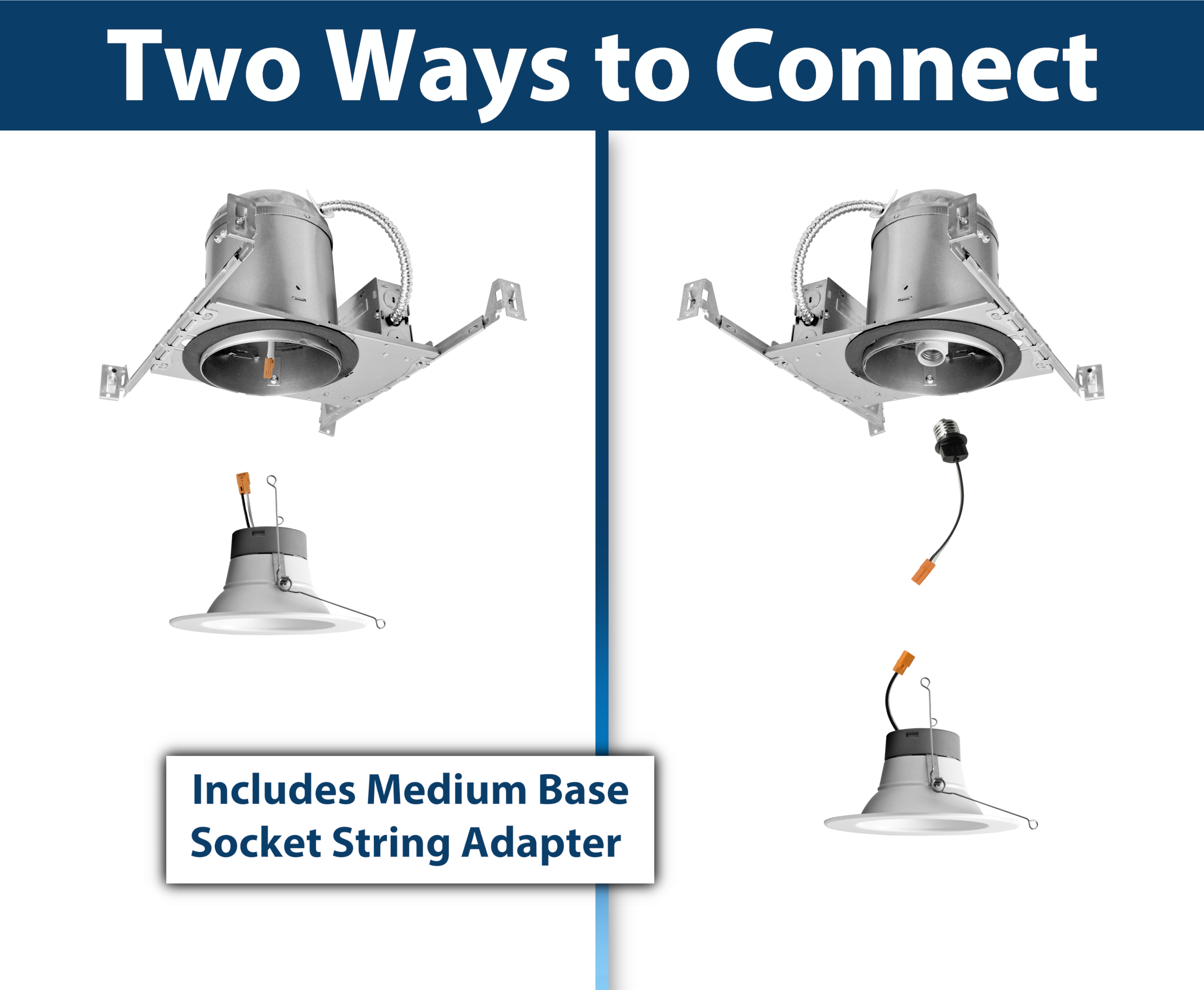

- Ships with Edison base socket string (GU24 socket string available)
Full Listings
- LM-79, LM-80 testing performed in accordance with IESNA standards
- Trade Agreements Act Compliant
- cETLus 1598 Classified for wet locations
- ENERGYSTAR listed
- CA Title 20 Compliant
- CA Title 24 Compliant
- Airtight when used with DLRv5 frame
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- ICES-005 Compliant
- LED lumen maintenance: L70(9k)>54,000 hrs for DLR4607 and DLR56609
- LED lumen maintenance: L70(12k)>72,000 hrs for DLR5612
Warranty
- 5-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge)
- For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
