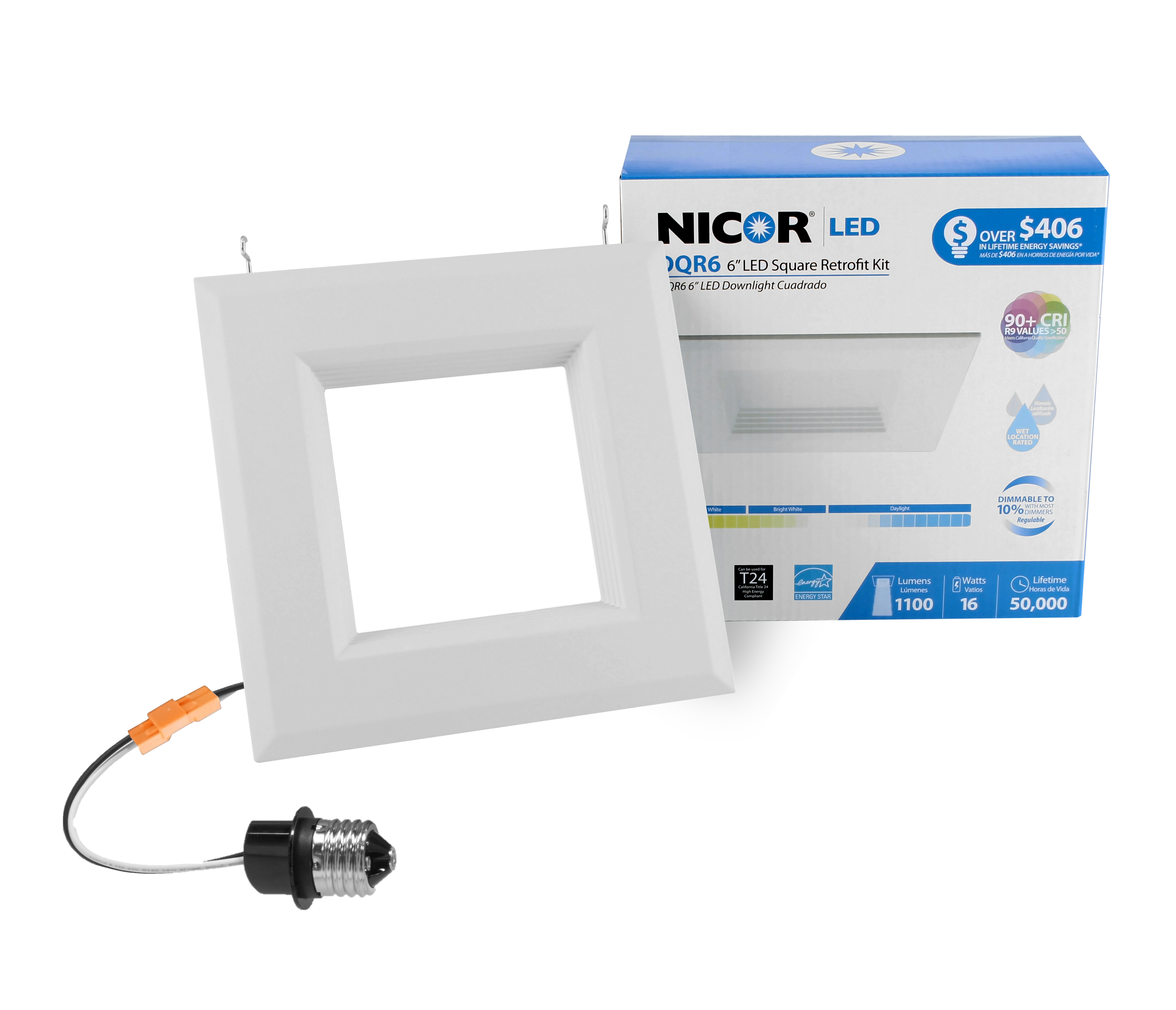

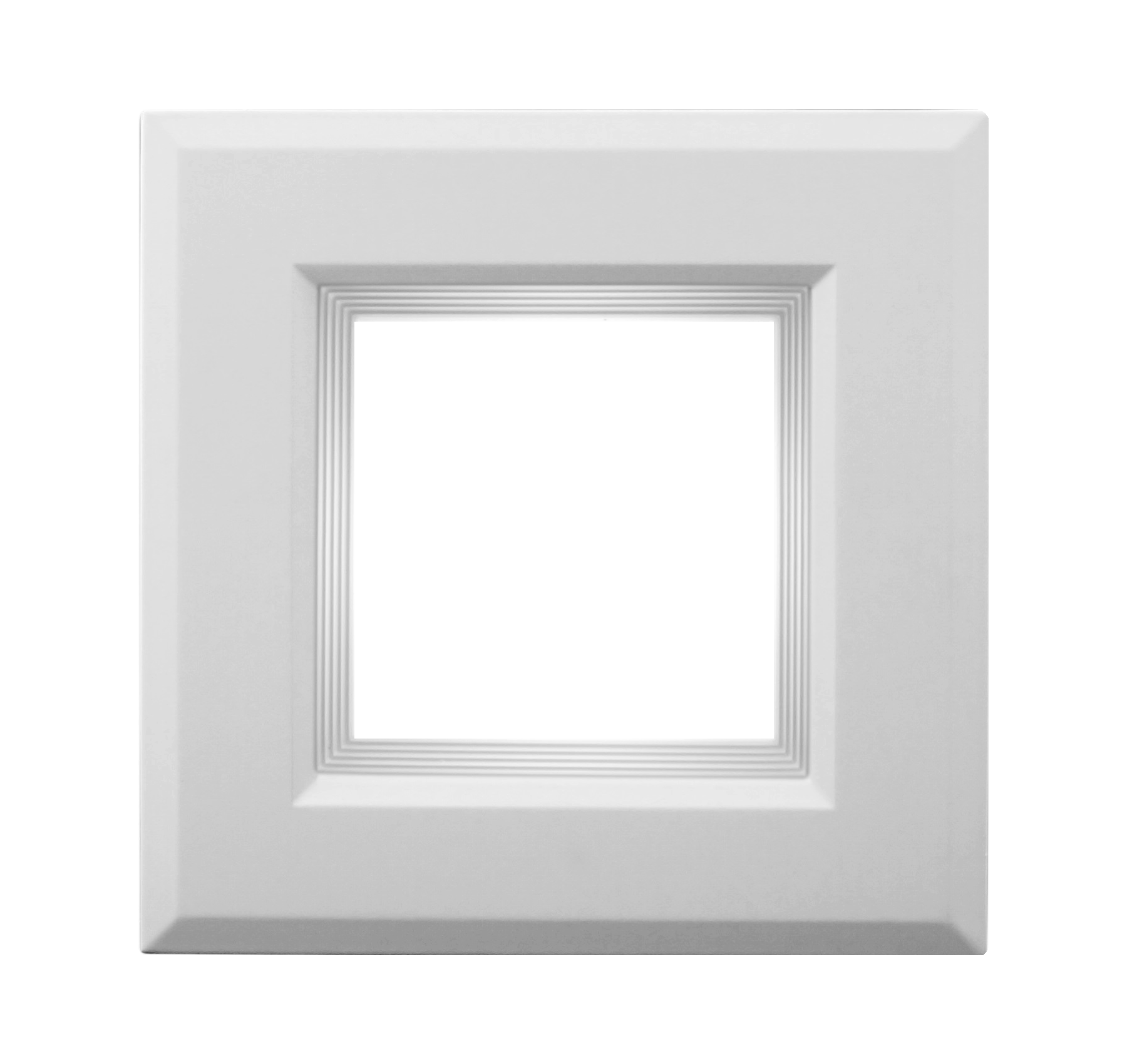

DQR Series 6-inch White Square Recessed LED Downlight in 3000K
Part of the D-Series, the DQR6 takes everything you love about NICOR’s recessed downlighting family with the added design aesthetic of a square trim. Compatible with most 6” recessed housings, this luminaire delivers incredible color accuracy with 90+ CRI and flexible dimming capabilities. Designed …
Part of the D-Series, the DQR6 takes everything you love about NICOR’s recessed downlighting family with the added design aesthetic of a square trim. Compatible with most 6” recessed housings, this luminaire delivers incredible color accuracy with 90+ CRI and flexible dimming capabilities. Designed to boost energy efficiency, the LED light engine draws only 14.5 watts while achieving a light output to over 1200 lumens. The DQR6 is an ideal commercial, retail, institutional or residential downlight choice for retrofit or new construction. From LED color rendering and trim finishes to fixture performance, the design style blends nicely with other fixtures in this design series.
- Produces over 1200 lumens using only 14.5 watts (>90 CRI)

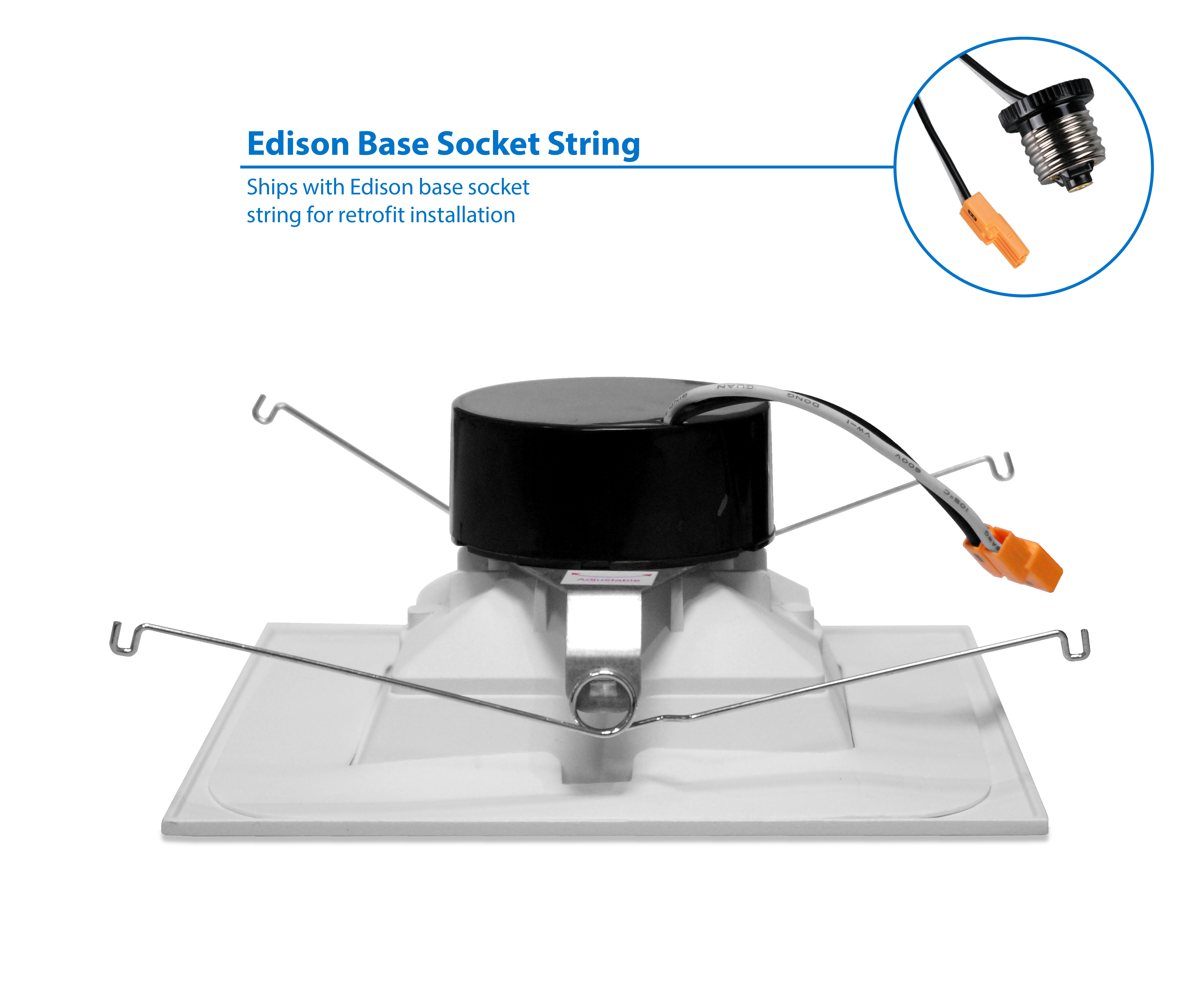

- Includes quick-connect adapter and Edison socket string adapter (GU24 optional)
- Compatible with most 6” recessed housings

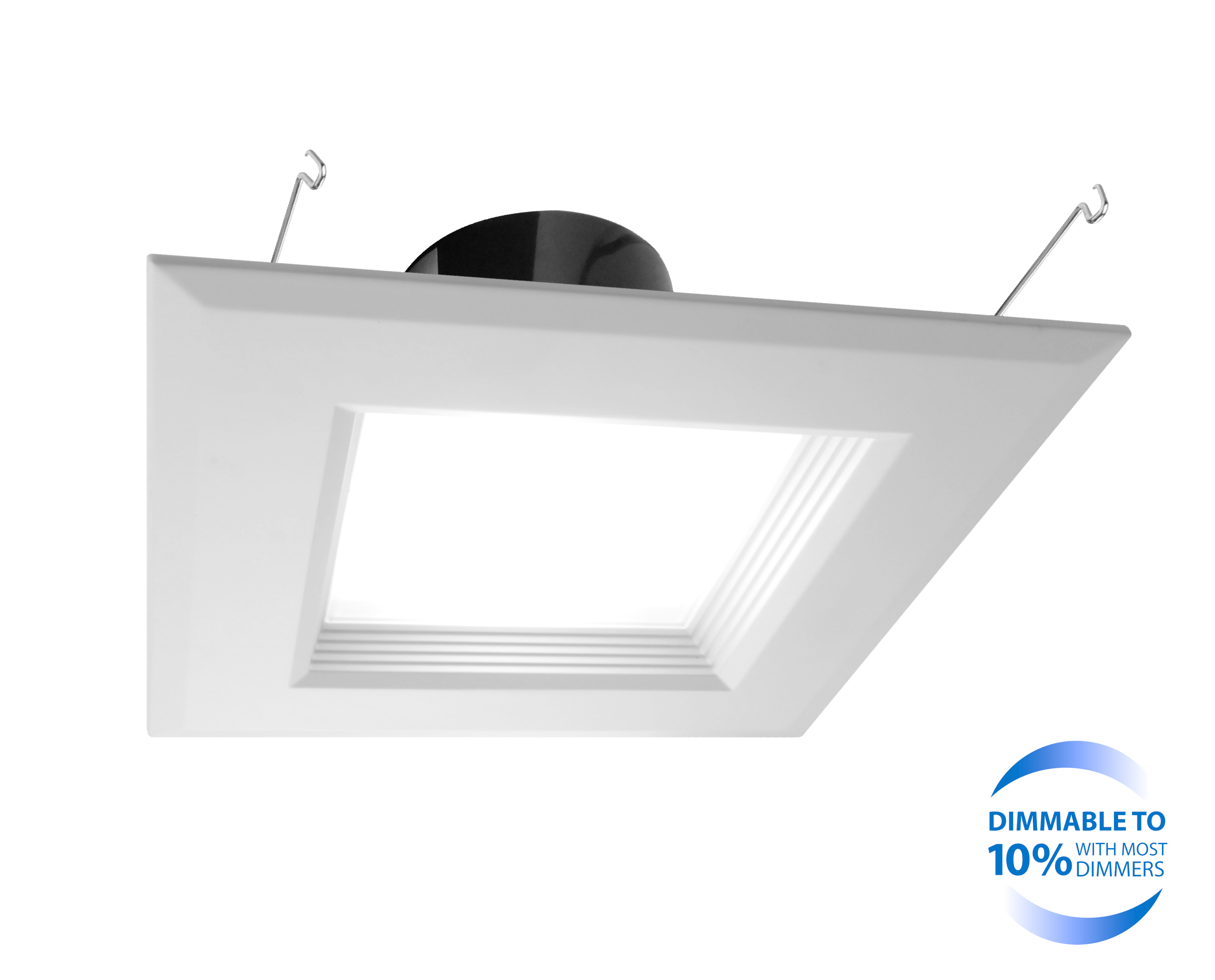

- Dimmable to 10% with most standard TRIAC dimmers
- Available in black or white finishes
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens1050
-
Wattage15.6
Listings & certifications
- cULus Listed
- Title 24
- JA8
- CEC Compliant

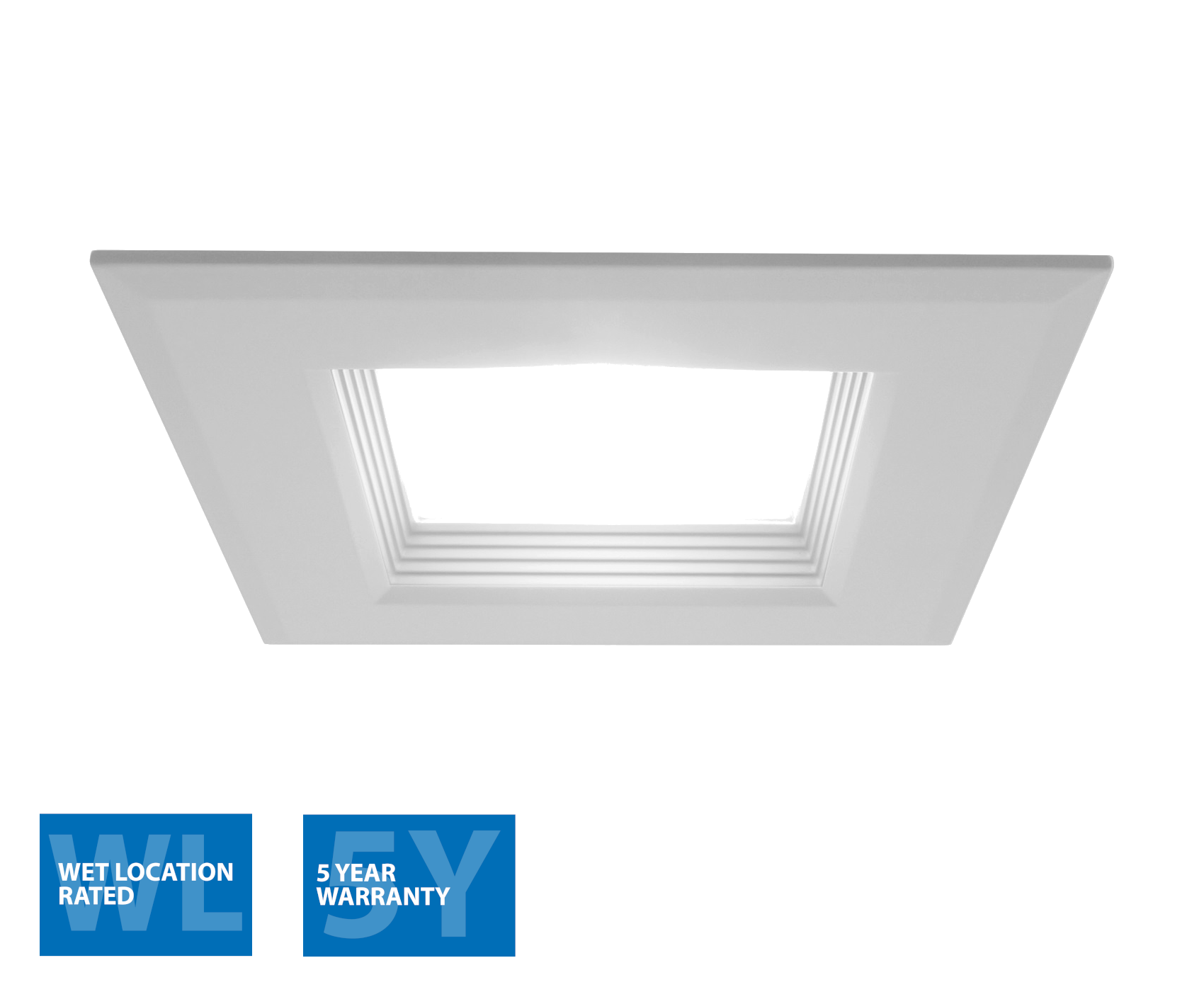

- Wet-Location
Features
Construction
- Die cast aluminum trim routes heat away from electrical components
- Low profile, integrated driver, allows for use in shallow housings
- Exterior powder coat finish, with interior high reflective finish
- Also available in Black, Oil-Rubbed Bronze and Nickel
Optical System
- Polystyrene diffuser and reflector cone create a uniform light distribution that reduces glare without sacrificing lumen output
Electrical
- Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10% with most standard triac dimmers
- Thermally protected, high efficiency driver standard
- Operating temperature rating of 0°F to 120°F (-18°C – 49°C)
- Input voltage of 120V
- L70 rated for greater than 50,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards
Installations
- Compatible with most 6” recessed housings

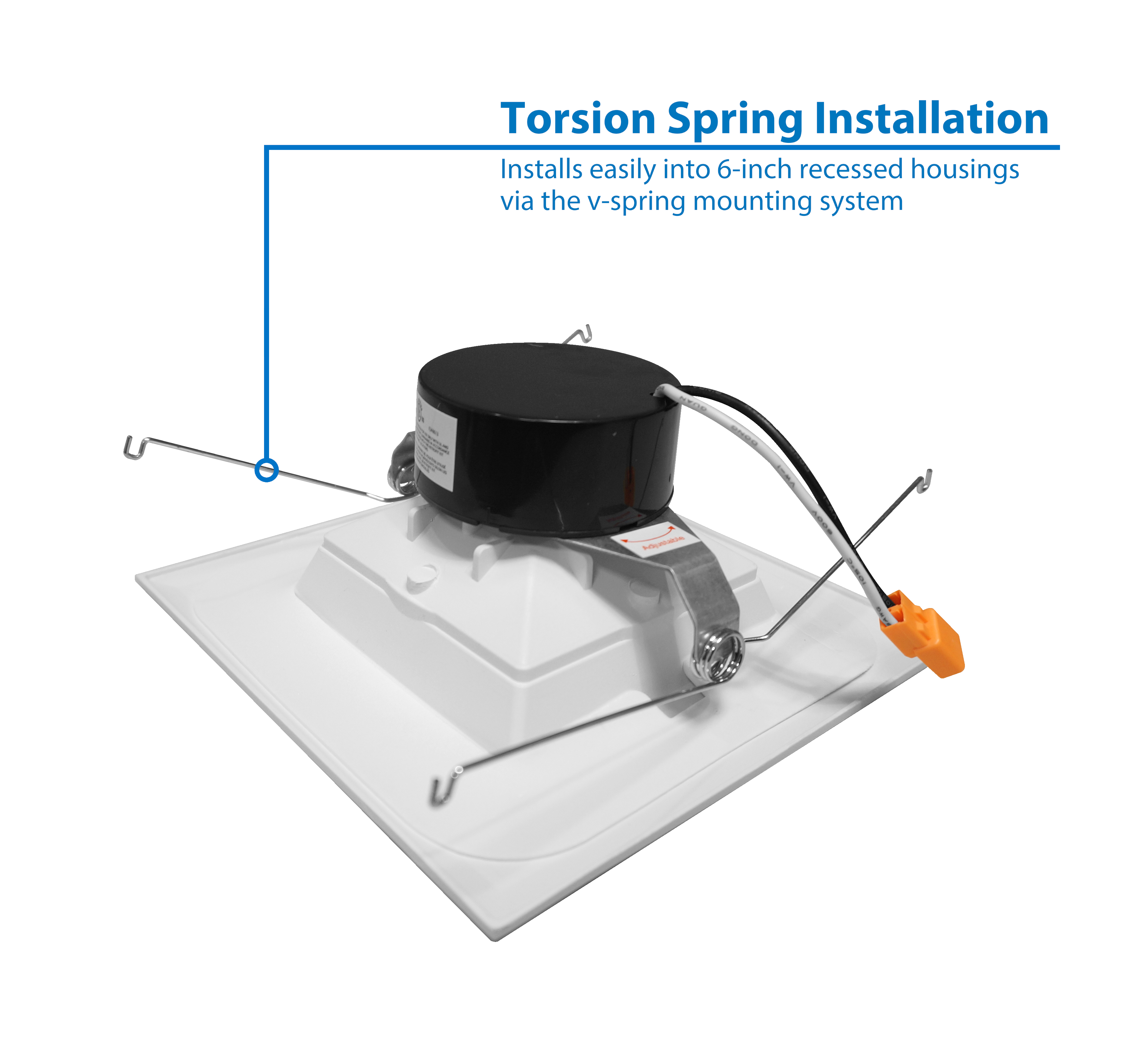

- Quick and easy installation with a screw-in Edison base (GU24 socket string available) and torsion spring mounting system
Warranty
- 5-year limited system warranty standard
