SELECTABLE LED WALLPACK

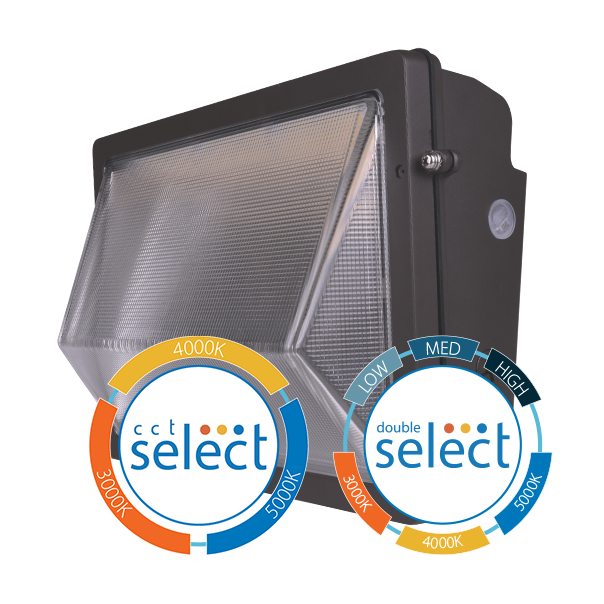

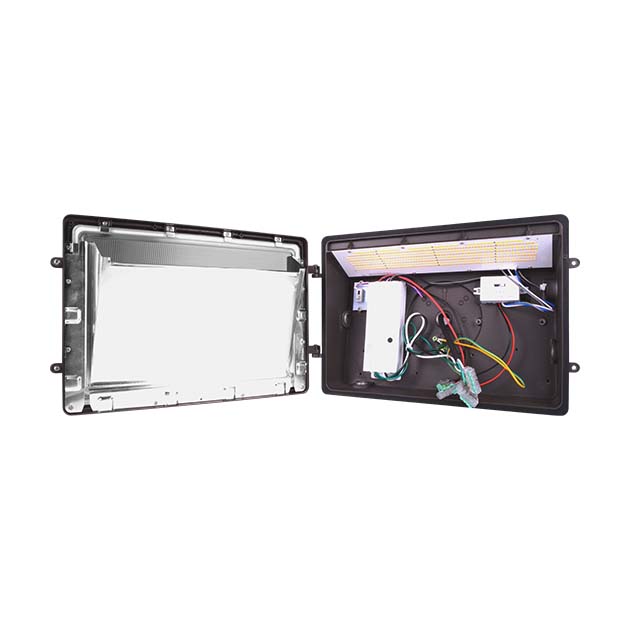

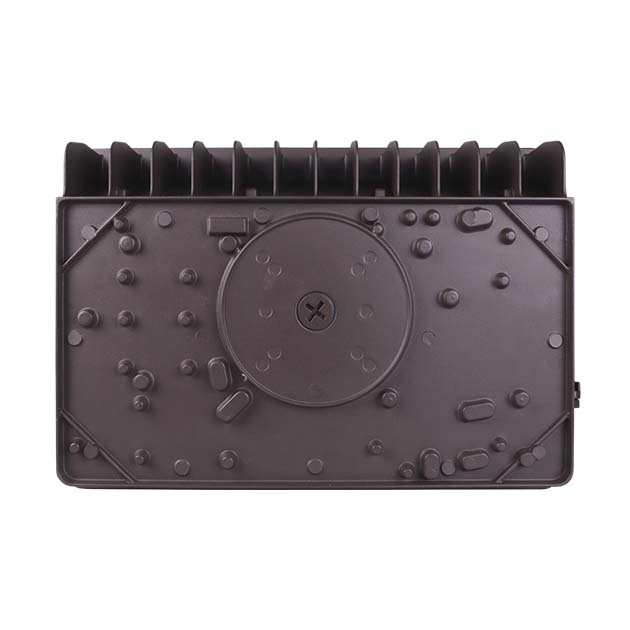

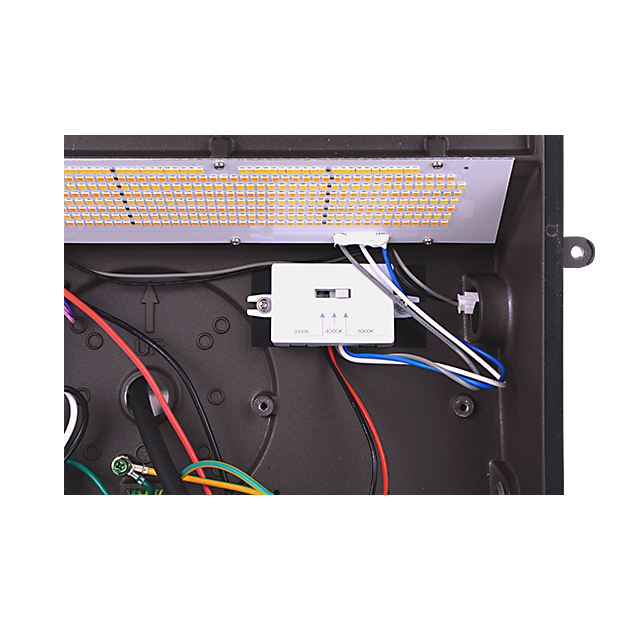

The OWG4 LED Wall Pack represents a modernized version of the traditional wall pack design, featuring selectable CCT (correlated color temperature) and an optional adjustable lumens (wattage) setting. With an impressive output of up to 135 lumens per watt, the OWG4 provides powerful and evenly distributed light. Its installation is hassle-free, allowing attachment to walls or direct mounting on a J-Box using its separable hinged backplate. Internal switches enable users to customize the CCT within the range of 3000/4000/5000K and an option to adjust the wattage or the lumen output to high, medium, or low settings. Equipped with three knockouts for through-wiring or sensor additions, the OWG4 is an excellent choice for security and perimeter lighting. It comes standard with an integral photocell, which can be enabled as needed.



Specifications

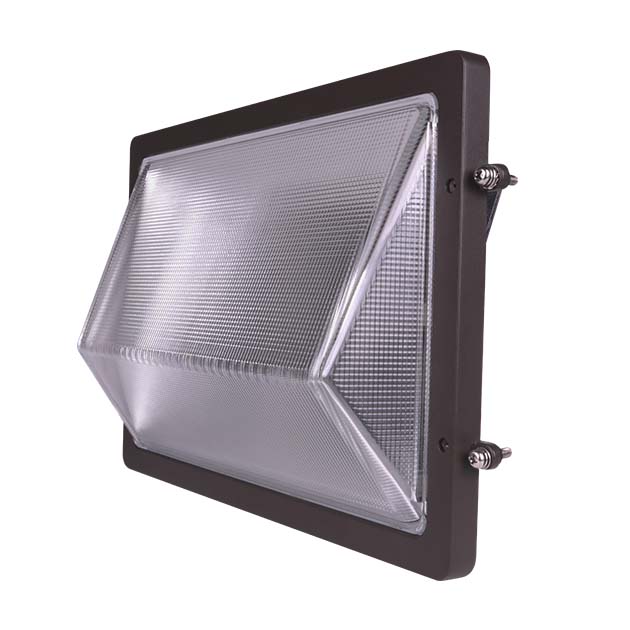

  • Tempered clear prismatic acrylic maximizes lumen output
  • LED array mounting reduces glare for optimum distribution
  • Selectable models use a dual emitter array that enables CCT selection of 3000/4000/5000K
  • >80 CRI to improve safety and color definition in public places
  • Thermally-protected, high-efficiency driver
  • Input voltage of 120-277VAC
  • Power Factor = >0.9
  • THD = ≤20%
  • 0-10V dimming

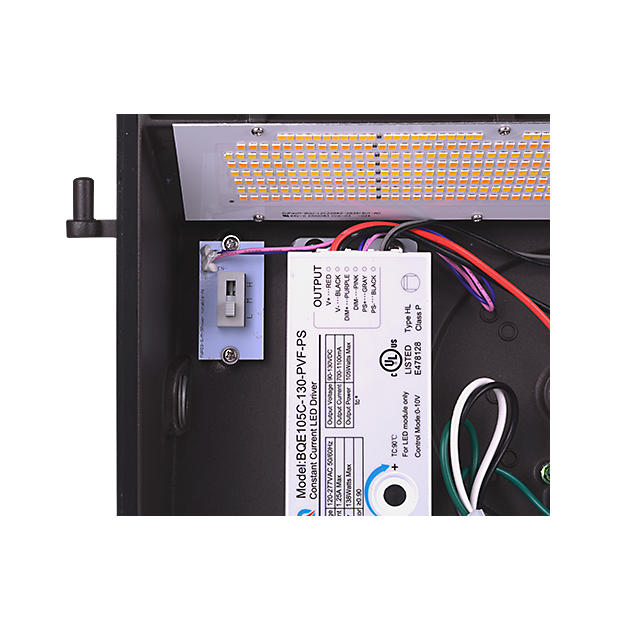

  • Optional Selectable Wattage (100/80/60W)
  • Operating temperature rating of -40F° to 122°F (-40°C to 50°C)
  • Emergency Option at operating temperature of (0°C to 45°C)
  • 4kV surge protection standard

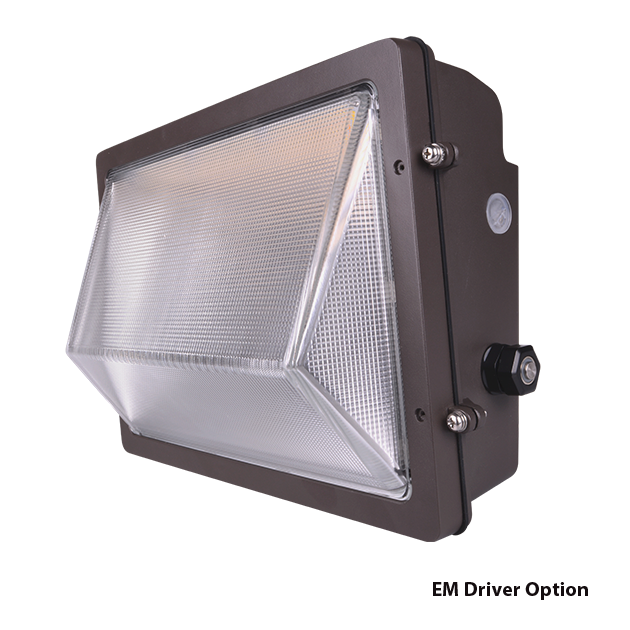

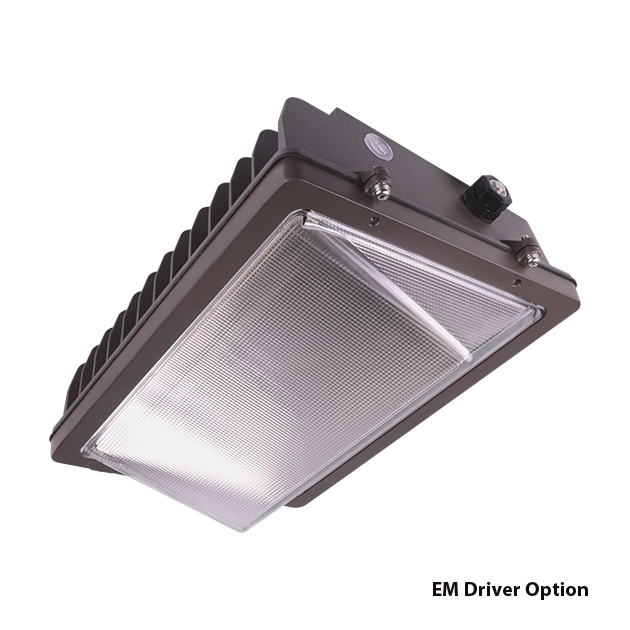

  • Optional internal emergency back-up
60 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

7813
Lumens

7888
Lumens

6350
Lumens

60
Input Watts

60
Input Watts

60
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

IES Download

IES Download

IES Download

Part Number:

 Select:OWG4100SUNVS
80 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

10,417
Lumens

10,517
Lumens

10,584
Lumens

80
Input Watts

80
Input Watts

80
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

IES Download

IES Download

IES Download

Part Number:

 Select:OWG4100SUNVS
100 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

13,021
Lumens

13,146
Lumens

13,231
Lumens

100
Input Watts

100
Input Watts

100
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

IES Download

IES Download

IES Download

Part Number:

 Select:OWG4100SUNVS
100 Watt Only
3000K
Warm White
4000K
Neutral
5000K
Cool

13,021
Lumens

13,146
Lumens

13,231
Lumens

100
Input Watts

100
Input Watts

100
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:OWG4100UNVS
60 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

7813
Lumens

7888
Lumens

6350
Lumens

60
Input Watts

60
Input Watts

60
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

IES Download

IES Download

IES Download

Part Number:

 Select:OWG4100SUNVS

80 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

10,417
Lumens

10,517
Lumens

10,584
Lumens

80
Input Watts

80
Input Watts

80
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

IES Download

IES Download

IES Download

Part Number:

 Select:OWG4100SUNVS

100 Watt - Select
3000K
Warm White
4000K
Neutral
5000K
Cool

13,021
Lumens

13,146
Lumens

13,231
Lumens

100
Input Watts

100
Input Watts

100
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

IES Download

IES Download

IES Download

Part Number:

 Select:OWG4100SUNVS

100 Watt Only
3000K
Warm White
4000K
Neutral
5000K
Cool

13,021
Lumens

13,146
Lumens

13,231
Lumens

100
Input Watts

100
Input Watts

100
Input Watts

133
lm/W

134
lm/W

135
lm/W

82
CRI

82
CRI

82
CRI

Part Number:

 Select:OWG4100UNVS
