CDG – Modular LED Downlight

4” AND 6” MODULAR LED DOWNLIGHT

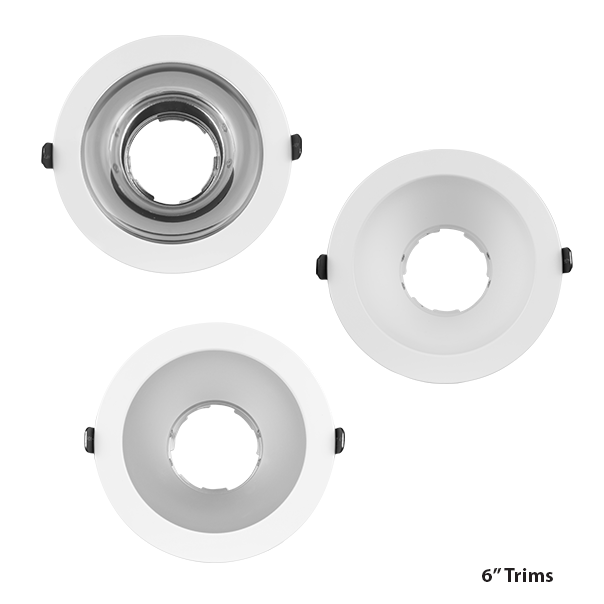

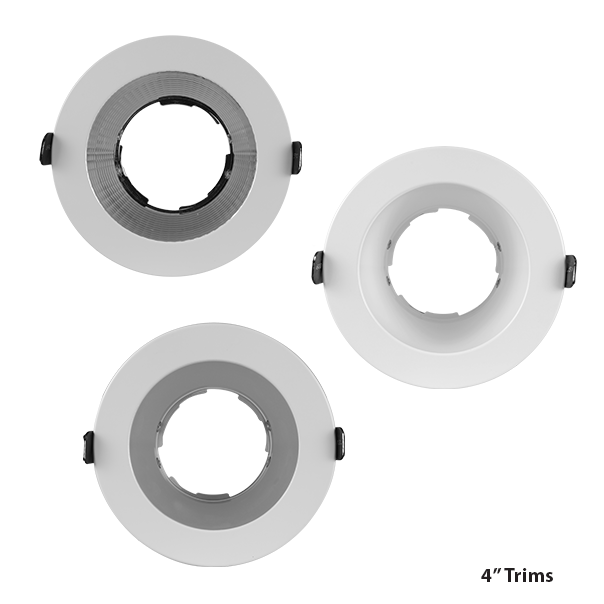

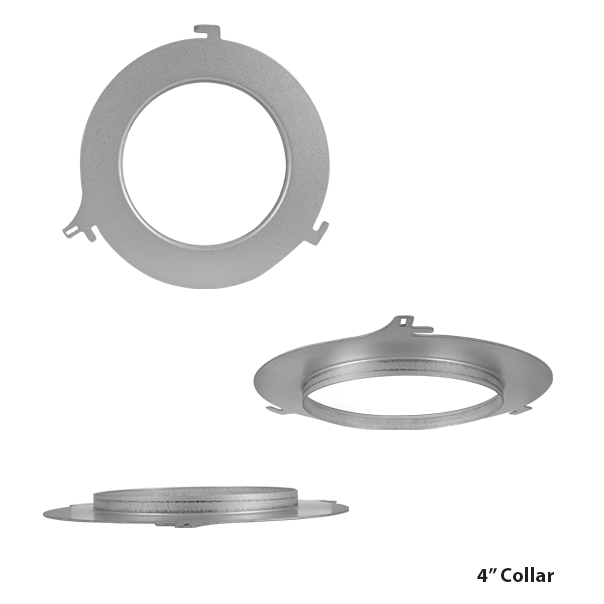

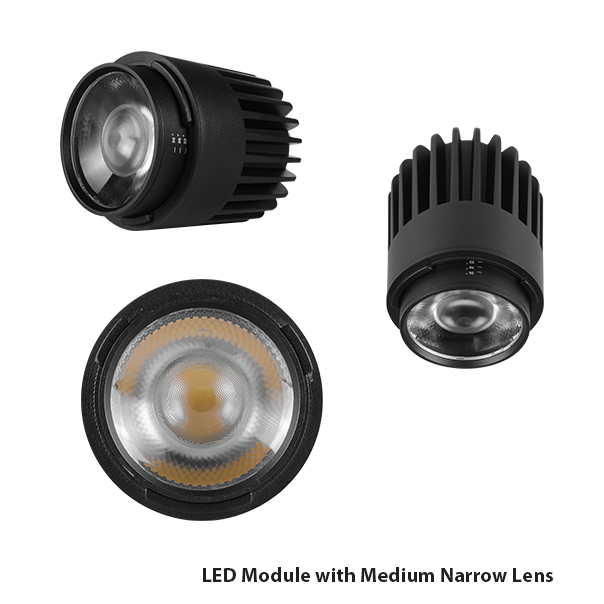

Introducing the CDG LED Commercial Downlight System, a versatile lighting solution that combines modular design features with Selectable wattage/color temperature and wireless control technology. The galvanized steel frame features field-swappable mounting collars for both 4” and 6” trim reflectors available in multiple finishes. For retrofit applications, ditch the frame entirely and mount the trim directly via pre-installed retention clips. The remote junction box/driver is equipped with a hinged door for through-wiring and optional clips for effortless frame attachment. Standard field-adjustable optics produce a range of 36° to 60°, while the optional narrow optic spans 22° to 36° for a more focused light distribution. A wall wash lens can be added to either optic for refined directional lighting. The CDG operates at 120-277V with 0-10V dimming and a 12V accessory wire for Bluetooth control via the NICOR NLC app. Add 4W or 8W emergency backup for added safety and security. NICOR’s CDG System sets a new standard in commercial lighting, defining versatility, convenience, and innovation.
