MULTI-DIAMETER MOUNTING FRAME

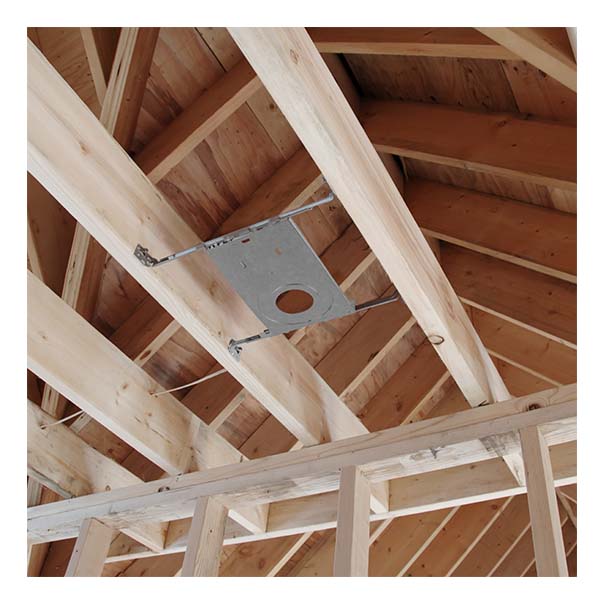

The Multiframe can be used with many of NICOR’s 3”, 4” and 6” LED downlights with remote drivers. Providing a mounting location as well as a wiring location indicator, the Multiframe can simplify the installation of downlights that don’t require a housing.

Categories: Tag:

Specifications

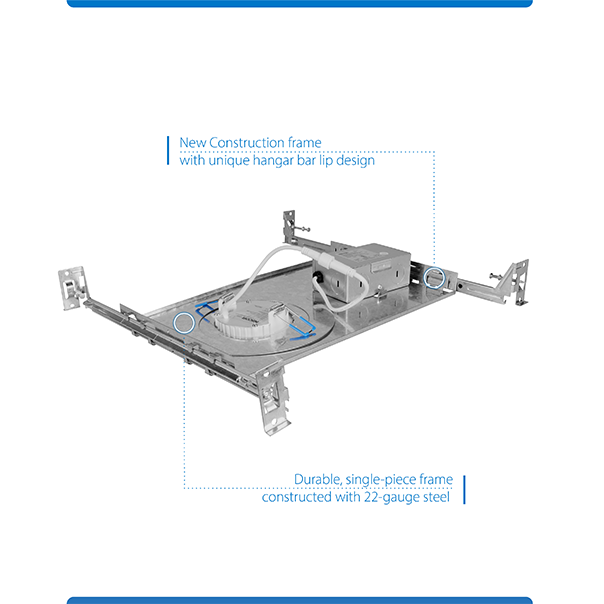

  • Single piece stamped 22ga steel frame
  • Integrated hanger bar attachment features
  • Two fully adjustable, pre-scored hangar bars (13¾” - 25½”) with captive nails included on frame
  • Bars can be locked into place after adjustment with preinstalled set screw
  • Unique hanger bar lip design helps align frame to bottom of joist and T-Bar notch allow for installation into suspended ceilings



Part Number:

MULTIFRAME-346-1

Downloads

– Downlight Brochure
– Spec Sheet
– Installation Instructions
