LED HIGH-PERFORMANCE HIGH BAY

Introducing NICOR’s latest breakthrough in lighting innovation: the HML3 high bay product line. Unveiling a revolutionary design, this patent-pending marvel combines unrivaled efficiency and peak performance. Experience brilliance beyond measure as its compact form yields an extraordinary light output. DLC 5.1 Premium certification attests to its excellence, offering adjustable wattage, CCT (3500K/4000K/5000K/5700K), and sensors. Crafted from single-piece, robust cast aluminum, its durability withstands even the harshest conditions, rendering it ideal for warehouses, gymnasiums, and assorted industrial or commercial settings. With an integrated cooling system and a top-mounted wire-way cover for effortless wire access, the HML3 emerges as the embodiment of streamlined functionality. A polyester powder coat finish crowns its aesthetic, culminating in a luminary masterpiece that seamlessly merges innovation and endurance.

*

* DLC Premium on A Optic only



Order Request

Category: Tags:

Specifications

  • Standard diffused lens
  • Selectable CCTs of 3500K, 4000K, 5000K, 5700K with >80 CRI
  • Selectable power levels: (150/120/100W) (320/270/220W)
  • Operating temperature rating of -22ºF to 131ºF (-30ºC to 55ºC)
  • Input voltage of 120-277V, 277-480V input option available
  • Dimming: 0-10V standard
  • Pre-installed 3.5mm sensor socket

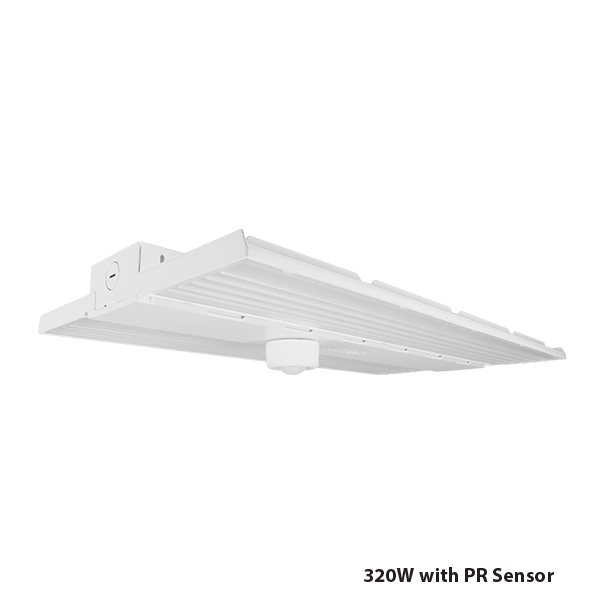

  • Field installable multifunction MW or PIR sensor available
  • Standard full-range dimming with compatible 0-10VDC dimmers
  • 12VDC output provides power to off-board sensors or controls

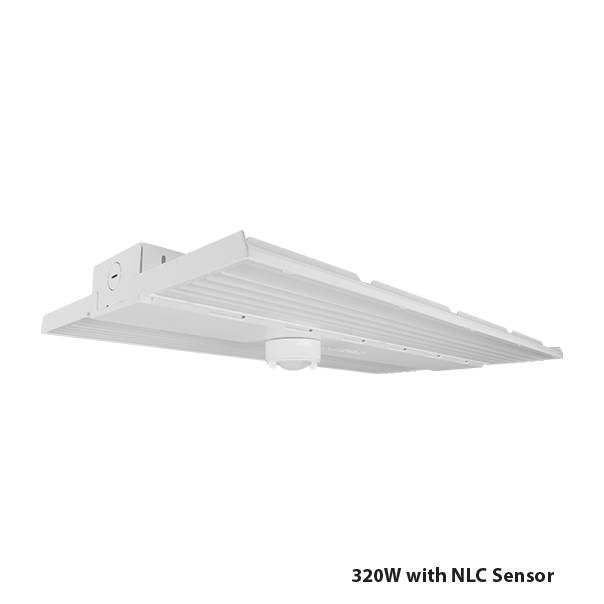

    NLC (Network Lighting Controls)

    • Bluetooth Low Energy (BLE) mesh network providing Luminaire Level Lighting Control
    • Field installable BLE PIR/Daylight sensor (NLCIND3.5) available
    • Configurable with the NICOR NLC app available on iOS and Android devices
    • Provides full dimming control with occupancy and daylight harvesting functions

Downloads

– Sell Sheet
– Compatibility Sheet

– Spec Sheet
– Installation Instructions

– ies Files
– BIM File

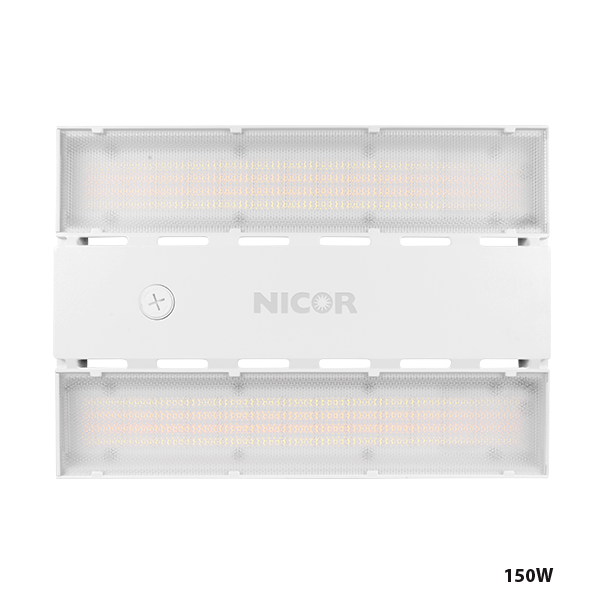

HML3 - 150W Standard Distribution
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

13,856/16,627/20,784
Lumens

 14,386/17,263/21,579
Lumens

 14,179/17,015/21,269
Lumens

 13,956/16,747/20,934
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

139
lm/W

144
lm/W

142
lm/W

140
lm/W

84
CRI

84
CRI

84
CRI

84
CRI

Part Number:

 All:HML3150SUSAS8
HML3 - 320W Standard Distribution
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

31,145/38,224/45,302
Lumens

 32,130/39,432/46,734
Lumens

 31,824/39,056/46,289
Lumens

 32,160/39,469/46,778
Lumens

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

142/142/144
lm/W

146/146/148
lm/W

145/145/147
lm/W

146/146/149
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 All:HML3320SUSAS8
HML3 - 320W Standard Distribution (277-480V)
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

31,526/38,691/45,856
Lumens

 32,462/39,839/47,217
Lumens

 32,040/39,322/46,604
Lumens

 32,255/39,586/46,917
Lumens

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

143/143/146
lm/W

148/148/150
lm/W

146/146/148
lm/W

147/147/149
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 All:HML3320SHSAS8

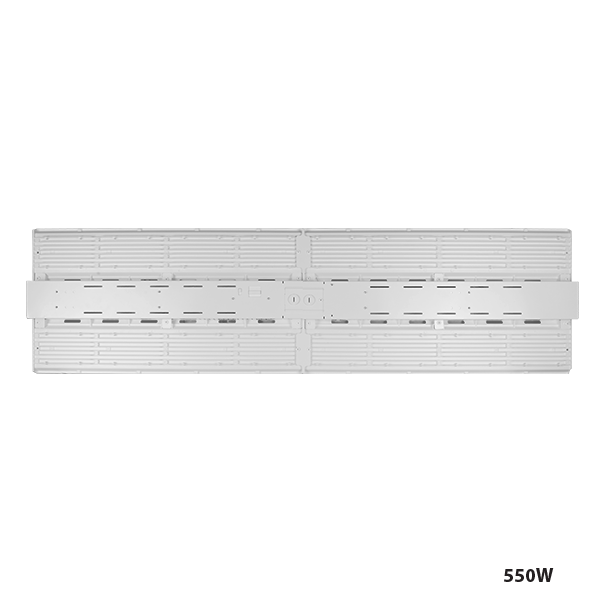

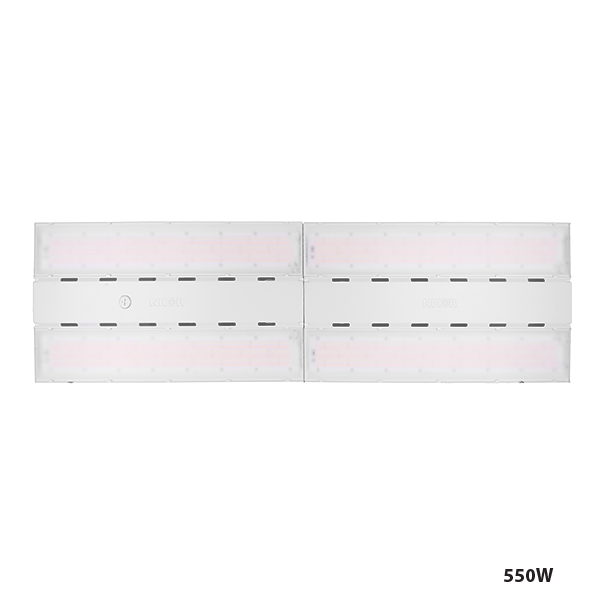

HML3 - 550W Standard Distribution
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

68,160/73,840/79,200
Lumens

 70,080/75,920/81,400
Lumens

 69,600/75,400/80,850
Lumens

 70,080/75,920/81,950
Lumens

480/520/550
Input Watts

480/520/550
Input Watts

480/520/550
Input Watts

480/520/550
Input Watts

142/142/144
lm/W

146/146/148
lm/W

145/145/147
lm/W

146/146/149
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 All:HML3550SUSAS8
HML3 - 150W Standard Distribution
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

13,856/16,627/20,784
Lumens

 14,386/17,263/21,579
Lumens

 14,179/17,015/21,269
Lumens

 13,956/16,747/20,934
Lumens

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

100/120/150
Input Watts

139
lm/W

144
lm/W

142
lm/W

140
lm/W

84
CRI

84
CRI

84
CRI

84
CRI

Part Number:

 Select:HML3150SUSAS8

HML3 - 320W Standard Distribution
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

31,145/38,224/45,302
Lumens

32,130/39,432/46,734
Lumens

31,824/39,056/46,289
Lumens

32,160/39,469/46,778
Lumens

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

142/142/144
lm/W

146/146/148
lm/W

145/145/147
lm/W

146/146/149
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 Select:HML3320SUSAS8

HML3 - 320W Standard Distribution (277-480V)
3500K
Warm Neutral		4000K
Neutral		5000K
Cool		5700K
Cool Blue

31,526/38,691/45,856
Lumens

32,462/39,839/47,217
Lumens

32,040/39,322/46,604
Lumens

32,255/39,586/46,917
Lumens

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

220/270/315
Input Watts

143/143/146
lm/W

148/148/150
lm/W

146/146/148
lm/W

147/147/149
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:

 Select:HML3320SHSAS8

HML3 - 550W Standard Distribution
3500K
Warm Neutral		 4000K
Neutral		 5000K
Cool		 5700K
Cool Blue

68,160/73,840/79,200
Lumens

 70,080/75,920/81,400
Lumens

 69,600/75,400/80,850
Lumens

70,080/75,920/81,950
Lumens

480/520/550
Input Watts

480/520/550
Input Watts

480/520/550
Input Watts

480/520/550
Input Watts

142/142/144
lm/W

146/146/148
lm/W

145/145/147
lm/W

146/146/149
lm/W

83
CRI

83
CRI

83
CRI

83
CRI

Part Number:
Select: HML3550SUSAS8
