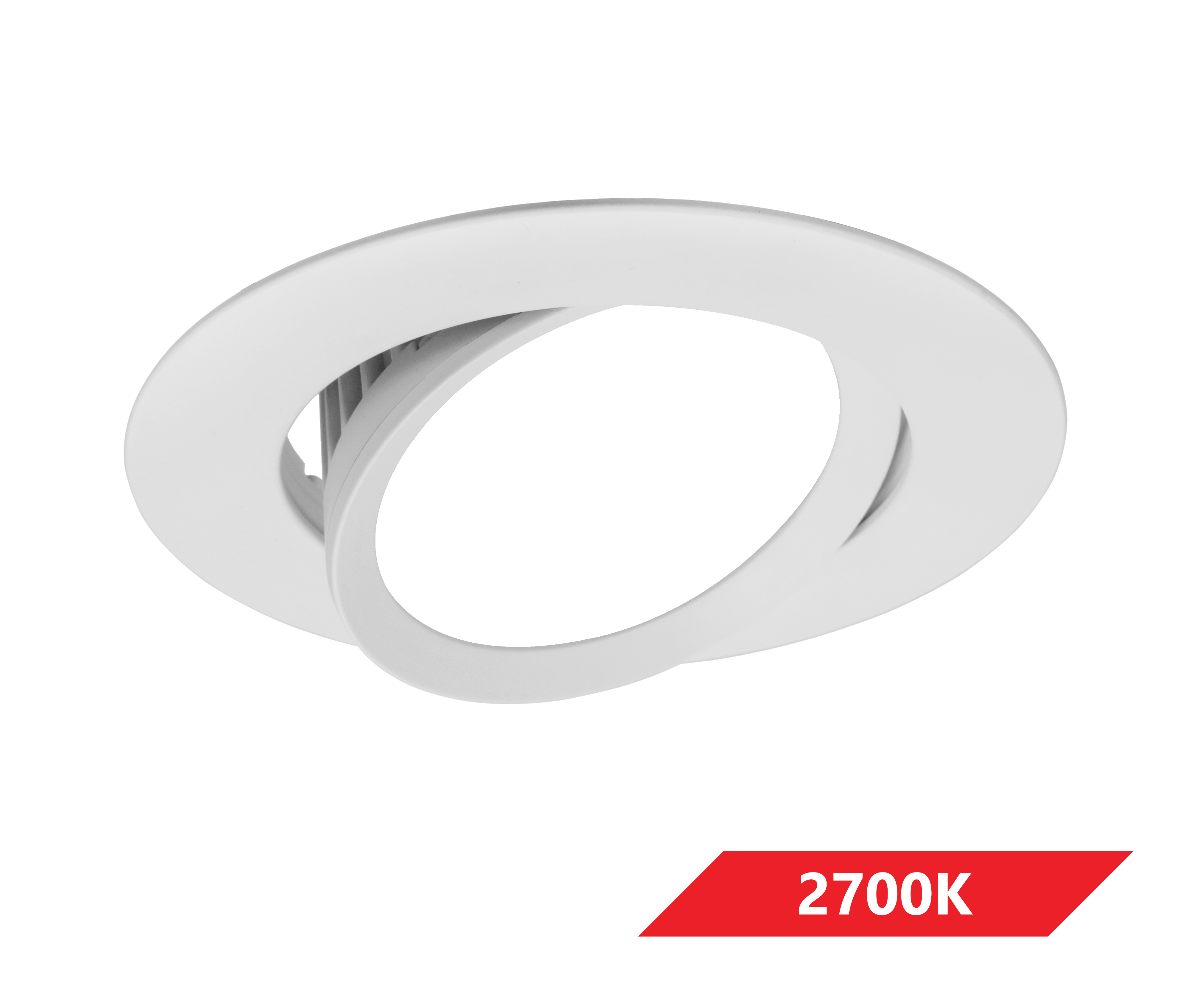

DCG Series 4 in. White Gimbal LED Recessed Downlight, 2700K
The DCG LED Downlight Gimbal Series provides an economical, easy-to-install upgrade from incandescent lighting to a long-lasting and energy-efficient LED solution. Its easy to use twist-and-turn design allows for fine adjustment of the gimbal position. The 354 degrees of rotation and 35 degrees of a…
The DCG LED Downlight Gimbal Series provides an economical, easy-to-install upgrade from incandescent lighting to a long-lasting and energy-efficient LED solution. Its easy to use twist-and-turn design allows for fine adjustment of the gimbal position. The 354 degrees of rotation and 35 degrees of adjustable tilt makes the DCG suitable for sloped ceilings and wall wash. The sleek design enhances any interior space with its flush mounting and aesthetic appeal.
- Adjustable gimbal (354° rotation, 35° tilt) for directional lighting
- Compatible with most 4” recessed housings (IC-rated supported)
- Energy-efficient LED with dimming capability to <5%
- Durable aluminum construction with uniform light output
- Easy installation with Edison base and friction clip mounting
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan56000 -
Lumens534
-
Wattage7.5
Listings & certifications
- cETLus Intertek Classified
- Title 24
- JA8
- FCC Class B
- Damp-Location
- Testing performed in accordance with IESNA standards
Features
Construction
- Durable polymer flange
- Die cast aluminum heat sink
- Spring-steel, friction fit mounting arms
- Matte white powder coat finish
Optical System
- Polystyrene diffuser creates uniform light distribution with reduced glare
- Internal reflector cone maximizes lumen output
Electrical
- Input voltage of 120VAC
- Dimmable to less than 5% with recommended TRIAC dimmers
- Operating temperature of 0° to 104°F (-18°C to 40°C)
- TM-21 Reported L70(6K) hours = 56,000
- LM-79, LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Installations
- Compatible with most 4” recessed housings
- Quick and easy installation with a screw-in Edison base (GU24 socket string available) and friction clip mounting system
- Suitable for IC rated housings
Full Listings
- ETL Intertek Classified
- Title 24
- JA8
- Damp-Location
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge.) For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
