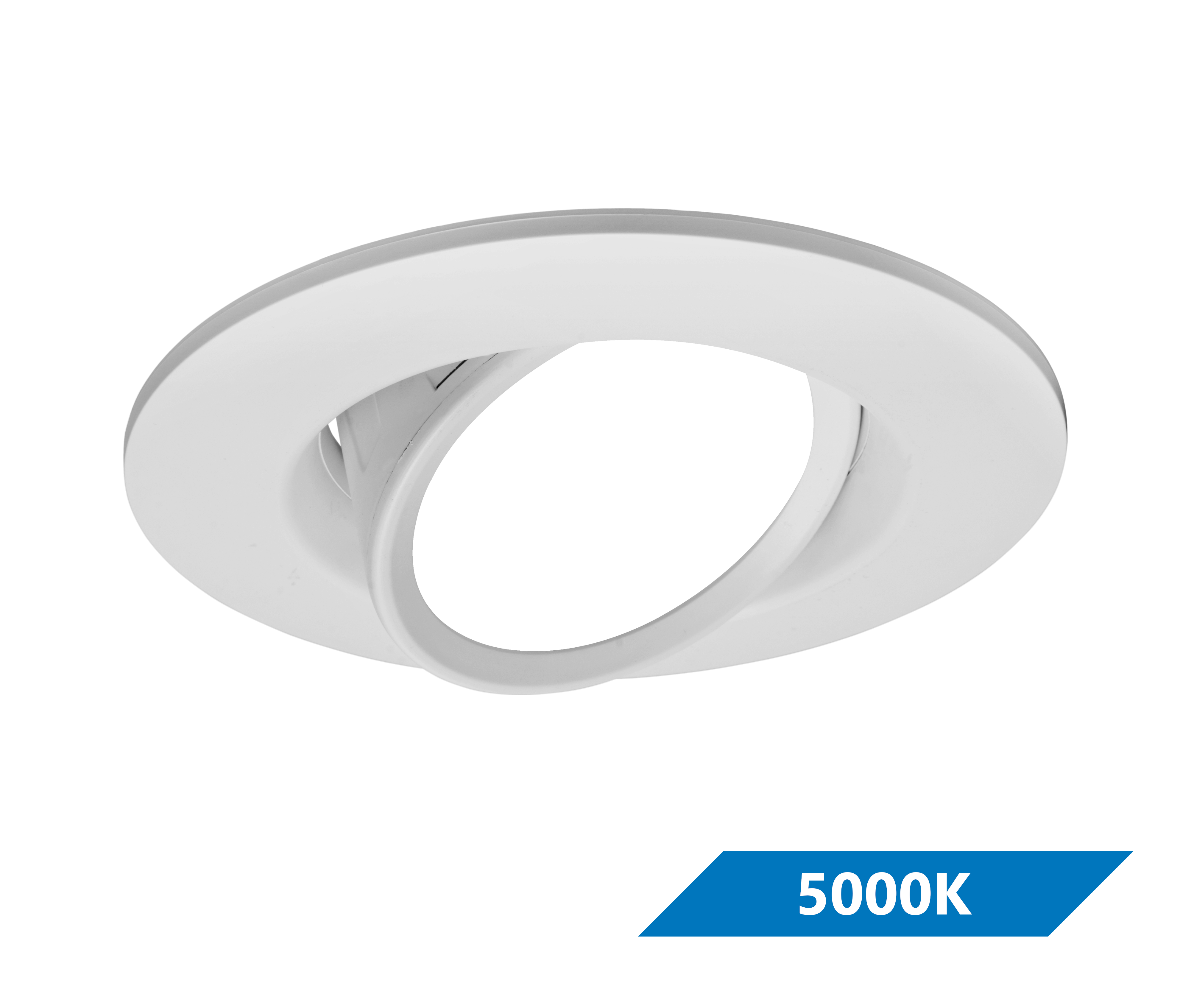

DCG Series 6 in. White Gimbal LED Recessed Downlight, 5000K
The DCG LED Downlight Gimbal Series provides an economical, easy-to-install upgrade from incandescent lighting to a long-lasting and energy-efficient LED solution. Its easy to use twist-and-turn design allows for fine adjustment of the gimbal position. The 354 degrees of rotation and 35 degrees of a…
The DCG LED Downlight Gimbal Series provides an economical, easy-to-install upgrade from incandescent lighting to a long-lasting and energy-efficient LED solution. Its easy to use twist-and-turn design allows for fine adjustment of the gimbal position. The 354 degrees of rotation and 35 degrees of adjustable tilt makes the DCG suitable for sloped ceilings and wall wash. The sleek design enhances any interior space with its flush mounting and aesthetic appeal.
- Adjustable gimbal (354° rotation, 35° tilt) for directional lighting
- Compatible with most 6” recessed housings (IC-rated supported)
- Energy-efficient LED with smooth dimming to <5%
- Uniform light distribution with reduced glare diffuser
- Quick install with Edison base and torsion spring mounting

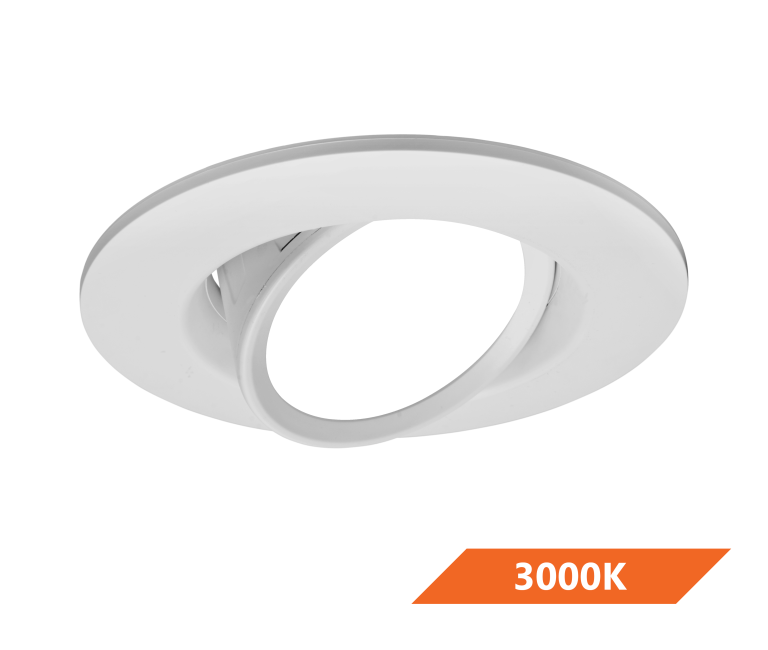

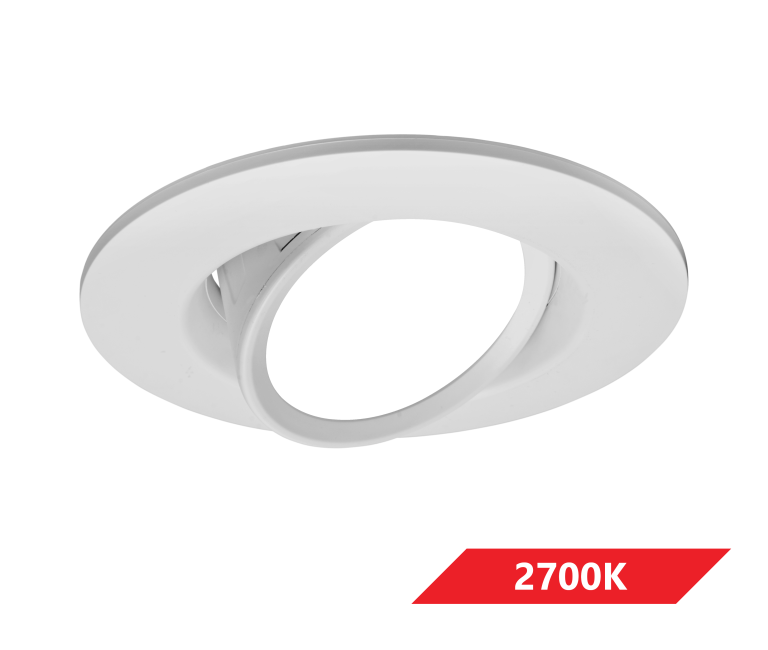

Color Options:
Ordering information
Downloads
Specifications
-
Lifespan56000 -
Lumens891
-
Wattage10.4
Listings & certifications
- cETLus Intertek Classified
- Title 24
- JA8
- FCC Class B
- Damp-Location
- Testing performed in accordance with IESNA standards
Features
Construction
- Durable polymer flange
- Die cast aluminum heat sink
- Fully captured, spring-steel mounting arms
- Matte white polymer
Optical System
- Polystyrene diffuser creates uniform light distribution with reduced glare
- Internal reflector cone maximizes lumen output
Electrical
- Input voltage of 120VAC
- Dimmable to less than 5% with recommended TRIAC dimmers
- Operating temperature of 0° to 104°F (-18°C to 40°C)
- TM-21 Reported L70(6K) hours = 56,000
- LM-79, LM-80 testing performed in accordance with IESNA standards
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Installations
- Compatible with most 6” recessed housings
- Quick and easy installation with a screw-in Edison base (GU24 socket string available) and torsion spring mounting system
Full Listings
- ETL Intertek Classified
- Title 24
- JA8
- Damp-Location
Warranty
- 5-year limited system warranty standard
