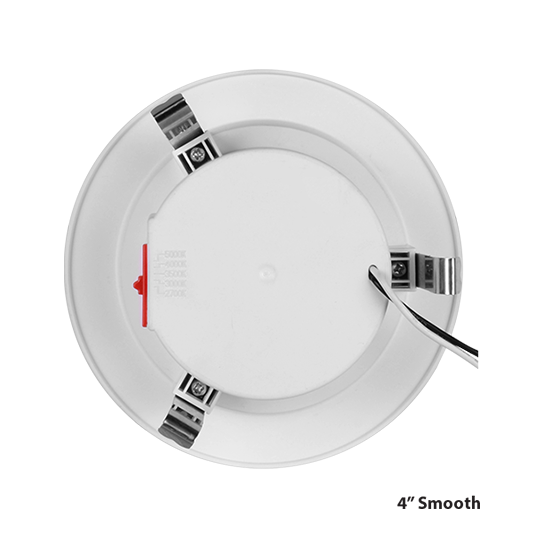

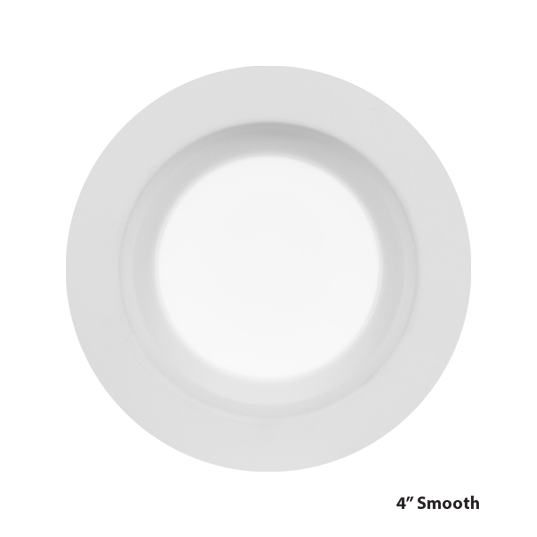

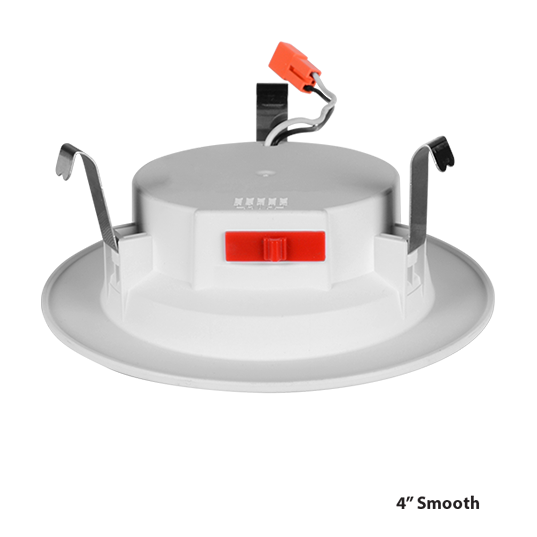

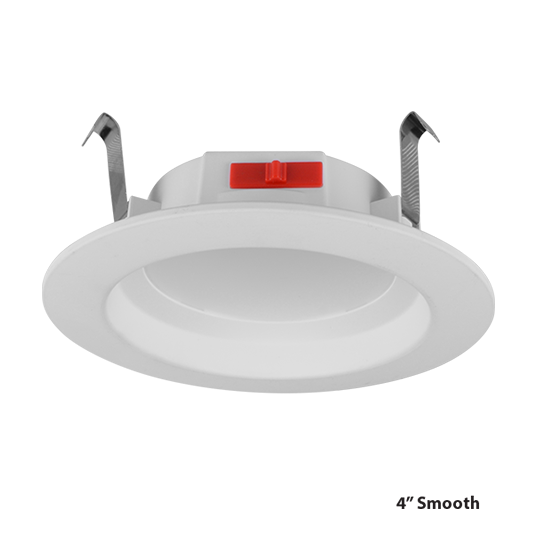

4-inch White Recessed Selectable LED Downlight
The DCR from NICOR is a versatile recessed LED downlight available in 4” and 5” & 6” sizes, suitable for both new construction and retrofit applications in most standard housings. Meeting the latest certification standards, the DCR delivers over 90 lumens per watt (LPW) with a color rendering index …
The DCR from NICOR is a versatile recessed LED downlight available in 4” and 5” & 6” sizes, suitable for both new construction and retrofit applications in most standard housings. Meeting the latest certification standards, the DCR delivers over 90 lumens per watt (LPW) with a color rendering index (CRI) of 90+ and an R9 value greater than 70, ensuring high-quality, vibrant illumination. Featuring a robust polymer trim, the DCR offers durability and an attractive finish, making it an excellent choice for energy-efficient, high-quality lighting solutions.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Polycarbonate diffuser creates uniform light distribution with reduced glare
- LEDs offer greater than 90 CRI and R9 greater than 50 for true color rendering
- Anti-rust polymer prevents chipping, cracking, dents, and scratches
- Available in smooth and baffle finishes
- White matte finish
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens719 - 764 lm
-
Wattage7.2
Listings & certifications
- cETLus Intertek Listed
- ENERGY STAR Certified
- Title 24
- JA8
- Title 20
- IC-Rated
- NFPA 70 Compliant
- RoHS Compliant
- FCC Class B
- ICES-005 Compliant
- Wet-Location (ETL 1598)
- Testing performed in accordance with IESNA standards
- LM-79, LM-80 testing performed in accordance with IESNA standards
Features
Construction
- Durable polymer flange
- Fully captured V-springs on 6”
- Friction fit arms on 4”
Optical System
- Polycarbonate diffuser creates uniform light distribution with reduced glare
- Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Utilizes high performing LEDs with 90+ CRI and an R9 > 70
Electrical
- Input voltage 120VAC, 60Hz
- CCT selection switch on side of fixture body
- Dimmable to <10% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature of -4°F to 104°F (-20°C to 40°C)
Installations
- Compatible with most 4” or 5” & 6” recessed housings
- Quick and easy installation with an IDEAL luminaire connector
- Ships with Edison base socket string (GU24 socket string available)
Full Listings
- cETLus 1598 Classified for wet locations
- CA Title 24 compliant (JA8)
- Rated for Insulation Contact
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- IECES-005 Compliant
- LM-79, LM-80 testing performed in accordance with IESNA standards
- LED lumen maintenance: L70(9k)>50,000 hrs
Warranty
- 5-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge.) For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
