DLQ4-10 Series

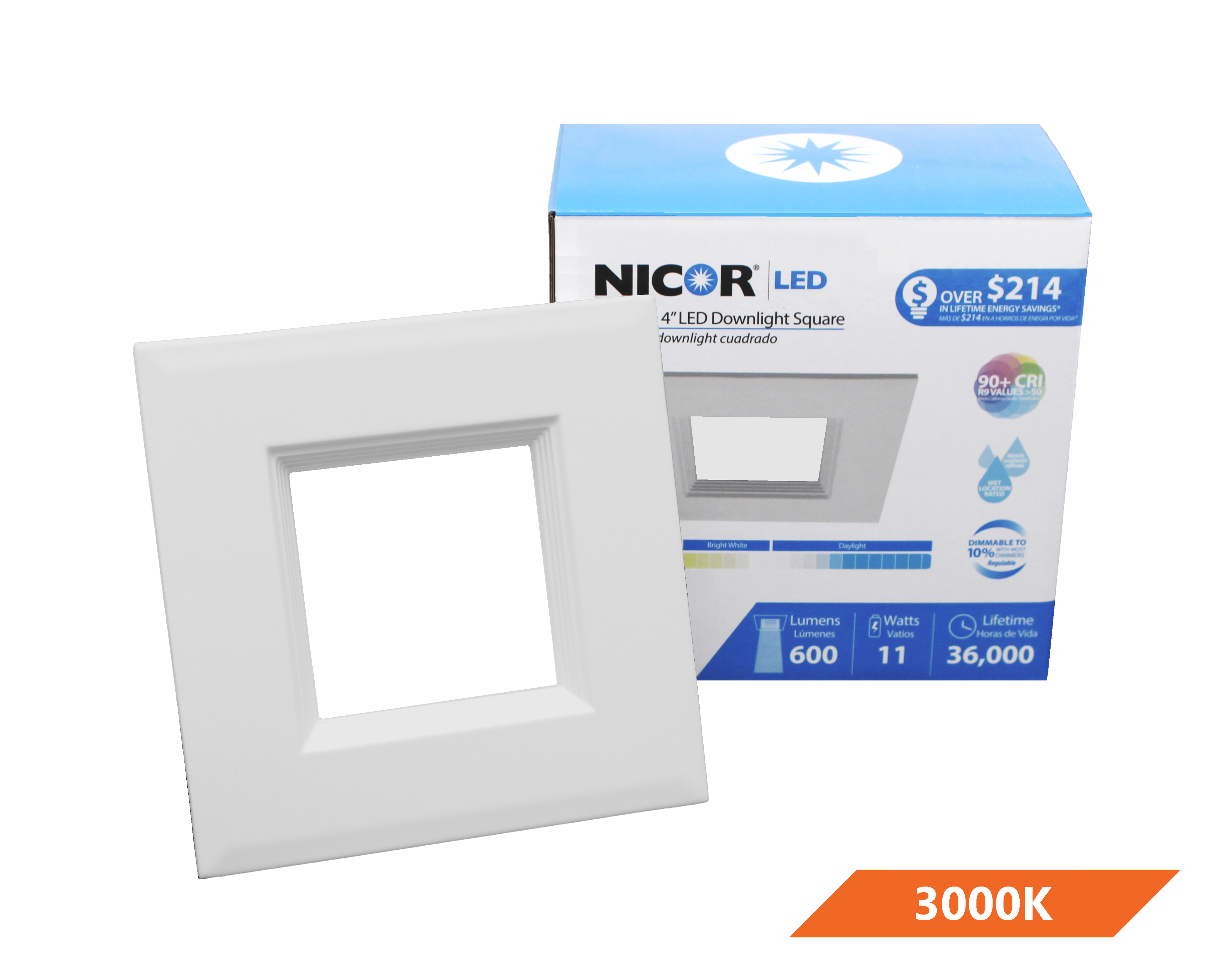

DLQ4 Series 4 in. Square LED Downlight Retrofit Kit in 3000K
Product description
Everything you love about the DLR4 is now available with the aesthetics of a square trim. Designed to boost energy efficiency, the LED light engine draws only 10.5 watts while achieving a light output to over 690 lumens. The enriched 90+ CRI light output provides superior color quality. Not only is …
Everything you love about the DLR4 is now available with the aesthetics of a square trim. Designed to boost energy efficiency, the LED light engine draws only 10.5 watts while achieving a light output to over 690 lumens. The enriched 90+ CRI light output provides superior color quality. Not only is the light quality better, but this design improvement meets new industry standards like Title 24.
- Die cast aluminum trim routes heat away from electrical components
- Polystyrene diffuser and reflector cone create a uniform light distribution that reduces glare without sacrificing lumen output
- Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10% with most standard dimmers
- Quick and easy installation with a screw-in Edison base (GU24 socket string available) and friction clip mounting system
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>36,000 -
Lumens681
-
Wattage11.3
Listings & certifications
Listings & Certifications
- cULus Listed
- Title 24
- JA8
- CEC Compliant
- Wet-Location
Features
Construction
- Die cast aluminum trim routes heat away from electrical components
- Low profile, integrated driver
- Exterior white powder coat finish, with interior high reflective finish
- Also available in Black, Oil-Rubbed Bronze and Nickel (special order only)
Optical System
- Polystyrene diffuser and reflector cone create a uniform light distribution that reduces glare without sacrificing lumen output.
Electrical
- Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
- Dimmable to 10% with most standard dimmers
- Thermally protected, high efficiency driver standard
- Operating temperature rating of 0°F to 120°F (-18°C – 49°C)
- Input voltage of 120V
- L70 rated for greater than 36,000 hours
- LM-79, LM-80 testing performed in accordance with IESNA standards.
Installations
- Compatible with most 4” recessed housings
- Quick and easy installation with a screw-in Edison base (GU24 socket string available) and friction clip mounting system
Warranty
- 5-year limited system warranty standard
