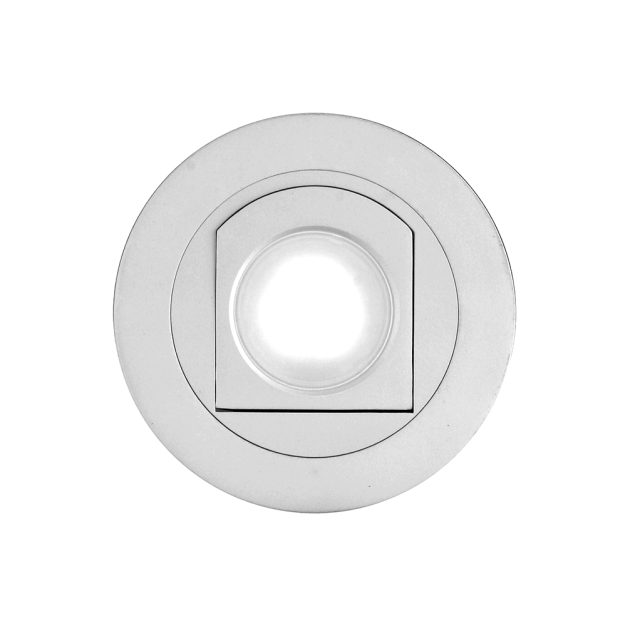

4” RETRACTABLE LED DOWNLIGHT

The DLR4-R retractable fixture takes the guesswork out of where to position your light. This warm ambient light source gives you 359° of rotation and 80° of adjustable tilt making this 4” fixture perfect for both accent and task lighting. You direct the light exactly where you need it without having to move anything in your design space. From LED color rendering and CCT options to fixture performance, this series is ideal for commercial, hospitality and residential applications.





Specifications

  • Available in Round
  • Available in White
  • Greater than 90 CRI; R9 greater than 50
  • Reported lifetime >54,000 Hours
  • 120V Input Voltage
  • Dimmable to less than 8% with most standard TRIAC dimmers
  • Operating Temperature: 0° to 104°F (-18°C to 40°C)

Downloads

– Brochure
Spec Sheet
– Installation Instructions

DLR4-R

2700K
Warm
3000K
Warm White
4000K
Neutral
600
Lumens
642
Lumens
700
Lumens
8.5
Input Watts
8.5
Input Watts
8.5
Input Watts
70.6
lm/W
75.5
lm/W
82.4
lm/W
92
CRI
92
CRI
92
CRI
IES Download IES Download IES Download

Part Numbers:

2700K: DLR4-R-10-120-2K
3000K: DLR4-R-10-120-3K
4000K: DLR4-R-10-120-4K

DLR4-R

2700K
Warm
3000K
Warm White
4000K
Neutral
600
Lumens
642
Lumens
700
Lumens
8.5
Input Watts
8.5
Input Watts
8.5
Input Watts
70.6
lm/W
75.5
lm/W
82.4
lm/W
92
CRI
92
CRI
92
CRI
IES Download IES Download IES Download

Part Numbers:

2700K: DLR4-R-10-120-2K
3000K: DLR4-R-10-120-3K
4000K: DLR4-R-10-120-4K
