RECESSED LED DOWNLIGHT SYSTEM

The DLRv5 LED from NICOR is ideal for new construction using the patented new construction frame kit and retrofit into most 4”, 5” and 6” housings. Improved to meet the newest certification standards, the DLR4 and DLR56 are over 70 LPW, 90+ CRI and R9 greater than 60. The DLR56v5 system of the downlight combined with the frame provides the lowest overall system cost for energy efficient, high quality lighting.

  *

* Not available in 5000K

^

^ When used with DLRv5 Downlight

Specifications

  • Utilizes high performing LEDs with >90 CRI and an R9 >60 (not available on 5000K)
  • Dimmable to 5% with compatible TRIAC dimmers
  • Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
  • Input voltage of 120V
  • Lifetime rated for > 60,000 hours
  • LM-79 testing performed in accordance with IESNA standards
  • Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
  • White powder coat finish
  • Trim Covers available in Oil Rubbed Bronze, Black and Brushed Nickel
DLRspec1-2
DLRspec2

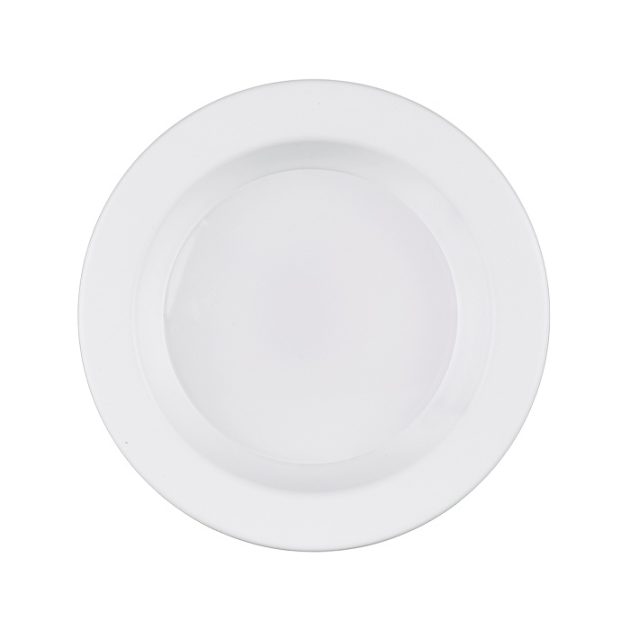

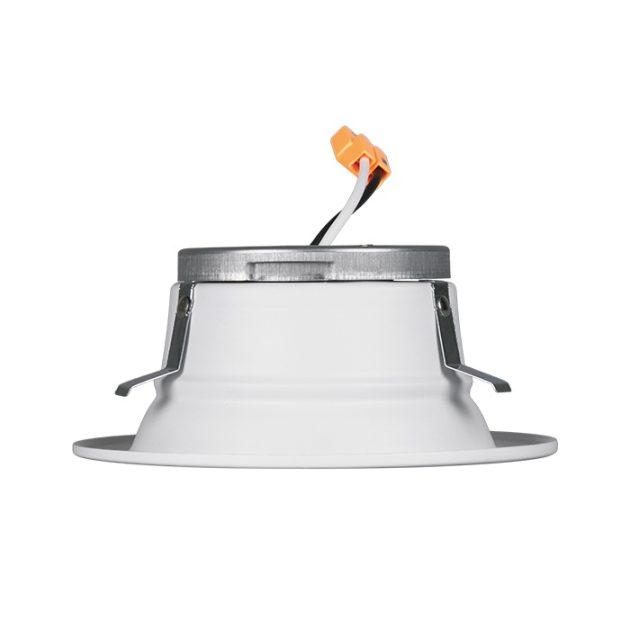

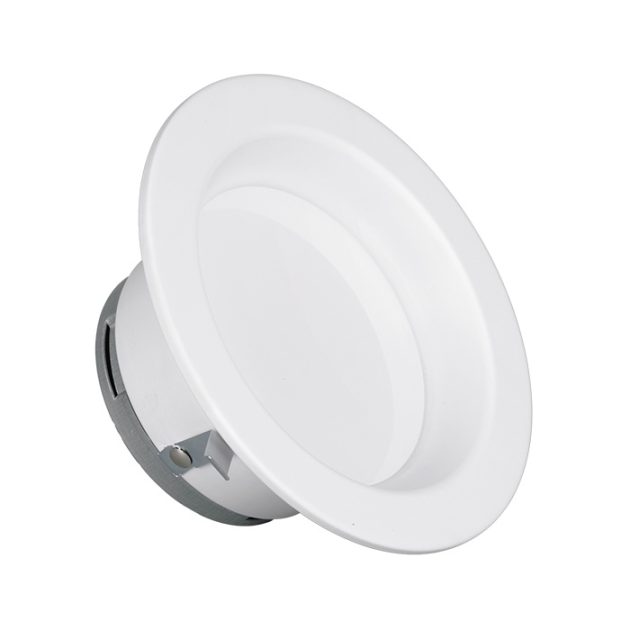

DLR4v5

DLRspec4-1

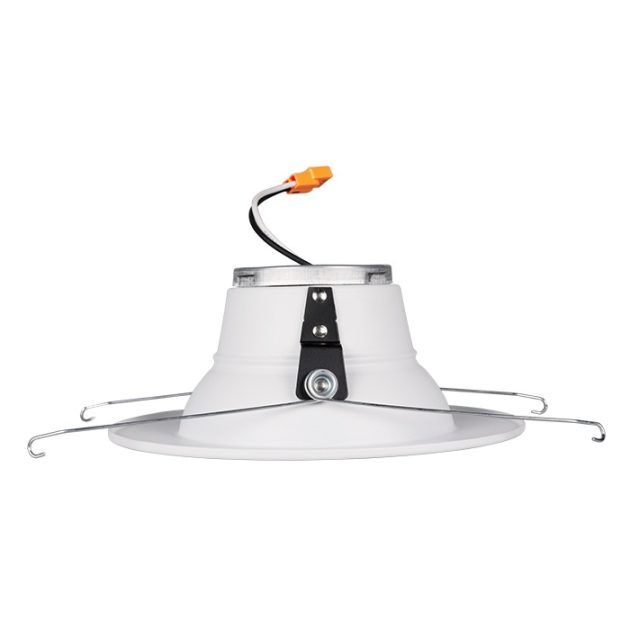

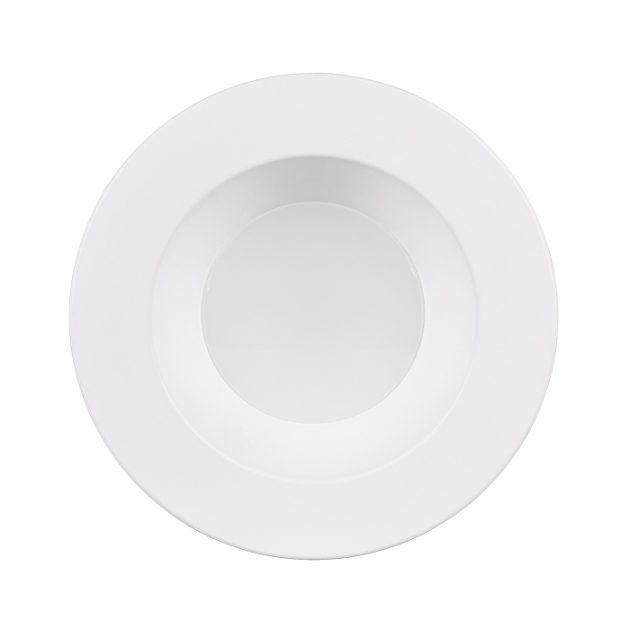

DLR56v5

DLRspec4-2
DLR4v5
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

754
Lumens

769
Lumens

798
Lumens

808
Lumens

9.3
Input Watts

9.3
Input Watts

9.3
Input Watts

9.3
Input Watts

81.5
lm/W

83.1
lm/W

86.2
lm/W

87.3
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K: DLR45061202KWHSystem: DLR45SYS062KWH
 3000K: DLR45061203KWHSystem: DLR45SYS063KWH
 4000K: DLR45061204KWHSystem: DLR45SYS064KWH
 5000K: DLR45061205KWHSystem: DLR45SYS065KWH
DLR56v5 800lm
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

915
Lumens

933
Lumens

968
Lumens

980
Lumens

12.2
Input Watts

12.2
Input Watts

12.2
Input Watts

12.2
Input Watts

75.3
lm/W

76.8
lm/W

79.6
lm/W

80.7
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K: DLR565081202KSystem: DLR565SYS082KWH
 3000K: DLR565081203KSystem: DLR565SYS083KWH
 4000K: DLR565081204KSystem: DLR565SYS084KWH
 5000K: DLR565081205KSystem: DLR565SYS085KWH
DLR56v5 1200lm
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

1383
Lumens

1411
Lumens

1464
Lumens

1483
Lumens

17.4
Input Watts

17.4
Input Watts

17.4
Input Watts

17.4
Input Watts

79.5
lm/W

81.1
lm/W

84.1
lm/W

85.2
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K: DLR565121202KSystem: DLR565SYS122KWH
 3000K: DLR565121203KSystem: DLR565SYS123KWH
 4000K: DLR565121204KSystem: DLR565SYS124KWH
 5000K: DLR565121205KSystem: DLR565SYS125KWH
DLR4v5
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

754
Lumens

769
Lumens

798
Lumens

808
Lumens

9.3
Input Watts

9.3
Input Watts

9.3
Input Watts

9.3
Input Watts

81.5
lm/W

83.1
lm/W

86.2
lm/W

87.3
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K: DLR45061202KWH System: DLR45SYS062KWH
 3000K: DLR45061203KWH System: DLR45SYS063KWH
 4000K: DLR45061204KWH System: DLR45SYS064KWH
 5000K: DLR45061205KWH System: DLR45SYS065KWH

DLR56v5 800lm
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

915
Lumens

933
Lumens

968
Lumens

980
Lumens

12.2
Input Watts

12.2
Input Watts

12.2
Input Watts

12.2
Input Watts

75.3
lm/W

76.8
lm/W

79.6
lm/W

80.7
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K: DLR565081202K System: DLR565SYS082KWH
 3000K: DLR565081203K System: DLR565SYS083KWH
 4000K: DLR565081204K System: DLR565SYS084KWH
 5000K: DLR565081205K System: DLR565SYS085KWH

DLR56v5 1200lm
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

1383
Lumens

1411
Lumens

1464
Lumens

1483
Lumens

17.4
Input Watts

17.4
Input Watts

17.4
Input Watts

17.4
Input Watts

79.5
lm/W

81.1
lm/W

84.1
lm/W

85.2
lm/W

94
CRI

94
CRI

94
CRI

94
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K: DLR565121202K System: DLR565SYS122KWH
 3000K: DLR565121203K System: DLR565SYS122KWH
 4000K: DLR565121204K System: DLR565SYS122KWH
 5000K: DLR565121205K System: DLR565SYS122KWH
