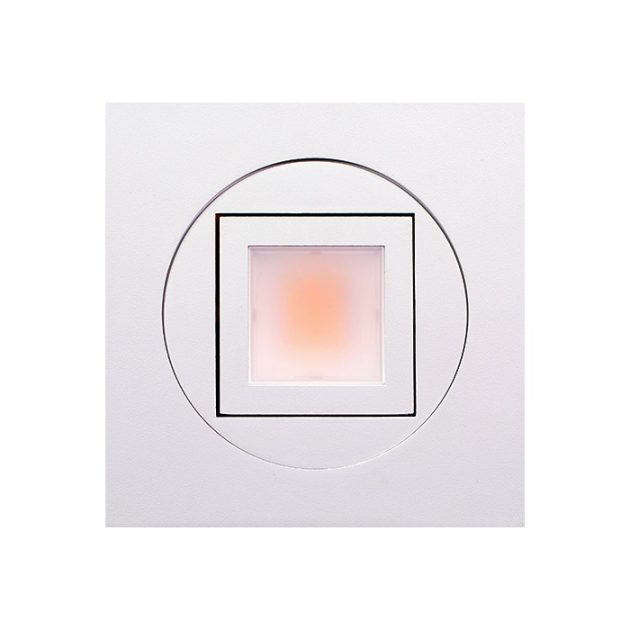

MULTI-ADJUSTABLE RECESSED LED DOWNLIGHT

The DQR4MA multi-adjustable series is a modern, square architectural solution for both new construction and retrofit lighting of residential, commercial, and retail spaces. This multi-adjustable downlight can be fully rotated (359°) and pivoted (±30°) making it a very flexible option for wall wash and sloped ceilings. For precise aiming, the DQR4MA is easily adjusted from below the ceiling. The use of high efficiency LED technology to balance color for natural white light, exceptional color rendering of greater than 90 CRI, and high efficacy make this luminaire an ideal choice for for homes, showrooms, conference rooms, corridors and other commercial spaces.





Specifications

  • Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
  • Input voltage of 120VAC
  • Dimmable to 5% with recommended TRIAC dimmers
  • Operating temperature rating of 0°F to 102°F (-18°C to 40°C)
  • Lifetime rated for greater than 36,000 hours
  • LM-79 testing performed in accordance with IESNA standards
  • Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
DQR4MA
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

669
Lumens

688
Lumens

706
Lumens

721
Lumens

8.9
Input Watts

8.9
Input Watts

8.9
Input Watts

8.9
Input Watts

75.2
lm/W

77.3
lm/W

79.3
lm/W

81.0
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700KDQR4MA11202K
 3000KDQR4MA11203K
 4000KDQR4MA11204K
 5000KDQR4MA11205K
DQR4MA
2700K
Warm
3000K
Warm White
4000K
Neutral
5000K
Cool

669
Lumens

688
Lumens

706
Lumens

721
Lumens

8.9
Input Watts

8.9
Input Watts

8.9
Input Watts

8.9
Input Watts

75.2
lm/W

77.3
lm/W

79.3
lm/W

81.0
lm/W

92
CRI

92
CRI

92
CRI

92
CRI

IES Download

IES Download

IES Download

IES Download

Part Numbers:

 2700K:DQR4MA11202K
 3000K:DQR4MA11203K
 4000K:DQR4MA11204K
 5000K:DQR4MA11205K
