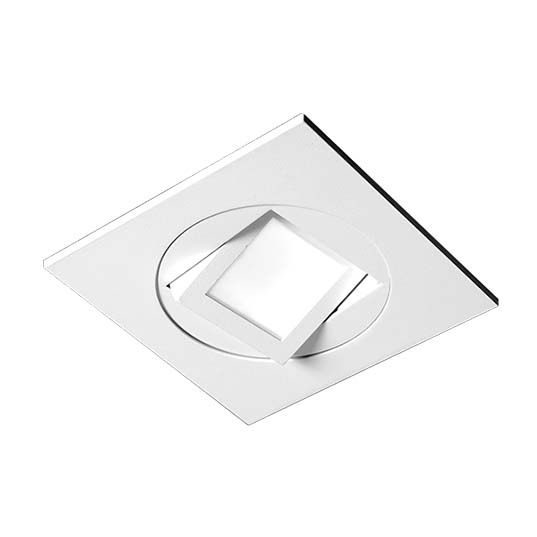

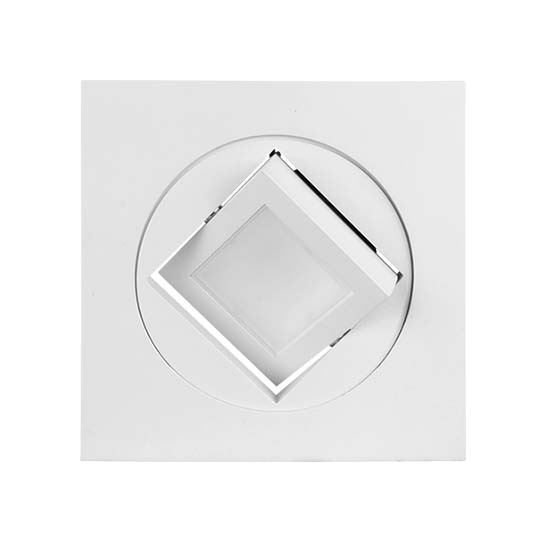

4″ White Square Multi-Adjustable Recessed Selectable LED Downlight
The DQR4MA multi-adjustable series is a modern, square architectural solution for both new construction and retrofit lighting of residential, commercial, and retail spaces. This multi-adjustable downlight can be fully rotated (359°) and pivoted (±30°) making it a very flexible option for wall wash a…
The DQR4MA multi-adjustable series is a modern, square architectural solution for both new construction and retrofit lighting of residential, commercial, and retail spaces. This multi-adjustable downlight can be fully rotated (359°) and pivoted (±30°) making it a very flexible option for wall wash and sloped ceilings. For precise aiming, the DQR4MA is easily adjusted from below the ceiling. Selectable CCT via a switch on the driver, exceptional color rendering of greater than 90 CRI, and high efficacy make this luminaire an ideal choice for homes, showrooms, conference rooms, corridors and other commercial spaces.
- Five selectable color temperatures (2700K/3000K/3500K/4000K/5000K)
- Polystyrene diffuser creates uniform light distribution with reduced glare
- Utilizes high performing LEDs with >90 CRI and an R9 >50
- Directional Lighting: Precision lighting with 30° tilt and 359° rotation
- Operating temperature of -22°F to 104°F (-30°C to 40°C)
Color Options:
Ordering information
Downloads
Specifications
-
Lifespan>50,000 -
Lumens751 - 842 lm
-
Wattage7.6 - 7.7 W
Listings & certifications
- UL Certified
- ENERGY STAR Certified
- Title 24
- JA8
- Title 20
- NFPA 70 Compliant
- ICES-005 Compliant
- Damp-Location (UL 1598)
- Testing performed in accordance with IESNA standards
- Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
Features
Construction
- Die cast aluminum housing
- Friction clip mounting system.
- Low profile integrated driver allows for use in shallow housings
Optical System
- Polystyrene diffuser creates uniform light distribution with reduced glare
- Contains dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
- Utilizes high performing LEDs with 90+ CRI and an R9 > 50
Electrical
- Input voltage 120VAC, 60Hz

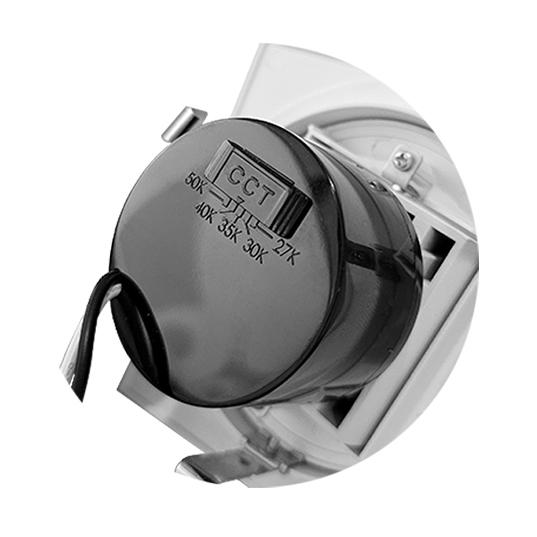

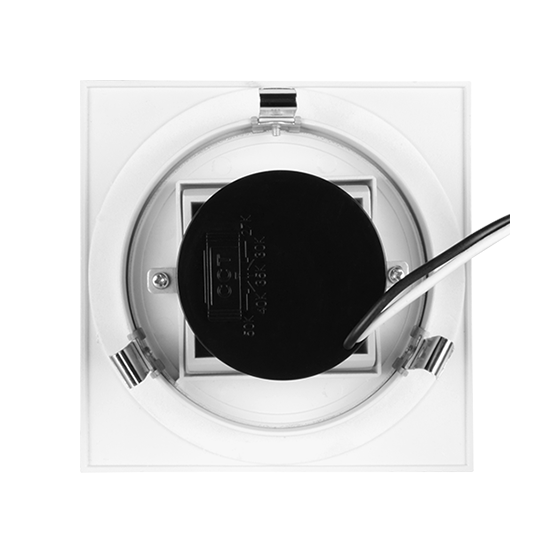

- CCT selection switch on top of driver housing
- Dimmable to <10% with compatible leading edge (TRIAC) or trailing edge (ELV) dimmers
- Operating temperature of -22°F to 104°F (-30°C to 40°C)
Installations
- Compatible with most 4” recessed housings

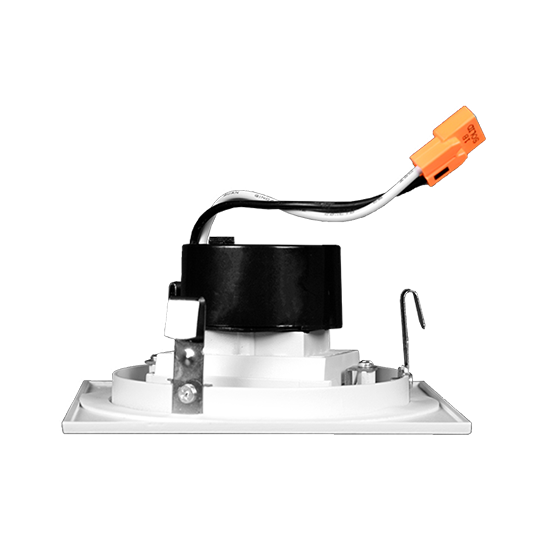

- Quick and easy installation with included quick-connect plug.
- Ships with Medium/E26 socket string (GU24 socket string available)
Full Listings
- cULus 1598 Classified for damp locations
- Compliant with NFPA® 70, NEC® Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
- RoHS Compliant
- Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
- IECES-005 Compliant
- LED lumen maintenance: L70(9k)>50,000 hrs
- LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty
- 5-year limited system warranty
- Warranty does not cover product failure due to an overvoltage event (power surge). For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
