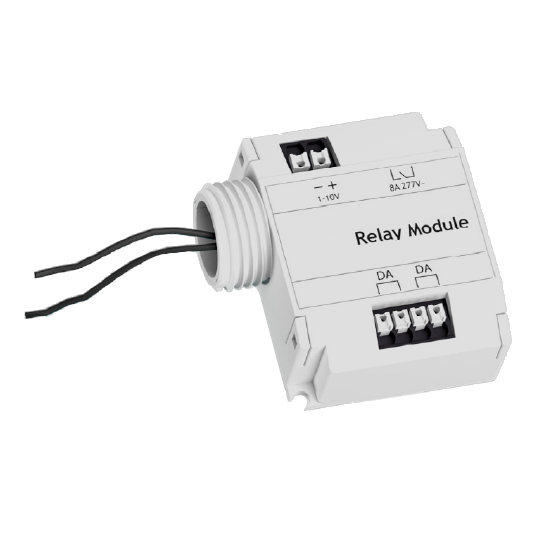

IMS Enabled DALI-2 Relay Module & DALI to 0-10V Converter
The IMS3D0-10VRLY is a DALI-2 to 1-10V converter, enabling 1-10V loads to be controlled via DALI communication systems. Controlling one standard contactor or 2,500W of fixtures, the IMS3D0-10VRLY allows fixtures without a DALI input to be integrated into a DALI circuit. Powered via the DALI bus, it …
The IMS3D0-10VRLY is a DALI-2 to 1-10V converter, enabling 1-10V loads to be controlled via DALI communication systems. Controlling one standard contactor or 2,500W of fixtures, the IMS3D0-10VRLY allows fixtures without a DALI input to be integrated into a DALI circuit. Powered via the DALI bus, it is compatible with the NICOR IMS 3.0. The device supports the DALI specification IEC 62386-208 (Device Type 7, “switching function”) for non-dimmable loads and the DALI specifications IEC 62386-206 (Device Type 5, “converter”) for loads dimmable via the 1–10 V interface, respectively (max. 50 mA current sink).
- Enables integration of non-DALI fixtures into DALI systems via 0-10V conversion
- Supports both switching (relay) and dimming (1-10V interface) control
- Handles up to 10A load/277VAC and controls up to 2,770VA of fixtures
- Powered directly via DALI bus for simplified wiring
- Includes zero-cross switching and configurable relay behavior on power loss
Color Options:
WhiteOrdering information
Downloads
Specifications
Listings & certifications
- cULus Listed
- DALI Alliance Certified
- RoHS Compliant
- IP20 Ingress Protection
- Powered via DALI bus (DALI-voltage according to IEC 62386 (2014))
- Supports DALI specification IEC 62386-208 (Device Type 7, “switching function”) for non-dimmable loads
- Supports DALI specification IEC 62386-206 (Device Type 5, “converter”) for dimmable loads
Features
Construction
- Housing of ABS material
Electrical
- Potential-free, bi-stable relay make contact
- Configurable relay position in case of power loss
- Zero cross switching function
- 1x DALI-2 interface
- 1x 1-10VDC interface
- Powered via DALI bus (DALI-voltage according to IEC 62386 (2014))
- 120-277VAC switched relay output
- Rated load of 2,500W total power
- Max load 9A, 277VAC (Electronic Ballast)
Installations

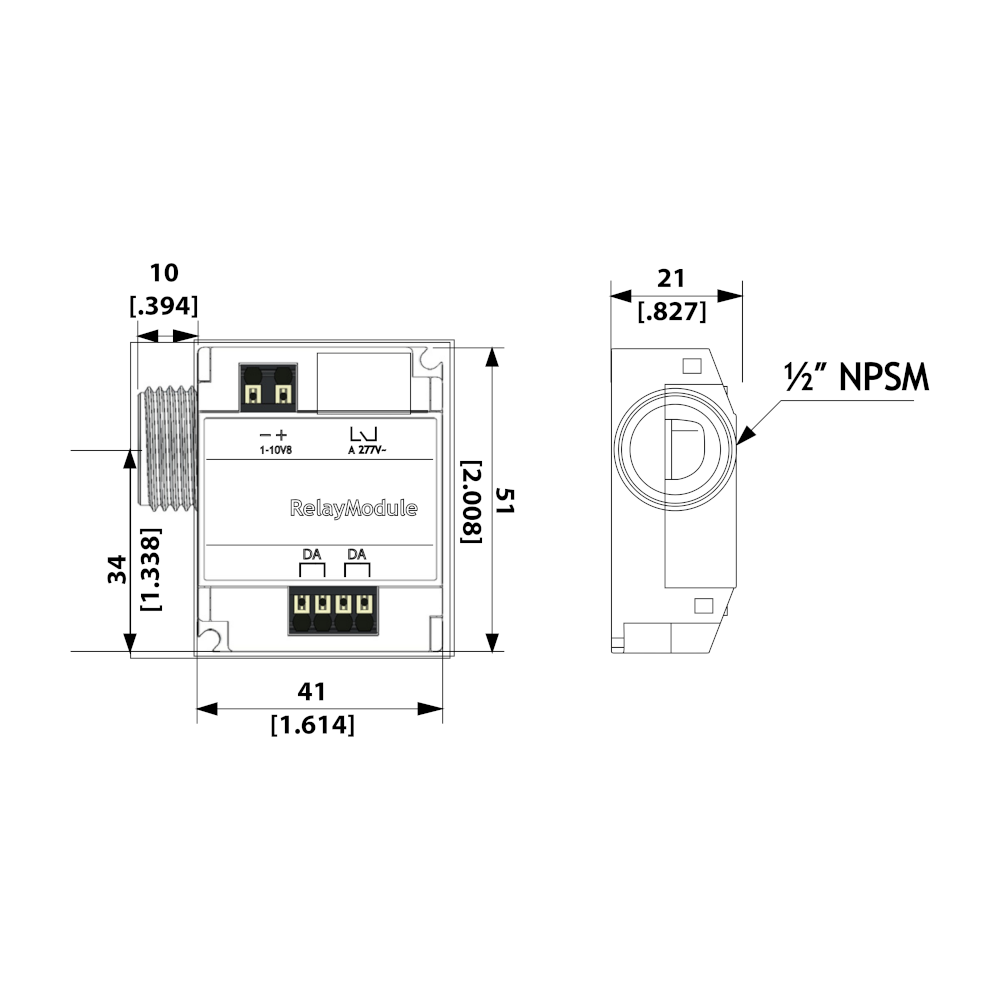

- 1/2” NPT nipple for connection to junction box
- Terminals handle 26-16 AWG wire
Full Listings
- cULus Listed
- RoHS Compliant
- DALI Alliance certified
- IP20 rated
- Operating Conditions 32°F to 122°F (0°C to 50°C)
- Relative Humidity 10-90% non-condensing
Warranty
- 3-year limited system warranty standard
- Warranty does not cover product failure due to an overvoltage event (power surge)
